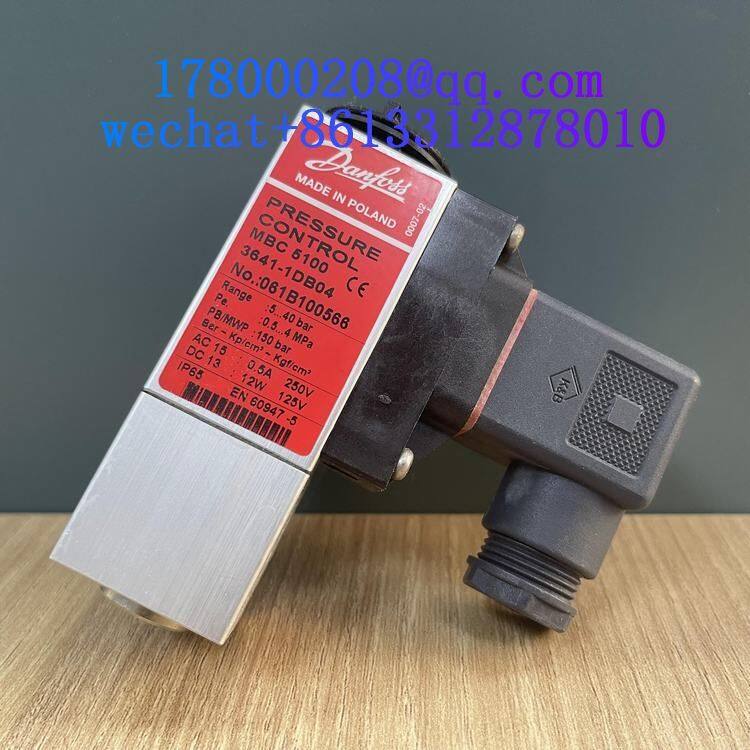

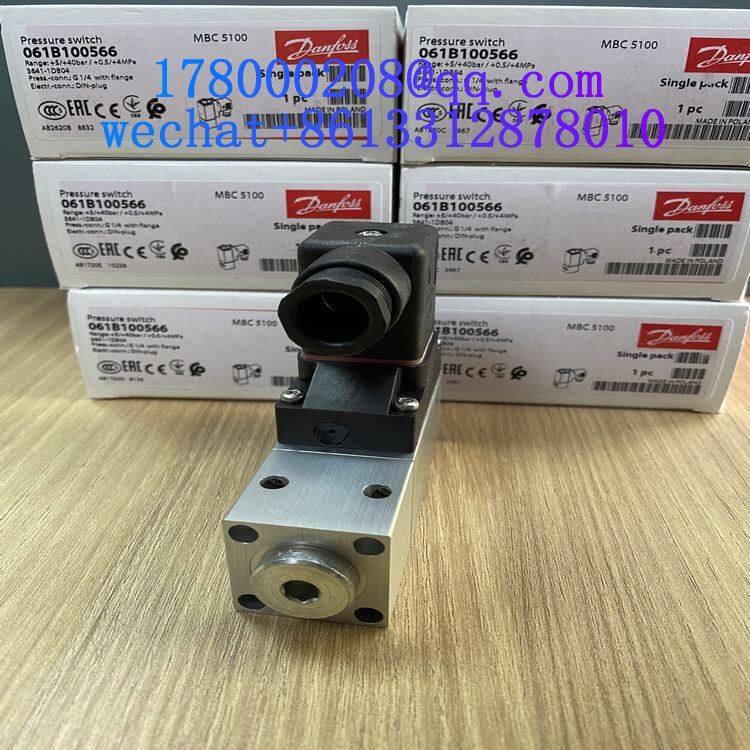

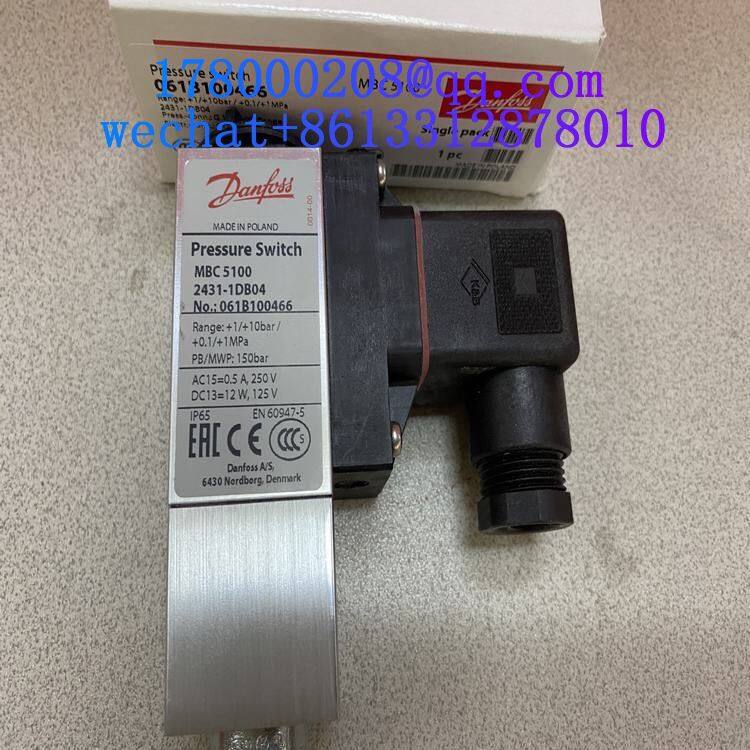

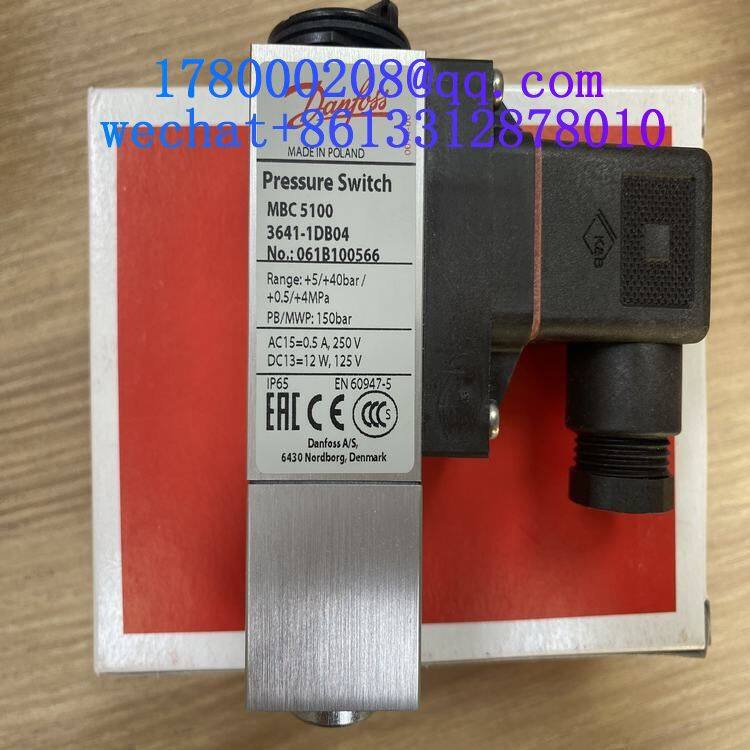

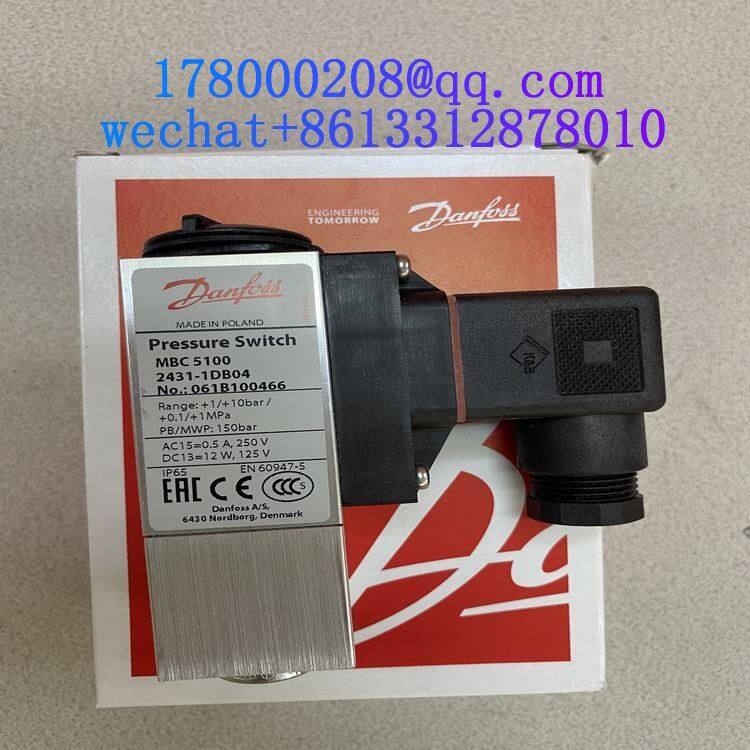

MBC5100-061B10045 Pressure Switch Produced by Danfoss

MBC5100-061B10045 pressure switch produced by Danfoss Product introduction

MBC pressure switches are used in industrial and marine applications where space and reliability are the most important features. MBCs are compact pressure switches, designed according to our block design to survive in the harsh conditions known from machine rooms onboard ships. MBCs have high vibration resistance and MBC 5100 features all common marine approvals. The fixed, but low differential guarantees accurate monitoring of critical pressures. MBV test valves can be delivered as standard option for MBC.

Features • Designed for use in severe industrial, environments • High vibration stability • Part of the Danfoss block system, consisting of MBC pressure controls, MBS pressure transmitters and MBV test valves • MBC 5100 with all major ship approvals • High repeatability • Optimal compact design for machine building purposes • Intended for alarm indication, shut down, control and diagnostics in many applications - motors, gears, thrusters, pumps, filters, compressors, etc.

Technical data Table 1: Performance Repeatability Bellows versions ± 0.2 % FS (typ.) ± 0.5 % FS (max.) Diaphragm versions ± 0.5 % FS (typ.) ± 1.0 % FS (max.) Piston versions ± 1.0 % FS (typ.) ± 1.0 % FS (max.) Max. switch frequency 10/min (0.16 Hz) Differential See page 6 Permissible operating pressure See page 6 Burst pressure See page 6 Lifetime Mechanical for diaphragm and bellows Mechanical for piston type Electrical at max. contact load > 400,000 cycles >1 million cycles > 100,000 cycles Table 2: Electrical speci€cations Switch Utilization category SPDT Contact load AC 15 0.5 A, 250 V DC 13 12 W, 125 V Table 3: Environmental conditions Temperature Operation Bellows versions Diaphragm versions Piston versions -40 – 85 °C -10 – 85 °C -40 – 85 °C Transport Bellows versions Diaphragm versions Piston versions -50 – 85 °C -50 – 85 °C -40 – 85 °C Enclosure IP65, EN 60529 Vibration stability Sinusoidal 20 g, 25 – 2 kHz EN 60068-2-6 Piston type 4.4 g, 25 – 200 Hz IEC 60068-2-27 Table 4: Mechanical characteristics Pressure connection Standard G 1⁄4 female (ISO 228-1) or ‡ange Option See specification form, page 4 Electrical connection Plug DIN 43650, Pg 9 / Pg 11 / Pg 13.5 Wetted parts material Housing Anodized AIMgSi1, AW-6082T6 Stainless steel 1.4306 (18/8), acc. to EN10088-3 Bellows Stainless steel 1.4306 (18/8), acc. to EN10088-2 Diaphragm FKM Piston Stainless steel 1.4028 (3H13), acc. to EN10088-2 O-ring NBR Hole plug (‡ange version) Nickel plated brass or zinc plated steel Seal (piston version) Turcon T05 Enclosure material Housing Anodized AIMgSi1, AW-6082T6 Plug fixture Glass filled polyamid, PA 6.6 Contact system Silver (AG) microprofile Net weight 0.25 kg
