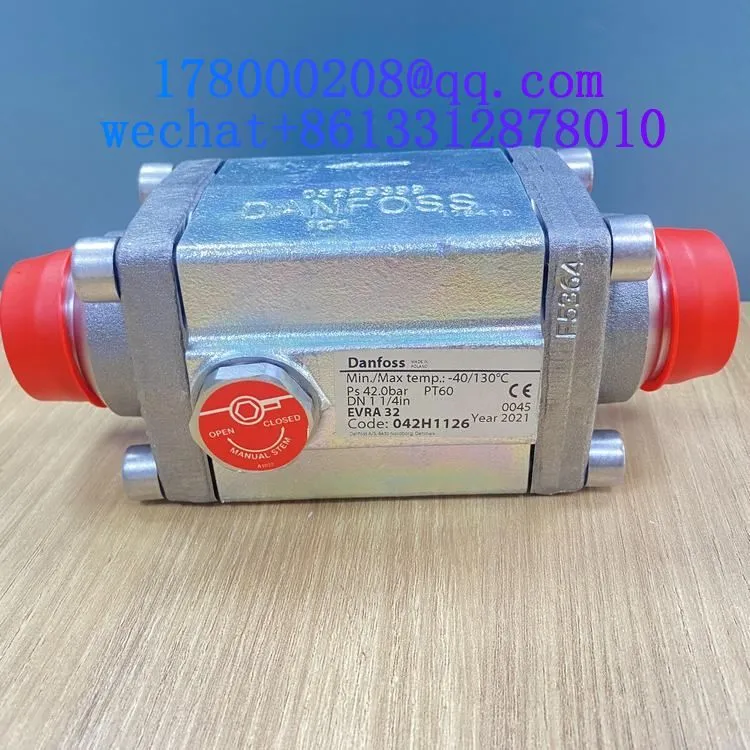

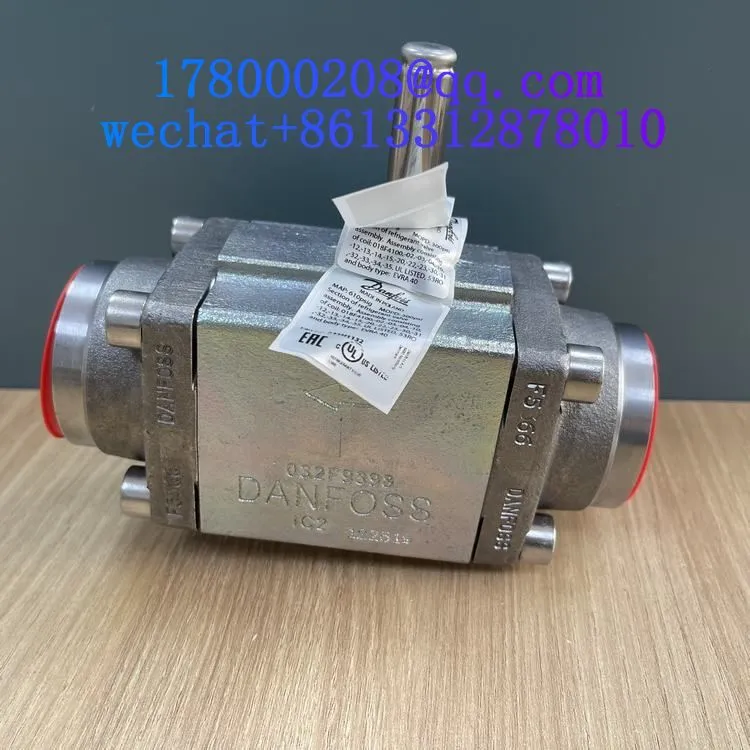

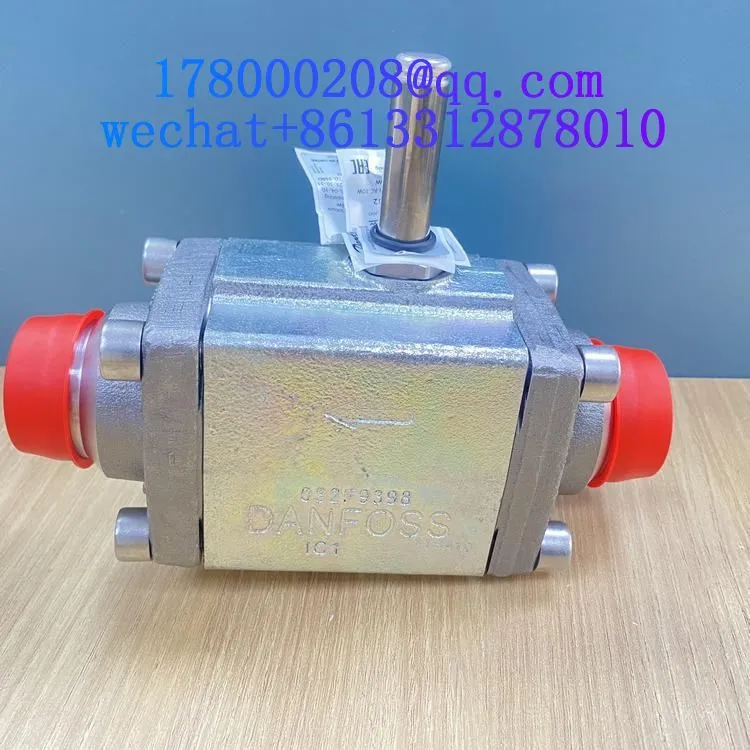

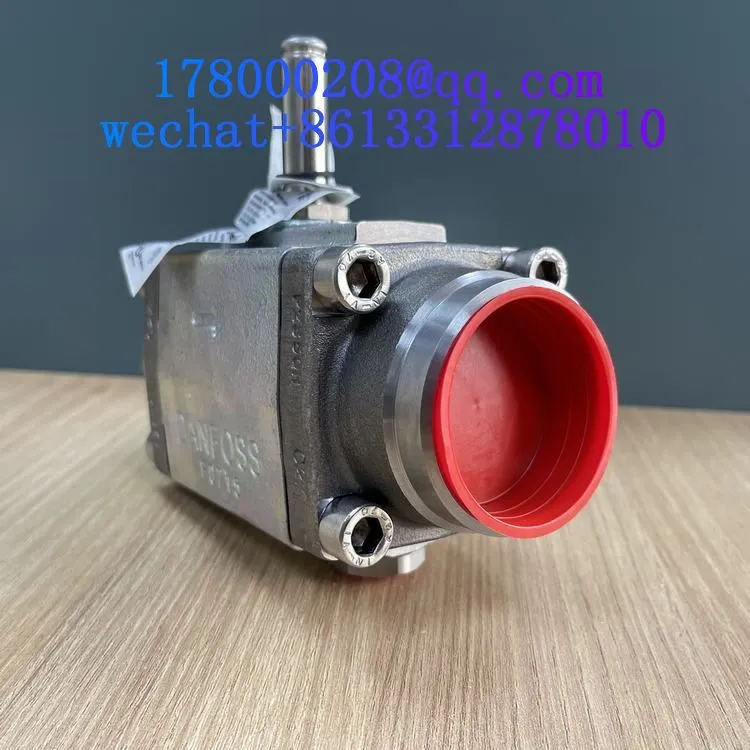

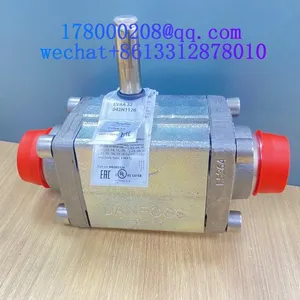

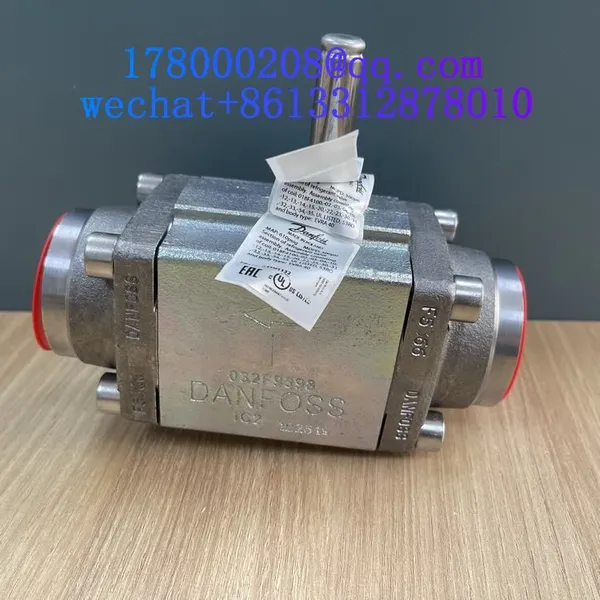

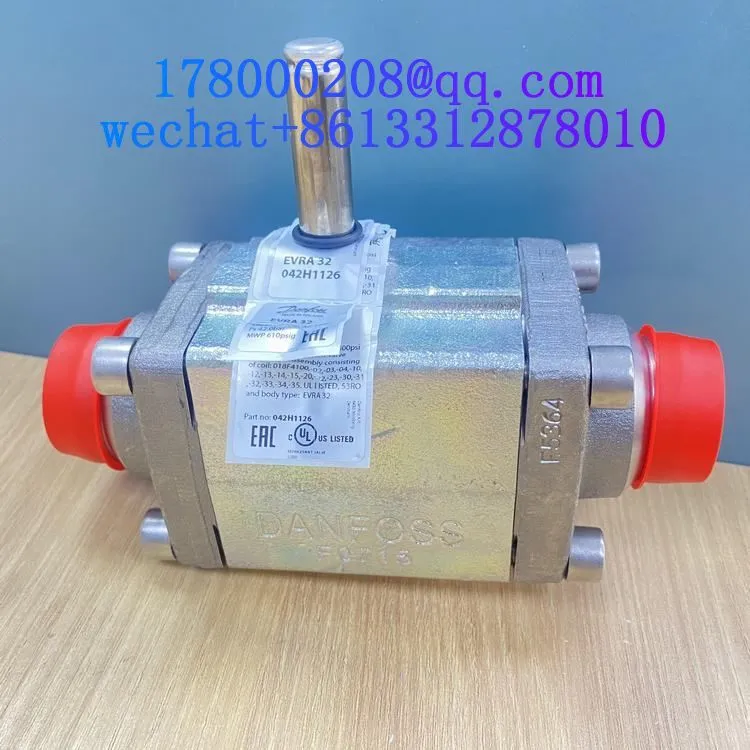

Danfoss EVRA32-40-042H1126 servo solenoid valve Product introduction
EVRA is a direct or servo operated solenoid valve for liquid, suction and hot gas lines with ammonia or fluorinated refrigerants. EVRA valves are supplied complete or as separate components, i.e. valve body, coil and flanges can be ordered separately. EVRAT is an assisted lift, servo operated solenoid valve for liquid, suction and hot gas lines with ammonia and fluorinated refrigerants. EVRAT is specially designed to open - and stay open - at a pressure drop of 0 bar. The EVRAT solenoid valve is thus suitable for use in all plant where the required opening differential pressure is 0 bar. EVRAT is available as components, i.e. valve body, flanges and coil must be ordered separately. EVRAT 10, 15 and 20 all have spindle for manual operation.
• Refrigerants: Applicable to HCFC, HFC and R717 (Ammonia). • Temperature of medium -40°C – +105°C. Max. 130°C during defrosting. • Ambient temperature and enclosure for coilSee “Coils for solenoid valves”, DKRCC.PD.BS0.F.• Classification: DNV, CRN, BV, EAC etc. To get an updated list of certification on the products please contact your local Danfoss Sales Company.
Function: NC, Inlet connection type: Butt weld, Outlet connection type: Butt weld, Manual operation option: Yes, Cv value [gal/min]: 18.500, Kv value [m³/h]: 16.000
| Gross weight | 4.9 kg |
| Net weight | 4.42 kg |
| EAN | 5702422171331 |
| Actuator system [mm] | 13.5 mm |
| Ambient temperature | -40 - 80 °C |
| Ambient temperature range [°F] [Max] | 175 °F |
| Ambient temperature range [°F] [Min] | -40 °F |
| Approval | C UL US LISTED EAC LLC CDC TYSK |
| Body material | Cast iron |
| Coil | No |
| Connection material | Steel |
| Connection standard, inlet | EN 10220 |
| Connection standard, outlet | EN 10220 |
| Cv value [gal/min] | 18.5 gal/min |
| Direction | Straightway |
| Flow direction indicator | Embossed 1-way arrow |
| Function | NC |
| Inlet connection type | Butt weld |
| Inlet size [in] | 1 1/4 in |
| Kv value [m³/h] | 16 m³/h |
| Manual operation option | Yes |
| Max. Working Pressure [bar] | 42 bar |
| Max. Working Pressure [psig] | 610 psig |
| MaxOPD[bar] 10W AC | 21 bar |
| MaxOPD[bar] 12W AC | 25 bar |
| MaxOPD[bar] 20W DC | 14 bar |
| MaxOPD[psi] 14W AC | 300 psi |
| Medium temp. range note | Defrost max 130°C/265°F |
| Medium temperature range [°C] [Max] | 105 °C |
| Medium temperature range [°C] [Min] | -40 °C |
| Medium temperature range [°F] [Max] | 221 °F |
| Medium temperature range [°F] [Min] | -40 °F |
| MinODP [bar] | 0.2 bar |
| MinODP [psi] | 2.9 psi |
| Orifice size [mm] | 22.23 mm |
| Outlet connection type | Butt weld |
| Outlet size [in] | 1 1/4 in |
| Packing format | Single pack |
| Parts Program name | EVRA / EVRAT |
| Product accessories | Solenoid valve accessories |
| Product family name | EVRA |
| Product group | Solenoid valves |
| Product name | Solenoid valve |
| Quantity per packing format | 1 pc |
| Refrigerants | R134a R22 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R507A R717 |
| Serviceable | Solenoid valve spare parts |
| Type | EVRA 32 |
| Type designation | Solenoid valve |
| Valve operation | SERVO-PISTON |
