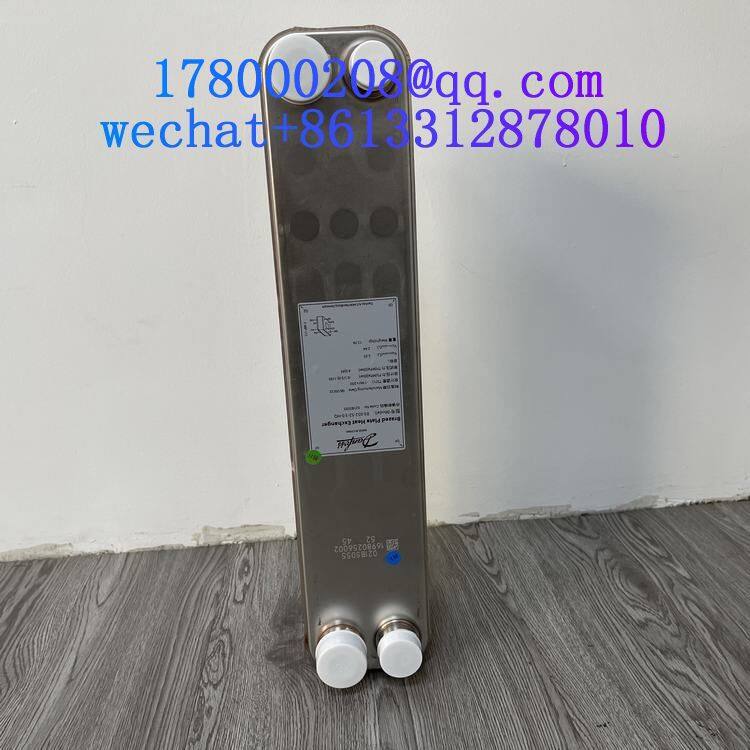

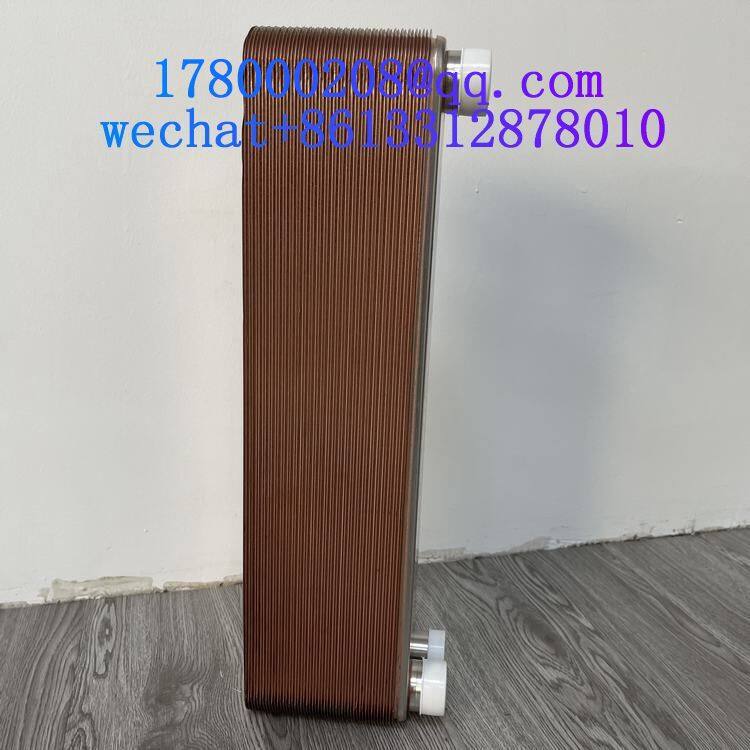

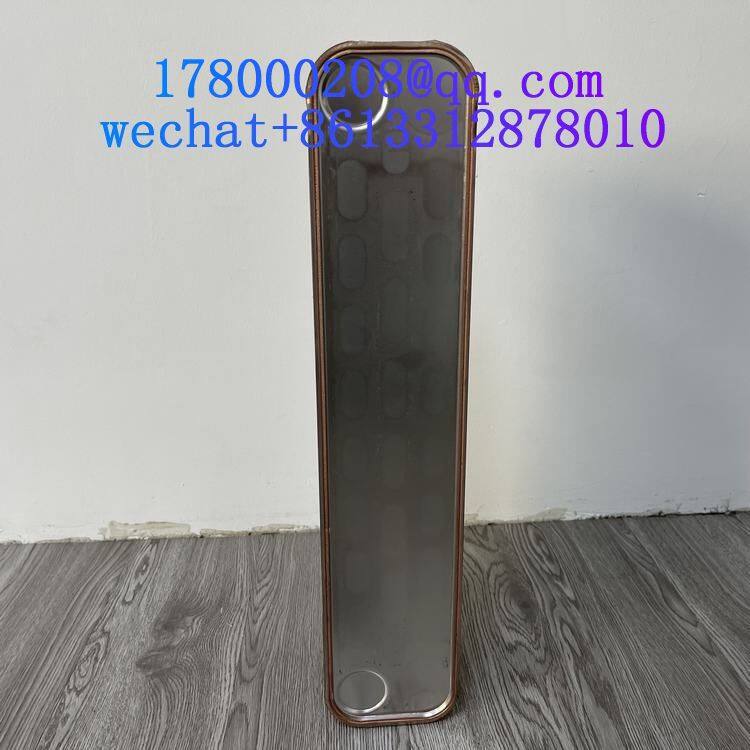

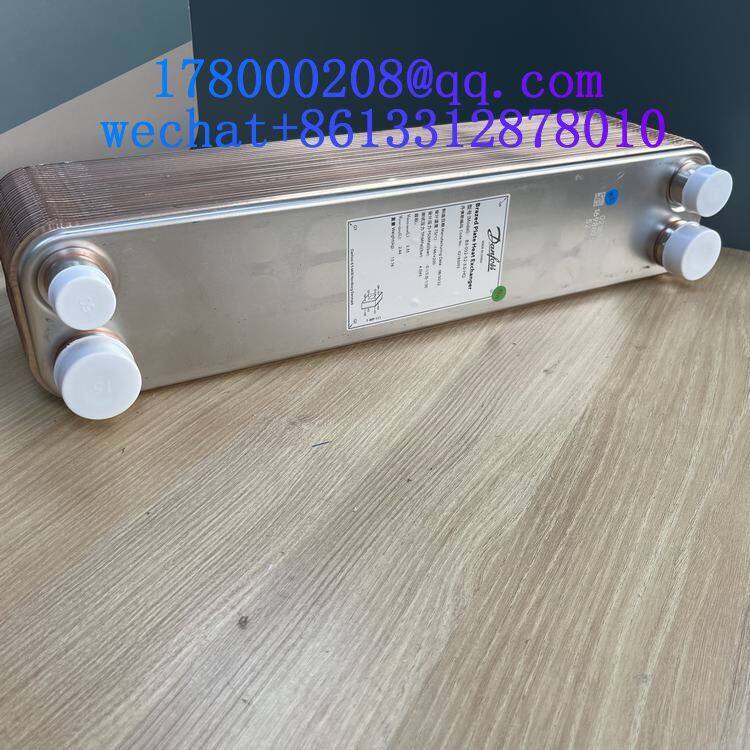

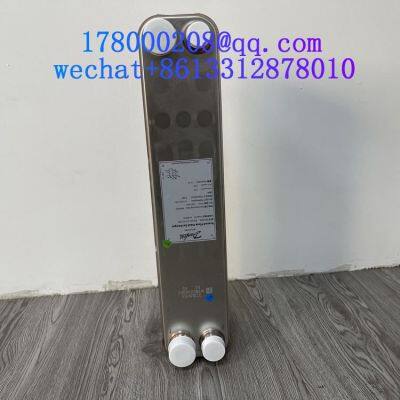

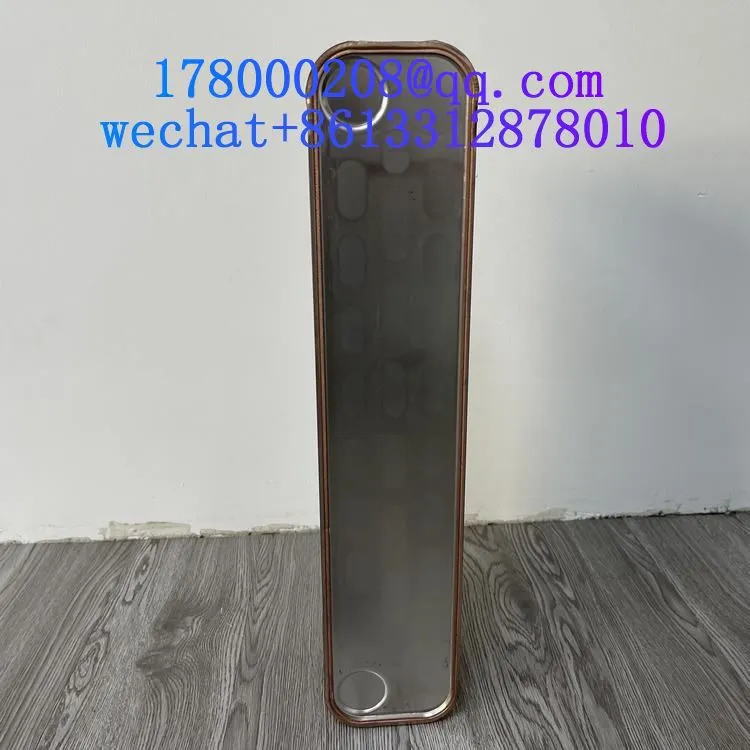

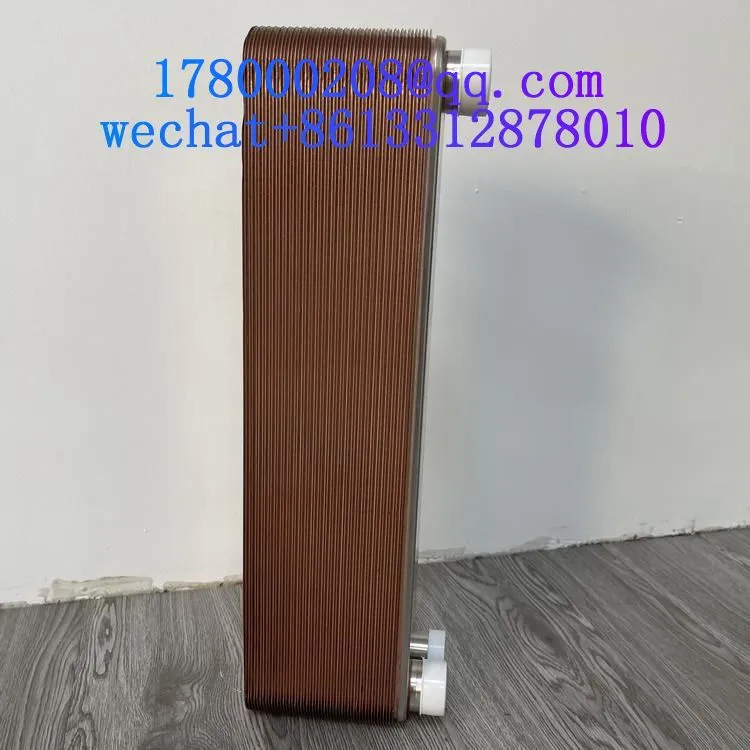

Danfoss B3-095B-36-3.0-H Plate Heat Exchanger

Danfoss B3-095B-36-3.0-H plate heat exchanger product details

Danfoss offers a wide range of heat exchangers in a modular system based on a platform of high quality components. You can define both the capacity and the connections you need for your specific application. The heat exchangers are compact and space saving. Danfoss is a worldwide leading manufacturer of refrigeration & air conditioning controls and compressors. We have extended our product portfolio to include brazed plate heat exchangers BPHE, designed for a wide range of applications. B3 brazed plate heat exchangers BPHE can be customized to your specific application requirements. These reliable products offer the same high quality you have come to expect from Danfoss, and they are backed by our industry leading sales and support organization. Features: • Compact size • Reduced internal hold-up volumes • Superior efficiency • Closer approach temperatures • Higher working pressures • Reduced fouling • Highly flexible design for manufacturing • Cost effective • Wide variety of connection styles and sizes • High technology manufacturing

Approval	EAC LLC CDC EURO-TYSK PED UL
Brazing material	Copper brazing
Design temperature range [°C] [Max]	200 °C
Design temperature range [°C] [Min]	-196 °C
Design temperature range [°F] [Max]	320 °F
Design temperature range [°F] [Min]	-390 °F
Equipment	Stud
H3 conn. size	R1 1/2
H3 conn. type	R Internal thread connection
H4 conn. size	R1 1/2
H4 conn. type	R Internal thread connection
Max working pressure [psi]	435 psi
Max. Working Pressure [bar]	30 bar
Model no.	095B

Number of plates	36
Packing format	Single pack
Plate material	AISI 304L
Plate pattern	H
Product group	Heat exchangers
Product name	Brazed plate heat exchanger
Q1 conn. size range	R1 1/2
Q1 conn. type	R Internal thread connection
Q2 conn. size range	R1 1/2
Q2 conn. type	R Internal thread connection
Quantity per packing format	1 pc
Refrigerants	R1336mzz(Z) R134a R22 R290 R407C
