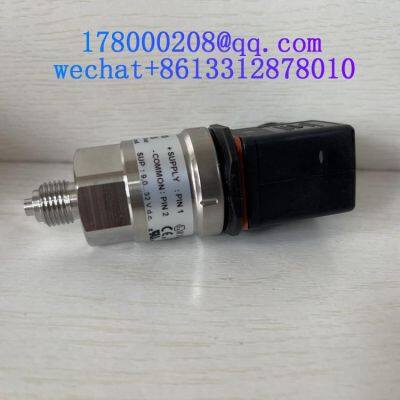

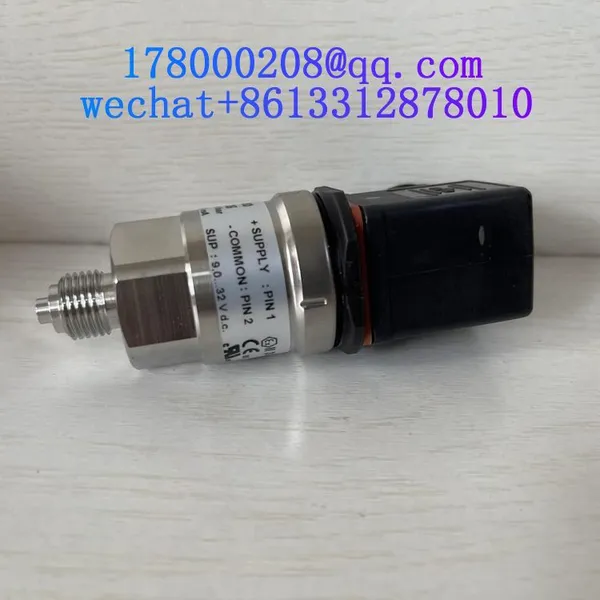

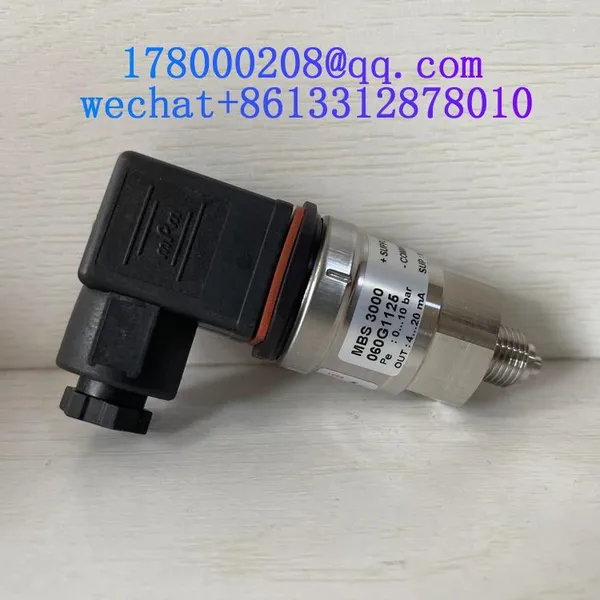

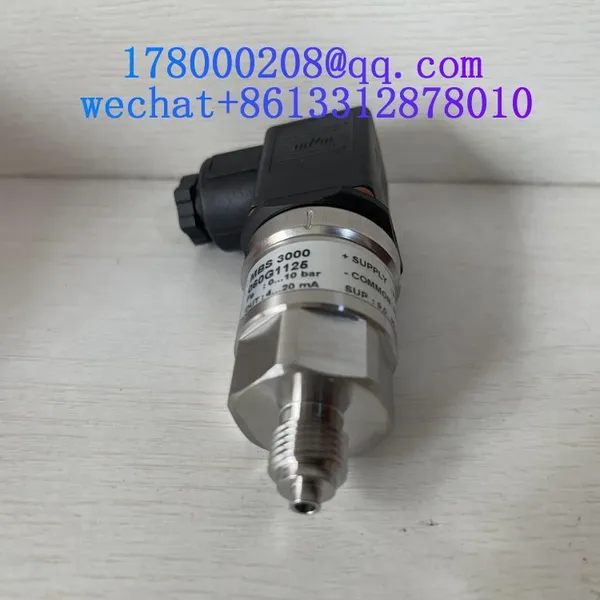

Danfoss MBS3000-060G1125 Pressure Transmitter
CNY 800 - 850
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Danfoss
Place of Origin:
China
Model Number:
060G1125
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
7 days
Related Products
-
MBS5100-060N10359 Pressure Transmitter Produced by DanfossCNY 3700 - 3800MOQ: 1 Piece -
Danfoss B3-095B-36-3.0-H Plate Heat ExchangerCNY 4500 - 5000MOQ: 1 Piece
-
Danfoss ETS12.5-25C-034G4203 Electronic Expansion ValveCNY 2500 - 3000MOQ: 1 Unit
-
Danfoss ETS 50-100-034G0508 Electric Expansion ValveCNY 3000 - 3800MOQ: 1 Unit
-
ETS250-400-034G2602 Electronic Expansion Valve Produced by DanfossCNY 4200 - 7500MOQ: 1 Unit
Brand Name
Danfoss
Place of Origin
China
Model Number
060G1125
Danfoss MBS3000-060G1125 pressure transmitter technical parameter
Pressure transmitter, MBS 3000, 0.00 bar - 10.00 bar, 0.00 psi - 145.04 psi,060G1125
Pressure reference: Gauge (relative), Output signal: Current, Electrical connection: DIN-plug, Pressure connection type: G, Pressure connection size: 1/4, Specification key: MBS 3000-2011-A1AB04-0
| Gross weight | 0.19 kg |
| Net weight | 0.15 kg |
| EAN | 5702423084180 |
| + supply | Pin 1 |
| - common | Pin 2 |
| Accuracy, max. [±FS%] | 1 % |
| Accuracy, typical [±FS%] | 0.5 % |
| Adj. zero point and span | No |
| Ambient temperature range [°C] [Max] | 85 °C |
| Ambient temperature range [°C] [Min] | -40 °C |
| Ambient temperature range [°F] [Max] | 185 °F |
| Ambient temperature range [°F] [Min] | -40 °F |
| Approval | ATEX |
| Approval comments | ATEX Ex nA IIA T3 Gc |
| Compensated temp. range [°C] [Max] | 80 °C |
| Compensated temp. range [°C] [Min] | 0 °C |
| Compensated temp. range [°F] [Max] | 176 °F |
| Compensated temp. range [°F] [Min] | 32 °F |
| Electrical conn. Male/Female | Male and Female |
| Electrical connection | DIN-plug |
| Electrical connection size | Pg 9 |
| Electrical connection standard | EN 175301-803-A |
| Enclosure rating IP | IP65 |
| Flush diaphragm | No |
| High Clipping Level | 22.4 |
| Identical product | 060G4079 |
| International Article Number | 5702423084180 |
| Intrinsically safe | No |
| Low Clipping Level | 3.6 |
| Medium temperature range [°C] [Max] | 85 °C |
| Medium temperature range [°C] [Min] | -40 °C |
| Medium temperature range [°F] [Max] | 185 °F |
| Medium temperature range [°F] [Min] | -40 °F |
| Non-linearity BFSL [±FS%] | 0.5 % |
| Output signal | Current |
| Output signal [mA] [Max] | 20 mA |
| Output signal [mA] [Min] | 4 mA |
| Overload pressure max. [bar] | 60 bar |
| Overload pressure max. [psi] | 870 psi |
| Packing format | Multi pack |
| Pressure connection HEX [mm] | 27 mm |
| Pressure connection size | 1/4 |
| Pressure connection standard | EN 837 |
| Pressure connection type | G |
| Pressure Male/Female | Male |
| Pressure range [bar] [Max] | 10 bar |
| Pressure range [bar] [Min] | 0 bar |
| Pressure range [psi] [Max] | 145.04 psi |
| Pressure range [psi] [Min] | 0 psi |
| Pressure reference | Gauge (relative) |
| Product group | Sensors |
| Product name | Pressure transmitter |
| Pulse-snubber | No |
| Quantity per packing format | 14 pc |
| Response time max. [ms] | 4 ms |
| Specification key | MBS 3000-2011-A1AB04-0 |
| Supply voltage [V] DC [Max] | 32 V |
| Supply voltage [V] DC [Min] | 9 V |
| Type | MBS 3000 |
