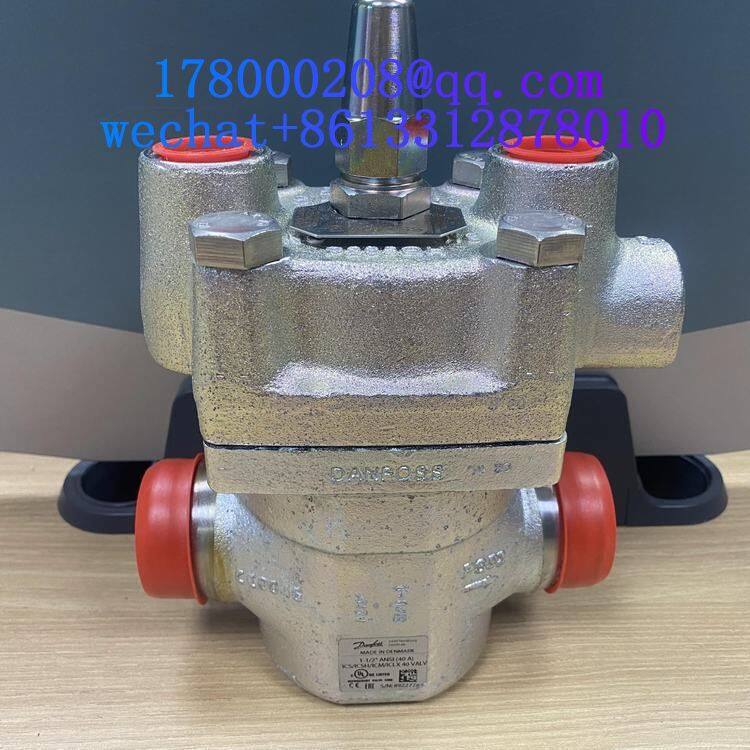

Danfoss ICLX32-40D-027H4040 Two-step Solenoid Valve

Danfoss ICLX32-40D-027H4040 two-step solenoid valve product details

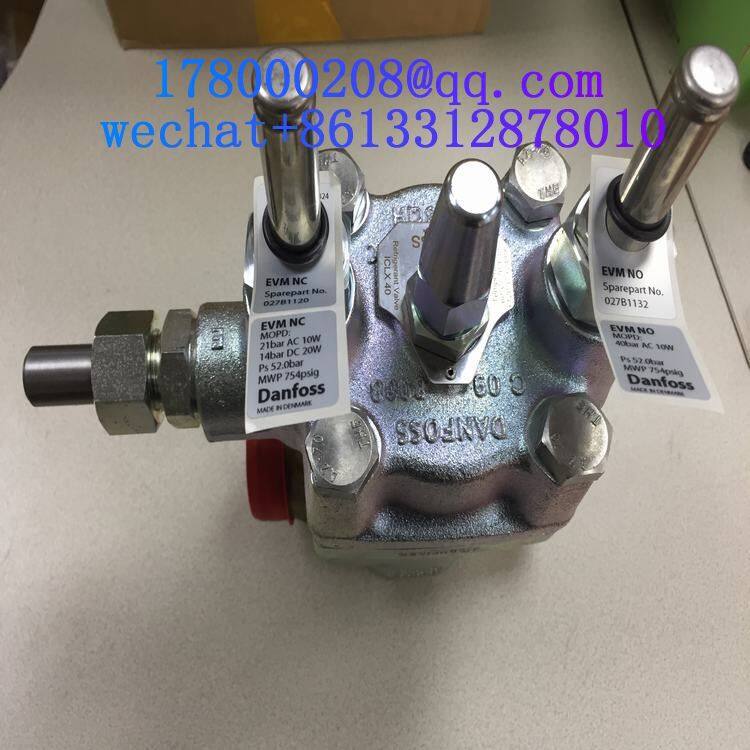

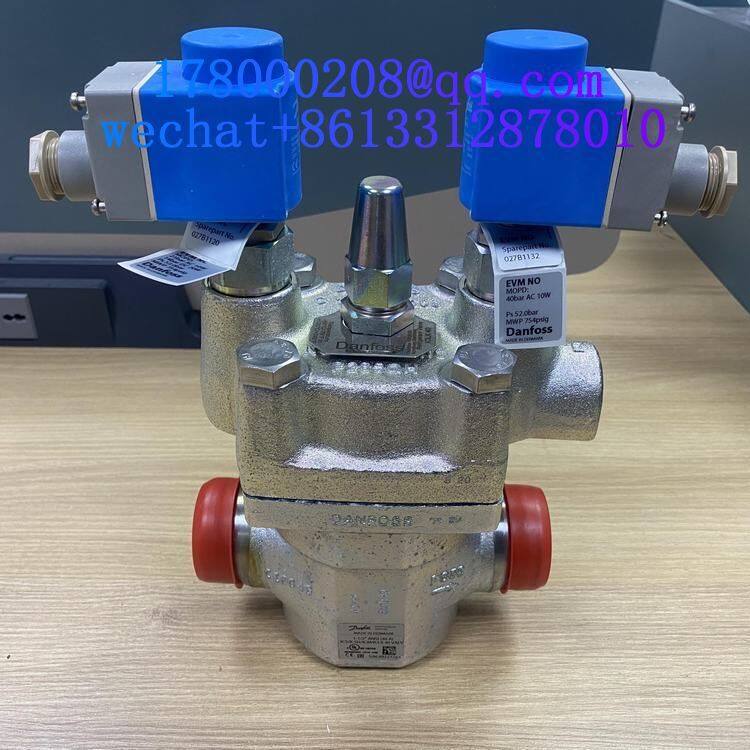

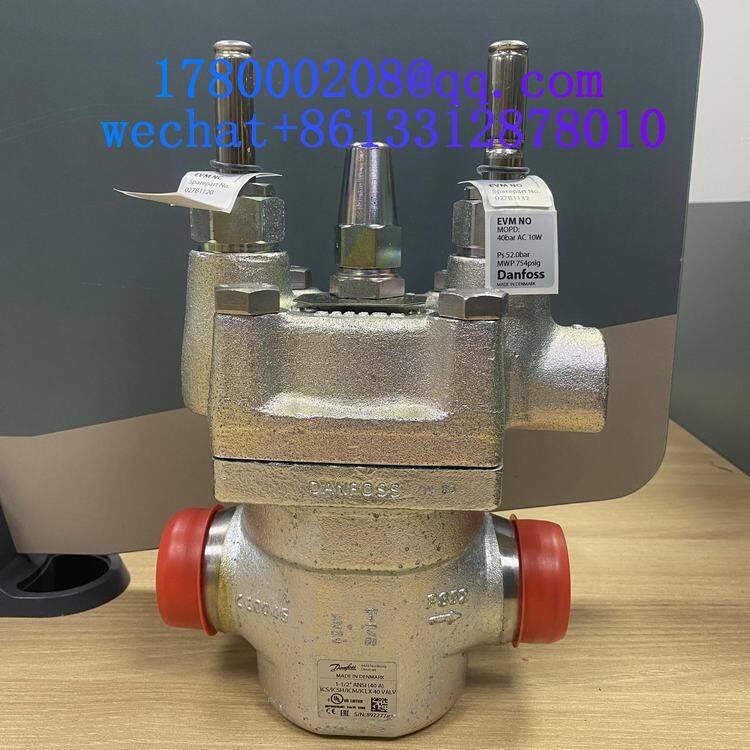

ICLX 2-step solenoid valves belong to the ICV  family. ICLX are used in suction lines for the opening  against high differential pressure, e.g. after  hot gas defrost in large industrial refrigeration  systems with ammonia, fluorinated refrigerants  or CO2. The ICLX valve is factory configured to open in 2  steps. By following a simple procedure the valve can be  configured to open in 1 step only. In 2-step configuration, step 1 opens to approx.  10% of the capacity after the pilot solenoid  valves are energized. Step 2 opens automatically when the pressure  differential across the valve has decreased to  approx. 1.25 bar / 18 psig. The ICLX valve comprises five main components:  Valve body, top cover, function module and  2 pilot solenoid valves. On ICLX 32 – 150 the  top cover and function module are factoryassembled.

Features

• Designed for Industrial Refrigeration  applications for a maximum working pressure  of 52 bar g / 754 psig. • Applicable to HCFC, HFC, R717 (Ammonia) and  R744 (CO2). • Can be used in chemical and petro-chemical  applications. • Direct welded connections.  • Connection types include butt weld, socket  weld and solder connections. • Low temperature steel body. • Low weight and compact design. • Only one signal required for both pilot solenoid  valves.  • The ICLX main valve top cover can be oriented  in any direction without the function of pilot  valves being affected. • Especially suitable for systems where low  pressure drop is required. • Stabilizes working conditions and eliminates  pressure pulsations during opening after  defrosting. • Provides safety against pressure "shocks" as the  valve can only open fully when Δp <1.25 bar /  18 psig.  • Cavitation resistant valve seat. • Manual opening possible.  • PTFE seat provides excellent valve tightness.  • Service friendly design. • Classification: DNV, CRN, BV, EAC etc.  To get an updated list of certification on the  products please contact your local Danfoss  Sales Company
