Home > Industrial Equipment & Components > Valve > Ball Valve > SFA15T218-TUV.SV.19 Safety Valve Produced by Danfoss

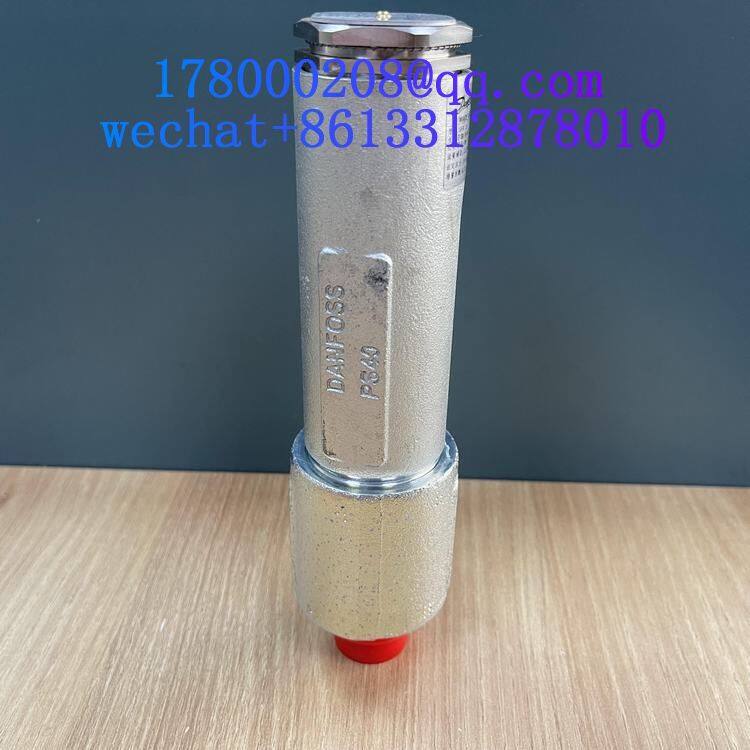

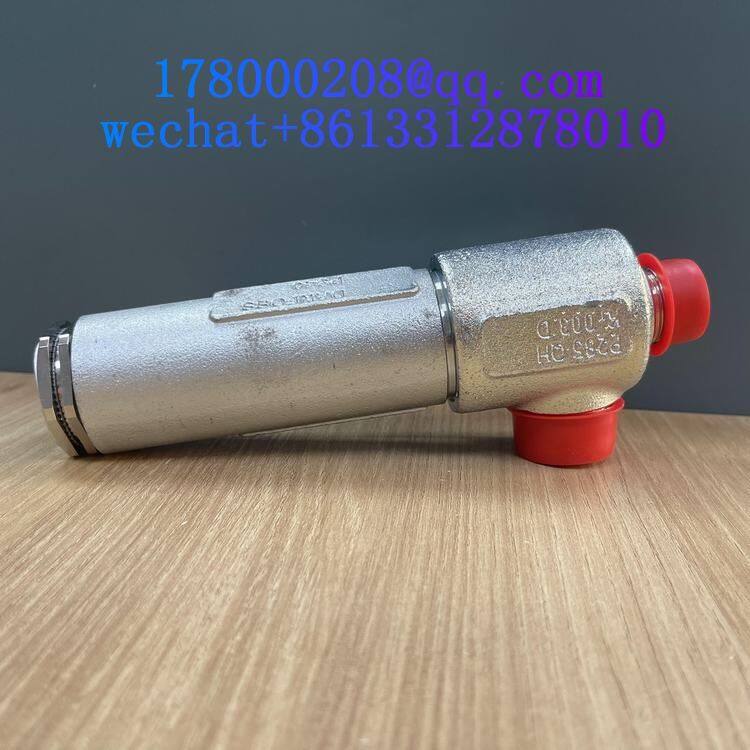

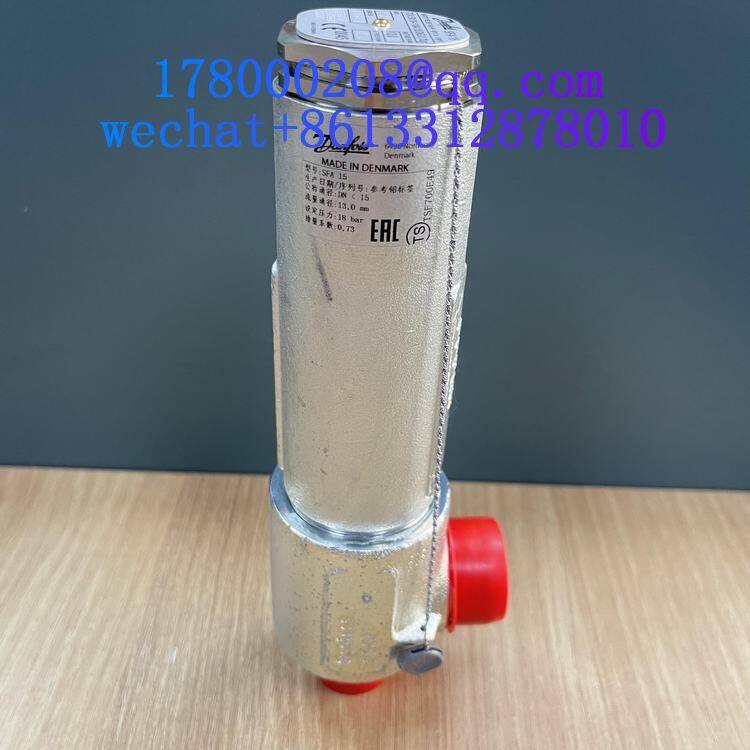

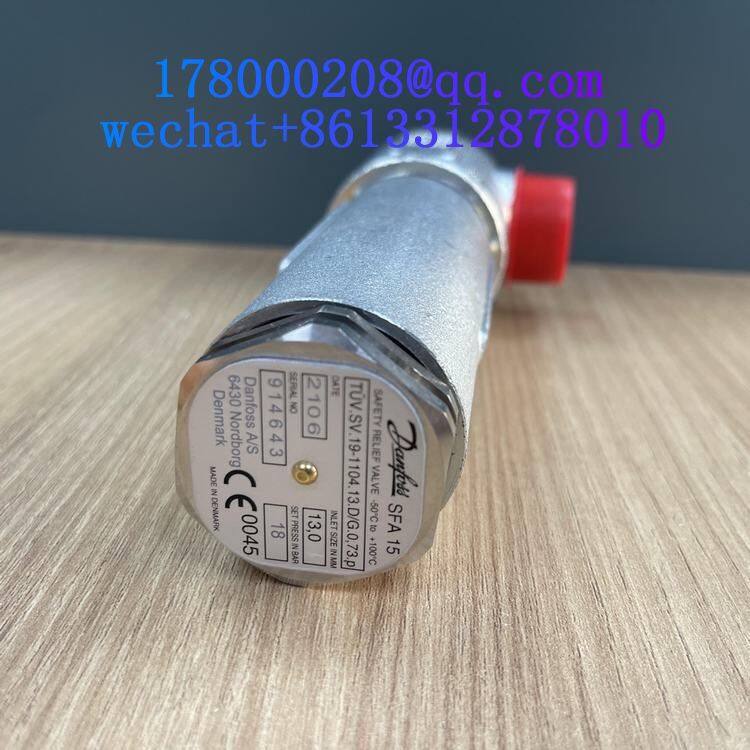

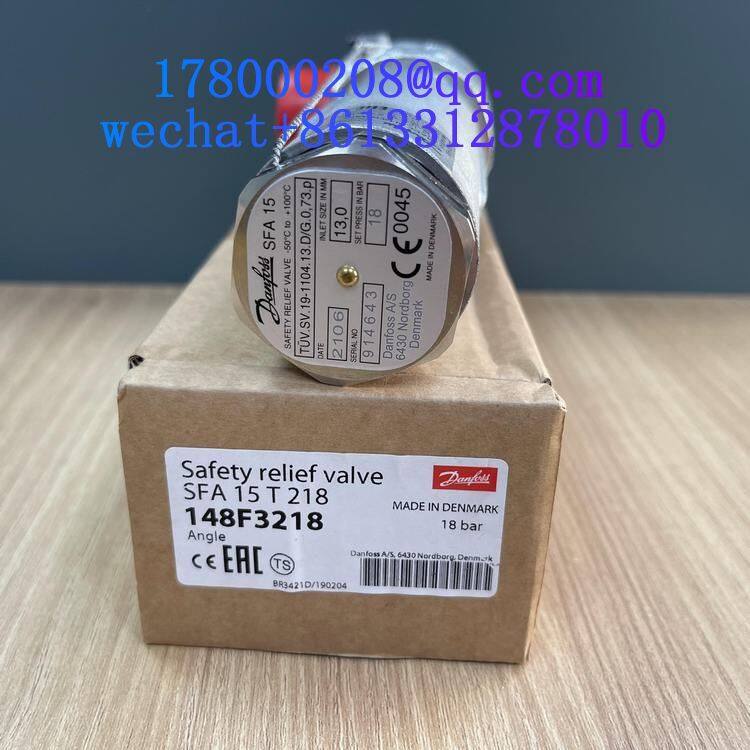

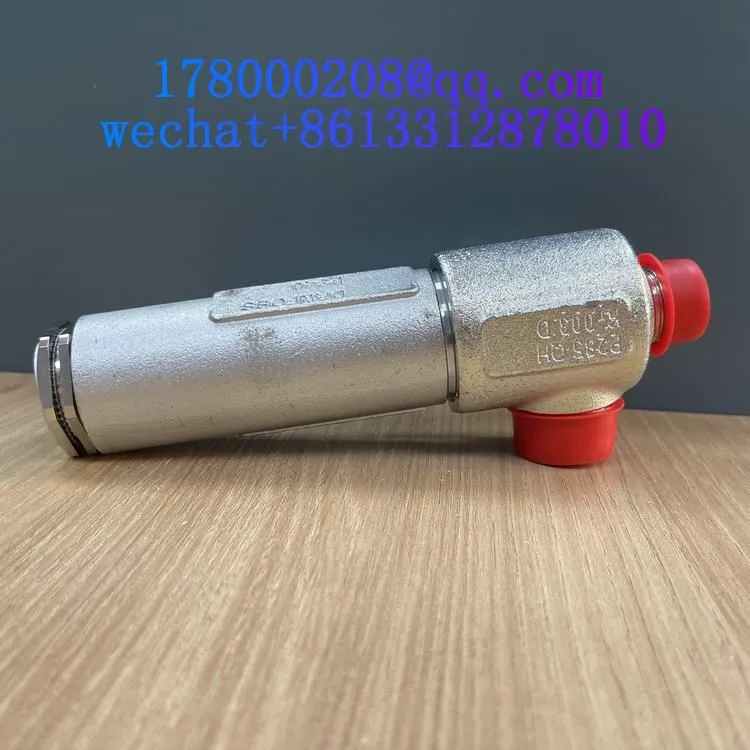

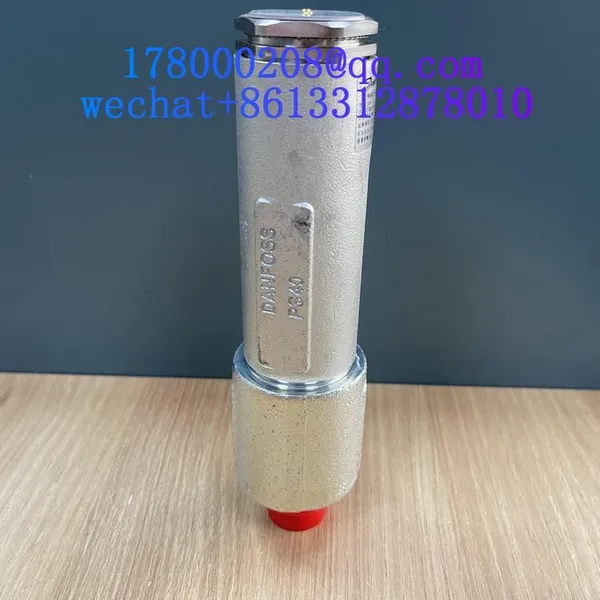

SFA15T218-TUV.SV.19 Safety Valve Produced by Danfoss
CNY 2000 - 2100
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Danfoss
Place of Origin:
China
Model Number:
148F3218
Payment & Shipping
Payment Methods:
Port of Shipment:
guangzhou
Delivery Detail:
3 days
Related Products
-
Danfoss SFV20T218-TUV.SV.17 Pressure Relief Safety ValveCNY 2100 - 2250MOQ: 1 Piece -
SFV25T218-220bar Safety Valve Manufactured by DanfossCNY 2400 - 2500MOQ: 1 Piece
-
Danfoss OFV20-2412+185 Overflow ValveUS$ 2000 - 2100MOQ: 1 Piece
-
OFV25A-2412+186 Pressure Regulating Valve Produced by DanfossUS$ 2000 - 2100MOQ: 1 Piece
-
Danfoss ICLX32-40D-027H4040 Two-step Solenoid ValveCNY 9500 - 9800MOQ: 1 Piece
Brand Name
Danfoss
Place of Origin
China
Model Number
148F3218
Material
Other, carbon steel
Application
Other, Ammonia refrigeration system
Structure
Safety
Standard or Nonstandard
Standard
Pressure
Medium Pressure
Power
Hydraulic
Port Size
15mm
Media
Other, Liquid ammonia and Freon
Temperature of Media
Normal Temperature
SFA15T218-TUV.SV.19 safety valve produced by Danfoss details
Safety relief valve, SFA 15, G, 18 bar，148F3218
Pressure setting [bar]: 18, Connection type: G, Inlet connection size [in]: 3/4, Outlet connection size [in]: 1, Pressure certificate: Danfoss certificate included
| Gross weight | 1.98 kg |
| Net weight | 1.93 kg |
| EAN | 5702428194082 |
| Approval | CE EAC TS UKCA |
| Approval file name | TÜV.SV.19-1104.13.D/G.0,73.p |
| Category | IV |
| Certified Coef of Disc | 0.73 kg |
| Comments | 0 |
| Connection Internal/External | External |
| Connection size [in] | 1/2 in |
| Connection size [mm] | 15 mm |
| Connection standard | ISO 228-1 |
| Connection type | G |
| Direction | Angleway |
| Flow area [in2] | 0.206 in² |
| Flow area [mm2] | 133 mm² |
| Flow diameter [in] | 0.512 in |
| Flow diameter [mm] | 13 mm |
| Fluid Group | 1 |
| Inlet connection size [in] | 3/4 |
| Lift [mm] | 4.8 mm |
| Nominal diameter | DN |
| Outlet connection size [in] | 1 |
| Packing format | Single pack |
| Pressure certificate | Danfoss certificate included |
| Pressure setting [bar] | 18 bar |
| Pressure setting [psig] | 261 psig |
| Product description | Safety Relief Valve |
| Product group | Safety relief valves |
| Product name | Safety relief valve |
| Quantity per packing format | 1 pc |
| Refrigerants | R134a R170 R22 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R600 R600a R717 R744 R507A R1233zd(E) R1234yf R1234ze(E) R125 R152a R227ea R236fa R245fa R290 R32 R407H R413A R417A R422A R422B R422D R438A R442A R444B R447A R447B R448A R449A R449B R450A R452A R452B R452C R454A R454B R454C R455A R463A R512A R513A R513B R515A R515B R516A |
| Temperature range [°C] [Max] | 100 °C |
| Temperature range [°C] [Min] | -50 °C |
| Temperature range [°F] [Max] | 212 °F |
| Temperature range [°F] [Min] | -58 °F |
| Type | SFA 15 |
