Home > Electrical & Electronics > Transmitter > Pressure Transmitter > MBS5100-060N10359 Pressure Transmitter Produced by Danfoss

MBS5100-060N10359 Pressure Transmitter Produced by Danfoss

Name: MBS5100-060N10359 Pressure Transmitter Produced by Danfoss
Brand: Danfoss
SKU: 171480171
Availability: InStock

MBS5100-060N10359 Pressure Transmitter Produced by Danfoss thumbnail-1

MBS5100-060N10359 Pressure Transmitter Produced by Danfoss thumbnail-2

MBS5100-060N10359 Pressure Transmitter Produced by Danfoss thumbnail-3

MBS5100-060N10359 Pressure Transmitter Produced by Danfoss thumbnail-4

MBS5100-060N10359 Pressure Transmitter Produced by Danfoss thumbnail-5

MBS5100-060N10359 Pressure Transmitter Produced by Danfoss photo-1

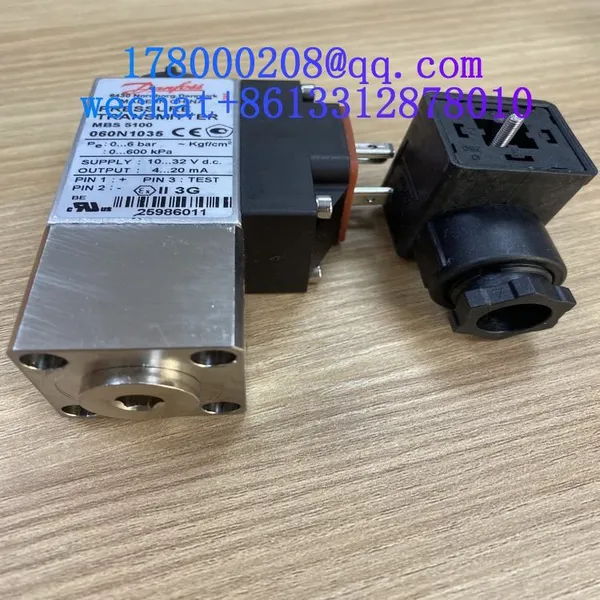

MBS5100-060N10359 Pressure Transmitter Produced by Danfoss photo-2

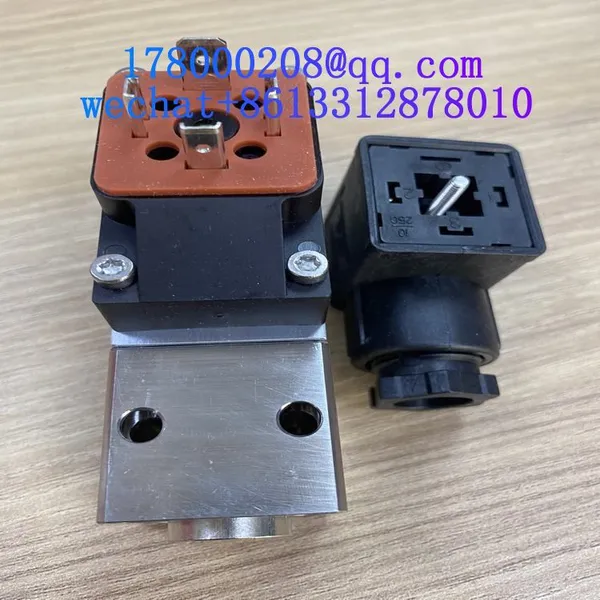

MBS5100-060N10359 Pressure Transmitter Produced by Danfoss photo-3

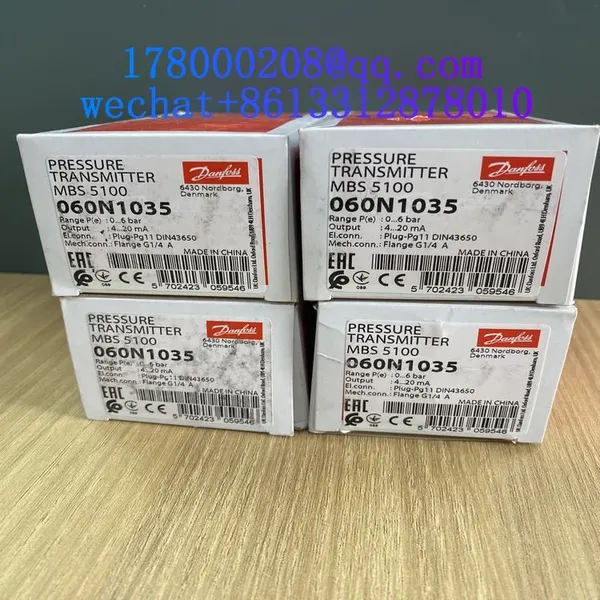

MBS5100-060N10359 Pressure Transmitter Produced by Danfoss photo-4

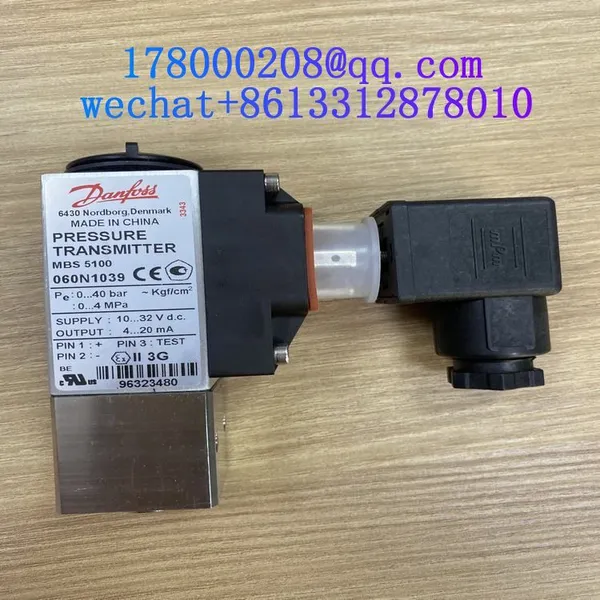

MBS5100-060N10359 Pressure Transmitter Produced by Danfoss photo-5

CNY 3700 - 3800 MOQ: 1 Piece

Key Specifications

Get Latest Price

Brand Name:

Danfoss

Place of Origin:

China

Model Number:

060N1035

Contact Supplier Request Quote Chat Now

Guangzhou Sizhuo Trading Co. Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou

Delivery Detail:

7 days

Product Details
Company Profile
Contact Us

Brand Name Danfoss

Place of Origin China

Model Number 060N1035

MBS5100-060N10359 pressure transmitter produced by Danfoss details

The ship approved high accuracy block pressure transmitter is designed for use in almost all marine applications. MBS 5150 with integrated pulse snubber is designed for use in marine applications with severe medium influences like cavitation, liquid hammer or pressure peaks and offers a reliable pressure measurement, even under harsh environmental conditions. The transmitters can be easily mounted directly on the MBV 5000 block test valve or the threaded pressure connection can be used. The flexible pressure transmitter programme covers a 4 – 20 mA output signal, absolute or gauge (relative) versions, measuring ranges from 0 – 4 to 0 – 400 bar. Excellent vibration stability, robust construction, and a high degree of EMC / EMI protection equip the pressure transmitter to meet the most stringent marine requirements.

Features • Designed for use in severe maritime environments • MBS 5150 with integrated pulse-snubber is suitable in marine applications with severe medium influences like cavitation, liquid hammer or pressure peaks and offers a reliable pressure measurement, even under harsh environmental conditions • Pressure connection of acid-resistant stainless steel (AISI 316L) • Pressure ranges in relative (gauge) or absolute from 4 up to 400 bar • Output signal: 4 – 20 mA • A wide range of pressure connections • Fully digitally compensated • Accuracy 0.3% FS (max) • UL approved • Several Marine approvals

Gross weight	0.4 kg
Net weight	0.35 kg

EAN	5702423059546

+ supply	Pin 1
- common	Pin 2
Accuracy, max. [±FS%]	0.3 %
Accuracy, typical [±FS%]	0.1 %
Adj. zero point and span	No
Ambient temperature range [°C] [Max]	85 °C
Ambient temperature range [°C] [Min]	-40 °C
Ambient temperature range [°F] [Max]	185 °F
Ambient temperature range [°F] [Min]	-40 °F
Compensated temp. range [°C] [Max]	80 °C
Compensated temp. range [°C] [Min]	0 °C
Compensated temp. range [°F] [Max]	176 °F
Compensated temp. range [°F] [Min]	32 °F
Electrical conn. Male/Female	Male and Female
Electrical connection	DIN-plug
Electrical connection size	Pg 11
Electrical connection standard	EN 175301-803-A
Enclosure rating IP	IP65
Flush diaphragm	No
High Clipping Level	22.4
International Article Number	5702423059546
Intrinsically safe	No
Low Clipping Level	3.6
Medium temperature range [°C] [Max]	85 °C
Medium temperature range [°C] [Min]	-40 °C
Medium temperature range [°F] [Max]	185 °F
Medium temperature range [°F] [Min]	-40 °F
Non-linearity BFSL [±FS%]	0.2 %

Output signal	Current
Output signal [mA] [Max]	20 mA
Output signal [mA] [Min]	4 mA
Overload pressure max. [bar]	20 bar
Packing format	Multi pack
Pressure connection notes	With flange
Pressure connection size	1/4
Pressure connection standard	ISO 228-1
Pressure connection type	G
Pressure Male/Female	Female
Pressure range [bar] [Max]	6 bar
Pressure range [bar] [Min]	0 bar
Pressure range [kPa] [Max]	600 kPa
Pressure range [kPa] [Min]	0 kPa
Pressure range [psi] [Max]	87.02 psi
Pressure range [psi] [Min]	0 psi
Pressure reference	Gauge (relative)
Product group	Sensors
Product name	Pressure transmitter
Pulse-snubber	No
Quantity per packing format	8 pc
Response time max. [ms]	4 ms
RsExtrapolateMissingPressure	0=Standard
Specification key	MBS 5100-1811-A6DB04-4
Supply voltage [V] DC [Max]	32 V

Product Tags: pressure transmitter , Danfoss pressure transmitter , transmitter , Pressure sensor , Danfoss transmitter , Danfoss Pressure sensor , Danfoss sensor
