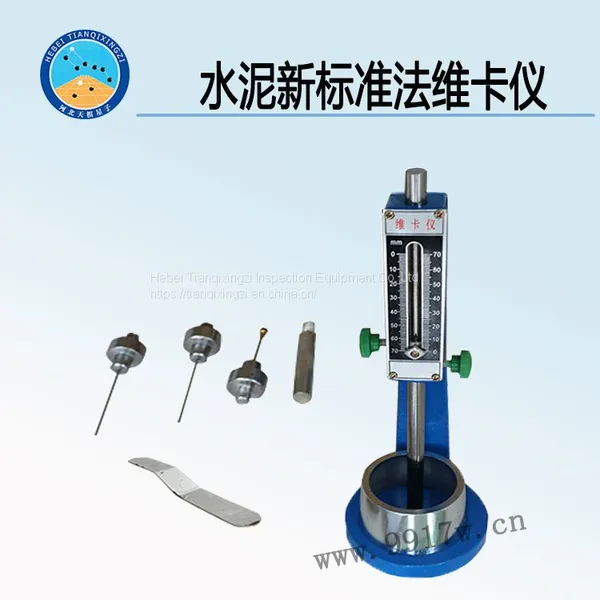

TD0505-WK1 cement new standard FAvica instrument by Hebei Tianqi Xingzi Testing Equipment Co., LTD. According to the Ministry of Transport of the People's Republic of China industry standard JTG Developed and produced T0505-2020 Test Method for Water Consumption, Setting Time and Stability of Cement at Standard Consistency in Test Regulations for Highway Engineering Cement and Cement Concrete.
It is suitable for Portland cement, ordinary cement, pozzolash cement, fly ash cement and other kinds of cement.
Second, technical parameters
1. The total weight of the sliding part is 300g
2, sliding part of the maximum stroke of 70㎜
3, net weight ≈3.8㎏

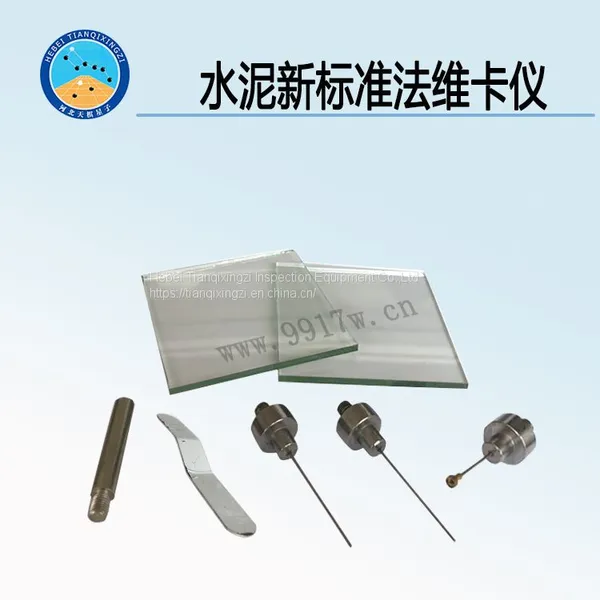

4, standard consistency test bar: 1, effective length: 50mm plus or minus 1mm, diameter: 10mm plus or minus 0.05mm.
5, final coagulation test needle: 1, effective length: 30mm plus or minus 1mm, diameter: 1.13mm plus or minus 0.05mm.
6, initial coagulation test needle: 2: effective length: 50mm plus or minus 1mm, diameter: 1.13mm plus or minus 0.05mm.
