TDSN-KZ300A type sulfate resistance folding testing machine is made by Hebei Tianqi Xingzi Testing Equipment Co., LTD. According to the industry standard JTG of the Ministry of Transport, PRC Developed and produced T0582 -- 2020 Test Method for Resistance to Sulfate Attack of Cement Concrete in Test Regulations for Highway Engineering Cement and Cement Concrete.
It is a necessary instrument for the flexural strength test of mortar cement. It can also be used for the flexural strength test of other kinds of cement and other non-metallic brittle materials.
Second, technical parameters
1. Maximum load: 300N
2. The value error is less than 1%
3. Loading speed: 4±0.4N
4. Center distance of supporting column (mm) : 20-100±0.1
5 supporting garden column diameter (mm) : Φ5±0.1
6. Parallelism of two supporting columns (mm) : 0.1
7. Center offset of upper and lower fixture (mm) :
8 anti folding machine applicable test block size (mm) : 60×10×10
9. Power supply: 220V voltage; Frequency 50 hz. Power 10 w
10. Contour size (mm) : 680×180×450
13. Weight: net weight 25kg; Gross weight: 36 kg
Three,

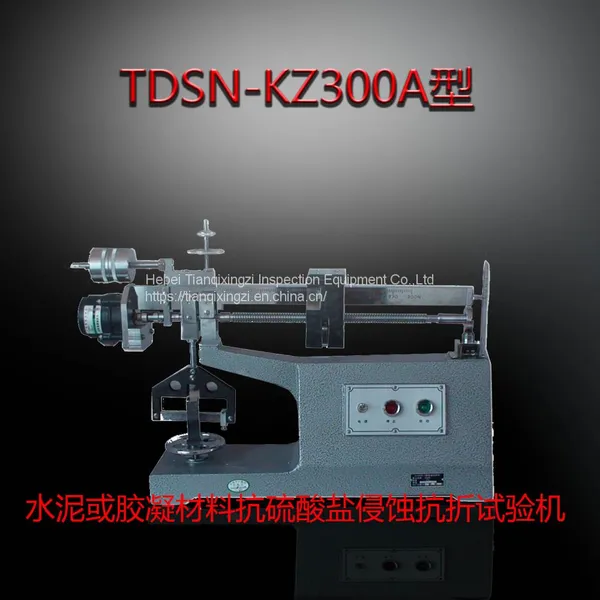

TDSN-KZ300A cement or cement material flexability testing machine is composed of base, column, upper beam, raising Angle indicator plate, flexability fixture, swimming weight, size balance, transmission motor, transmission screw, and electrical control box and other parts.
TDSN-KZ300A type cement or cementite material sulfate erosion resistance and flexural resistance testing machine use and maintenance:
The TDSN-KZ300A Cement or cementite Sulfate Resistance and flexability testing machine is used in a shock-free environment directly on the platform, which must be calibrated to a level of 1/1000.
