pvc sheet cutter machine ( cutting machine)

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Functional characteristics:
1. It adopts computerization number control, convenience of operation.
2. Operation instrument panel with humanization design, ease of operation.
3. The length adopts number control.
4. It can set and cut the amount of break, the amount is up to requ Paper Roll Sheet Cutter(DP-500) irement, it will stop
automatically and it also can deliver automatically.
5. After the machine shutting down, it still can remember the amount automatically.
6. Its speed can be adjusted between (0-99), it can be set according to different kinds of materials.
7. It can cutter half or the whole.

Specification

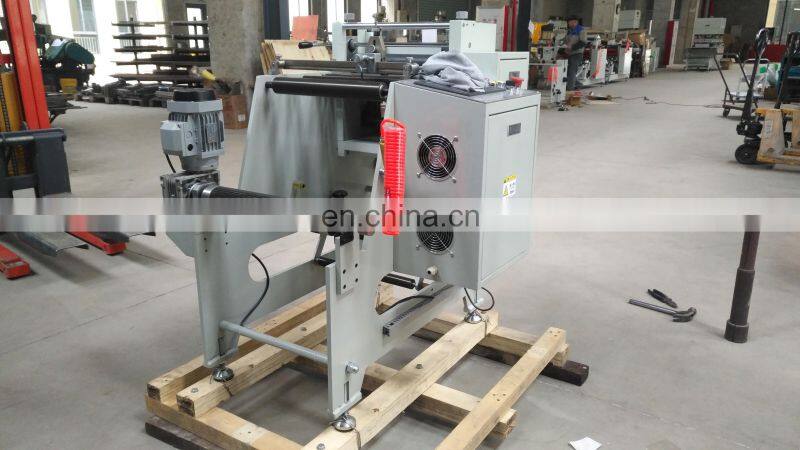

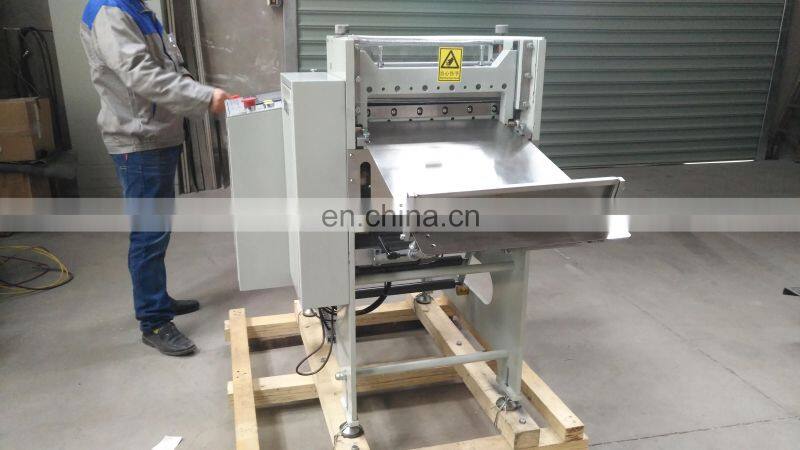

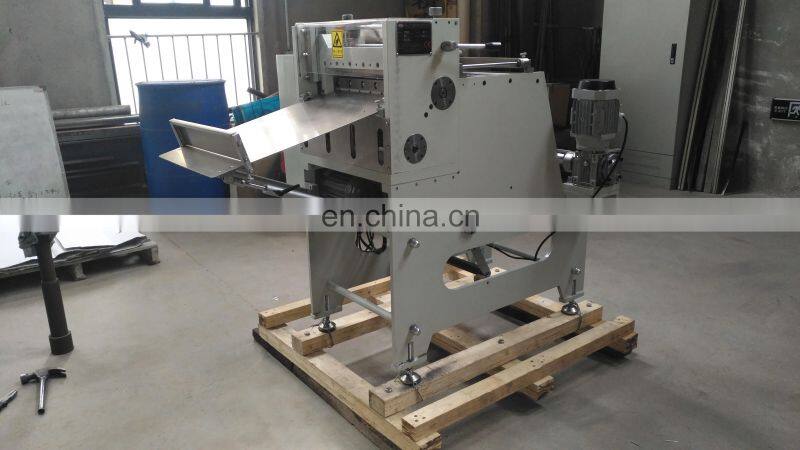

360mm automatic paper roll to sheet cutting machine FUNCTIONAL CHARACTERSTICS This machine employs servo motor to feed material, import PLC touch screen operation to set any length, quantity, speed and finish singleness cutting , equipped with automatic unwinding system and air shaft, which will be easy to load and unload. Purpose It is applicable for the cutting of PVC film, insulation sheet, Mylar, foam, industrial tape, rubber sheets, electronic tape and various inch setting, entirely broken and partially broken electronic materials.

Item No	DP-360
PRICE shipping term	(FOB Shanghai)
Max Feeding Width ( mm )	360
Main Engineer Power ( w )	750
Speed ( m/m )	120
Size ( mm )	115011001120
Weight ( kg )	350
Precision ( mm )	±0.10
Power	380V 50HZ
Shaft diameter	3 inch / 76mm
unwinding paper diameter	600mm max (unwind like below)

Advantage of machine
DELTA Servo motor control ---more precision then Stepper motor control , so we already Eliminated stepper motor machine
PLC ----- use famous brand Mitsubishi which you will easily maintenance in your local place
Machine body ----- 16mm thickness steel wall for 360mm , it is very solid that to make sure machine stable when
running
it is whole part of steel sheets , not welding together
PULLING ROLLER ---- Thick PU rubber coated and won't scratch the material
Guiding roller ------- Aluminum shaft be polished and hard anodized , very smooth and never harm material
Cutting Blade ----SKD11 material to make sure the cutter use very very long time and cutting material perfect edge
at cutting part
Korea company made
Cutting motor ------------- Taiwan Tonglee gear motor
Safety cover ---- have safety cover at cutting blade , and sensor at it , no cover will not work , to protect the operator safety
12 month electronic parts guarantee after machine arrived your place
machine are use famous brand of electric parts which are easy to maintenance

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

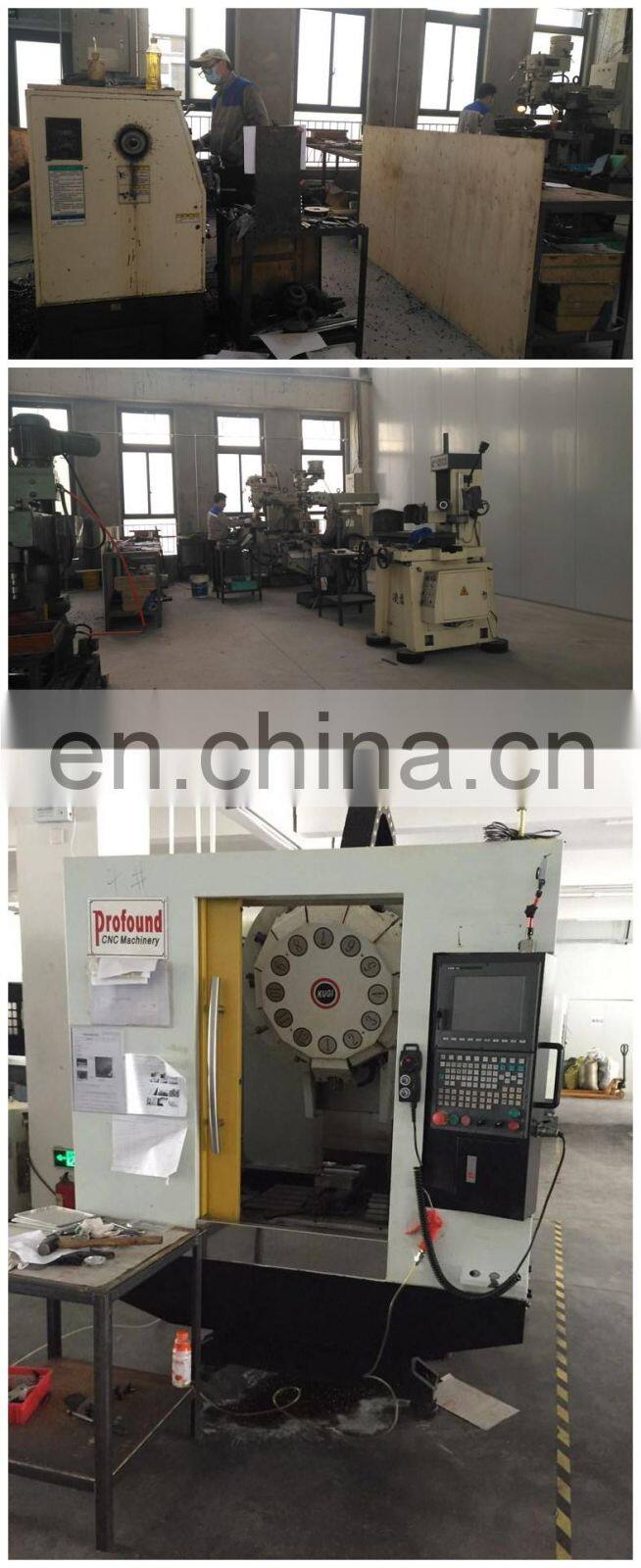

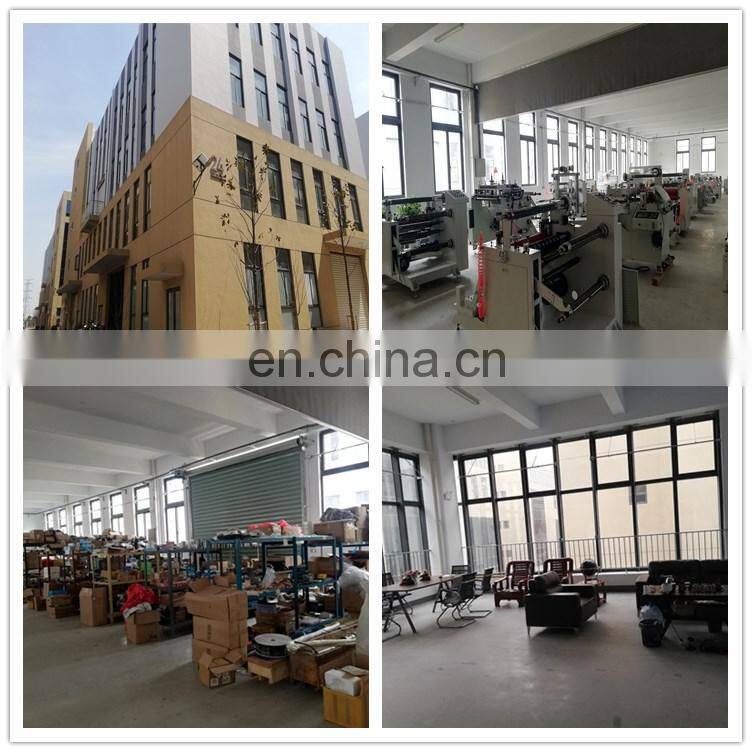

Company Profile

BUYING GUIDE

1, material name :
2, material roll diameter :
3, material roll width :
4, material roll weight :
5, maximum and minimum length required to cut
