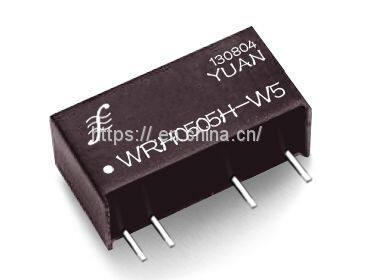

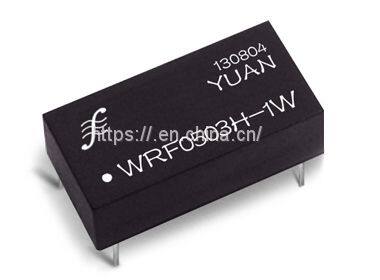

24V Output DC-DC Converter With 8kv Antistatic

24V Output DC-DC Converter With 8kv Antistatic thumbnail-1
24V Output DC-DC Converter With 8kv Antistatic thumbnail-2
24V Output DC-DC Converter With 8kv Antistatic thumbnail-3
24V Output DC-DC Converter With 8kv Antistatic thumbnail-4
24V Output DC-DC Converter With 8kv Antistatic thumbnail-5
24V Output DC-DC Converter With 8kv Antistatic photo-1
24V Output DC-DC Converter With 8kv Antistatic photo-2
24V Output DC-DC Converter With 8kv Antistatic photo-3
24V Output DC-DC Converter With 8kv Antistatic photo-4
24V Output DC-DC Converter With 8kv Antistatic photo-5
US$ 5.5 - 8 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Sunyuan technology.
Place of Origin:
China
Model Number:
WRFxxxxxH Series
Contact Supplier Request Quote Chat Now
Shenzhen Sunyuan Technology Co., Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
yantian
Delivery Detail:
5 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Sunyuan technology.
Place of Origin China
Model Number WRFxxxxxH Series
Type DC/DC Converters
Weight 15 g
Output Power 1 - 50W
Output Type Single
Output Current 1W, 2W
Output Frequency 1000VDC
Output Voltage 5VDC,9VDC,12VDC,etc
Input Voltage 5VDC,12VDC,15VDC,24VDC,etc

24V Output DC-DC Converter with 8kv Antistatic

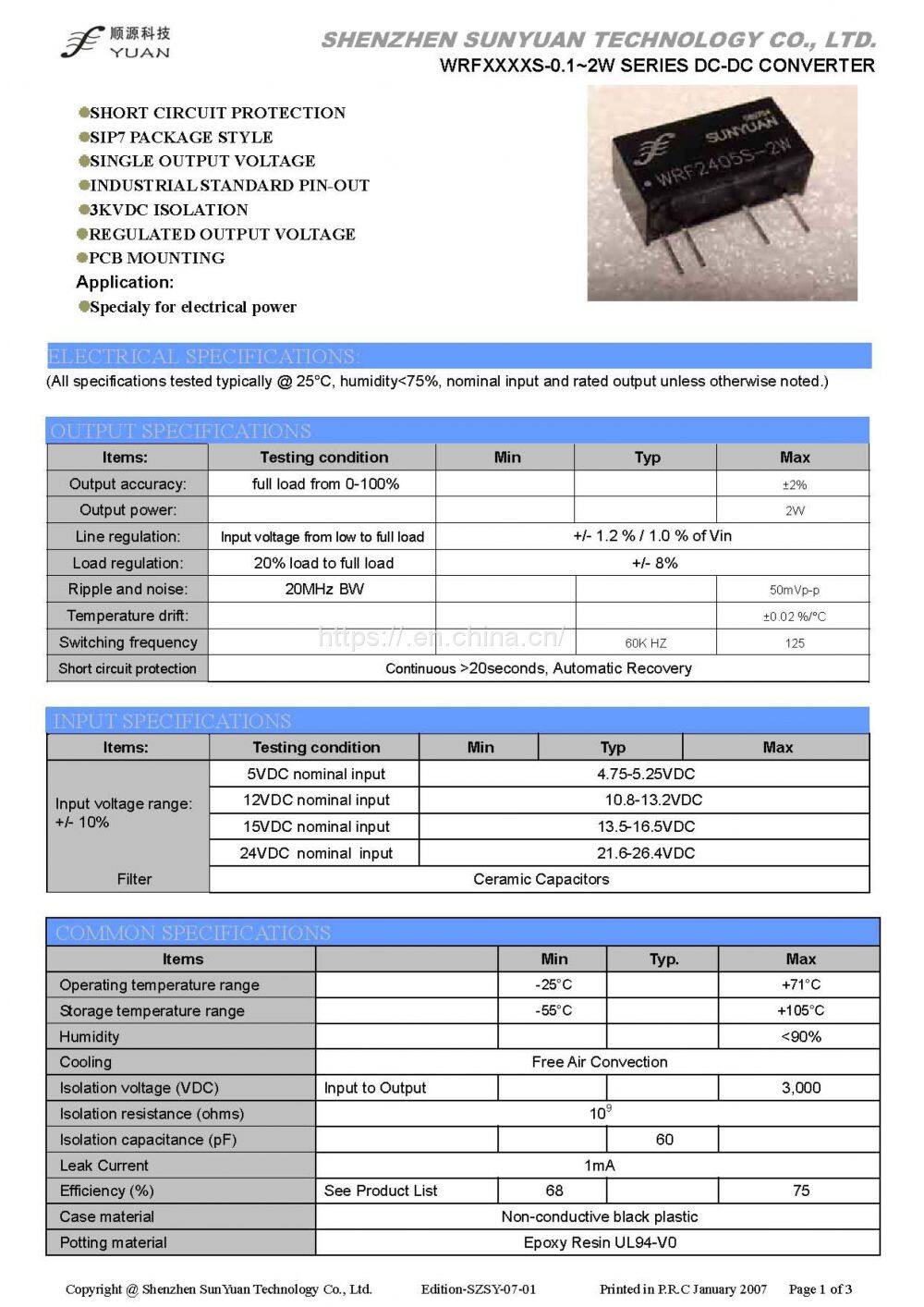

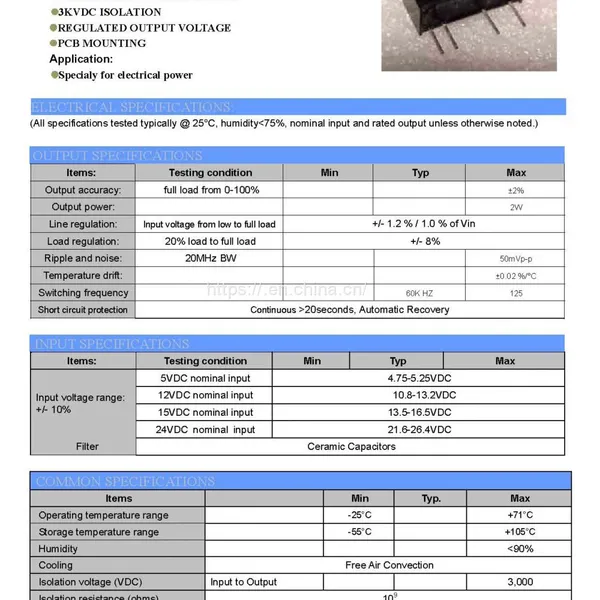

WRFxxxxxH Series DC DC Converter Features:
Low cost, small size.
High power density.
3KV high galvantic isolation.
No heat sink required.
Fixed input, signle output voltage.
Rated 0.1W-2W output
Industrial standard pin-out
PCB Mounted type.
Short circuit protection

Applications:
Electric Power System, Power monitoring, voltage conversion.
Dual power isolation in digital communication ports of RS232/485, CAN bus.
Power supply isolation in intelligent control, security equipments, telecom, etc.
Safety isolation in ground loop elimination, medical equipments and instrument.
Isolation & power supply for analogue electric circuit ( Transmitter & sensors).
Power supply isolation & transfer for safety monitoring and smart building system.
Ground loop interference control.
Battery power supply, voltage transfer, power distribution.
PLC, DCS, PC isolation regulated power supply.
Specialy for electrical power RS485 communication isolation electric load management terminal.
RS485/RS232/RS422/USB/IEEE1394 interface.
Isolation static(>8KV)

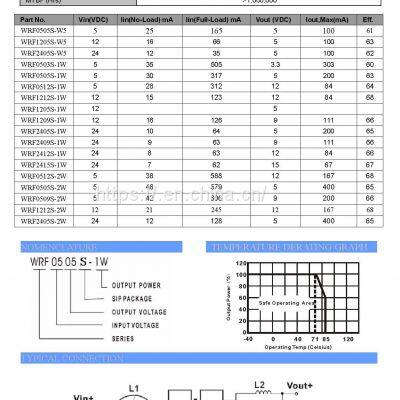

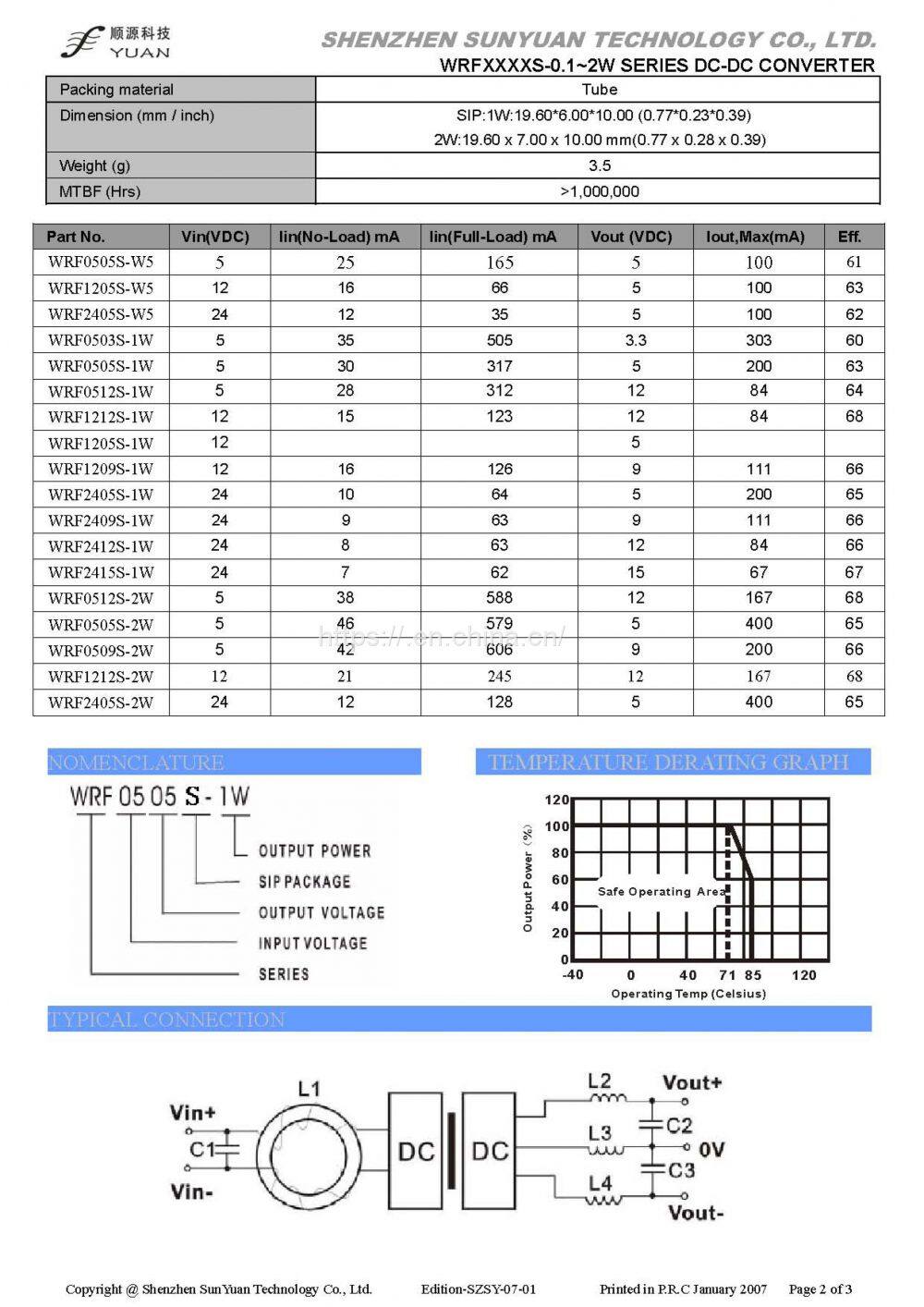

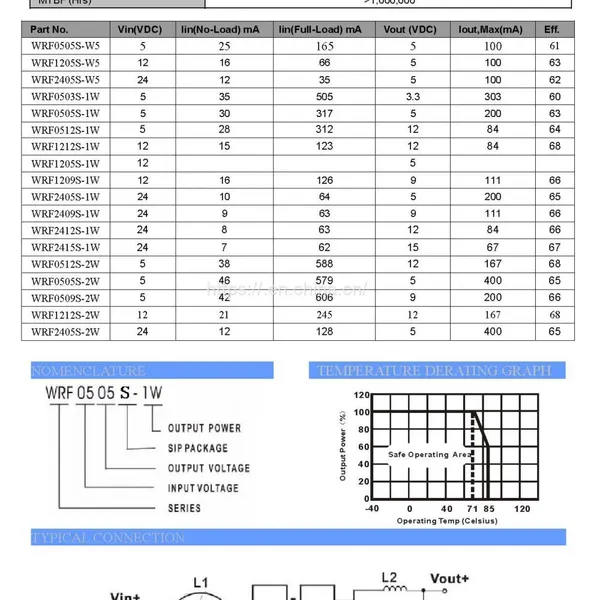

Part Number Vin(VDC) lin(No-Load)mA lin(Full-Load)mA Vout(VDC) lout,Max(mA) Eff.
 WRF0505H-W75  5  22  220  5  150  69
 WRF0505H-1W  5  28  300  5  200  70
 WRF0512H-1W  5  25  312  12  84  74
 WRF1212H-1W  12  22  123  12  84  78
 WRF1209H-1W  12  16 123  9  111  78
 WRF2405H-1W  24  7  64  5  200  80
 WRF2409H-1W  24  10  63  9  111  80
 WRF2412H-1W  24  10  63  12  84  80
 WRF0512H-2W  5  45 545  12  167  72
 WRF0505H-2W  5  50 615  5  400  65
 WRF0509H-2W  5  47  545  9  200  66
 WRF1212H-2W  12  35 245  12  167  68
 WRF2405H-2W  24 16   128  5  400  65
