Analog Signal to PWM Signal Programmable Converter ISO A7-P4-D4-Q01
US$ 18 - 20
/ Piece
1 Piece(Min. Order)
- yantian
- T/T PayPal
- 5 days
You May Like
-
Passive Two Wire PWM Signal to 4-20mA Signal Converters
-
Multi-Channel Analog Signal to RS232/485 Data Acquisition Modules With LED Display
-
Passive Two Wire PWM Signal to 4-20mA Signal Converters
-
ISO 4-20mA-O6 2-Wire Passive 4-20mA to Voltage Signal Isolation Converter
-
Signal Converters 4-20mA to 0-10V
-
Dual in Out 4-20mA Current Loop Isolation Amplifier
Product Details

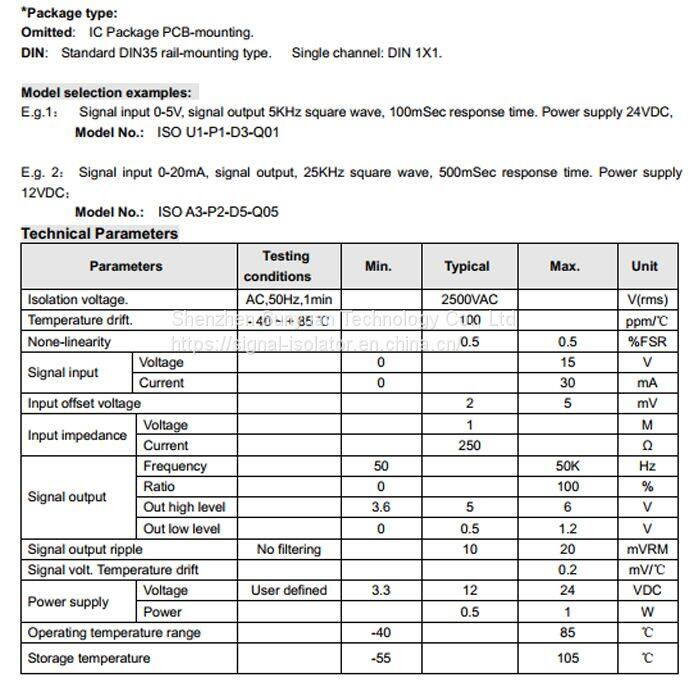

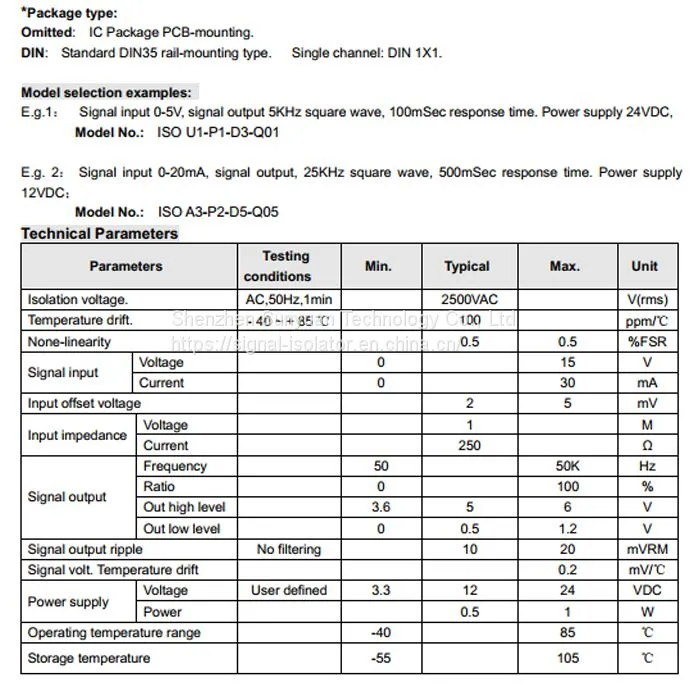

| Brand Name | Sunyuan technology. | Place of Origin | China | |
| Model Number | ISO A7-P4-D4-Q01 | Type | DC/DC Converters | |
| Size | 15x14x4 | Weight | 75 g | |
| Output Power | 1 - 50W | Output Type | Single | |
| Output Frequency | 10kHz-19kHz | Output Voltage | 0-20mA/4-20mA | |
| Input Voltage | 0-20mA/4-20mA |
Product Description

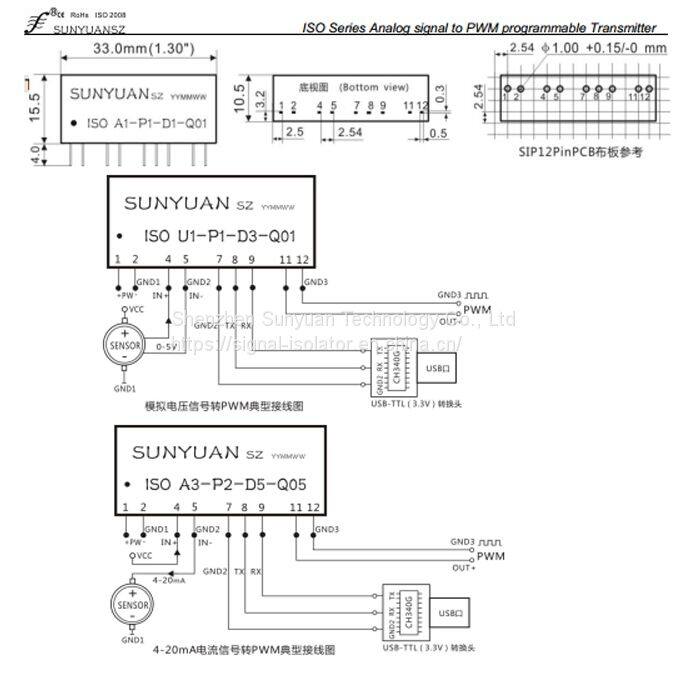

Analog signal to PWM signal programmable converter ISO A7-P4-D4-Q01
Features:
*4-20mA/0-10v to PWM signal differ sensitively,response quickly.
*High linearity in full range
*Auxiliary power,signal input,output 2500VAC three isolation.
*Auxiliary power:5V,12V,15V or 24V DC single power supply
*low cost ultra small ,SIP-12 comply to UL94V-0 standard retardant package.
*Strong ability against EMC and high frequency signal space inference.
*Industrial temperature range:-40-+85 degree.
Typical application:
Conversion,isolation,long transmission on analog,
PLC control on industrial field and frequency converter.
Selection control Automatically
control on motor in industrial field and control on adjusting light.
Impedance on GND interference.
Control on selecting temperature of industrial boiler automatically.
Form PWM AD converter.





Features:
*4-20mA/0-10v to PWM signal differ sensitively,response quickly.
*High linearity in full range
*Auxiliary power,signal input,output 2500VAC three isolation.
*Auxiliary power:5V,12V,15V or 24V DC single power supply
*low cost ultra small ,SIP-12 comply to UL94V-0 standard retardant package.
*Strong ability against EMC and high frequency signal space inference.
*Industrial temperature range:-40-+85 degree.
Typical application:
Conversion,isolation,long transmission on analog,
PLC control on industrial field and frequency converter.
Selection control Automatically
control on motor in industrial field and control on adjusting light.
Impedance on GND interference.
Control on selecting temperature of industrial boiler automatically.
Form PWM AD converter.
