1W, 2W 4-24VDC Fixed Input, Regulated Single Separate Output DC DC Converter IC

Shenzhen Sunyuan Technology Co., Ltd
1W, 2W 4-24VDC Fixed Input, Regulated Single Separate Output DC DC Converter IC thumbnail-1
1W, 2W 4-24VDC Fixed Input, Regulated Single Separate Output DC DC Converter IC thumbnail-2
1W, 2W 4-24VDC Fixed Input, Regulated Single Separate Output DC DC Converter IC thumbnail-3
1W, 2W 4-24VDC Fixed Input, Regulated Single Separate Output DC DC Converter IC thumbnail-4
1W, 2W 4-24VDC Fixed Input, Regulated Single Separate Output DC DC Converter IC thumbnail-5
1W, 2W 4-24VDC Fixed Input, Regulated Single Separate Output DC DC Converter IC photo-1
1W, 2W 4-24VDC Fixed Input, Regulated Single Separate Output DC DC Converter IC photo-2
1W, 2W 4-24VDC Fixed Input, Regulated Single Separate Output DC DC Converter IC photo-3
1W, 2W 4-24VDC Fixed Input, Regulated Single Separate Output DC DC Converter IC photo-4

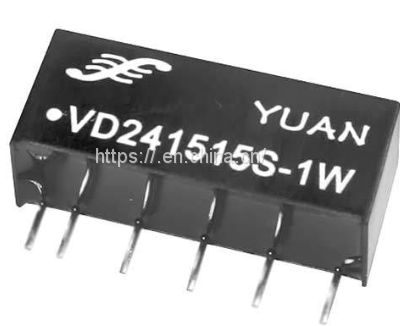

1W, 2W 4-24VDC Fixed Input, Regulated Single Separate Output DC DC Converter IC photo-5
US$ 12.8 - 15 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Sunyuan technology.
Place of Origin:
China
Model Number:
VDxxxxS-1W
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
yantian
Delivery Detail:
5 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Sunyuan technology.
Place of Origin China
Model Number VDxxxxS-1W
Type DC/DC Converters
Weight 15 g
Output Power 1 - 50W
Output Type Single
Output Current 1W, 2W
Output Frequency 1000VDC
Output Voltage 3.3/3.3VDC, 5/5VDC, 9/9VDC, 12/12VDC, etc
Input Voltage 5VDC, 12VDC, 24VDC, etc

1W,2W 4-24VDC Fixed Input, Regulated Single Seperate Output DC DC Converter IC

Features:
Low cost, small size.
high power density and high efficiency.
high galvantic isolation.
no heat sink required.
Regulated single output.
Fixed input,regulated single Separate Output
1KV isolation,custom solution available.
Rated 1W,2W output dc dc converter ic.
industrial standard pin-out.
PCB Mounting, flame retardant package material.

Applications:
Electric Power System, Power monitoring,voltage conversion.
dual power isolation in digital communication ports of RS232/485, CAN bus.
power supply isolation in intelligent control, security equipments, telecom,etc.
safety isolation in ground loop elimination, medical equipments and instrument.
Isolation & power supply for analogue electric circuit ( Transmitter & sensors).
Power supply isolation & transfer for safety monitoring and smart building system.
Ground loop interference control.
Car electric circuit power isolation & distribution.
Battery power supply, voltage transfer, power distribution.
PLC, DCS,PC isolation regulated power supply.

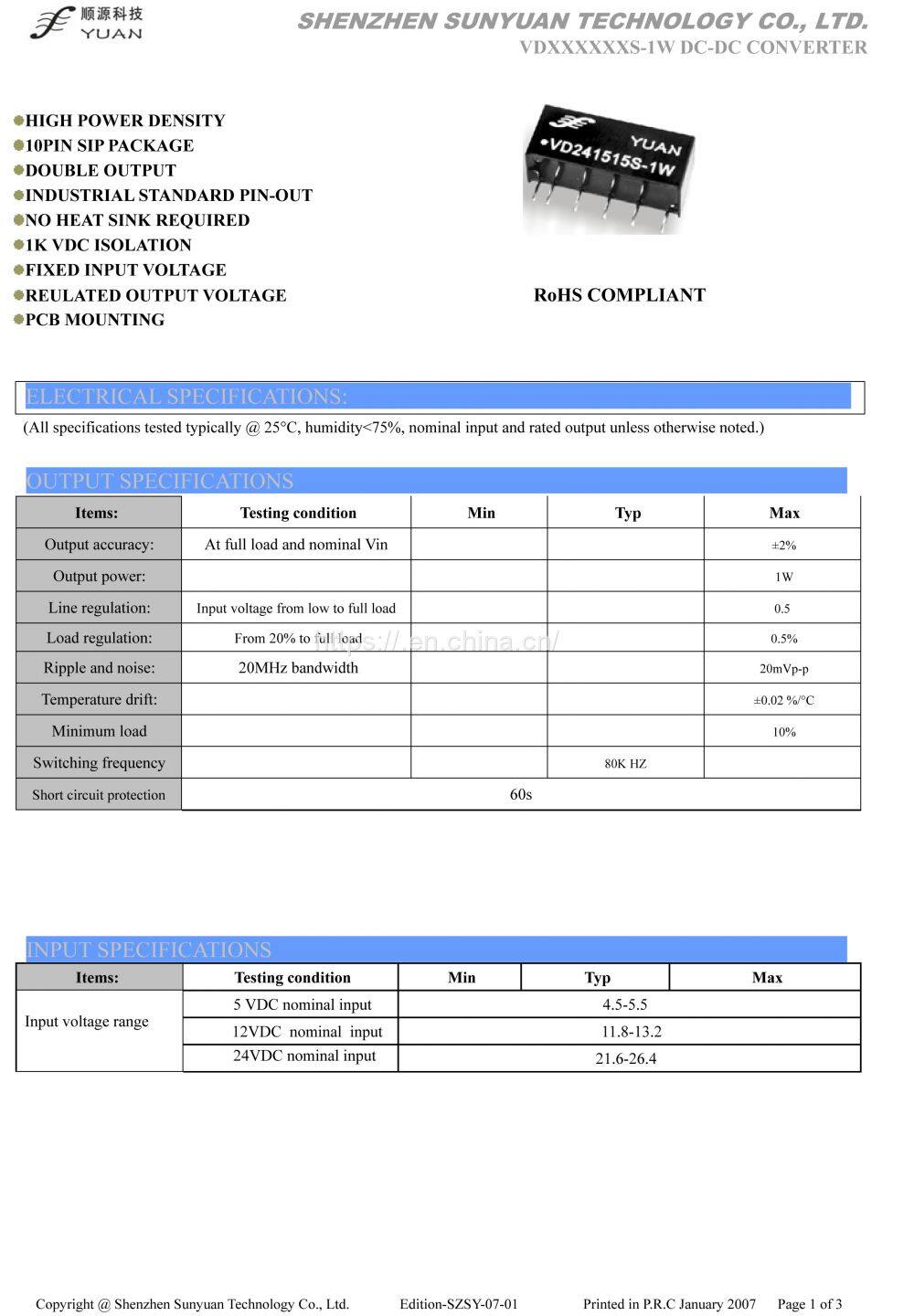

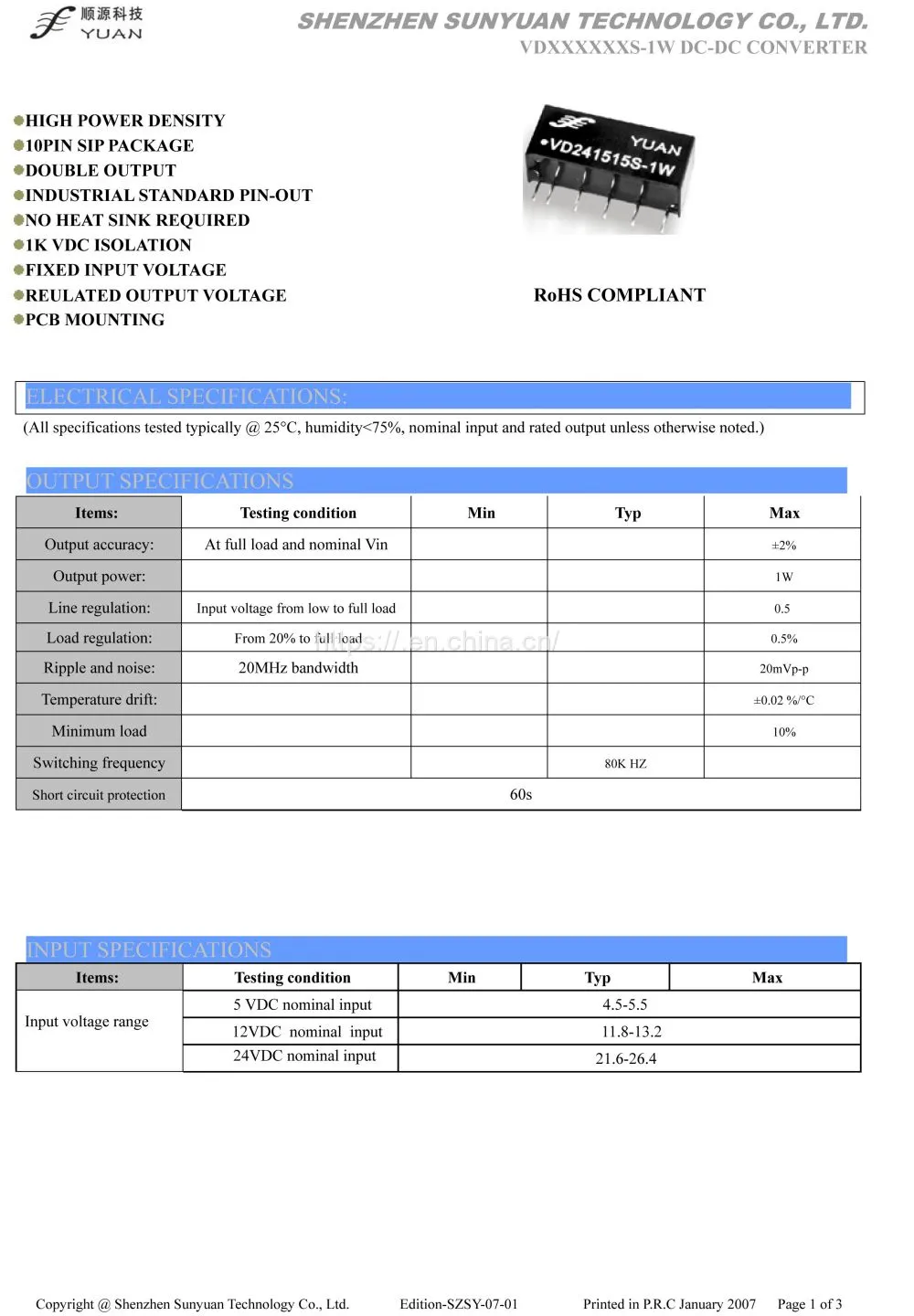

SUNYUAN DC-DC Converters Application Guide

Specifications:

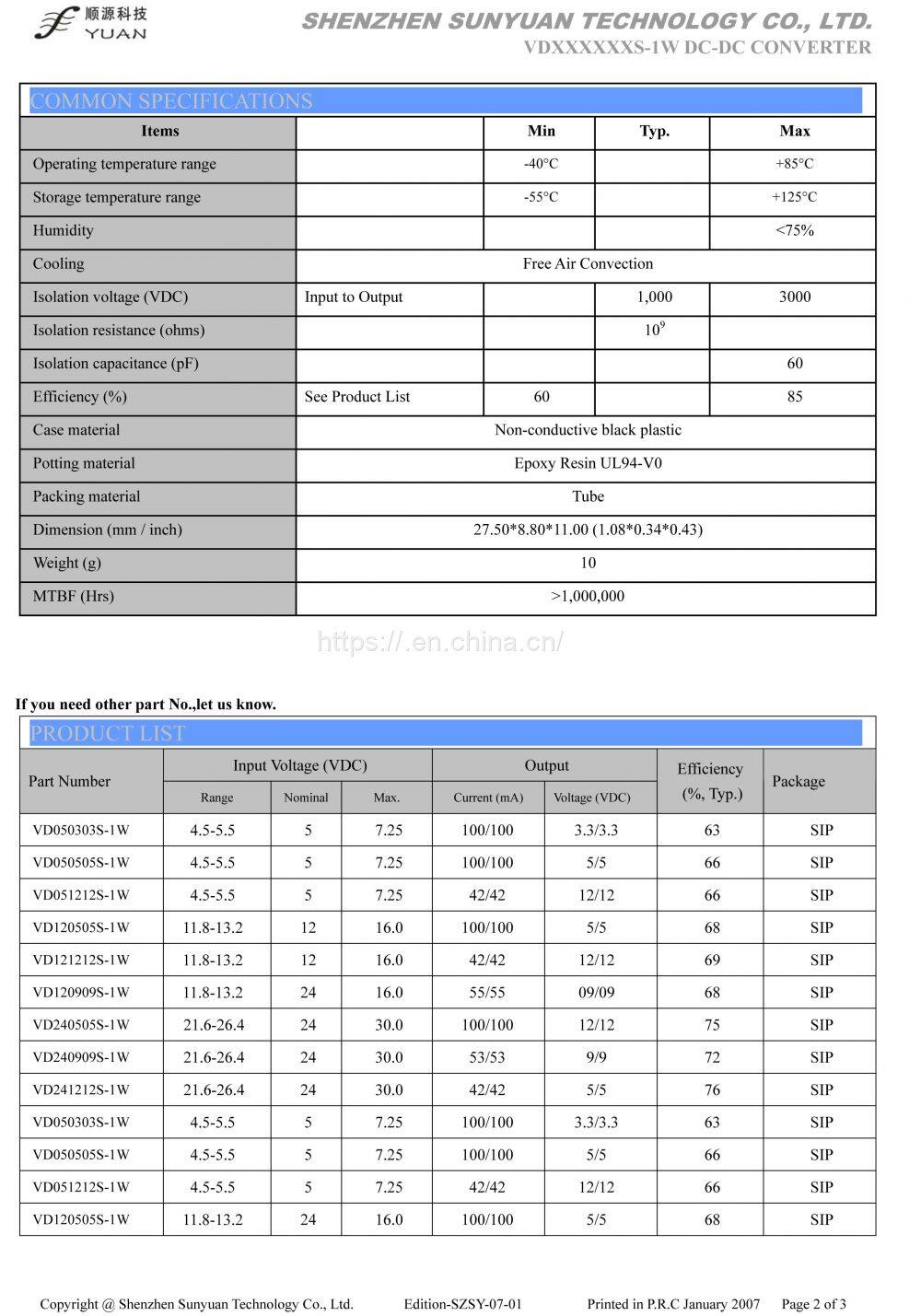

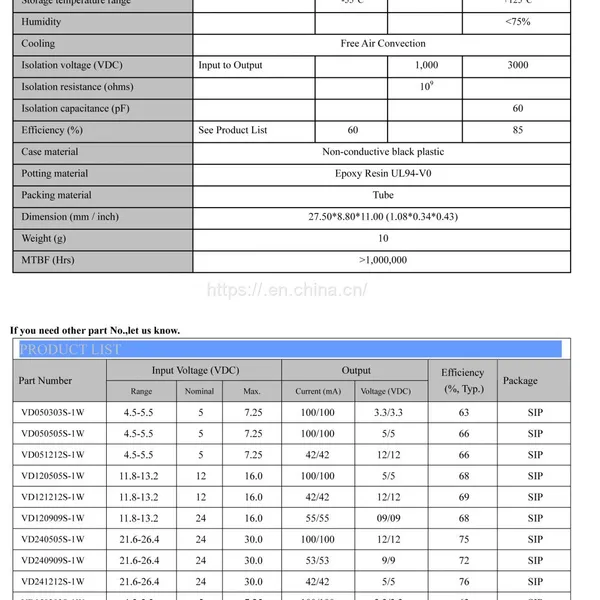

COMMON SPECIFICATIONS
ItemsTesting conditionMinTyp.Max
Operating temperature range
-40°C
+85°C
Storage temperature range
-55°C
+125°C
Humidity


<90%
CoolingFree Air Convection
Isolation voltage (VDC)Input to Output        1000               3,000
Isolation resistance (ohms)
                             109
Isolation capacitance (pF)
                            60
Efficiency (%)See Product List60
85
Case materialNon-conductive black plastic
Potting materialEpoxy Resin UL94-V0
Packing materialTube
Dimension (mm / inch)27.50*8.80*11.00 (1.08*0.34*0.43)
Weight (g)10
MTBF (Hrs)>1,000,000

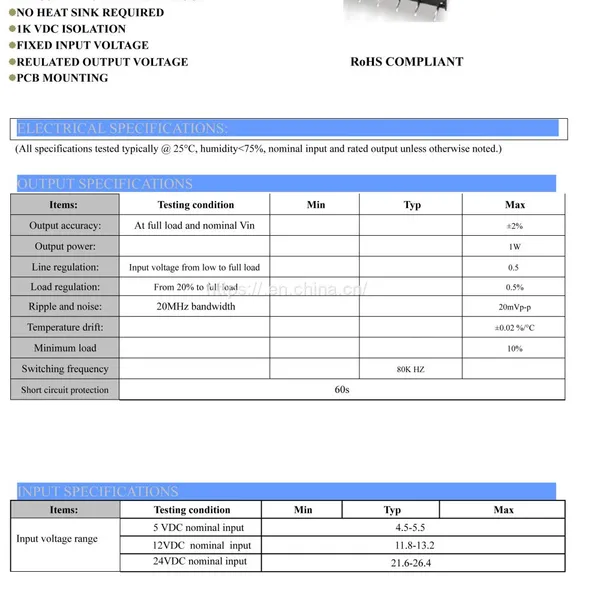

OUTPUT SPECIFICATIONS
Items:Testing conditionMinTypMax
Output accuracy:At full load and nominal Vin

±2%
Output power:


1W
Line regulation:Input voltage from low to full load

.0.5%
Load regulation:From 20% to full load0.5%
Ripple and noise:


20mVp-p
Temperature drift:


±0.02 %/°C
Minimum load


10%
Switching frequency

80K HZ
Short circuit protection
60S
INPUT SPECIFICATIONS
Items:Testing conditionMinTypMax
Input voltage range5VDC nominal input4.5-5.5VDC
12VDC nominal input10.8-13.2VDC
24VDC nominal input21.6-26.4VDC

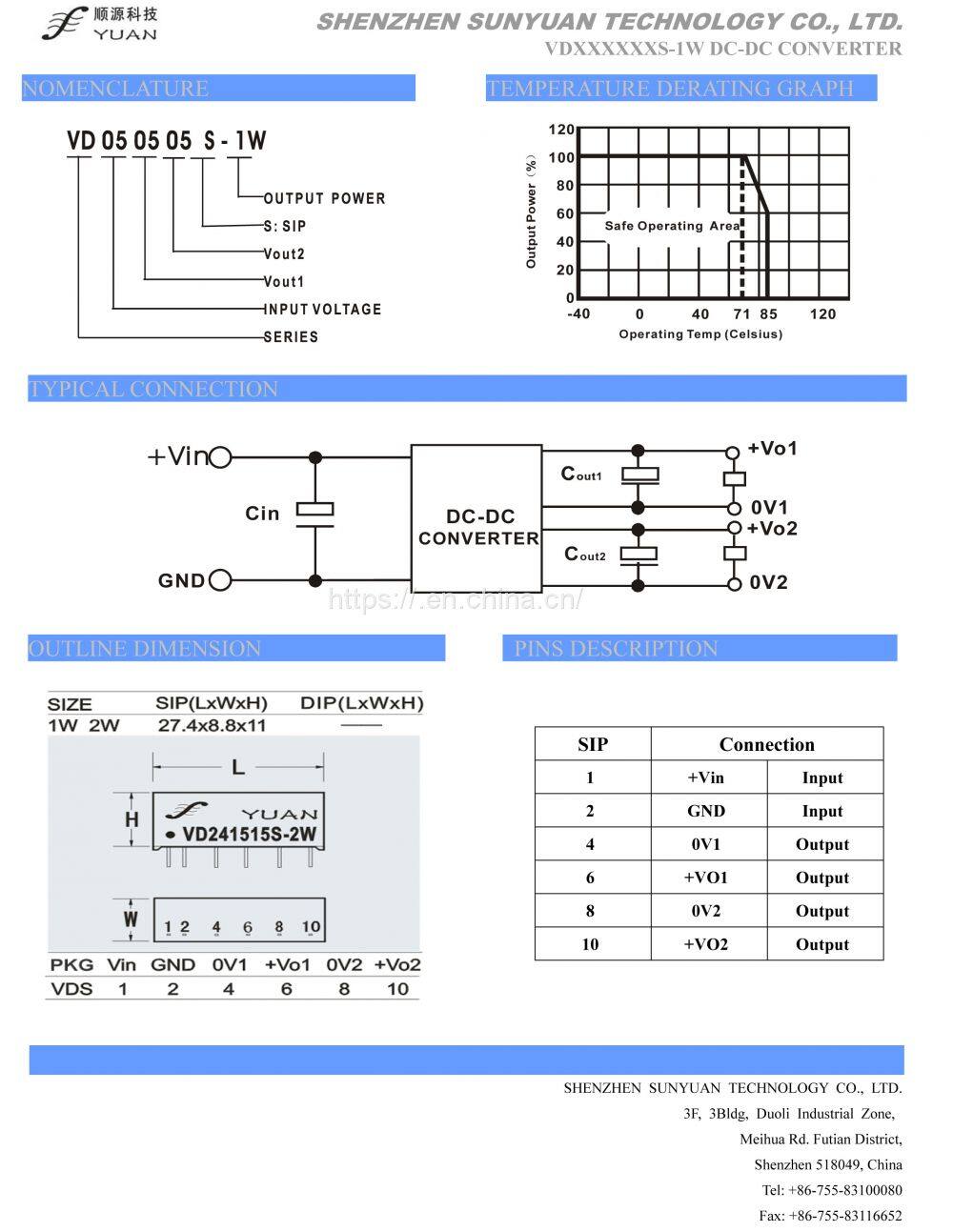

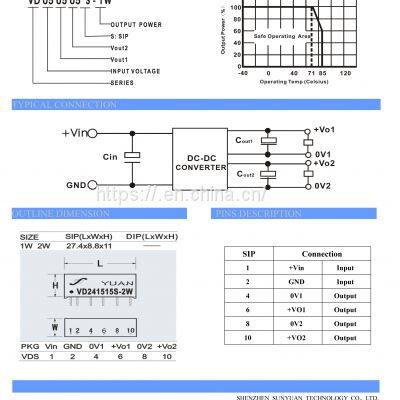

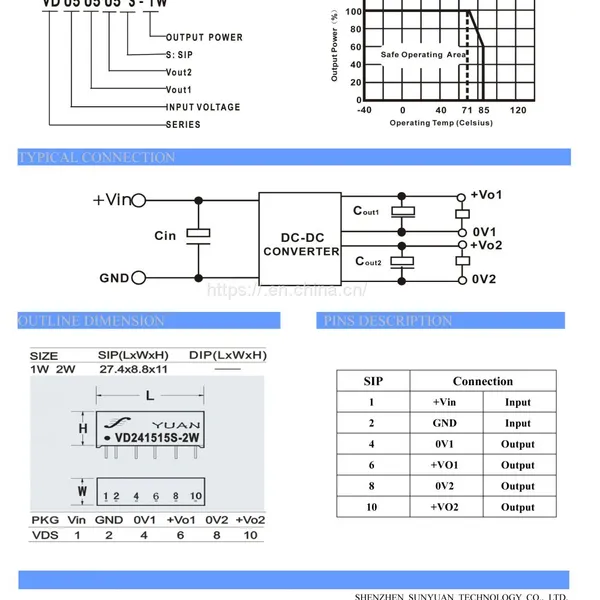

Connection Diagram:
