High Regulated Voltage Output DC DC Converter IC/Circuit Grbxxxxd-Xw-a/B Series

High Regulated Voltage Output DC DC Converter IC/Circuit Grbxxxxd-Xw-a/B Series thumbnail-1
High Regulated Voltage Output DC DC Converter IC/Circuit Grbxxxxd-Xw-a/B Series thumbnail-2
High Regulated Voltage Output DC DC Converter IC/Circuit Grbxxxxd-Xw-a/B Series thumbnail-3
High Regulated Voltage Output DC DC Converter IC/Circuit Grbxxxxd-Xw-a/B Series photo-1
High Regulated Voltage Output DC DC Converter IC/Circuit Grbxxxxd-Xw-a/B Series photo-2
High Regulated Voltage Output DC DC Converter IC/Circuit Grbxxxxd-Xw-a/B Series photo-3
US$ 12.8 - 15 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Sunyuan technology.
Place of Origin:
China
Model Number:
GRBxxxxD-xW-A/B Series
Contact Supplier Request Quote Chat Now
Shenzhen Sunyuan Technology Co., Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
yantian
Delivery Detail:
5 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Sunyuan technology.
Place of Origin China
Model Number GRBxxxxD-xW-A/B Series
Type DC/DC Converters
Weight 15 g
Output Power 1 - 50W
Output Type Single
Output Current 1W, 2W
Output Frequency 1000VDC
Output Voltage 3.3/3.3VDC, 5/5VDC, 9/9VDC, 12/12VDC, etc
Input Voltage 5VDC, 12VDC, 24VDC, etc

High regulated voltage output dc dc converter ic/circuit   GRBxxxxD-xW-A/B Series


Sunyuan GRB Series Wide Voltage Range Input, Regulated High Voltage Outptut DC DC Converter adopts the advanced DC/DC conversion and pressor technology, the unique vacuum insulation and encapsulation technical design, the metal shield case, which have the following characteristics: moisture-proof, shockproof, high efficiency, low noise, low temperature drift, anti-EMC electro magnetic interference,etc. The modules are widely used in mine exploration, metallurgy, optical control technology, medical equipment, physical and chemical experimental analysis, etc.

Technical Parameters:

Output Specifications:
Technical Specifications Technical Parameter Testing Conditions
Voltage Stability Accuracy 3.0%max 1%-100% load range
 Voltage Regulation 0.5%max full load
Load Regulation ±0.5%type.
±1.0%max
(No load to full load)		 0%-100% load range
Ripple and Noise ≤150mVp-p,max 20MHzband width
Dynamic Response Speed ≤150us 25% load-full load
Response Time 500ms
Input Specifications:
Input Voltage Range (12VDC)9 - 18VDC
(24VDC)18 - 36VDC
Linear Speed Rate 0.5%  low end- high end
General Specifications:
Switch Frequency 150KHZ Typical Value
Conversion Efficiency See Model Selection Guide
Isolation Voltage Non-isolated
Average Non-failure Interval Time 50000 hours
Temperature Coefficient 0.02%/ºC
Environment Characteristics:
Operating Temperature -40ºC - +85ºC
Storage Humidity -55ºC - +125ºC
Relative Humidity 10% - 90%
Cooling Mode free air

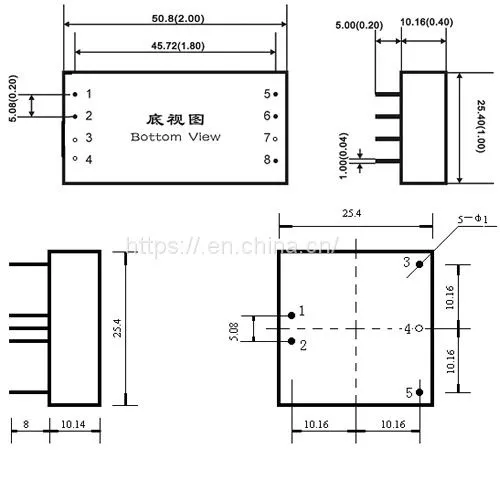

Dimension & PIN Definition:
( 1 )  A Model Dimension:25.4 x 25.4 x 10.14    Unit:mm     A Model Product No. : GRBXXXXD- A (bottom view)
