Multi-Channel Analog Signal to RS232/485 Data Acquisition Modules with LED Display

FOB Price

US$ 170 - 200 / Piece

1 Piece(Min. Order)

Port yantian
Payment TermsT/T PayPal
Delivery Detail5 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	SUNYUANsz	Place of Origin	China
Model Number	SYAD02/4B	Type	DC/DC Converters
Size	123 mm X 70 mm X 30mm	Weight	Approximately 72g
Output Power	Other, no	Output Type	Dual
Output Frequency	-3 dB 10 Hz	Output Voltage	< 1W
Input Voltage	-3 dB 10 Hz

Product Description

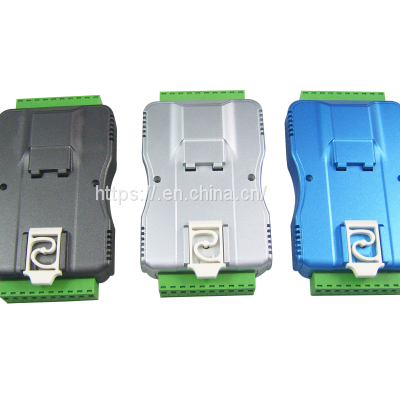

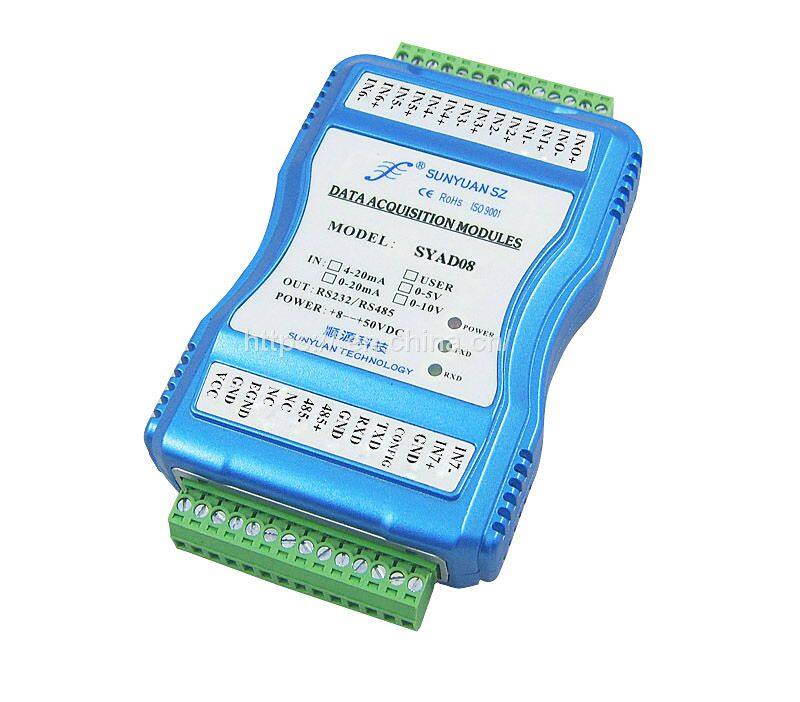

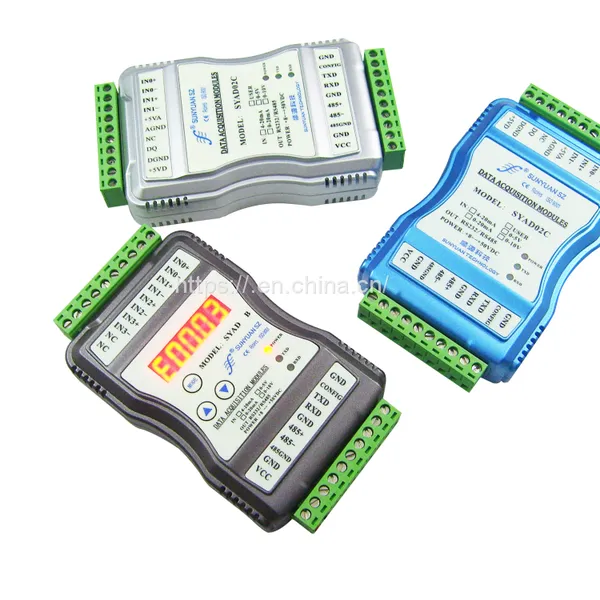

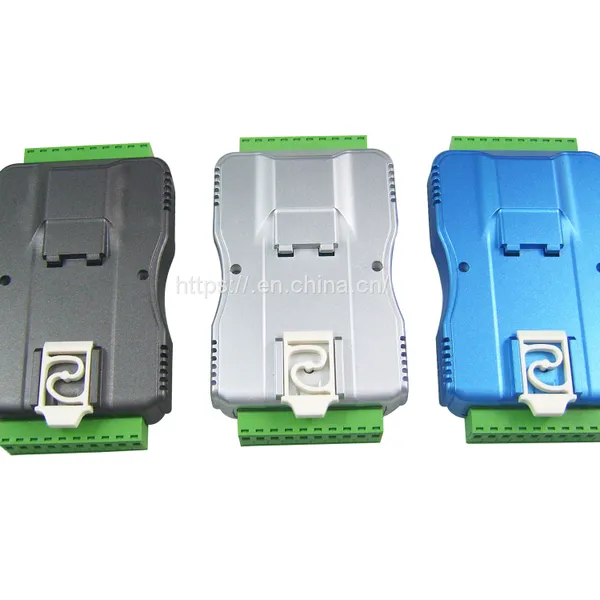

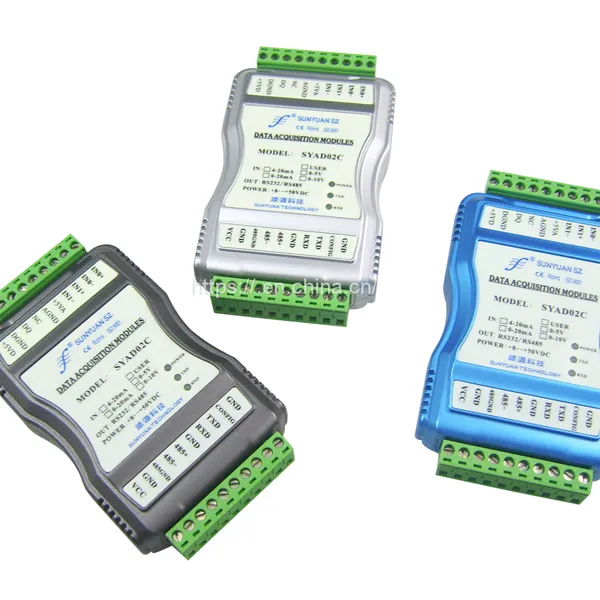

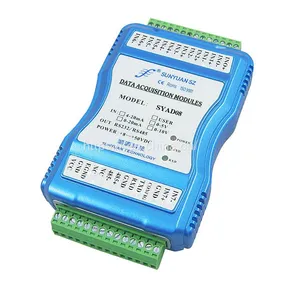

Multi-Channel Analog Signal to RS232/485 Data Acquisition Modules With LED Display

SYAD02/4B series achieve the signal acquisition between sensor and the host to test analog signal or
control remote device. The configuration software can be used for a variety of sensors including analog
input, analog output, and digital signal input / output (I / O), SYAD02/4B series products can be used in
industrial automation RS-232/485 bus system,4-20mA / 0-10V signal measurement, monitoring and
control, small-signal measurement, and industrial-site signal isolation and long-term transmission and so
on.

Products include power supply isolation, signal isolation, linearization, A/D conversion and RS-485
serial communication. Each serial port of the maximum 256 SYAD02B series of modules, means of
communication using ASCII character communication protocol or MODBUS RTU communication
protocol, its instruction set compatible with the ADAM modules, the baud rate is set by the user, with
other manufacturers control module hanging in the same RS-485 bus, to facilitate computer
programming.
