Passive Two Wire PWM Signal to 4-20mA Signal Converters

Passive Two Wire PWM Signal to 4-20mA Signal Converters thumbnail-1
Passive Two Wire PWM Signal to 4-20mA Signal Converters thumbnail-2
Passive Two Wire PWM Signal to 4-20mA Signal Converters thumbnail-3
Passive Two Wire PWM Signal to 4-20mA Signal Converters thumbnail-4
Passive Two Wire PWM Signal to 4-20mA Signal Converters thumbnail-5
Passive Two Wire PWM Signal to 4-20mA Signal Converters photo-1
Passive Two Wire PWM Signal to 4-20mA Signal Converters photo-2
Passive Two Wire PWM Signal to 4-20mA Signal Converters photo-3
Passive Two Wire PWM Signal to 4-20mA Signal Converters photo-4
Passive Two Wire PWM Signal to 4-20mA Signal Converters photo-5
US$ 30 - 50 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Sunyuan technology.
Place of Origin:
China
Model Number:
ISO D-O1
Contact Supplier Request Quote Chat Now
Shenzhen Sunyuan Technology Co., Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
yantian
Delivery Detail:
5 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Sunyuan technology.
Place of Origin China
Model Number ISO D-O1
Type DC/DC Converters
Size 83x51x37CM
Weight 75 g
Output Power 1 - 50W
Output Type Single
Output Current 0-5V, 0-10V, 1-5mV, 0-1A
Output Frequency 500mA, 200mA,500mA, 2Ω
Output Voltage 0-5V, 0-10V, 1-5mV, 0-1A
Input Voltage 0-5V, 0-10V, 0-75mV, 0-2.5V


Passive Two Wire PWM Signal to 4-20mA Signal Converters



Features:
1. Unique loop-powered technique used, external power supply is not required.
2. PWM pulse width signal input, 4-20mA loop powered output type.
3. 10Hz--50kHz PWM signal input, high sensitivity, fast response.
4. High linearity in full measuring range, non-linearity5. 3kV isolation between input and output.
6. Extra small size 22x11x9mm, error grade: 0.1, 0.2, 0.5
7. SIP 8-Pin PCB-mounting, UL94V-O flame-retardant package.
8. High anti-interference ability on EMC magnetic interference or high frequency signal.
9. Industrial operating temperature range: -40--+85Cel. deg.

Applications:
1. PMW signal long-distance transmission, isolated conversion.
2. PLC and Inverter control in industrial site.
3. Signal Ground wire anti-interference.
4. Boiler temperature automatic control.
5. DA Converter designed on the basis of PWM.
6. Processing control and automatic equipment
7. PWM to 2-wire 4-20mA signal isolated control, 1-channel input 1-channel output or 2-in 2-out isolated conversion.

Specification:

Item Passive Two Wire PWM Signal to 4-20mA Signal Converters
Model No. ISO D-O1
Input 10Hz-99Hz, 100Hz-0.9KHz, 1KHz-9KHz, 10KHz-19KHz, 20KHz-50KHz
Output 4-20mA
Power supply Powered by current loop
Isolation voltage 3KVDC isolation between input and output
Package Sip 8
Optional package type DIN rail mounted type

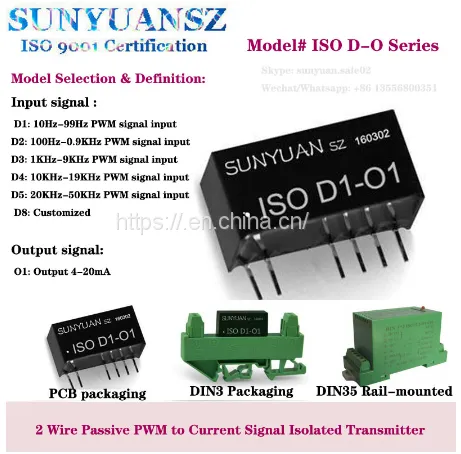

Optional package:

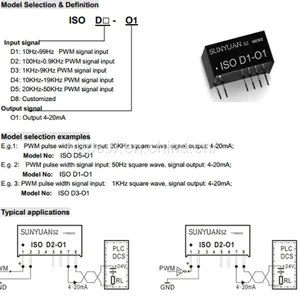

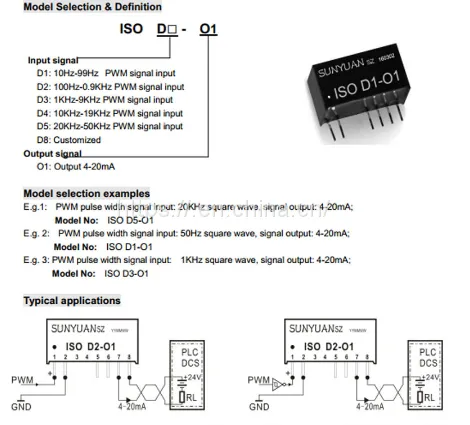

Model Selection:


Related products:
(Active PWM Signal to Analog Signal Converters)


Product Tags: Power Supply , Converter , Power Inverter , Signal Conditioning , Isolation Amplifier , signal converter , signal isolation , Signal Amplifier , Analog Isolator
