4-20madifferential Signalacquisition Converter Sy C-A4-P4-O4

Shenzhen Sunyuan Technology Co., Ltd
4-20madifferential Signalacquisition Converter Sy C-A4-P4-O4 thumbnail-1
4-20madifferential Signalacquisition Converter Sy C-A4-P4-O4 thumbnail-2
4-20madifferential Signalacquisition Converter Sy C-A4-P4-O4 thumbnail-3
4-20madifferential Signalacquisition Converter Sy C-A4-P4-O4 photo-1
4-20madifferential Signalacquisition Converter Sy C-A4-P4-O4 photo-2
4-20madifferential Signalacquisition Converter Sy C-A4-P4-O4 photo-3
US$ 18 - 20 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Sunyuan technology.
Place of Origin:
China
Model Number:
SY C-A4-P4-O4
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
yantian
Delivery Detail:
5 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Sunyuan technology.
Place of Origin China
Model Number SY C-A4-P4-O4
Type DC/DC Converters
Size 15x14x4
Weight 75 g
Output Power 1 - 50W
Output Type Single
Output Current 5V, 12V, 15V, 24VDC etc.
Output Voltage 4-20mA
Input Voltage 0-100ohm

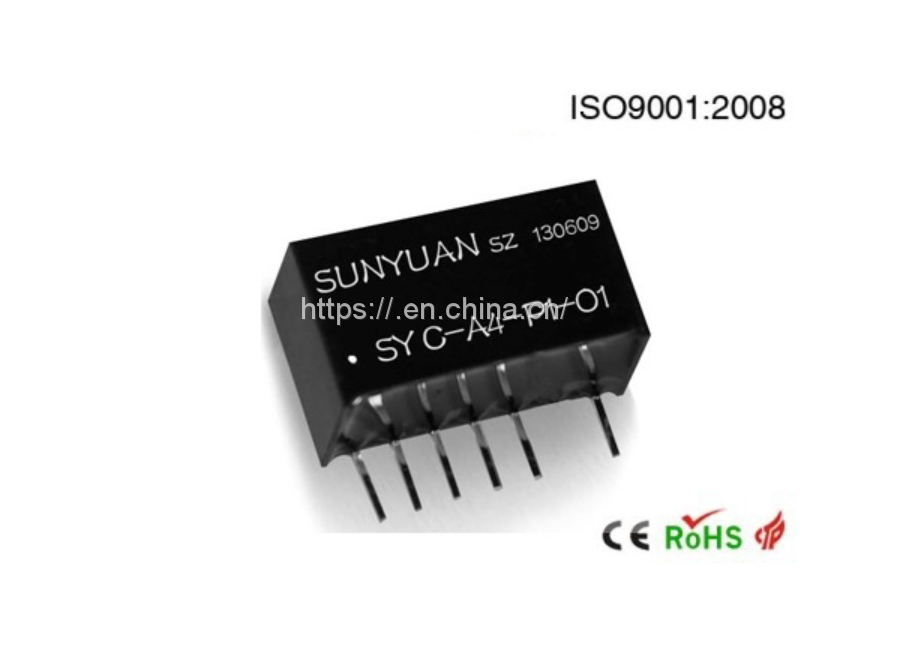

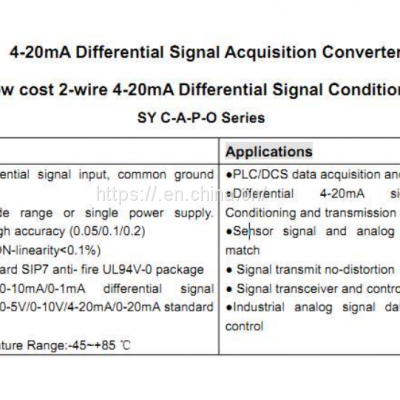

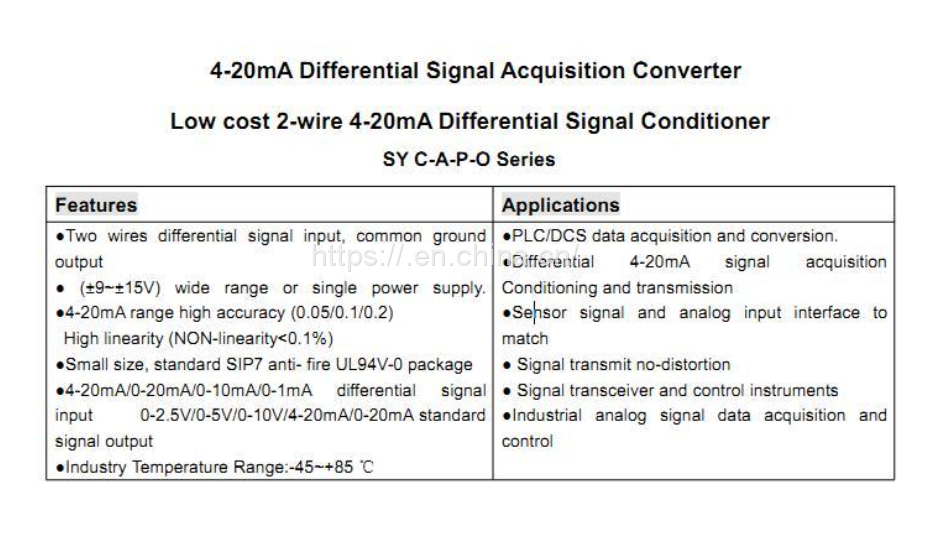

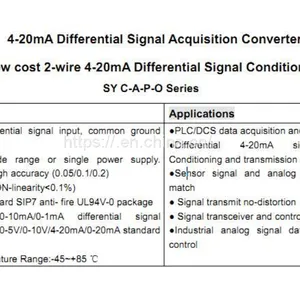

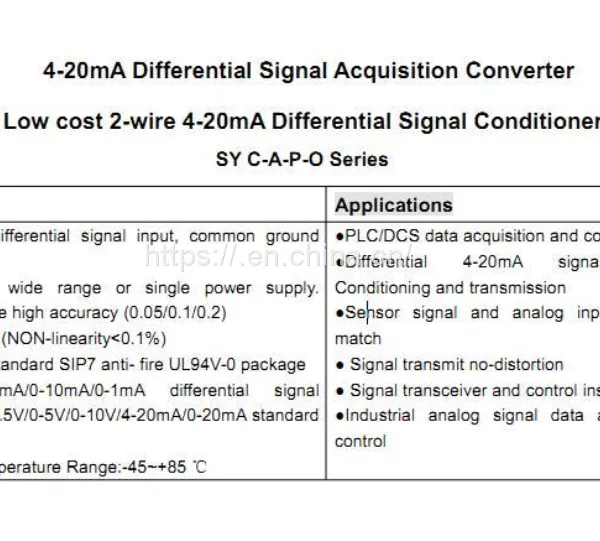

SUNYUAN SY C-A-P-O series converter is a kind of 2-wire 4-20mA Differential Signal Acquisition
Conditioner IC, it contains an internal differential signal acquisition, conditioning and conversion coupled
circuits. Standard input equivalent resistance enables the IC collect differential signals from sensor to meet the
user's requirements in MCU applications. (± 9 ~ ± 15V) Wide range power supply or single power supply. It can
meet the temperature, humidity, vibration and other industrial site in harsh environment. SY C-A-P-O is easy to
use, do not take any regulation loop that can achieve the required accuracy, to achieve the two-wire 4-20mA
signal transmission and transmitter functions.


Please contact me for detail parameter.Thanks.

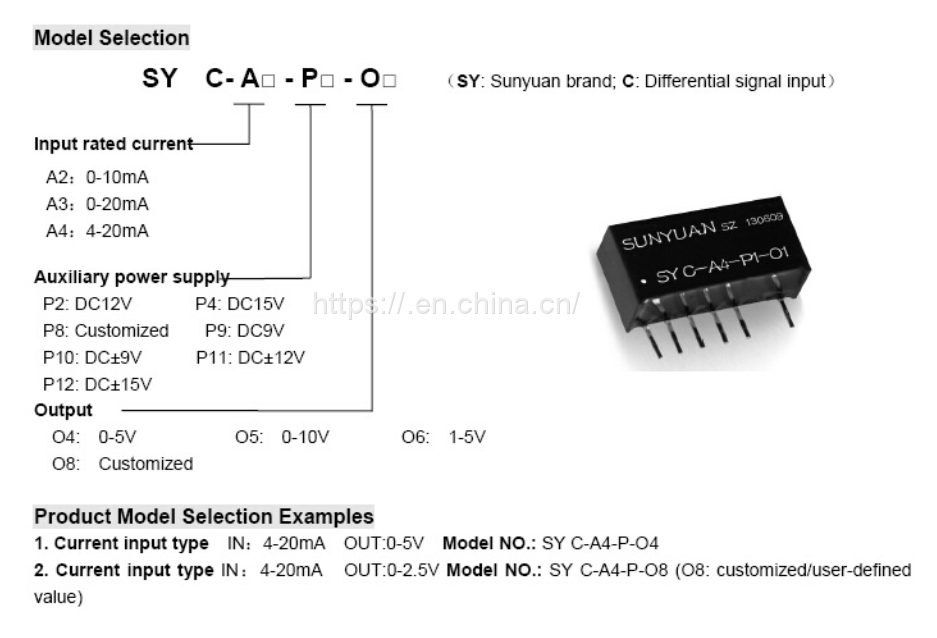

Model noInputOutputPower
SY C-A4-P1-O44-20mA0-5V24VDC
DIN3 SY C-A4-P3-O54-20mA0-10V5VDC
DIN 1X1 SY C-A4-P3-O44-20mA0-5V12VDC

Product Tags: Power Supply , Converter , Power Inverter , Signal Conditioning , Isolation Amplifier , signal converter , signal isolation , Signal Amplifier , Analog Isolator
