Help CenterPassive Two Wire PWM Signal to 4-20mA Signal Converters
Related Products
-
Passive Two Wire PWM Signal to 4-20mA Signal ConvertersUS$ 30 - 50MOQ: 1 Piece -
ISO 4-20mA-O6 2-Wire Passive 4-20mA to Voltage Signal Isolation ConverterUS$ 18 - 22MOQ: 1 Piece
-
Signal Converters 4-20mA to 0-10VUS$ 12.8 - 15MOQ: 1 Piece
-
Dual in Out 4-20mA Current Loop Isolation AmplifierUS$ 15 - 18MOQ: 1 Piece
-
PWM Pulse to 0-10V Converter With 3kv IsolationUS$ 30 - 50MOQ: 1 Piece
Features:
1. Unique loop-powered technique used, external power supply is not required.
2. PWM pulse width signal input, 4-20mA loop powered output type.
3. 10Hz--50kHz PWM signal input, high sensitivity, fast response.
4. High linearity in full measuring range, non-linearity5. 3kV isolation between input and output.
6. Extra small size 22x11x9mm, error grade: 0.1, 0.2, 0.5
7. SIP 8-Pin PCB-mounting, UL94V-O flame-retardant package.
8. High anti-interference ability on EMC magnetic interference or high frequency signal.
9. Industrial operating temperature range: -40--+85Cel. deg.
Applications:
1. PMW signal long-distance transmission, isolated conversion.
2. PLC and Inverter control in industrial site.
3. Signal Ground wire anti-interference.
4. Boiler temperature automatic control.
5. DA Converter designed on the basis of PWM.
6. Processing control and automatic equipment
7. PWM to 2-wire 4-20mA signal isolated control, 1-channel input 1-channel output or 2-in 2-out isolated conversion.
Specification:

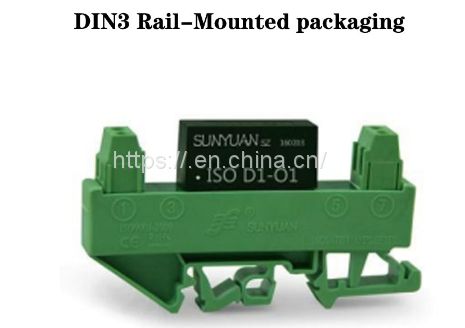

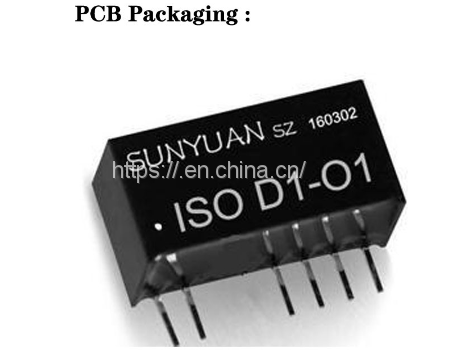

Optional package:

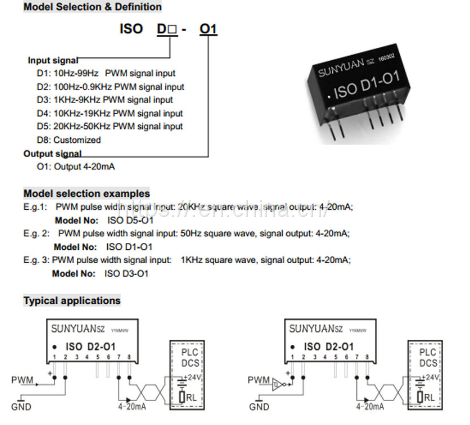

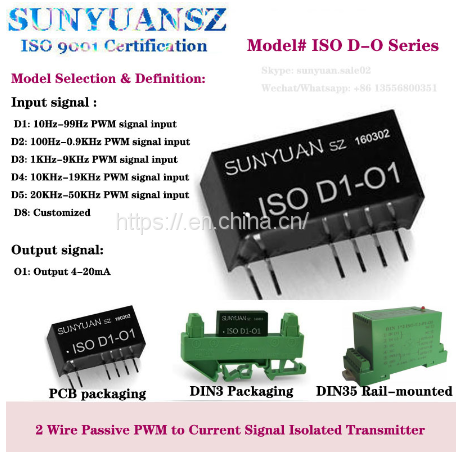

Model Selection:
Related products:
(Active PWM Signal to Analog Signal Converters)
