4 Spindles Lab Cone Yarn Winding Machine Factory Price

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

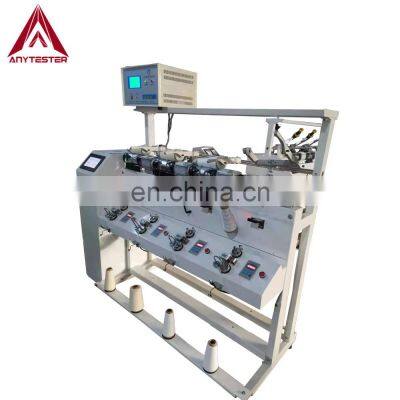

AT209 Lab Cone Winding Machine is a specified equipment in the textile industry as the bridge from the spinning of yarn to the manufacturing of fabric. It is the final process in the spinning of yarn to use tube yarn/cop to make bobbins/cones of large capacity for the manufacturing of fabric. The purpose of winding is to produce bobbin/cones of large capacity and to eliminate faults on yarn. For other purpose of loose winding before dyeing or compact winding after dyeing, please inform us before ordering.

Specification

Model	AT209A
Number of spindles	4, 6, 12, 24, 36, …, 108, 120

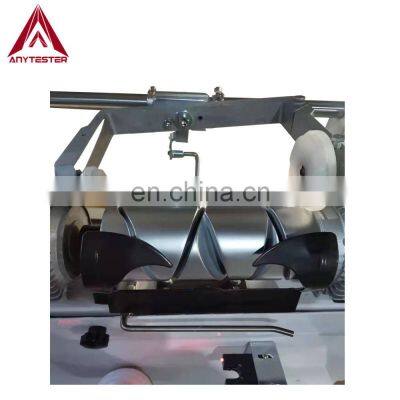

Grooved drum	O/D82mm Pitch: 2.5×147

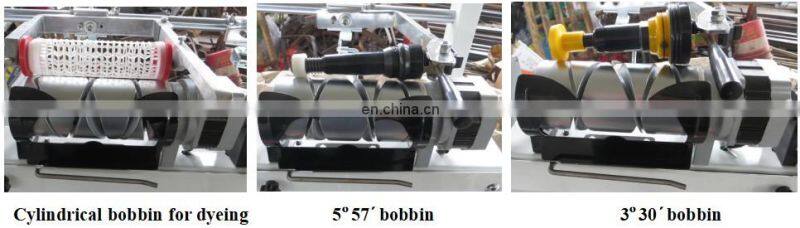

Take-up package	3º30´, 4º20´,5º57´,9º15´or cylindrical
Max. package diameter	¢280mm
Max. length setting	999999 meter, electronic setting
Drive mode	DC brushless motor with adjustable speed
Max. winding speed	1100meter/minute
Yarn-guiding traverse	Standard 147mm
Radial anti-aliasing system	Microcomputer control
Rated power	60W/spindle at max. speed
Power supply	AC220V 50Hz, single-phase

Details & Features

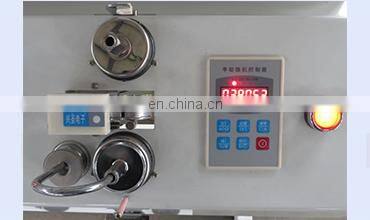

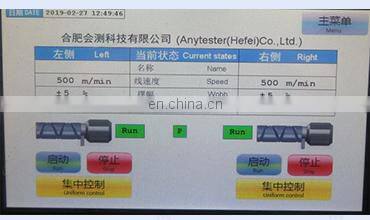

1. Two control modes: uniform control on touch screen (optional) for spindles on each side and independent control on control panel for each spindle;

1. Automatic length setting up to 999999 meter;

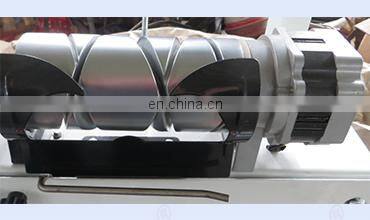

2. DC brushless motor to independently drive each grooved drum with adjustable winding speed;

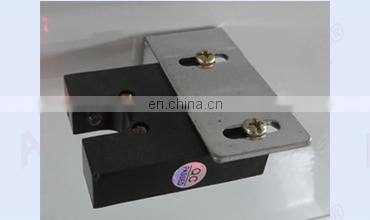

1. Optical yarn breaking detector for each spindle;

1. Microcomputer controlled anti-aliasing;

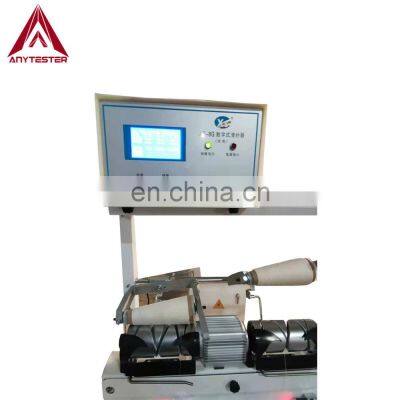

2. Optional knotter and optional electronic yarn cleaner;

3. Optional bobbin clamps for different bobbins;

NOTE-Please inform us the bobbin type that you use before order, so we can supply the right bobbin for you.

Our Company

History

Since 1982 with more than 20 years’ experience

Warranty

Two Year Warranty for whole product

Training

Video and user manual for training

Onsite service

Installation and training service is available

Testing service

Free sample testing before order is available

Lead time

15 working days lead time for most product

Packing & Delivery

Packaging
Packaging Details	1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated.

Payment

Payment Term	T/T	EXW	30% T/T in advance, paid the balance before shipment
			30% T/T in advance, paid the balance before shipment		FOB
				CFR(C&F)	30% T/T in advance, paid the balance against copy of B/L
				CIF	30% T/T in advance, paid the balance against copy of B/L
		L/C	L/C amount above 50,000 usd, we can accept L/C at sight
		West Union	Amount lower than 5000usd
		West Union	Amount lower than 5000usd
Delivery Time	7~10days after receiving payment for one container
