1 Spindle Making Hank Yarn to Bobbin Yarn With Cone Winding Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2012
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
LED Portable Spectrophotometer PriceNegotiableMOQ: 1 -
AATCC TM16 Air Cooled Weather-Ometer With Touch ScreenNegotiableMOQ: 1
-
Universal Oven With TFT Color DisplayNegotiableMOQ: 1
-
Compact Structure Lab Size Temperature & Humidity Impact ChamberNegotiableMOQ: 1
-
ASTM D2794 Coating Impact TesterNegotiableMOQ: 1
Product Description

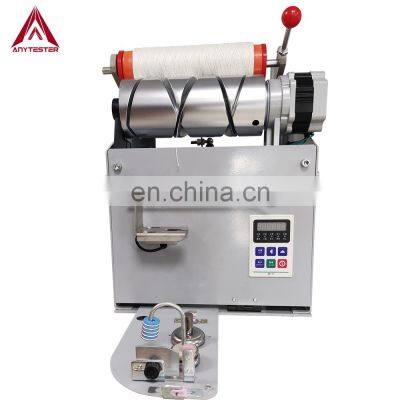

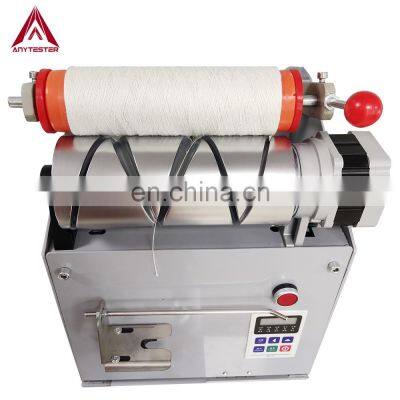

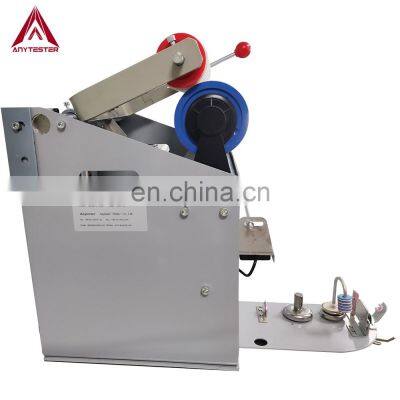

AT209A Yarn Winding Machine is use to winding the hank yarn, roving, or tube yarn be bobbin yarn. It is widely used to wind cotton yarn, chemical fiber, filament, low stretch yarn.
Features
★ Double points tension control system with micro motors, uniform yarn tension. It is appropriate for high speed waxing winding and easy to operate.
★ This machine can be set the length of winding; When there is broken yarn it will stop automatically; when yarn is fully filled, it will also stop; also, it has the function of slow start.
★ This machine can be set the length of winding; When there is broken yarn it will stop automatically; when yarn is fully filled, it will also stop; also, it has the function of slow start.
★ High-speed creel with gas spring, which can keep constant winding pressure. The creel is stable and reliable. And it will make the loose bobbin be suitable.
★ The machine has the device to protect yarn, our adjustable block yarn sheet metal can prevent the yarn be a mass.
★ The machine has the device to protect yarn, our adjustable block yarn sheet metal can prevent the yarn be a mass.
★ This machine assemble with XKH grooved drums(0°，3°30’，4°20’，5°57’，9°15’), this kind of Ni-P alloy grooved drum has optimized groove shape which have the advantages of good wear resistance and static elimination.
★ We use brushless DC motor with longer axis, it is convenient to adjust the speed of single spindle
★ We use brushless DC motor with longer axis, it is convenient to adjust the speed of single spindle
Specifications
Model |
AT209A |
Spindle number |
1 |
Types of winding |
Drum, Random |
Mechanical speed |
Up to 1200m/min (process speed depending on quality of yarn and feed packages |
Package shape |
Cylindrical or conical |
Traverse length |
147mm,150mm,152mm.154mm |
Package bobbin |
0° 3°30′5°57′9°15′ |
Package diameter |
Up to φ290 mm |
Package weight |
Up to 3kg |
Package density |
0.2-0.4g/cm3 |
Yarns / count |
Cotton flax, wool, silk, chemical fiber /Ne 6-180 |
Groove drum |
Φ82*175mm |
Power consumption |
Installed power:100W/spindle
Power consumption:65W/spindle
|
Auto stop while yarn break |
With electronic yarn detector, the spindle will stop when yarn break |
Power |
220V/380V, 50/60Hz |
Dimension |
1270mm×408mm×1510mm |
Weight |
89kg |
Packing & Delivery
Packaging Details
|
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. |
Payment
Payment Item
|
T/T
|
EXW
FOB CFR(C&F) CIF |
30% T/T in advance, paid the balance before shipment
|
||
FOB |
|||||
CFR(C&F) |
30% T/T in advance,paid the balance against copy of B/L |
||||
CIF |
|||||
L/C |
L/C amount above 50,000 usd, we can accept L/C at sight |
||||
West Union |
Amount lower than 50,000usd |
||||
Delivery Time |
60 days after receiving payment |
||||
