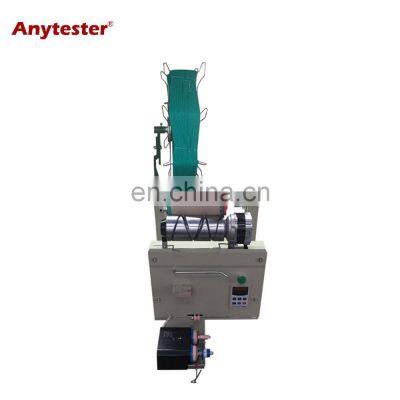

Yarn Winding Machine For Cotton Yarn photo-2

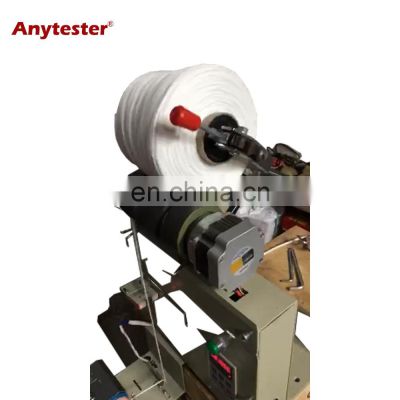

Yarn Winding Machine For Cotton Yarn photo-3
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2012
Annual Export Value:
Below US$1 Million
Contact Supplier Request Quote Chat Now
Anytester (hefei) Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Description

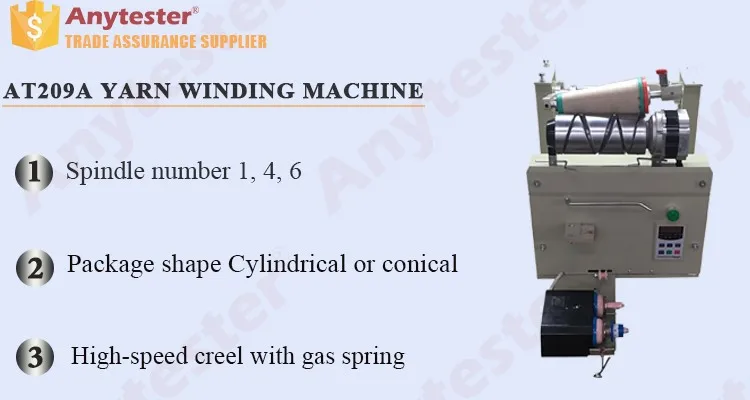

AT209A Yarn Winding Machine is use to winding the hank yarn, roving, or tube yarn be bobbin yarn. It is widely used to wind cotton yarn, chemical fiber, filament, low stretch yarn.
Features
★ Double points tension control system with micro motors, uniform yarn tension. It is appropriate for high speed waxing winding and easy to operate.

★ This machine can be set the length of winding; When there is broken yarn it will stop automatically; when yarn is fully filled, it will also stop; also, it has the function of slow start.

★ High-speed creel with gas spring, which can keep constant winding pressure. The creel is stable and reliable. And it will make the loose bobbin be suitable.

★ The machine has the device to protect yarn, our adjustable block yarn sheet metal can prevent the yarn be a mass.

★ This machine assemble with XKH grooved drums(0°,3°30',4°20',5°57',9°15'), this kind of Ni-P alloy grooved drum has optimized groove shape which have the advantages of good wear resistance and static elimination.

★ We use brushless DC motor with longer axis, it is convenient to adjust the speed ofsingle spindle

Specifications
Model
AT209A
Spindle number
1, 4, 6
Types of winding
Drum, Random
Mechanical speed
Up to 1200m/min (process speed depending on quality of yarn and feed packages
Package shape
Cylindrical or conical
Traverse length
147mm,150mm,152mm.154mm
Package bobbin
0° 3°30′5°57′9°15′
Package diameter
Up to φ290 mm
Package weight
Up to 3kg
Package density
0.2-0.4g/cm3
Yarns / count
Cotton flax, wool, silk, chemical fiber /Ne 6-180
Groove drum
Φ82*175mm
Power consumption
Installed power:100W/spindle
Power consumption:65W/spindle
Auto stop while yarn break
With electronic yarn detector, the spindle will stop when yarn break
Power
220V/380V, 50/60Hz
Dimension
1270mm×408mm×1510mm
Weight
89kg
Payment




Payment Item


T/T
EXW



30% T/T in advance, paid the balance before shipment

FOB

CFR(C&F)



30% T/T in advance,paid the balance against copy of B/L

CIF
30% T/T in advance, paid the balance before shipment
FOB
CFR(C&F)
30% T/T in advance,paid the balance against copy of B/L
CIF
L/C
L/C amount above 50,000 usd, we can accept L/C at sight
West Union
Amount lower than 50,000usd
Delivery Time
7~10 days after receiving payment for one container
Packing & Delivery
Packaging
Size(cm)
1270mm*408mm*1510mm
Weight
89kg



Packaging Details
1. The equipment is covered with film is protect it from water vapour during the trip.
2. The box is filled with foam to protect the equipment from impact.
3. Exported wooden box made from plywood, don't need fumigated.
