Product Description

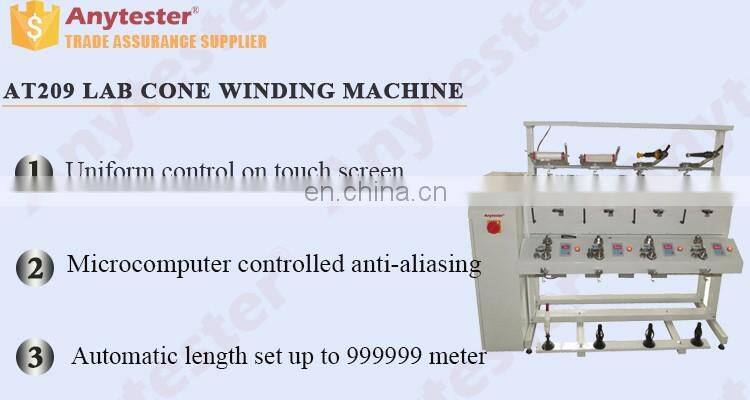

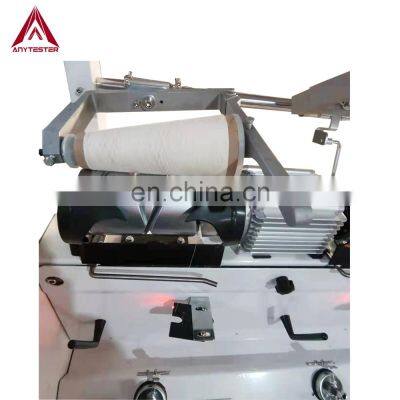

AT209 Lab Cone Winding Machine is a specified equipment in the textile industry as the bridge from the spinning of yarn to the manufacturing of fabric. It is the final process in the spinning of yarn to use tube yarn/cop to make bobbins/cones of large capacity for the manufacturing of fabric. The purpose of winding is to produce bobbin/cones of large capacity and to eliminate faults on yarn. For other purpose of loose winding before dyeing or compact winding after dyeing, please inform us before ordering.
Features

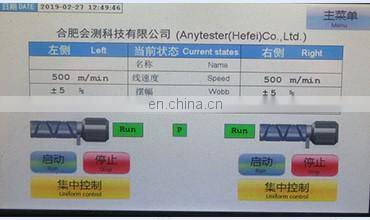

Touch Screen

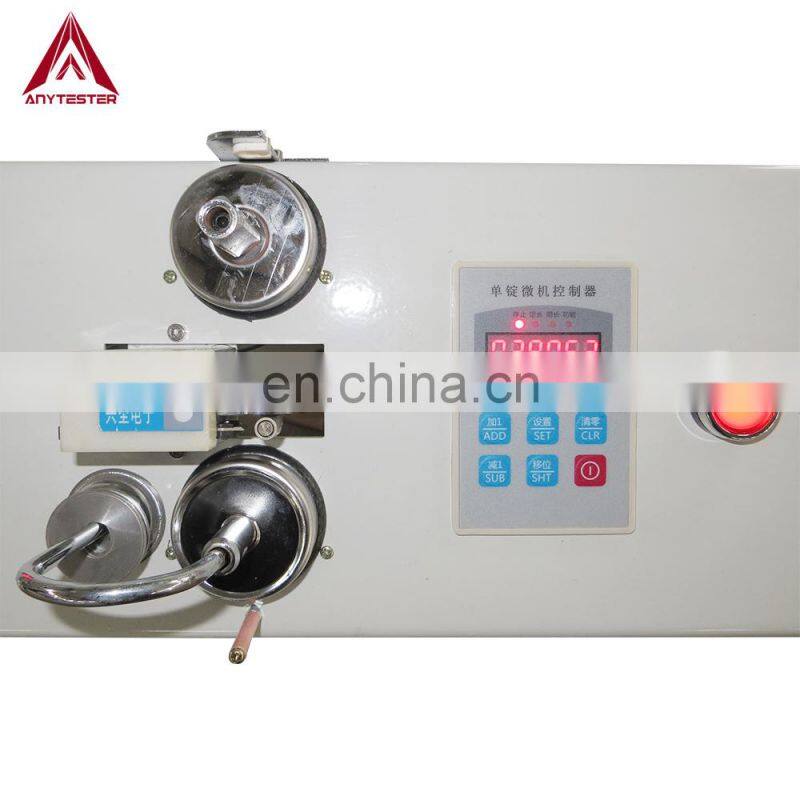

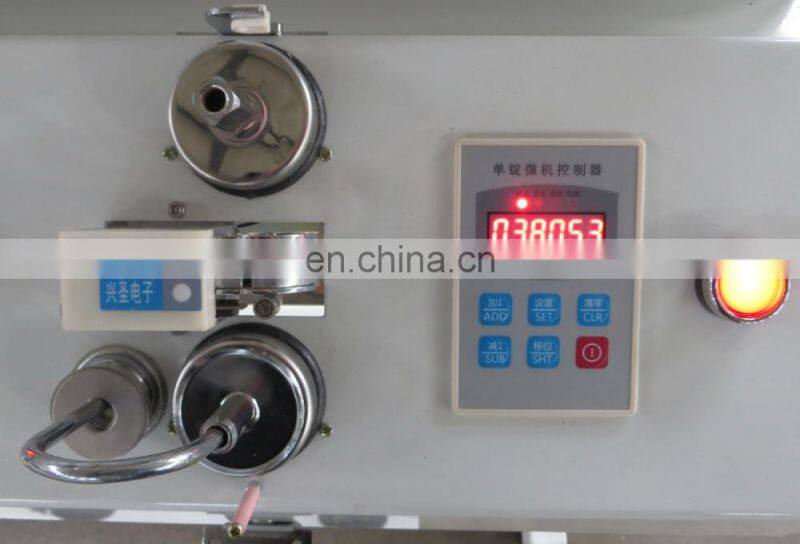

★ Two control modes: uniform control on touch screen (optional) for spindles on each side and independent control on control panel for each spindle;
★Automatic length setting up to 999999 meter;

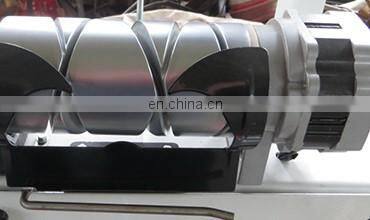

Variable-frequency Motor
★DC brushless motor to independently drive each grooved drum with adjustable winding speed;

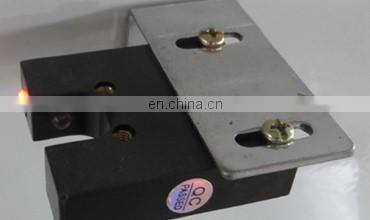

Optical Yarn-breaking Detector
★Microcomputer controlled anti-aliasing;
★ Optional knotter and optional electronic yarn cleaner;
★Optional bobbin clamps for different bobbins;
★ Optional knotter and optional electronic yarn cleaner;
★Optional bobbin clamps for different bobbins;
★ Optical yarn breaking detector for each spindle;
Air Splicer

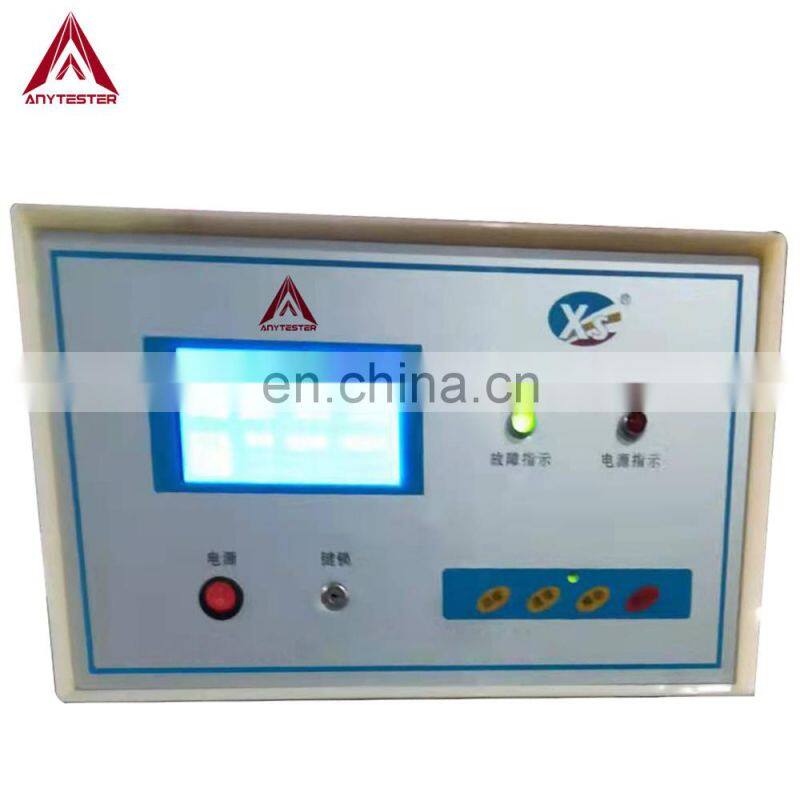

Electronic cleaner controller
Specifications
Model | AT209 |
Number of spindles | 4, 6, 12, 24, 36, ..., 108, 120 |
Grooved drum | O/D82mm Pitch: 2.5×147 |
Take-up package | 3º30´, 4º20´,5º57´,9º15´or cylindrical |
Max. package diameter | ¢280mm |
Max. length setting | 999999 meter, electronic setting |
Drive mode | DC brushless motor with adjustable speed |
Max. winding speed | 1100meter/minute |
Yarn-guiding traverse | Standard 147mm |
Radial anti-aliasing system | Microcomputer control |
Rated power | 60W/spindle at max. speed |
Power supply | AC220V 50Hz, single-phase |
Packing & Delivery
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. |
Payment
Payment Item | T/T | EXW 30% T/T in advance, paid the balance before shipment FOB CFR(C&F) 30% T/T in advance,paid the balance against copy of B/L CIF | 30% T/T in advance, paid the balance before shipment | ||
FOB | |||||
CFR(C&F) | 30% T/T in advance,paid the balance against copy of B/L | ||||
CIF | |||||
L/C | L/C amount above 50,000 usd, we can accept L/C at sight | ||||
West Union | Amount lower than 50,000usd | ||||
Delivery Time | 7~10 days after receiving payment for one container | ||||
