Customizable Production Industrial vacuum pump Evaporator rotary with chiller and vacuum pump from factory

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Customizable Production Industrial vacuum pump Evaporator rotary with chiller and vacuum pump from factory

Application for Customizable Production Industrial vacuum pump Evaporator rotary with chiller and vacuum pump from factory ：

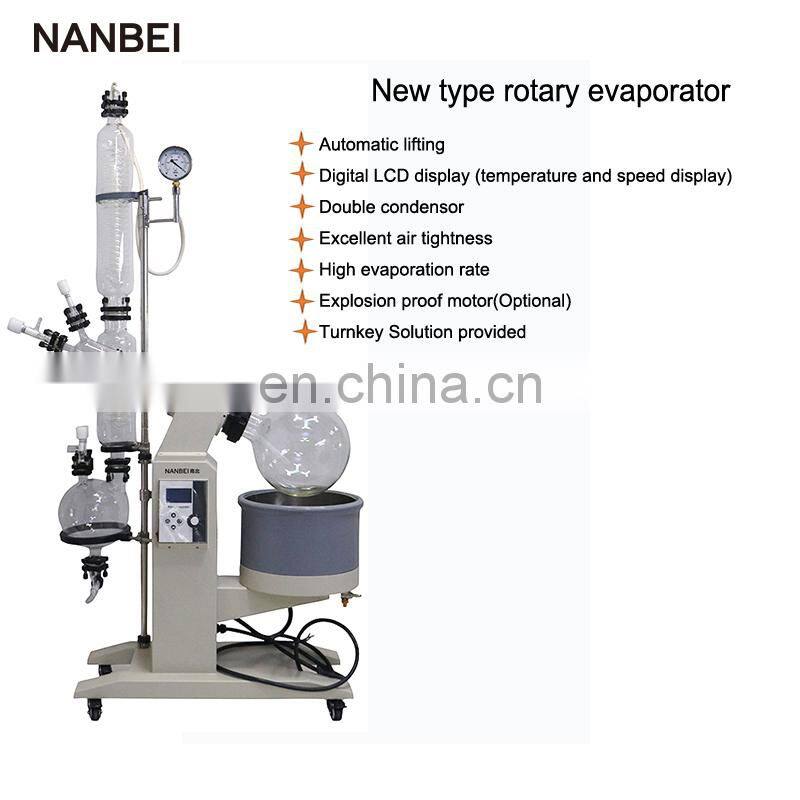

Rotary evaporator use stepless speed to make the glass rotating bottle constant rotation, the material in the bottle wall to form a large area of uniform film, and then through the intelligent constant temperature water bath heat the rotating bottle uniformly, high-speed evaporation under vacuum case, after the efficient glass condenser cooling, the solvent vapor will recycle in the collection bottle.

Characters for Customizable Production Industrial vacuum pump Evaporator rotary with chiller and vacuum pump from factory :

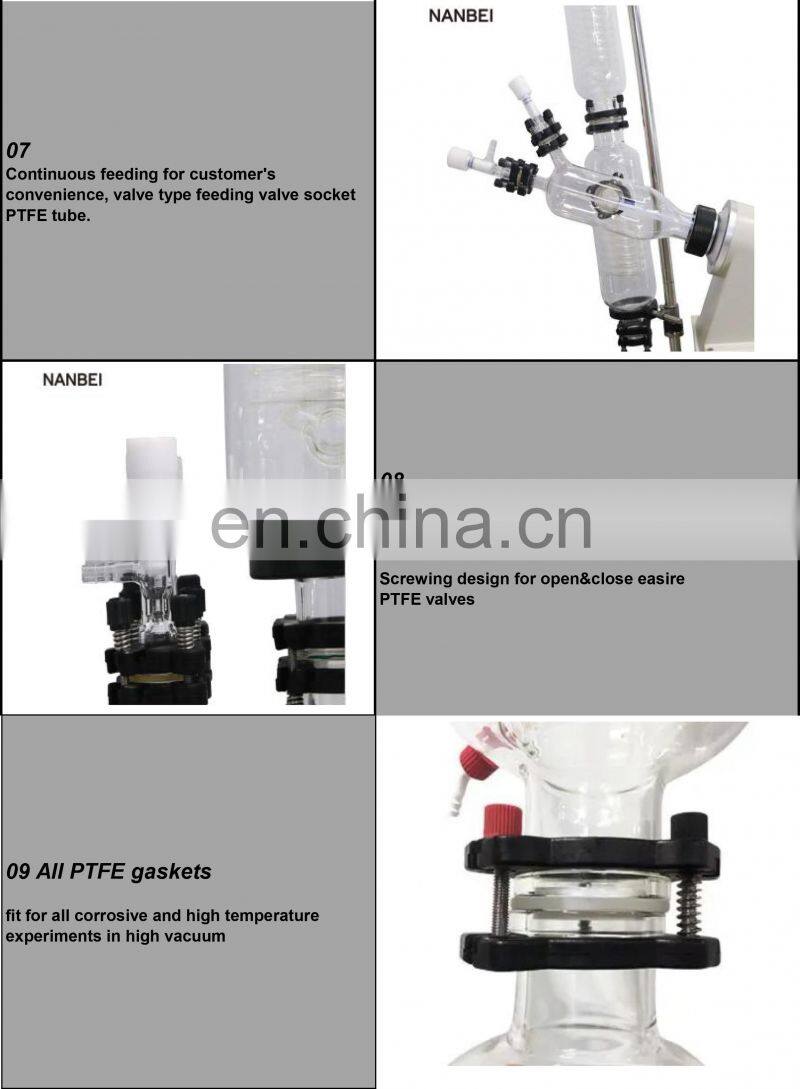

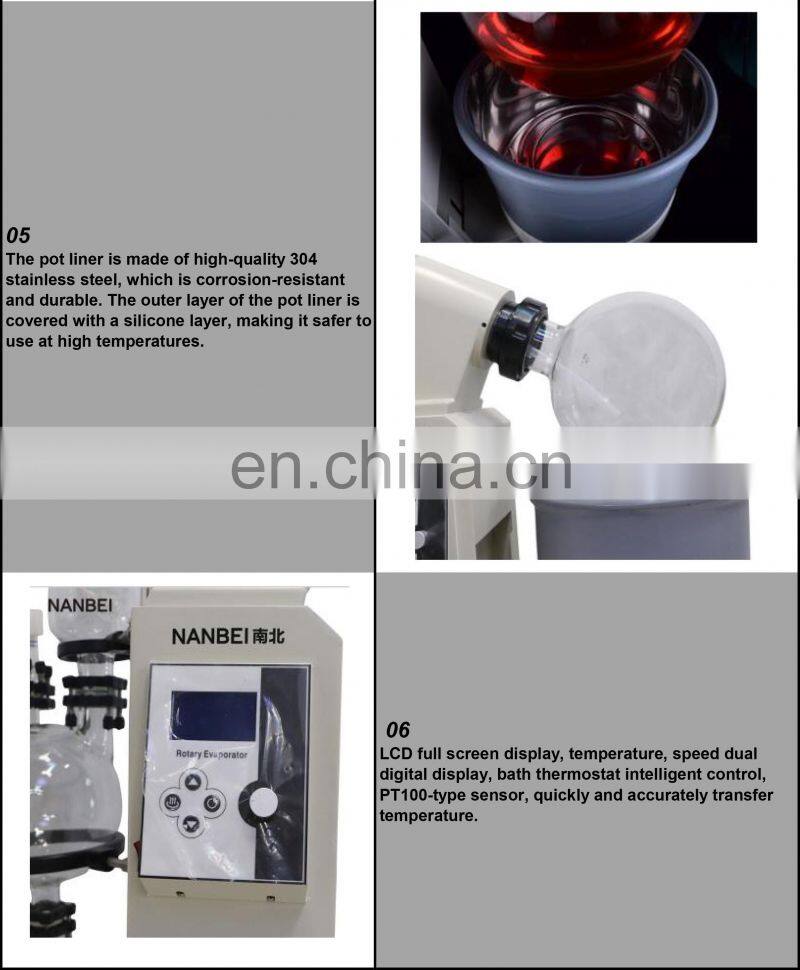

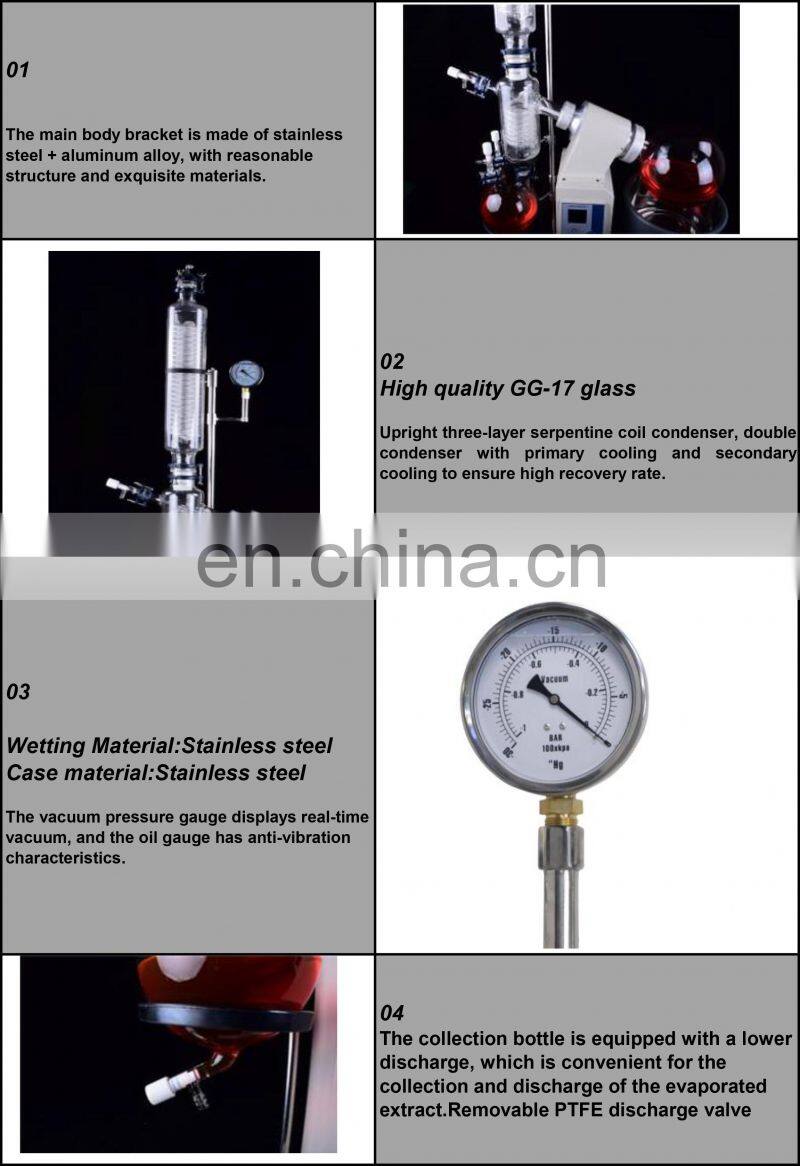

1.The main bracket is made of stainless steel and aluminum alloy with reasonable structure and materials. 2.All glass components are borosilicate glass (GG-17), high temperature, anti-corrosion. 3.Sealing system adopts imported fluorine rubber and Teflon two-way combination seal, long corrosion-resistant life, to maintain a high degree of vacuum. 4.Vacuum gauges show real-time vacuum, oil-based table with anti-vibration characteristics. 5.Upright three-layer serpentine coil condenser, main cooler + double cooler, ensuring high recovery. 6.Continuous feeding for customer's convenience, valve type feeding valve socket tube. 7.Collecting bottles are equipped with dropping materials to facilitate the collection and discharge of evaporated extracts. 8.Check valve control, continuous discharge, the machine in working condition, the vacuum switch. 9.All valves use the latest integrated hand wheel valve, sealing is good, the operation is more simple and convenient Microprocessor-based power switch control. 10.LCD full screen display, temperature, speed dual digital display, bath thermostat intelligent control, PT100-type sensor, quickly and accurately transfer temperature. 11. Brushless DC motor, stable rotation, no spark, slow down by force. 12.Bath electric lift, lift part of the deceleration by force motor, lifting process more stable. 13. The pot is made of high-quality 304 stainless steel, corrosion-resistant and durable. The outer layer of the pot is covered with a silicone layer, which makes it safer to use at high temperature. 14.Over-temperature protection function, when the actual temperature exceeds the set temperature of 5 ℃, the machine will automatically power-off heating. 15.anti-dry function, the heating pot lower than the heating pipe, the machine will automatically power off. 16. If there is a sudden power failure while the machine is working, the machine will stop heating automatically when the power is turned on again.

More Details Photos

Specification

Model	NBR-1005	NBR-1000	NBR-1020	NBR-1050
power supply	220V/50HZ（various power supply and plug can be customized)					_380V/50HZ
Rotating motor power	40W	60W			60W	100W
Lifting motor power	30W	40W		40W	60W
Heating power	3kw	4.5kw	5KW	8kw
Rotating flask	5L	10L Flange mouth:Φ280mm/Φ95mm	_{20L Φ355mm/Φ95mm flange mouth}	_{50LFlange mouthΦ470mm/Φ125mm}
collecting flask	3L	5L Flange mouth:Φ230mm/Φ50mm	_{10L Φ280mm/Φ60mm flange mouth}	_{20L Flange mouthΦ355mm/Φ60mm}
Vacuum degree	0.098Mpa				0.098Mpa	0.098Mpa	0.098Mpa
Rotary speed	0-120rpm/min	0-120rpm/min	0-120rpm/min	0-120rpm/min
Heating temp.	0-400C				0-400C	0-400℃	0-400C
Glass temp range	-80C to 250C				-80C to 250C	-80-250℃	-80C to 250C
Condenser size(mm)	Vertical double serpentine tube	MainΦ130640H DeputyΦ130410H	_{mainΦ130×680H} _{DeputyΦ130×410H}	_{MainΦ160840H} _{DeputyΦ160480H}
Feed valve	Φ35 flange mouth	Φ35 flange mouth	Φ35 flange mouth	Φ35 flange mouth
Release valve	Φ35 flange mouth*2pcs	Φ35 flange mouth*2pcs	_{Φ35 flange mouth*2pcs}	_{Φ35 flange mouth*2pcs}
Lifting Distance	0~150mm	0-180mm			0-180(mm)	0-180mm
Temp controlling accuracy	±1C				±1C	±1C	±1C
Didcharge valve	15mm glass and lean discharge port	10mm glass and lean discharge port	_{￠10mm glass and lean discharge port}	_{15mm glass and lean discharge port}
Bath size/volume(mm)	Φ250*120H	Φ350*220H about 21L	_{Φ450×250H about39L}	_{Φ550×320H about76L}
Dimension(mm)	7003351009	10004801780	_{12005002000}	14006002250
packing size(mm)	1040620410	10705201210 about 0.67m3	1070L×520W×1210H about0.67m3	1270L×620W×1440H about1.133m3
gross weight	38kg	95kg	102KG	118KG
