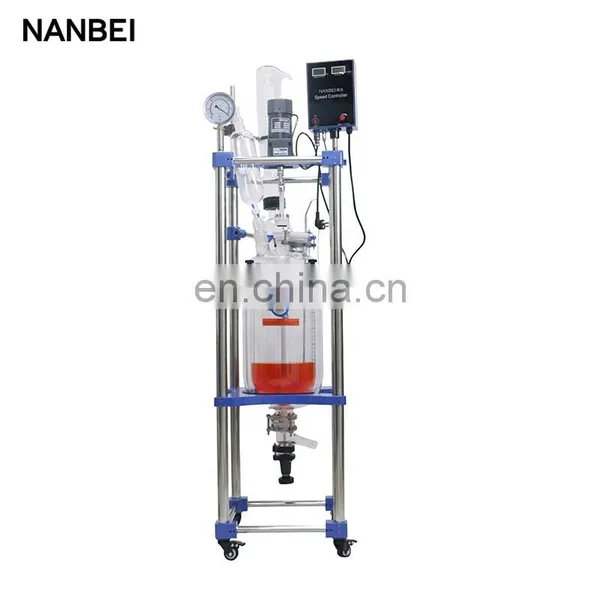

Pharmaceutical Vacuum Reaction Double Layer Jactked Glass Reactor
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Borosilicate Lab Reaction Double Layer Vacuum Glass Reactor
-
Plant Extracting Chemical Laboratory Distillation Stirring Mixing Jacketed Glass Reactor
-
China Lab Double Layer Borosilicate Jacket Standard Glass Reactor
-
Distillation Device Double Wall Biological Chemical 1L 2L 3L 5L Jacket Glass Reactor
-
Laboratory 100L Explosion Proof Continuous Stirred Tank Double Layer Jacket Glass Reactor
-
10L Lab Chemical Equipment Continuous Automatic Stirred Tank Double Layer Jacket Glass Reactor
Product Description
Product Description
Hot sale 20L 50L 100L jacketed glass lined reactor price
Brief:
The kettle body is designed by double glazing glass reactor, the inner layer into the reaction solution to do the reaction was stirred interlayer can pass into the type of the cold heat source circulating heating or cooling the reaction can also be used in high temperature, low temperature, or vacuum experiment reflux and distillation of the reaction solution. It is the ideal equipment for primary and secondary schools of modern chemistry experiments, biopharmaceutical and synthesis of new materials.
Features:

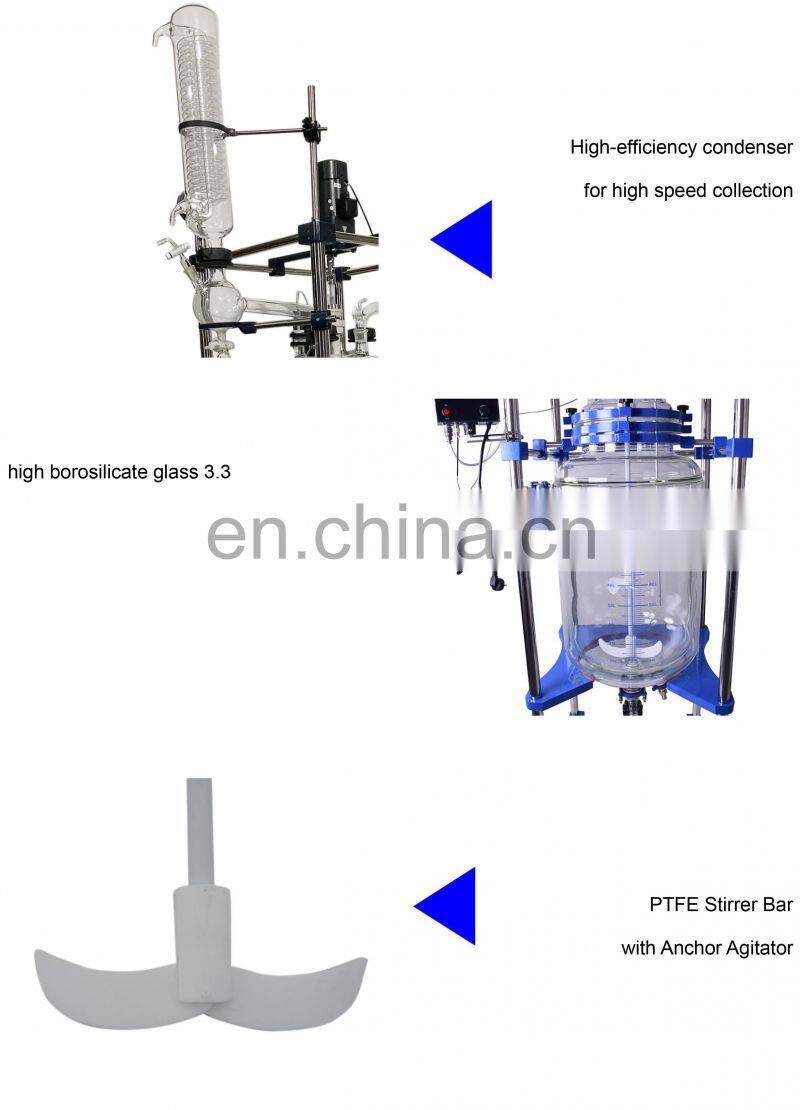

1. A full set of glassware with GG3.3 borosilicate glass production with good chemical and physical properties
2. Limit temperature of 250°C for high temperature experiments, and limit temperature of -60°C for low temperature experiments.
3. Titanium ring, new titanium alloy mechanical seal, sealing 0.098Mpa.

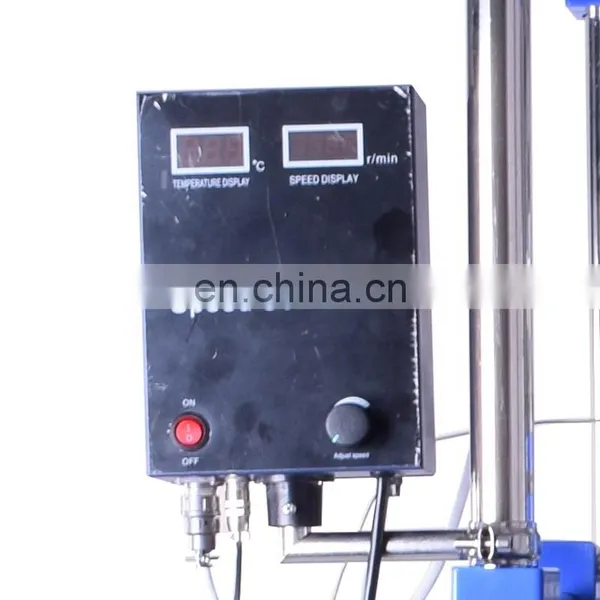

4. The PT100 temperature, and is a liquid crystal display. More accurate temperature measurement and more convenient.
5. Frequency control, AC induction motor. Constant speed, brushless, no spark, security and stability, and continuous work.
6. Quality 304 stainless steel all-inclusive PTFE stirring rod and a three-bladed propeller structure.

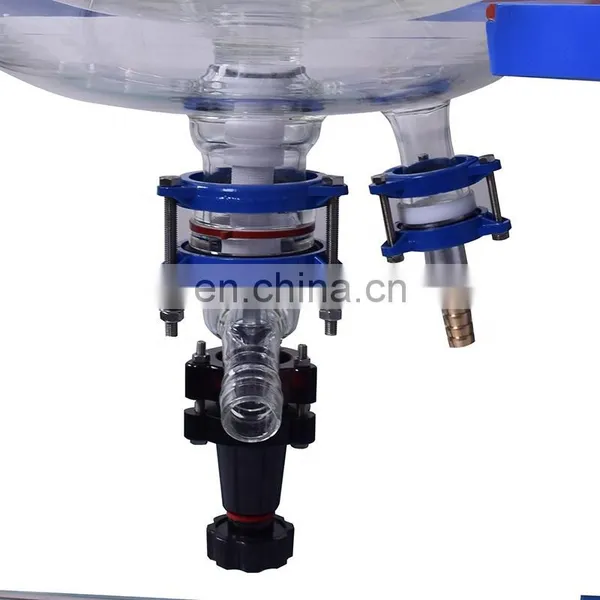

7. The bottom flanged discharge port with a Teflon value, aluminum parts flange fixed container no dead ends.
More Details Photos
Specification
Model | NB-20L | NB-30L | NB-100L |
Glass Material | GG-17 | GG-17 | GG-17 |
Frame Material | 304 Stainless steel | 304 Stainless steel | 304 Stainless steel |
Moving mode | Brake type universal corner wheel | Brake type universal corner wheel | Brake type universal corner wheel |
Reaction bottle capacity | 20L | 30L | 100L |
Jacketed Capacity | 8L | 10L | 25L |

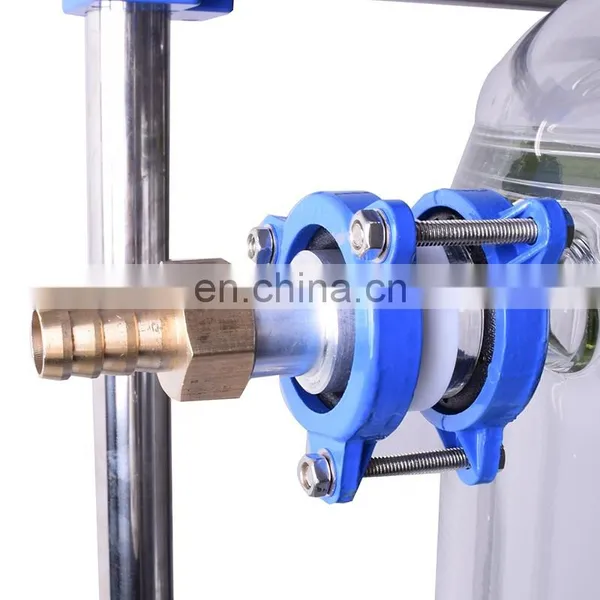

Flanged out of the oil circulation port | Low feed high outlet | Low feed high outlet | Low feed high outlet |
Reaction bottle cover port | 6ports | 6ports | 6ports |
Discharger port distance to ground | 450mm | 450mm | 450mm |
Temp. range | -80-250°C | -80-250°C | -80-250°C |

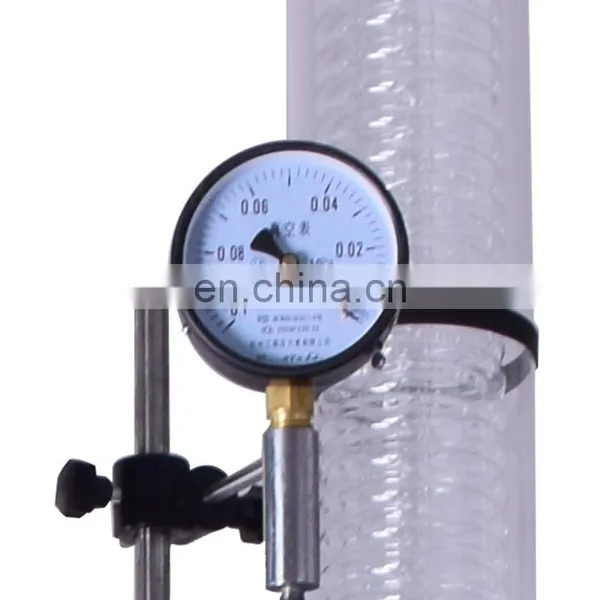

Vacuum | 0.098Mpa | 0.098Mpa | 0.098Mpa |
Stirring speed | 0-450rpm | 0-450rpm | 0-450rpm |
Stirring diameter | 12mm | 12mm | 15mm |
Stirring power | 90W | 120W | 250W |
Voltage(V/Hz) | 220V/50Hz | 220V/50Hz | 220V/50Hz |
Dimension(mm) | 560*560*2100 | 760*560*2300 | 610*610*2400 |
Packing size(mm) | 1480*660*810 | 1720*680*850 | 1900*700*870 |
Packing weight（KG） | 80 | 88 | 125 |
Related Products
Packing & Delivery
Company Profile
Customer Concerns
FAQ:
Q1: Why Choose NANBEI ?
(1).Professional manufacturer with more than 13 years experience
(2).Exported to more than 97% Countries
(3).Turnkey Solution is no problem
Q2:OEM,ODM acceptable or not?
Absolutely Yes
Q3:What's kind of Payment terms for customer choosing?
T/T ,Western Union, Money Gram , Credit Card, Paypal , L/C ...
Q4:Can you visit your factory online?
Absolutely no problem
Q5:Can online video inspection before shipment?
Absolutely no problem
Q6: what's the MOQ ? Sample order is OK?
MOQ:1 set, sample order is no problem
Q7:What's kind of shipment for customer choosing?
Usually ship by sea, by air, by international express .
We can also provide reasonable solutions according to your transportation requirements
Q8:How to ensure product quality and after-sales service?
We have CE, ISO quality certificate, and SGS authentication.
After-sale service:
1.Warranty : 1 year
2.We supply free part for quality problem in warranty
3.Long life technical support and service
