Laboratory Chemical Reaction Mini 5L Double Layer Jacketed Glass Reactor
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Easy Operate Double Layer Jacketed Glass Reactor for Chemical Laboratory Use
-
1L 2L 3L 5L Chemical Small Single Layer Heated Glass Reactor Vessel for Sale
-
Pharmaceutical Vacuum Reaction Double Layer Jactked Glass Reactor
-
Borosilicate Lab Reaction Double Layer Vacuum Glass Reactor
-
Plant Extracting Chemical Laboratory Distillation Stirring Mixing Jacketed Glass Reactor
-
China Lab Double Layer Borosilicate Jacket Standard Glass Reactor
Product Description
Product Description
Laboratory chemical reaction mini 5L Double Layer Jacketed Glass reactor

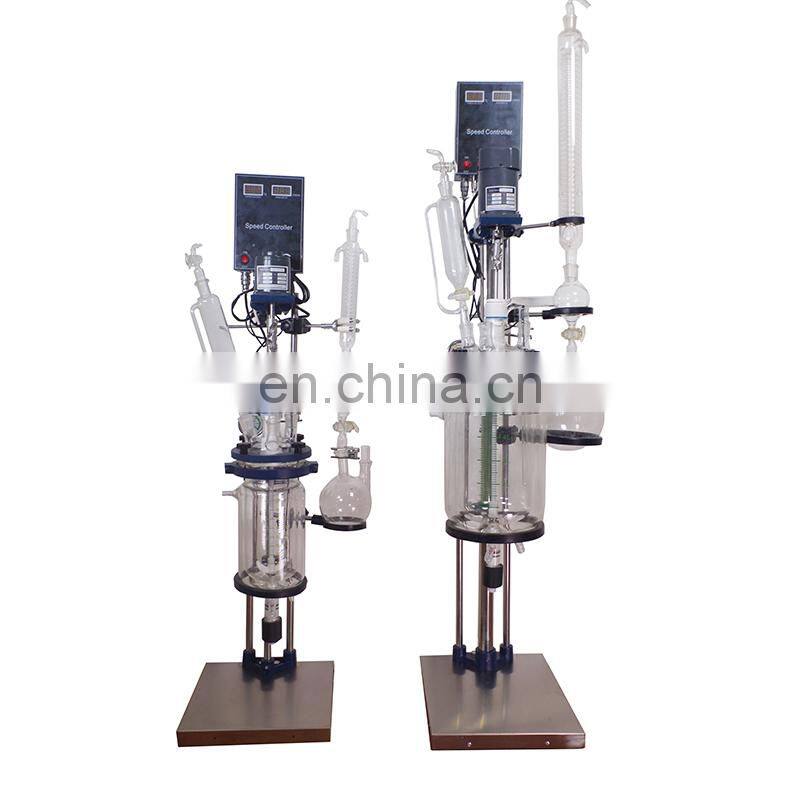

The double-layer glass reactor has the main capacity of 1L, 2L, 3L, 5L, 10L, 20L, 30L, 50L,80L, 100L, all of which have the function of lower discharge. More than 10 liters are equipped with universal casters for easy movement and The temperature display function in the kettle.

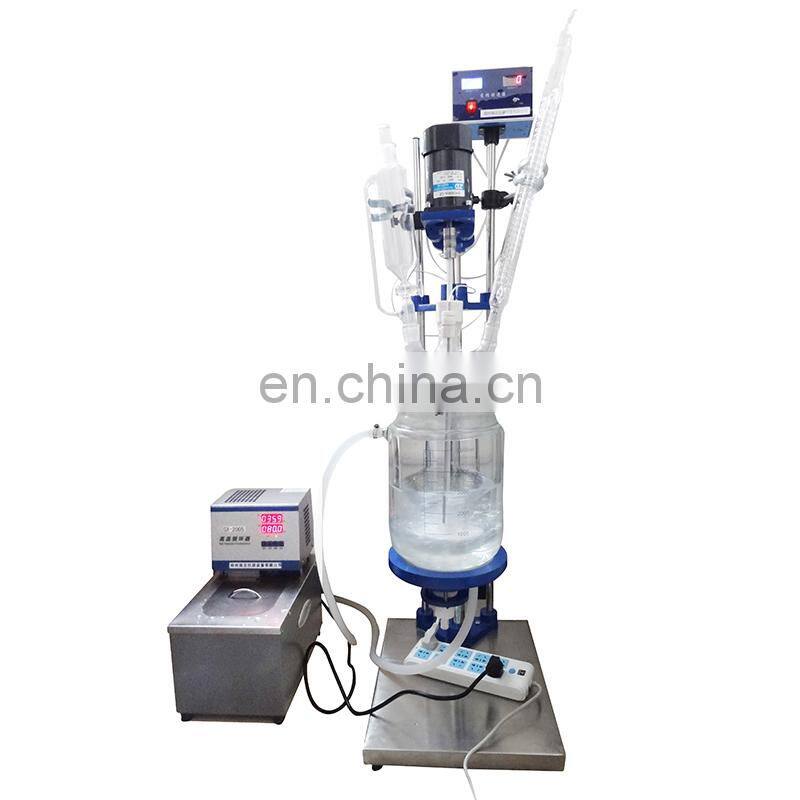

It can be used together with the vacuum pump to improve the working efficiency; the cooling coil of the glass condenser can be used together with the low temperature coolant circulating pump to improve the recycling efficiency. Please purchase the matching equipment at the discretion of the customer. The kettle body interlayer can be equipped with heating, refrigeration equipment or high and low temperature circulation devices according to the material reaction requirements.
Exterior structure
Contact Us For More Details
Working Principle
Laboratory chemical reaction mini 5L Double Layer Jacketed Glass reactor
Under the vacuum negative pressure condition, the stirring rod is stirred at a constant speed by using the speed-regulating knob, so that the material is fully reacted in the kettle body, and the heating or cooling reaction of the material in the kettle is indirectly heated by the glass interlayer external heating or cooling device, and the reaction process is heated during the heating process. The resulting solvent vapor is rapidly cooled, distilled or refluxed via a cooling coil of a glass condenser. After the reaction is completed, the material can be quickly discharged through the oblique discharge valve.
Specification
Model | NB-1L | NB-2L | NB-3L | NB-5L |
Glass Material | GG-17 | GG-17 | GG-17 | GG-17 |
Frame Material | 304 SUS | 304 SUS | 304 SUS | 304 SUS |
Reaction bottle capacity | 1L | 2L | 3L | 5L |
Jacketed Capacity | 0.4L | 0.5L | 0.6L | 0.8L |
Flanged out of the oil circulation port | Low feed high outlet | Low feed high outlet | Low feed high outlet | Low feed high outlet |
Reaction bottle cover | 5 | 5 | 5 | 5 |
Discharge port distance to ground | 30mm | 30mm | 30mm | 30mm |
Temp. range | -80-250℃ | -80-250℃ | -80-250℃ | -80-250℃ |
Vacuum degree | 0.098Mpa | 0.098Mpa | 0.098Mpa | 0.098Mpa |
Stirring speed | 0-800rpm | 0-800rpm | 0-800rpm | 0-800rpm |
Stirring diameter | 8mm | 8mm | 8mm | 8mm |
Stirring power | 40W | 40W | 90W | 90W |
Voltage(V/Hz) | 220V/50HZ | 220V/50HZ | 220V/50HZ | 220V/50HZ |
Dimension(mm) | 350*345*1000 | 350*345*1000 | 350*410*1250 | 350*410*1250 |
Plate size(mm) | 325*345 | 325*345 | 325*410 | 325*410 |
Packing size（mm） | 1200*480*400 | 1200*480*400 | 1380*500*400 | 1380*500*400 |
Packing weight（KG） | 32 | 32 | 38 | 38 |
