Product Description

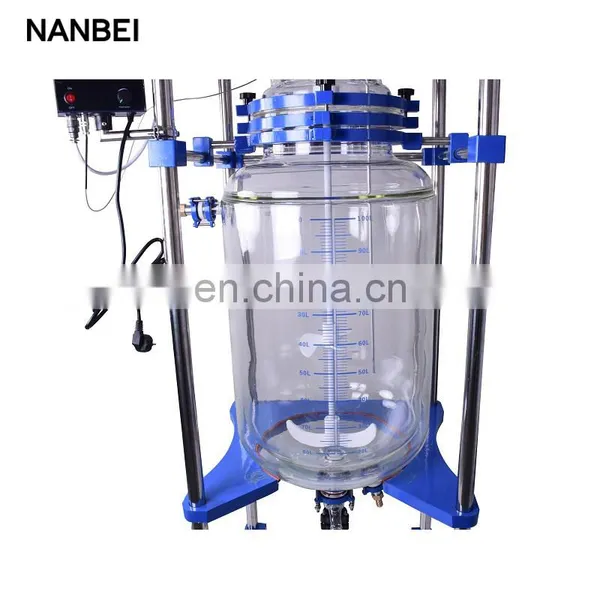

Lab Crystallization Reactors Glass Chemical Reactor Prices

The kettle body is designed by double glazing glass reactor, the inner layer into the reaction solution to do the reaction was stirred interlayer can pass into the type of the cold heat source circulating heating or cooling the reaction can also be used in high temperature, low temperature, or vacuum experiment reflux and distillation of the reaction solution. It is the ideal equipment for primary and secondary schools of modern chemistry experiments, bio-pharmaceutical and synthesis of new materials.
Contact Us For More Details
Options

heating bath(left) and water chiller(right)

heating bath connects with the jacketed to do high teperature reaction,wanter chiller is used for cooling the condenser.if you want to do low tepmerature reaction,the water chiller can connect with the jacketed of the reator

vaccum pump

The whole reaction should be under negative pressure, it can reduce boiling time and improve reaction efficiency.

Note:

You just need tell us the capacity of glass reactor do you want and the reaction temperature, we will recommend the suitable reactor and these supporting equipments
Specification
Model
NB-10L
NB-20L
NB-30L
Glass Material
GG-17
GG-17
GG-17
Frame Material
304 Stainless steel
304 Stainless steel
304 Stainless steel
Fittings Material
304 Stainless steel
304 Stainless steel
304 Stainless steel
Moves
Brake Caster
Brake Caster
Brake Caster
Reaction bottle capacity
10L
20L
30L
Jacketed Capacity
6L
8L
10L
Flanged out of the oil circulation port
Low feed high outlet
Low feed high outlet
Low feed high outlet
Reaction bottle cover
Six port
Six port
Six port
Discharger port distance to ground
450mm
450mm
450mm
Temp. range
-80-250℃
-80-250℃
-80-250℃
Vacuum degreee
0.098Mpa
0.098Mpa
0.098Mpa
Stirring speed
0-450rpm
0-450rpm
0-450rpm
Stirring diameter
12mm
12mm
12mm
Stirring power
90W1/3
120W1/3
120W1/3
Coltage(V/Hz)
220V/50Hz
220V/50Hz
220V/50Hz
Dimension(mm)
520*520*2000
560*560*2100
760*560*2300
Packing size(mm)
1370*590*800
1480*660*810
1720*680*850
Packign weight（KG）
68kg
80kg
88kg
