Laboratory High Pressure 10L Chemical Single Wall Layer Glass Reactor

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

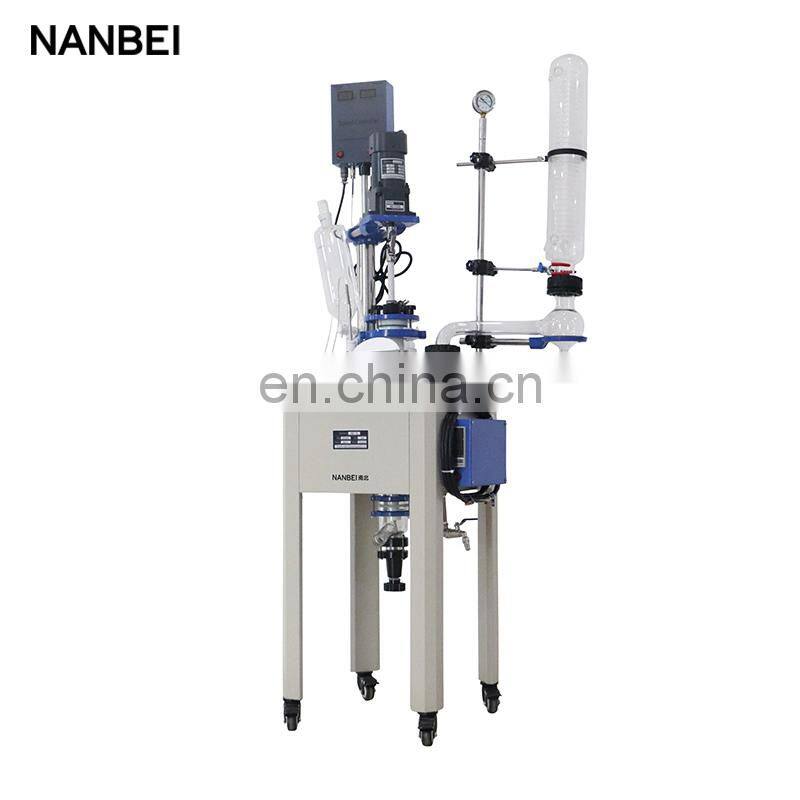

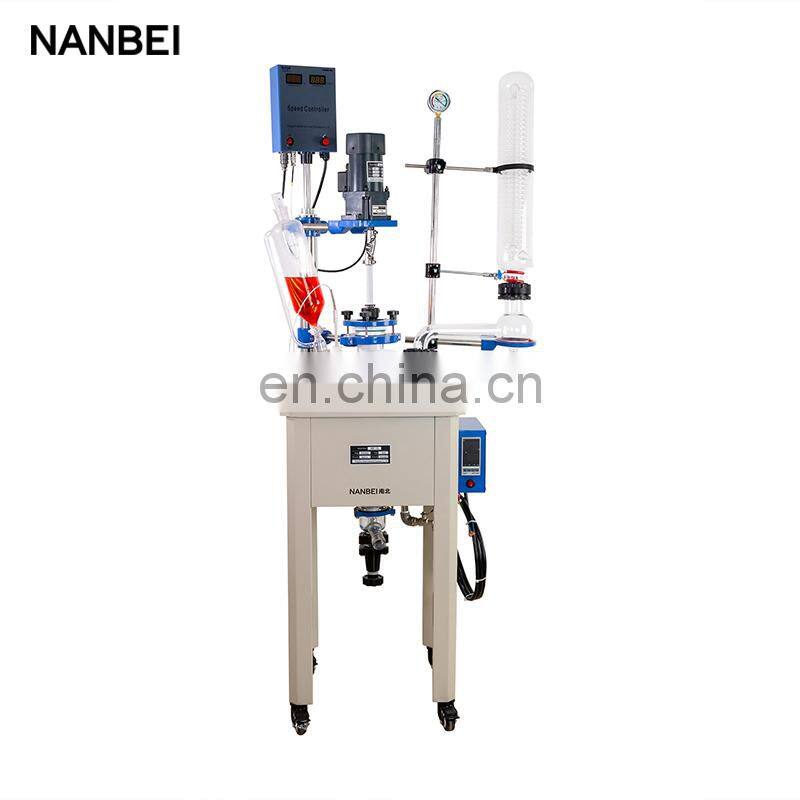

laboratory high pressure 10L chemical single wall layer glass reactor

Brief Introduction: Single glass reactor inner placed reaction solvent which can be stirred, single layer glass reaction kettle is heated by computer control oil bath or electric heating. At the same time, it can be worked at atmospheric pressure or vacuum state, to control the reaction solution reflux and distillation, it is the ideal equipment for modern synthesis chemical, biological pharmaceuticals and making new materials, used for preparation experiment and production equipment.

Product Features:

1.Frequency control, AC induction motor, speed digital display constant, brushless, no spark, safe and stable, it can work continuously;

2. Supporting glass using GG3.3 high boron silicon material production, has a good chemical, physical properties; big bottle design, hand out cleaning;

3. PTFE (Ceramic) mechanical component sealing, proprietary technology, it can get the best vacuum degree in the market among the similar products;

4. Overall stainless steel frame structure (foot connecting parts like Tee and four-way valve are all stainless steel), ompact and solid, stable and reliable without shaking when mixing;

5. Casters with brake fixed, it is convenient and reliable for mobile use;

6. The PTFE discharge valve without dead corner, solid material/liquid material can be easily released from the bottom;

7. Computer controlled thermostatic oil bath, the intelligent PID control, temperature control is accurate and convenient;

8. Integral structure is scientific design and beautiful appearance, convenient for operation;

9. Explosion-proof series available. ( We can add the cooling coil and an anti-explosion device according to user's needs)

More Details Photos

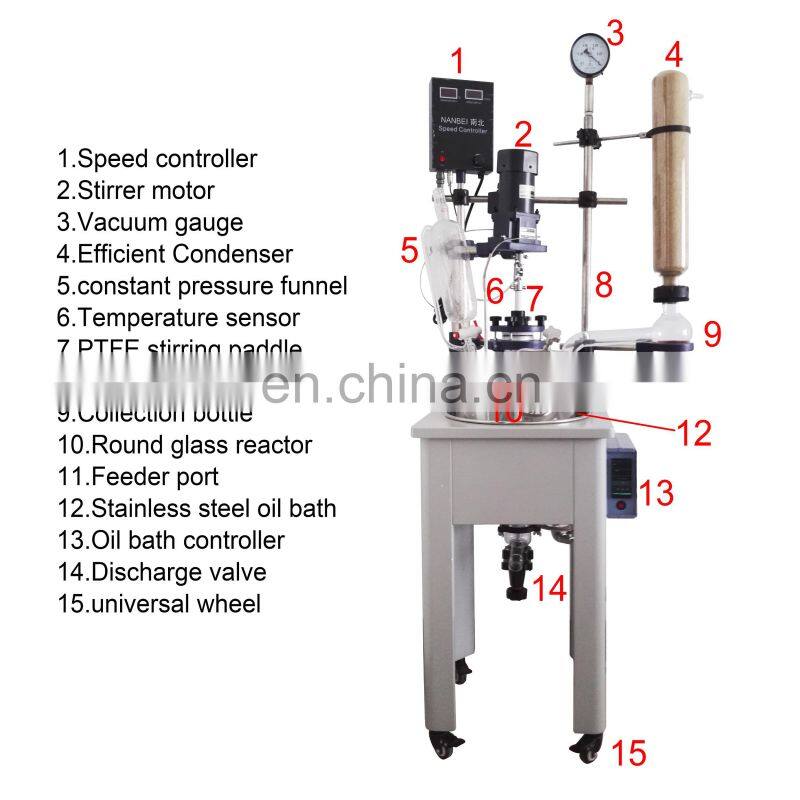

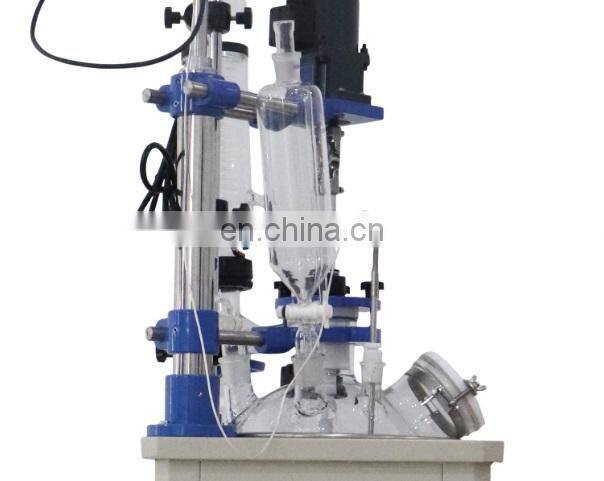

Reaction cover including 6 port, using for motor stirring, condenser,solid feeder Temperature sensor,constant pressure funnel for liquid adding, gas release.

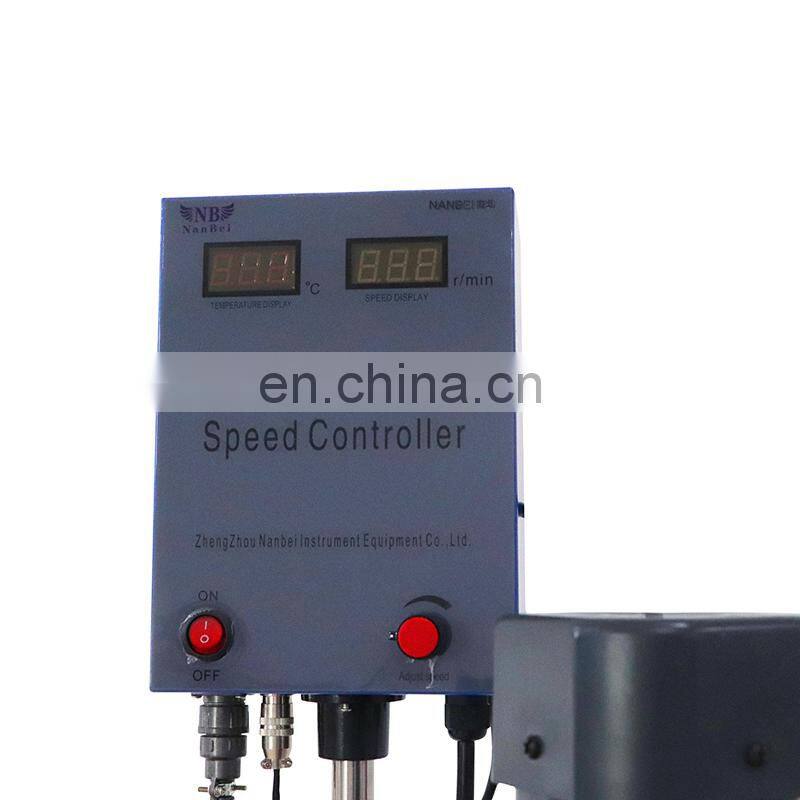

Temperature and speed digital display for easily operation and clear read.the speed can be ajusted by your demand.

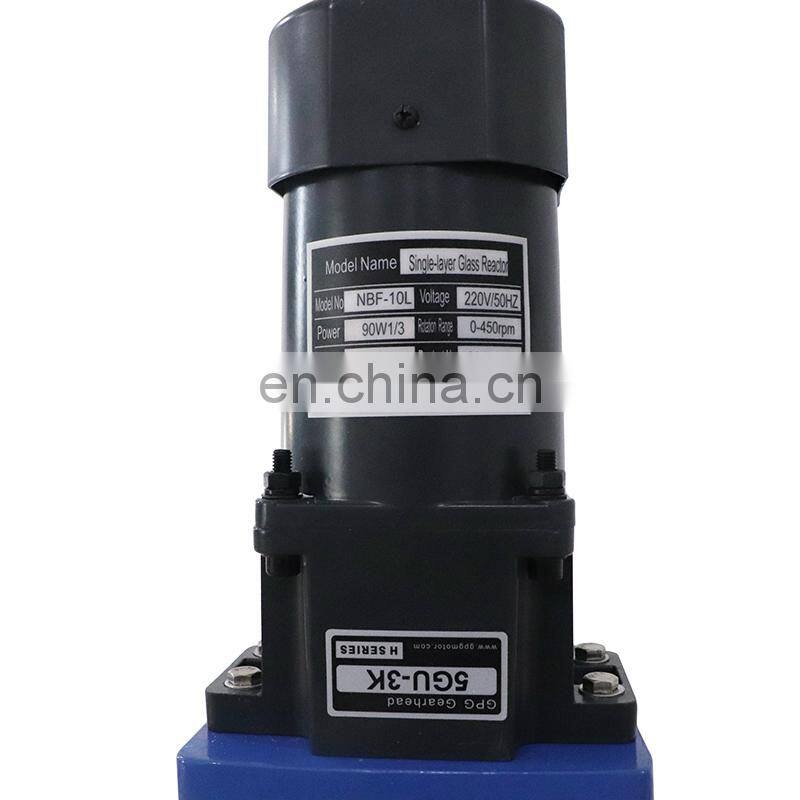

the stirrer motor with whole copper wire and the working is very stability

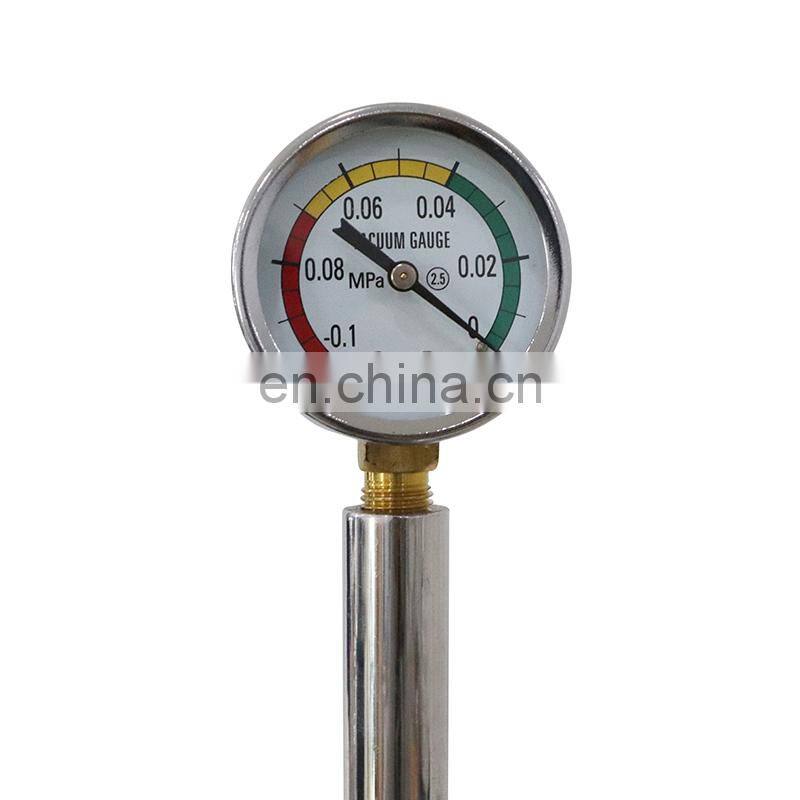

High precision vacuum gauge for safty working condition.

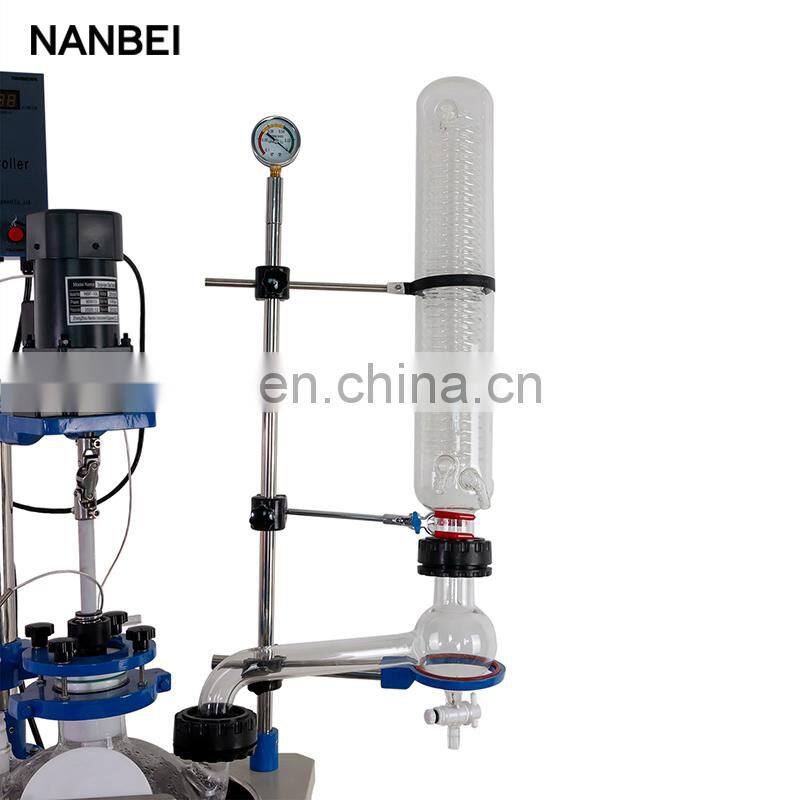

High-efficiency condenser for high speed collection

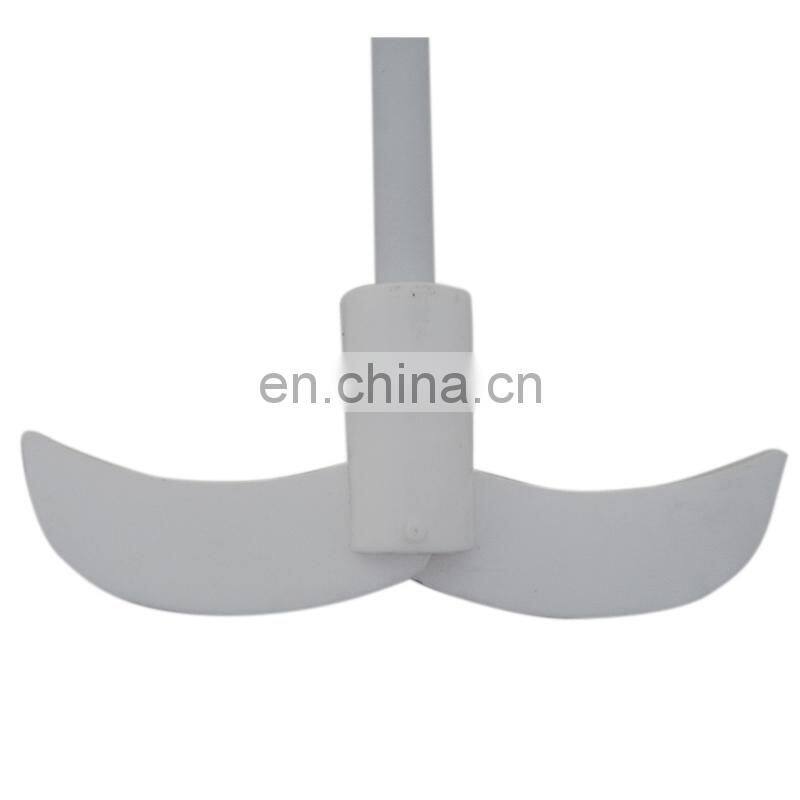

PTFE Stirrer Bar with Anchor Agitator,can bear high temperature and corrosion

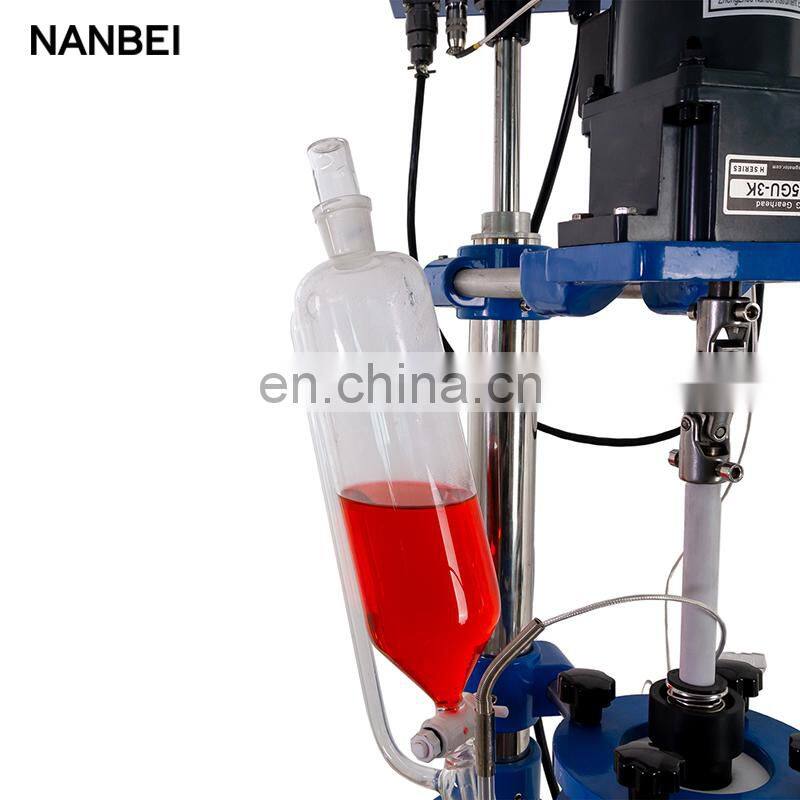

1000ml volume Constant pressure funnel,is used to balance pressure and drip liquid，it has Valve can control the speed of liquid dripping.

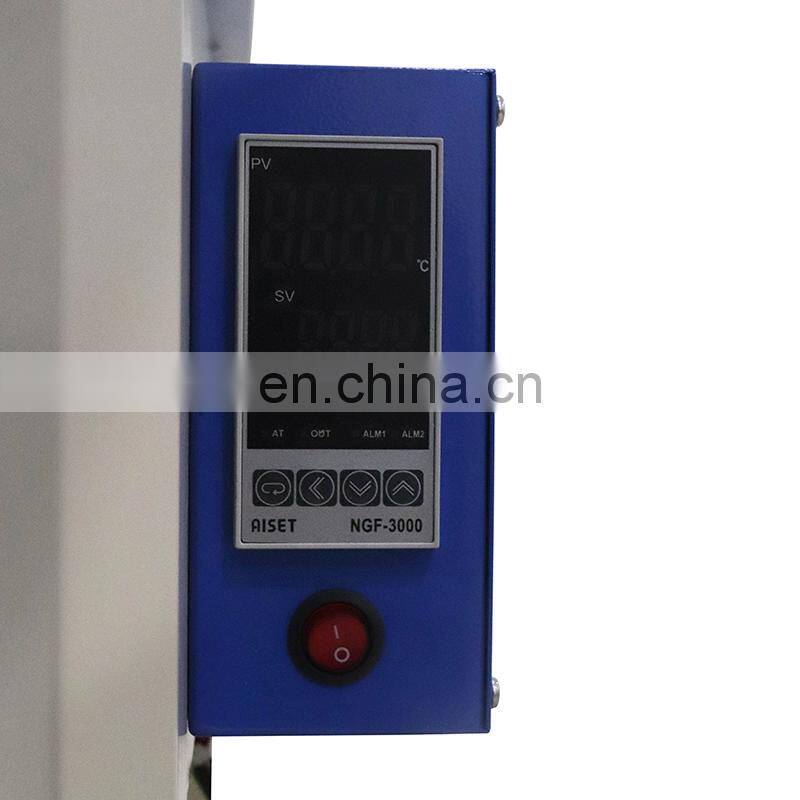

Digital display controller for heating bath,Convenient and quick to set the temperature

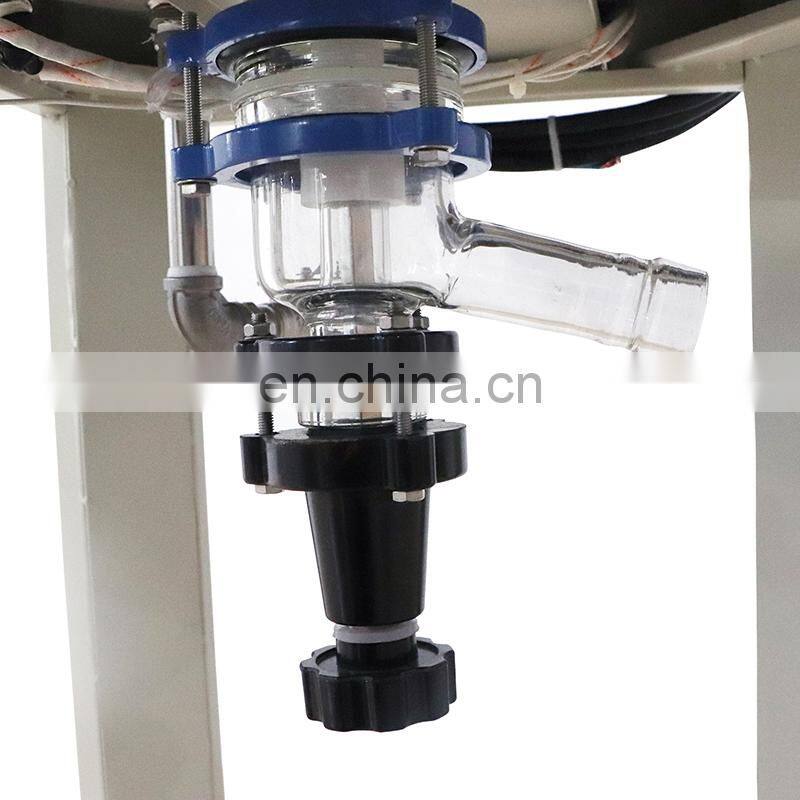

Discharge valve for reactor,Convenient to release material liquid

Specification

Name	Single layer glass reactor
Model	NBF-10L
Volume	10L
Glass material	GG-17
pot shell material	Spraying antiseptic shell
Pot shell size(mm)	540440860
Inner port material	Stainless steel
Inner port size(mm)	350*220
Moving mode	Brake type universal corner wheel
Shape of reactor body	Ball type
Port No. of reactor cover	6
Distance between discharge to floor	450mm
Temperature range	-80 to 250 degree
Vacuum	0.098Mpa
Stirring speed	0-450rpm
Stir rod diameter	15mm
Stir motor	90W1/3
Heating power	3KW
Overall size (mmmmmm)	6004401900
Package size (mmmmmm)	1100620790
Gross weight（KG）	63
