Home > Manufacturing & Processing Machinery > Chemical Equipment & Machinery > Chemical Reactor > Photochemical Lab Use Explosion-proof Glass Jacketed Quartz Reactor
Photochemical Lab Use Explosion-proof Glass Jacketed Quartz Reactor
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
2015
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Distillation Device Pharmaceutical Jcketed Glass ReactorNegotiableMOQ: 1 -
Pharmaceutical Lab Chemical Double Walled Glass ReactorNegotiableMOQ: 1
-
Laboratory Chemical Reaction Mini 5L Double Layer Jacketed Glass ReactorNegotiableMOQ: 1
-
Easy Operate Double Layer Jacketed Glass Reactor for Chemical Laboratory UseNegotiableMOQ: 1
-
1L 2L 3L 5L Chemical Small Single Layer Heated Glass Reactor Vessel for SaleNegotiableMOQ: 1
Product Description

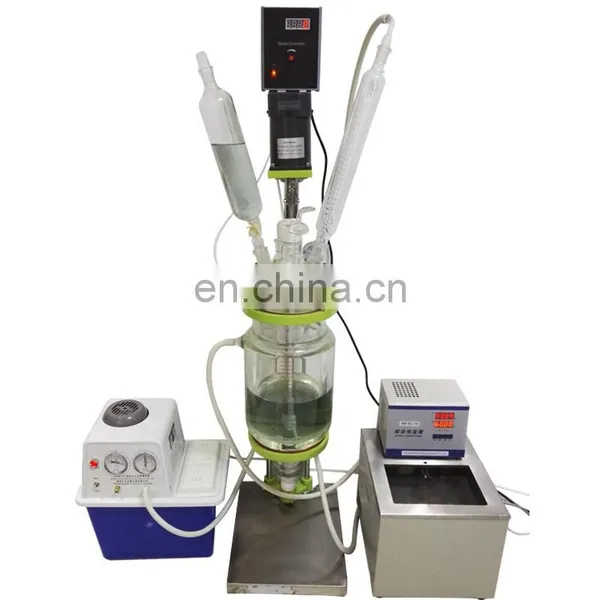

Photochemical lab use explosion-proof glass jacketed quartz reactor
The kettle body is designed by double glazing glass reactor, the inner layer into the reaction solution to do the reaction was stirred interlayer can pass into the type of the cold heat source circulating heating or cooling the reaction can also be used in high temperature, low temperature, or vacuum experiment reflux and distillation of the reaction solution. It is the ideal equipment for primary and secondary schools of modern chemistry experiments, biopharmaceutical and synthesis of new materials.
Send An Inquiry For More Information
Detailed images
Specification
Model |
NB-1L |
NB-2L |
NB-3L |
NB-5L |
Glass Material |
GG-17 |
GG-17 |
GG-17 |
GG-17 |
Frame Material |
304 SUS |
304 SUS |
304 SUS |
304 SUS |
Reaction bottle capacity |
1L |
2L |
3L |
5L |
Jacketed Capacity |
0.4L |
0.5L |
0.6L |
0.8L |
Flanged out of the oil circulation port |
Low feed high outlet |
Low feed high outlet |
Low feed high outlet |
Low feed high outlet |
Reaction bottle cover |
5 |
5 |
5 |
5 |
Discharge port distance to ground |
30mm |
30mm |
30mm |
30mm |
Temp. range |
-80-250℃ |
-80-250℃ |
-80-250℃ |
-80-250℃ |
Vacuum degree |
0.098Mpa |
0.098Mpa |
0.098Mpa |
0.098Mpa |
Stirring speed |
0-800rpm |
0-800rpm |
0-800rpm |
0-800rpm |
Stirring diameter |
8mm |
8mm |
8mm |
8mm |
Stirring power |
40W |
40W |
90W |
90W |
Voltage(V/Hz) |
220V/50HZ |
220V/50HZ |
220V/50HZ |
220V/50HZ |
Dimension(mm) |
350*345*1000 |
350*345*1000 |
350*410*1250 |
350*410*1250 |
Plate size(mm) |
325*345 |
325*345 |
325*410 |
325*410 |
Packing size（mm） |
1200*480*400 |
1200*480*400 |
1380*500*400 |
1380*500*400 |
Packing weight（KG） |
32 |
32 |
38 |
38 |
