1L 2L 3L 5L Chemical Small Single Layer Heated Glass Reactor Vessel for Sale

1L 2L 3L 5L Chemical Small Single Layer Heated Glass Reactor Vessel for Sale thumbnail-1
1L 2L 3L 5L Chemical Small Single Layer Heated Glass Reactor Vessel for Sale thumbnail-2
1L 2L 3L 5L Chemical Small Single Layer Heated Glass Reactor Vessel for Sale thumbnail-3
1L 2L 3L 5L Chemical Small Single Layer Heated Glass Reactor Vessel for Sale thumbnail-4
1L 2L 3L 5L Chemical Small Single Layer Heated Glass Reactor Vessel for Sale thumbnail-5
1L 2L 3L 5L Chemical Small Single Layer Heated Glass Reactor Vessel for Sale photo-1
1L 2L 3L 5L Chemical Small Single Layer Heated Glass Reactor Vessel for Sale photo-2
1L 2L 3L 5L Chemical Small Single Layer Heated Glass Reactor Vessel for Sale photo-3
1L 2L 3L 5L Chemical Small Single Layer Heated Glass Reactor Vessel for Sale photo-4
1L 2L 3L 5L Chemical Small Single Layer Heated Glass Reactor Vessel for Sale photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
2015
Annual Export Value:
Below US$1 Million
Contact Supplier Request Quote Chat Now
Nanbei Instrument Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Description

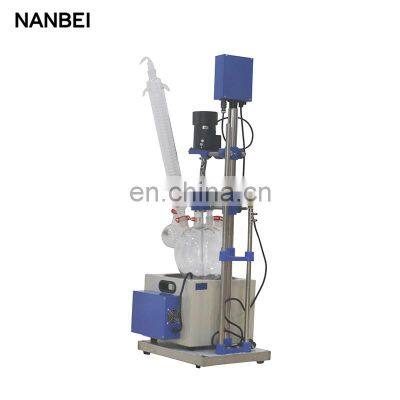

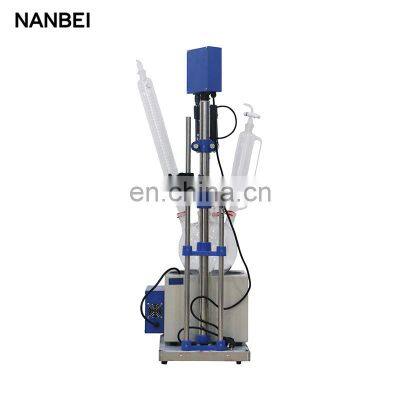

1L 2L 3L 5L chemical small single layer heated glass reactor vessel for sale

Brief Introduction: Single glass reactor inner placed reaction solvent which can be stirred, single layer glass reaction kettle is heated by computer control oil bath or electric heating. At the same time, it can be worked at atmospheric pressure or vacuum state, to control the reaction solution reflux and distillation, it is the ideal equipment for modern synthesis chemical, biological pharmaceuticals and making new materials, used for preparation experiment and production equipment.
Product Features:
1.Frequency control, AC induction motor, speed digital display constant, brushless, no spark, safe and stable, it can work continuously;
2. Supporting glass using GG3.3 high boron silicon material production, has a good chemical, physical properties; big bottle design, hand out cleaning;
3. PTFE (Ceramic) mechanical component sealing, proprietary technology, it can get the best vacuum degree in the market among the similar products;
4. Overall stainless steel frame structure (foot connecting parts like Tee and four-way valve are all stainless steel), compact and solid, stable and reliable without shaking when mixing;
5. Casters with brake fixed, it is convenient and reliable for mobile use;
6. The PTFE discharge valve without dead corner, solid material/liquid material can be easily released from the bottom;
7. Computer controlled thermostatic oil bath, the intelligent PID control, temperature control is accurate and convenient;
8. Integral structure is scientific design and beautiful appearance, convenient for operation;
9. Explosion-proof series available. ( We can add the cooling coil and an anti-explosion device according to user's needs)
More Details Photos

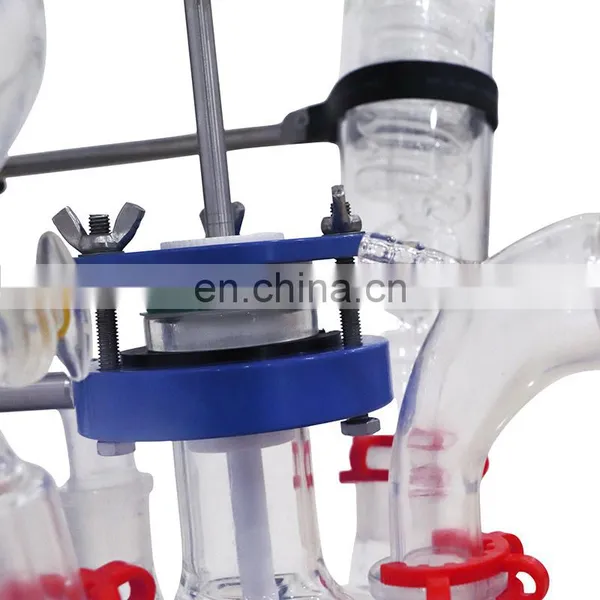

Reaction cover including 5 port, using for motor stirring, condenser, Temperature detection port,constant pressure funnel for liquid adding, gas release.

Temperature and speed digital display for easily operation and clear read.the speed can be ajusted by your demand.


the stirrer motor with whole copper wire and the working is very stability


High precision vacuum gauge for safty working condition.
High-efficiency condenser for high speed collection

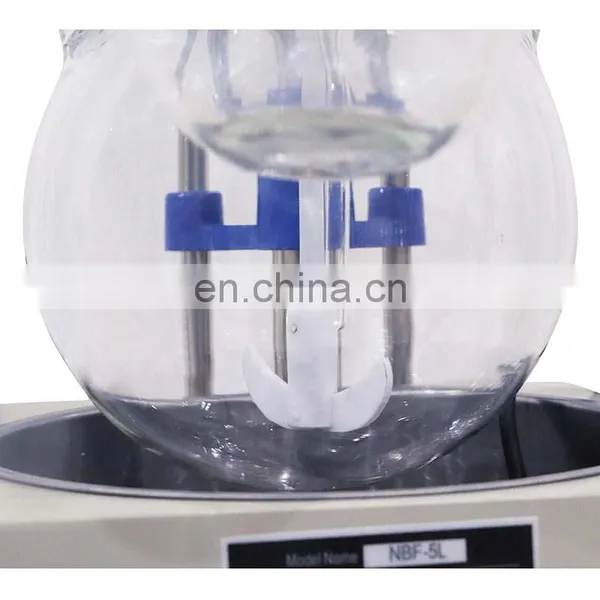

high borosilicate glass 3.3 for resistant to high and low temperatures. PTFE Stirrer Bar with Anchor Agitator,can bear high temperature and corrosion


500ml volume Constant pressure funnel,is used to balance pressure and drip liquid，it has Valve can control the speed of liquid dripping.


Stainless steel heating bath, water and oil dual purpose, corrosion resistance, easy to clean
This is the 1L to 5L series. If you need other capacity, please feel free to contact us
Specification
Name
Single layer glass reactor
Model
NBF-1L
NBF-2L
NBF-3L
NBF-5L
Volume
1L
2L
3L
5L
Glass material
GG-17
Frame material
Stainless steel
Port No. of reactor cover
5
Temperature range
.-80 to 250degree
Vacuum
0.098Mpa
Stirring speed
0-800pm
Stir rod diameter
8mm
Motor power
40W
90W
Heating power
1.5KW
2KW
Voltage
220V/50Hz
Overall size (mm*mm*mm)
320*330*1000
430*330*1200
Plate size (mm*mm*mm)
280*330
350*330
410*325
Inner size (mm*mm)
stainless steel 280*170mm
Package size (mm*mm*mm)
800*480*450
1000*480*480
Gross weight（KG）
26
30
Speed control mode
Electronic stepless speed regulation
Speed display mode
digital display
Temperature display mode
digital display
Seal mode
PTFE seal, ￠50 flange stir port
Condensor
vertical 40*400mm standard 24#
vertical port 60*450mm standard 24#
Droplet port
250ml constant pressure funnel, standard 24#
500ml constant pressure funnel, standard 29#
Reduced pressure
no
standard 24# Pressure release valve
Temperature tube
standard 19#
standard 24#
Vacuum display mode
Vacuum gauge
Mixing connection
universal joint link
Stir rod
Anchor type, Stainless steel rod with PTFE
