lab short path distillation device pyrex double layer stirred 20L glass reactor for chemical lab

Name: lab short path distillation device pyrex double layer stirred 20L glass reactor for chemical lab
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Description

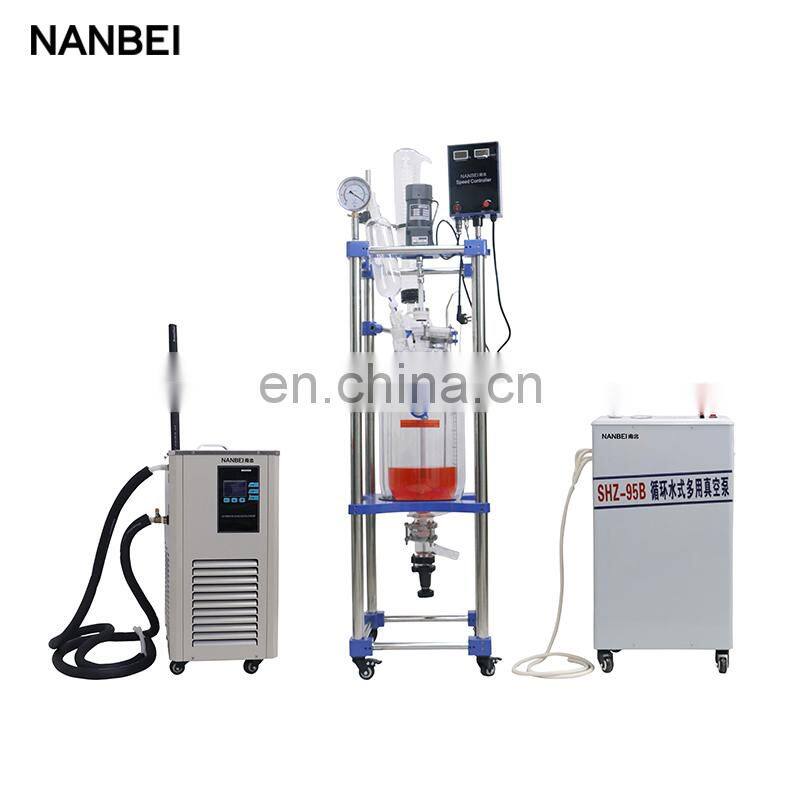

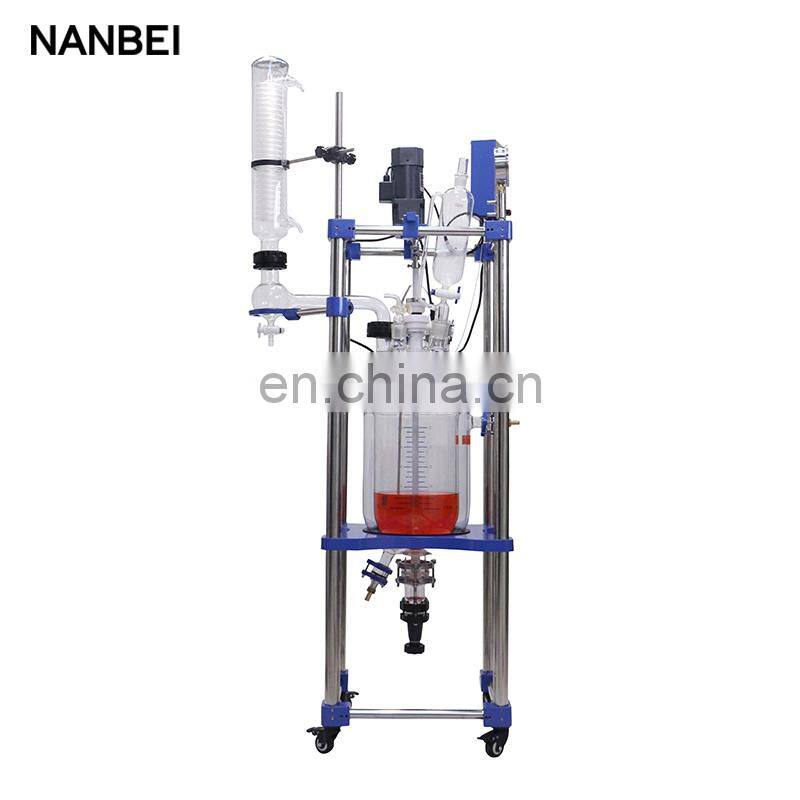

20L Jacketed glass reactor

Application:

Double layer jacketed glass reactor mainly used for distillation, extraction, widely used in medicine, food, chemical
industry, fuel, etc.It is the ideal equipment for primary and secondary schools of modern chemistry experiments, biopharmaceutical and synthesis of new materials.

Features:

1. A full set of glassware with GG3.3 borosilicate glass production with good chemical and physical properties

2. Limit temperature of 250°C for high temperature experiments, and limit temperature of -60°C for low temperature experiments.

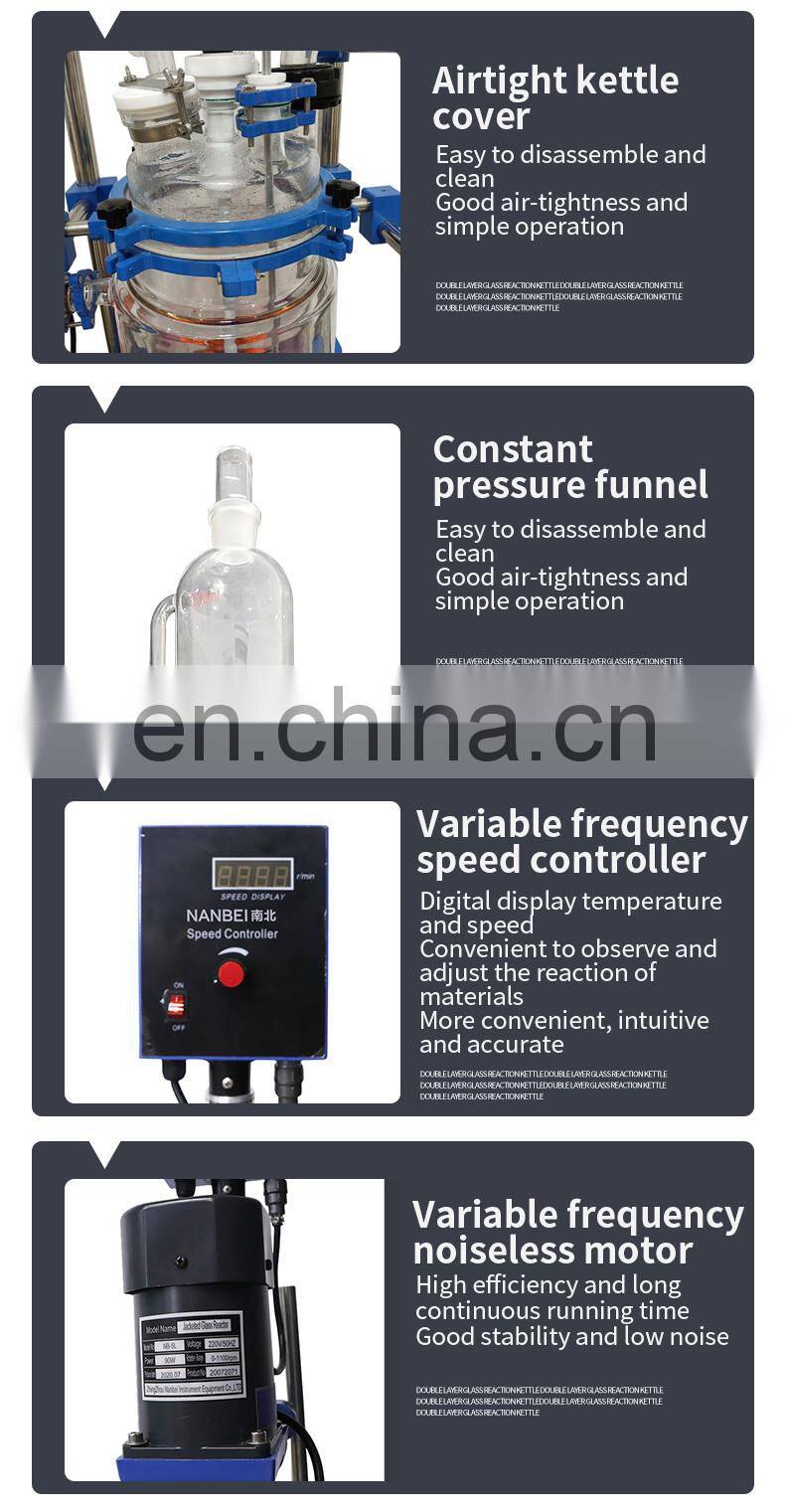

3. Titanium ring, new titanium alloy mechanical seal, sealing 0.098Mpa.

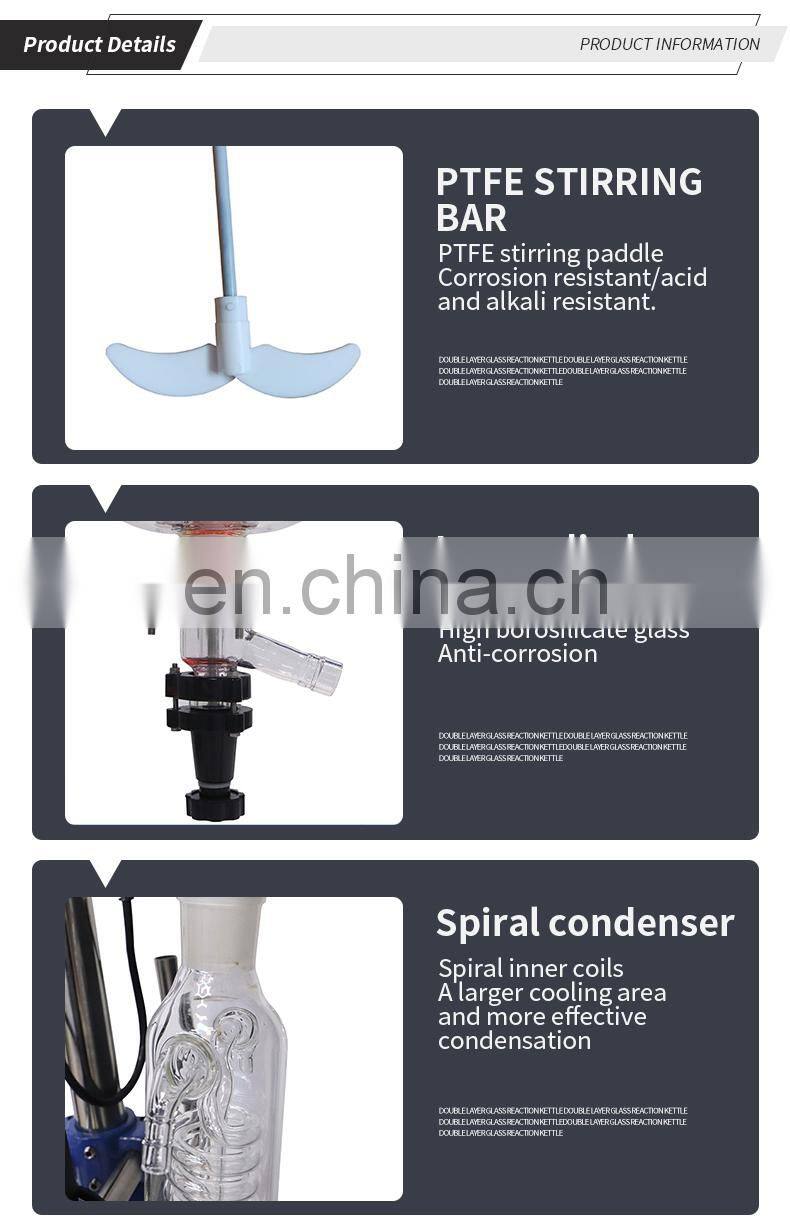

4. The PT100 temperature, and is a liquid crystal display. More accurate temperature measurement and more convenient. 5. Frequency control, AC induction motor.Constant speed, brushless, no spark, security and stability, and continuous work. 6. Quality 304 stainless steel all-inclusive PTFE stirring rod and a three-bladed propeller structure.

7. The bottom flanged discharge port, aluminum parts flange fixed
container no dead ends.

More Details Photos

Specification

Model	NB-20L	NB-30L	NB-50L
Glass Material	GG-17	GG-17	GG-17
Frame Material	304 Stainless steel	304 Stainless steel	304 Stainless steel
Moving mode	Brake type universal corner wheel	Brake type universal corner wheel	Brake type universal corner wheel
Reaction bottle capacity	20L	30L	50L
Jacketed Capacity	8L	10L	12L
Flanged out of the oil circulation port	Low feed high outlet	Low feed high outlet	Low feed high outlet
Reaction bottle cover port	6ports	6ports	6ports
Discharger port distance to ground	450mm	450mm	450mm
Temp. range	-80-250°C	-80-250°C	-80-250°C
Vacuum	0.098Mpa	0.098Mpa	0.098Mpa
Stirring speed	0-450rpm	0-450rpm	0-450rpm
Stirring diameter	12mm	12mm	12mm
Stirring power	90W	120W	120W
Voltage(V/Hz)	220V/50Hz	220V/50Hz	220V/50Hz
Dimension(mm)	5605602100	7605602300	7605602450
Packing size(mm)	1480660810	1720680850	1720680850
Packing weight（KG）	80	88	92

Recommend Products

Packing & Delivery

Company Profile

Customer Concerns

FAQ

Q1: Why Choose NANBEI ? (1).Professional manufacturer with more than 13 years experience (2).Exported to more than 97% Countries (3).Turnkey Solution is no problem Q2:OEM,ODM acceptable or not? Absolutely Yes Q3:What's kind of Payment terms for customer choosing? T/T ,Western Union, Money Gram , Credit Card, Paypal , L/C ... Q4:Can we visit your factory online? Absolutely no problem Q5:Can online video inspection before shipment? Absolutely no problem Q6: what's the MOQ ? Sample order is OK? MOQ:1 set, sample order is no problem Q7:What's kind of shipment for customer choosing? Usually ship by sea, by air, by international express . We can also provide reasonable solutions according to your transportation requirements Q8:How to ensure product quality and after-sales service? We have CE, ISO quality certificate, and SGS authentication. After-sale service: 1.Warranty : 1 year 2.We supply free part for quality problem in warranty 3.Long life technical support and service
