Chinese Laboratory Distillation Extraction Electric Stirring Single Layer Chemical Glass Reactor
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
2015
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Chemical Mixing Pharmaceutical Double Layer Jacketed Automatic Stirring Glass ReactorNegotiableMOQ: 1 -
10L 20L 30L 50L PTFE Sealing Vacuum High Borosilicate Glass G3.3 Chemical Double Layer Jacketed Glass ReactorNegotiableMOQ: 1
-
Chemical Stirring Distillation Device Oil Heating 5l Mini Double Jacketed Glass ReactorNegotiableMOQ: 1
-
1L 2L 3L 5L Chemical Reaction Automatic Stirring Distillation Extractionr Tank Jacketed Glass ReactorNegotiableMOQ: 1
-
5l Laboratory Chemical Stirring Double Layer Jacketed Mini Glass Reactor With CENegotiableMOQ: 1
Product Description

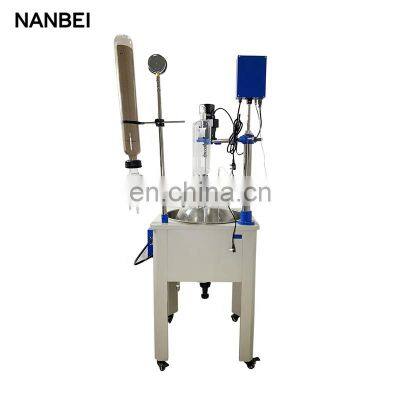

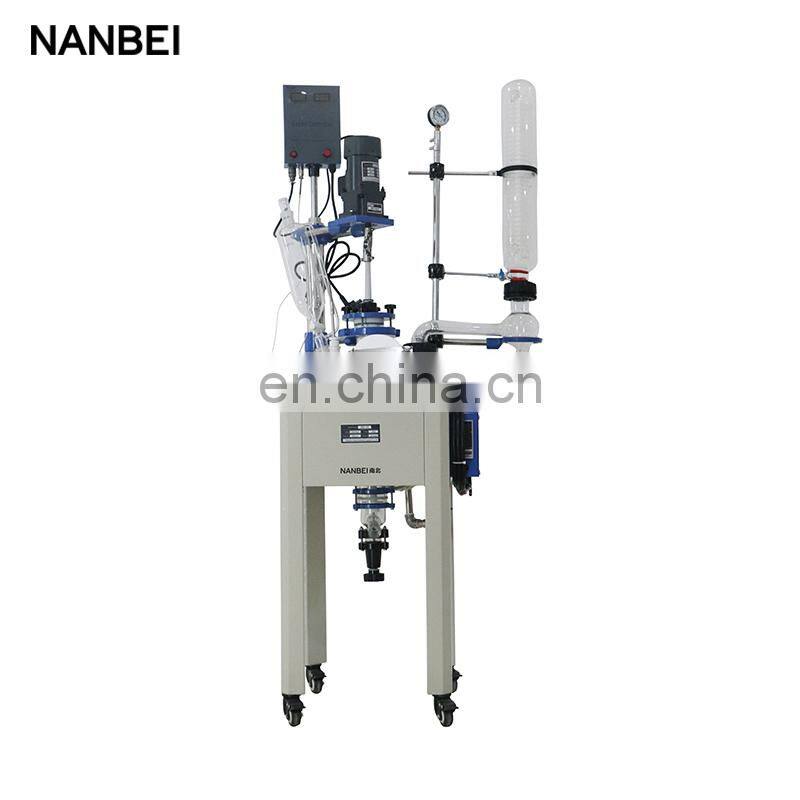

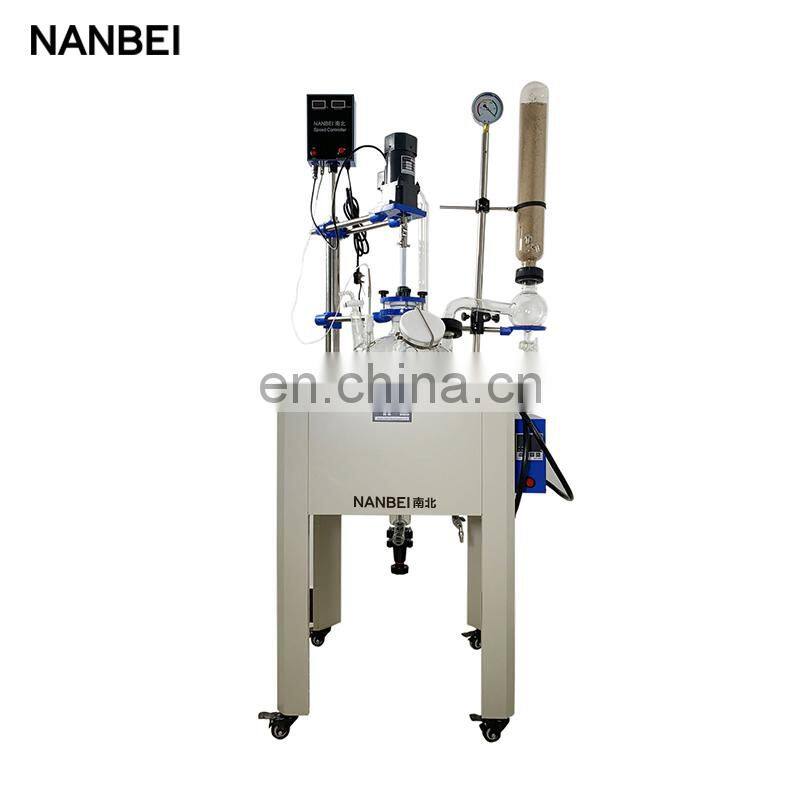

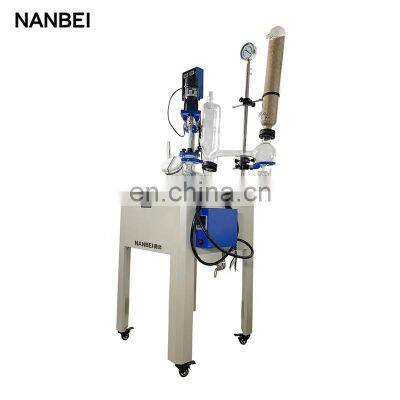

50L Single glass reactor
Brief Introduction:
Single glass reactor inner placed reaction solvent which can be stirred, single layer glass reaction kettle is heated by computer control oil bath or electric heating. At the same time, it can be worked at atmospheric pressure or vacuum state, to control the reaction solution reflux and distillation, it is the ideal equipment for modern synthesis chemical, biological pharmaceuticals and making new materials, used for preparation experiment and production equipment.
Working principle:
Under the condition for setting the constant temperature, in a closed glass container, at atmospheric pressure or negative pressure by stirring, reaction, it can control the reaction solution's evaporation and reflux.
Product Features:

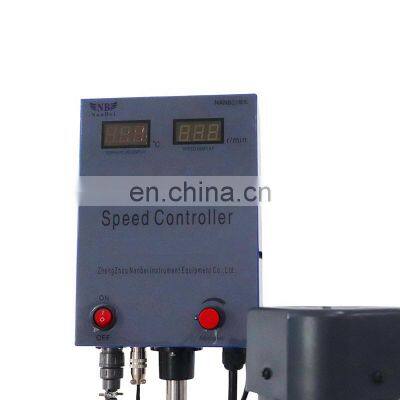

1.Frequency control, AC induction motor, speed digital display constant, brushless, no spark, safe and stable, it can work continuously;
2. Supporting glass using GG3.3 high boron silicon material production, has a good chemical, physical properties; big bottle design, hand out cleaning;
3. PTFE (Ceramic) mechanical component sealing, proprietary technology, it can get the best vacuum degree in the market among the similar products;
4. Overall stainless steel frame structure (foot connecting parts like Tee and four-way valve are all stainless steel), compact and solid, stable and reliable without shaking when mixing;
5. Casters with brake fixed, it is convenient and reliable for mobile use;
6. The PTFE discharge valve without dead corner, solid material/liquid material can be easily released from the bottom;
7. Computer controlled thermostatic oil bath, the intelligent PID control, temperature control is accurate and convenient;
8. Integral structure is scientific design and beautiful appearance, convenient for operation;
9. Explosion-proof series available.
( We can add the cooling coil and an anti-explosion device according to user's needs)
More Details Photos

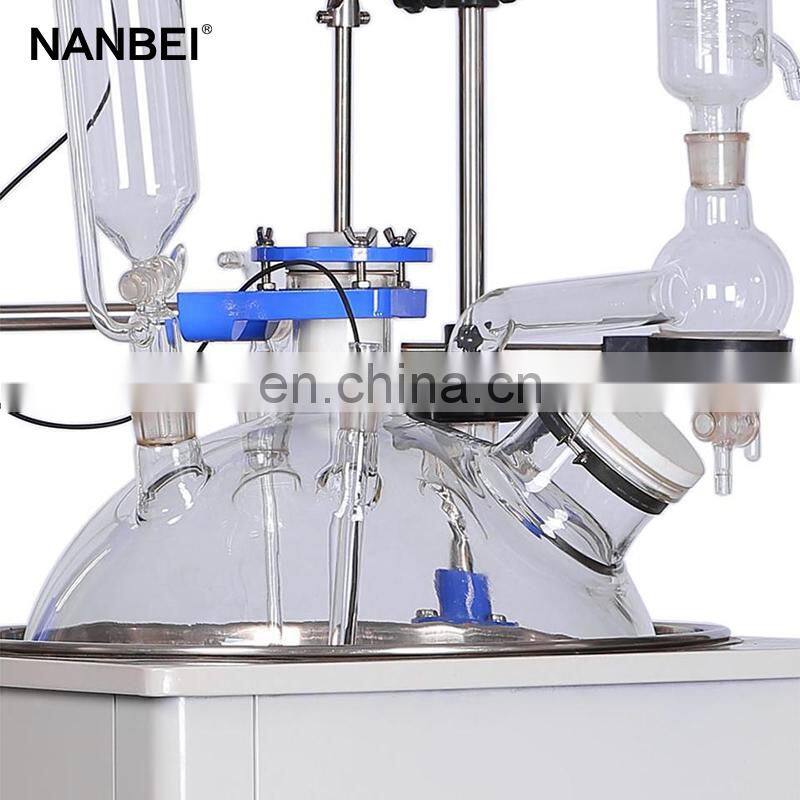

Reaction cover including 6 port, using for motor stirring, condenser,solid feeder Temperature sensor,constant pressure
funnel for liquid adding,
gas release.

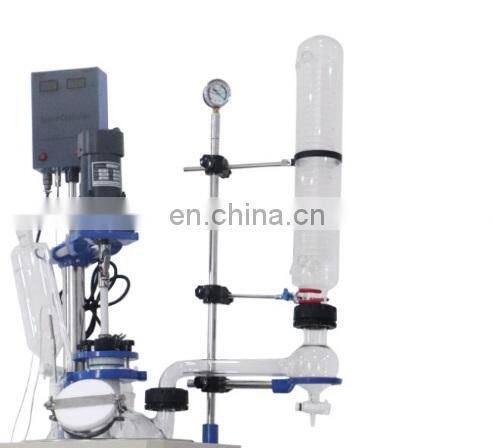

1000ml volume Constant pressure funnel,is used to balance pressure and drip liquid，it has Valve can control the speed of liquid dripping.
Specification
Name | Single layer glass reactor | Single layer glass reactor | Single layer glass reactor |
Model | NBF-10L | NBF-20L | NBF-50L |
Volume | 10L | 20L | 50L |
Glass material | GG-17 | GG-17 | GG-17 |
pot shell material | Spraying antiseptic shell | Spraying antiseptic shell | Spraying antiseptic shell |
Pot shell size(mm) | 540*440*860 | 640*540*890 | 740*640*960 |
Inner port material | Stainless steel | Stainless steel | Stainless steel |
Inner port size(mm) | 350*220 | 450*250 | 550*320 |
Moving mode | Brake type universal corner wheel | Brake type universal corner wheel | Brake type universal corner wheel |
Shape of reactor body | Ball type | Ball type | Ball type |
Port No. of reactor cover | 7 | 7 | 7 |
Distance between discharge to floor | 450mm | 450mm | 450mm |
Temperature range | -80 to 250degree | -80 to 250degree | -80 to 250degree |
Vacuum | 0.098Mpa | 0.098Mpa | 0.098Mpa |
Stirring speed | 0-450rpm | 0-450rpm | 0-450rpm |
Stir rod diameter | 15mm | 12mm | 12mm |
Stir motor | 90W1/3 | 90W1/3 | 120W1/3 220V,50HZ |
Heating power | 3KW | 5KW | 8KW 380V,50HZ |
Overall size (mm) | 600*440*1900 | 700*540*1950 | 800*640*2200 |
Package size (mm) | 1100*620*790 | 1220*620*790 | 1440*720*890 |
Gross weight（KG） | 63 | 80 | 95 |
Motor | Low speed booster motor, speed ratio 3: 1 | Low speed booster motor, speed ratio 3: 1 | Low speed booster motor, speed ratio 3: 1 |
Speed display mode | LCD digital display | LCD digital display | LCD digital display |
Temperature display | digital display | digital display | digital display |
