Product Description
Product Description

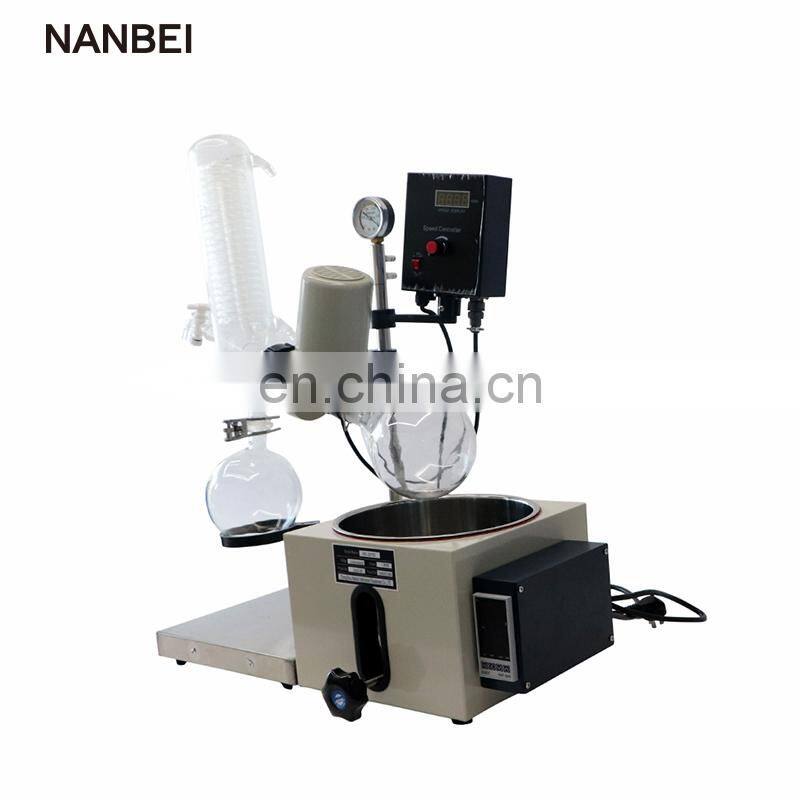

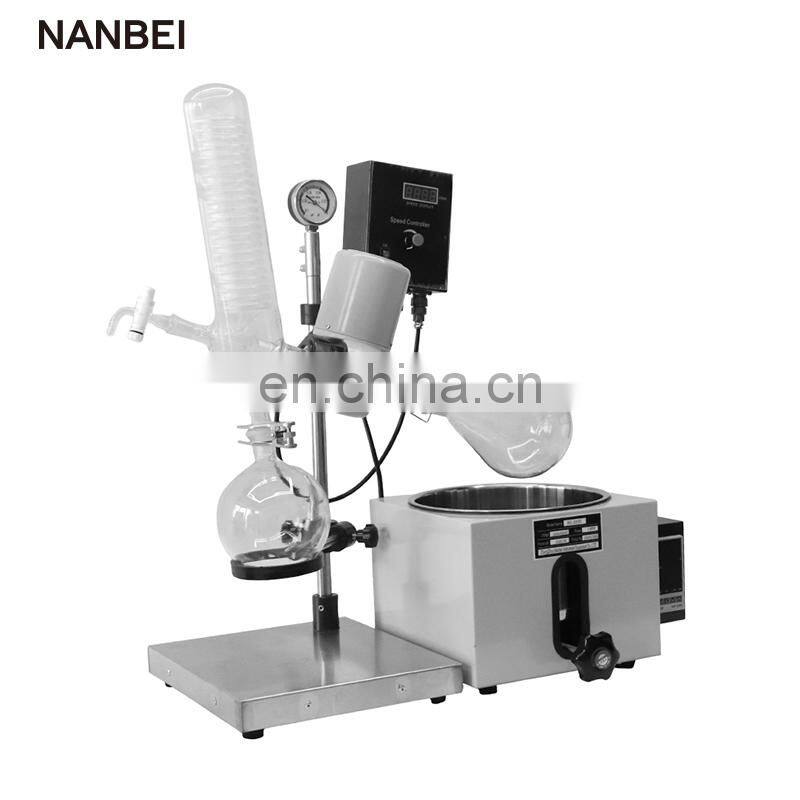

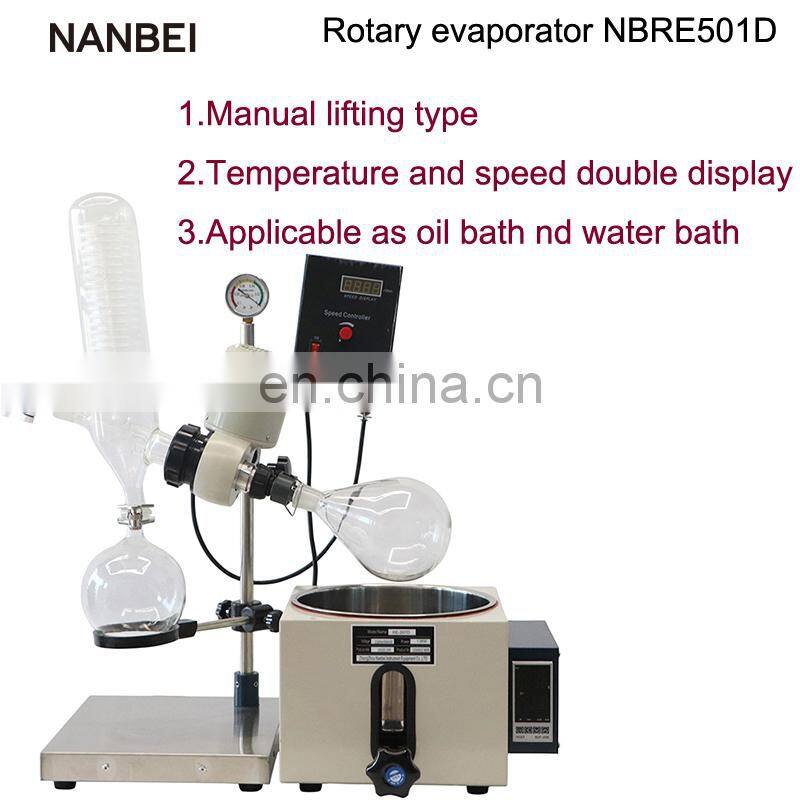

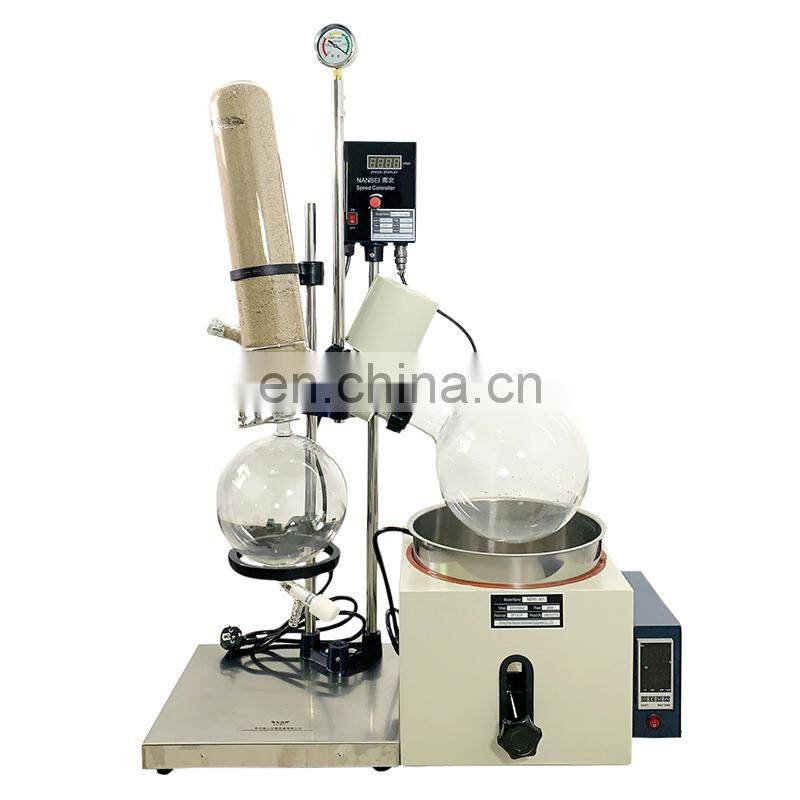

China Lab Alcohol distillation vacuum rotary evaporator equipment 1-5L with good price





Application for China Lab Alcohol distillation vacuum rotary evaporator equipment 1-5L with good price:

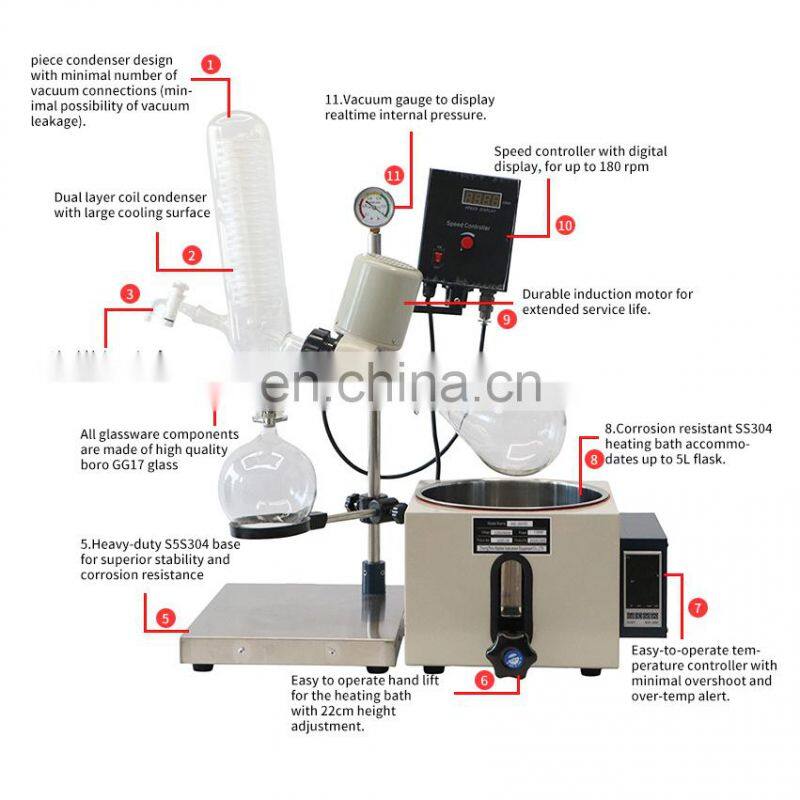

Rotary evaporator use stepless speed to make the glass rotating bottle constant rotation, the material in the bottle wall to form a large area of uniform film, and then through the intelligent constant temperature water bath heat the rotating bottle uniformly, high-speed evaporation under vacuum case, after the efficient glass condenser cooling, the solvent vapor will recycle in the collection bottle.
Characters for China Lab Alcohol distillation vacuum rotary evaporator equipment 1-5L with good price:

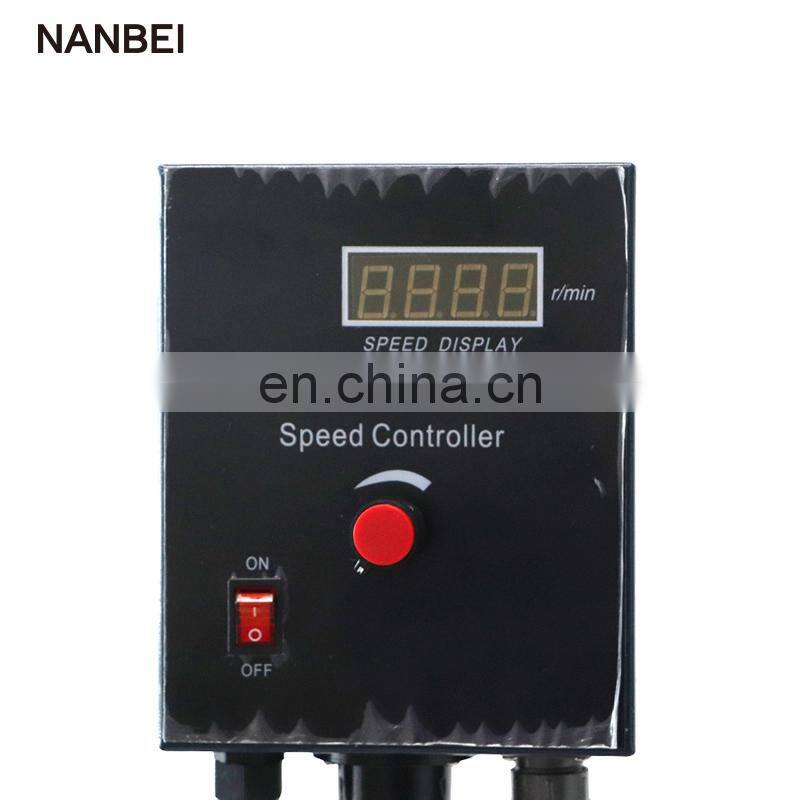

Rotators consists of a set of stable and reliable micro motor, speed motor and integrated circuit control device. In the role of electronic speed, it can rotating steadily in 10-180 RPM range, it has reached the advanced level at home and abroad.
1, using PTFE and fluorine rubber compound sealing to maintain a high vacuum degree.
2, it adopts high-efficiency condenser to ensure high recovery rate.
3, feeding continuous.
4, water bath with digital and continuous temperature controlling.
5, reasonable structure, special materials . The mechanical structure mainly use stainless steel and aluminum alloy parts, glass pieces are all made of high temperature resistant and high boron glass. Imported Electrical key-module. Rubber seal is easy to adopt the new international, making it easy for users to purchase and update.
More Details Photos

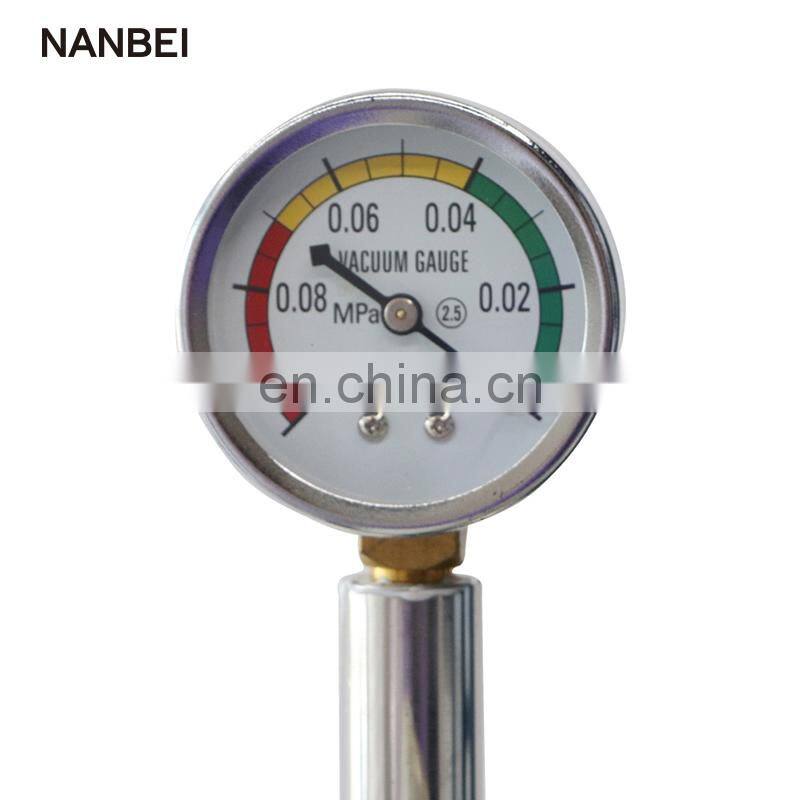

The vacuum pressure gauge shows real-time vacuum, and the vacuum degree can reach 0.098Mpa.

Bath pot digital display, intelligent constant temperature control, K-type sensor transfer temperature quickly and accurately.

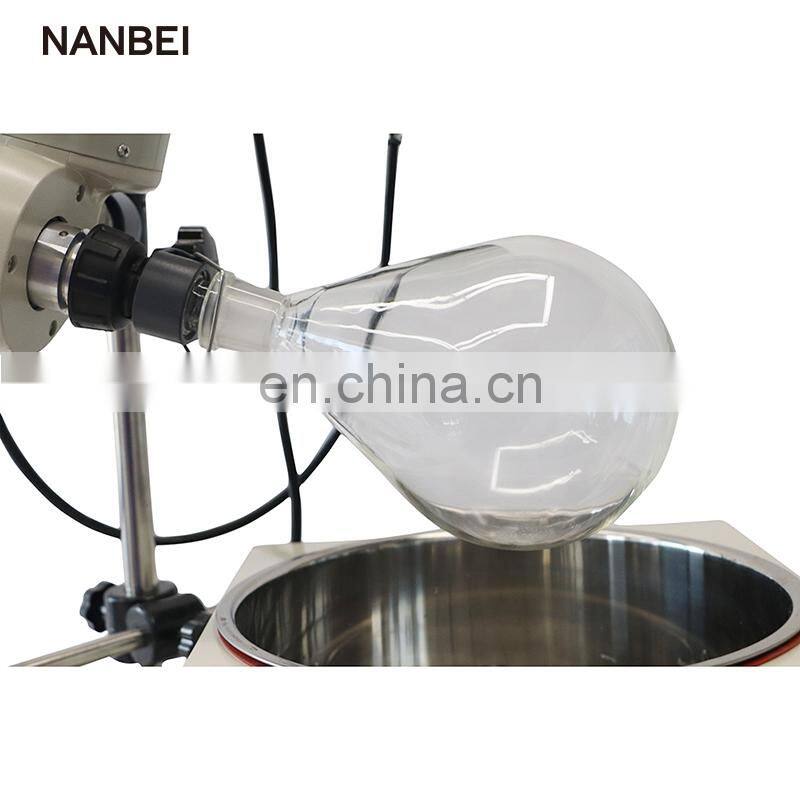

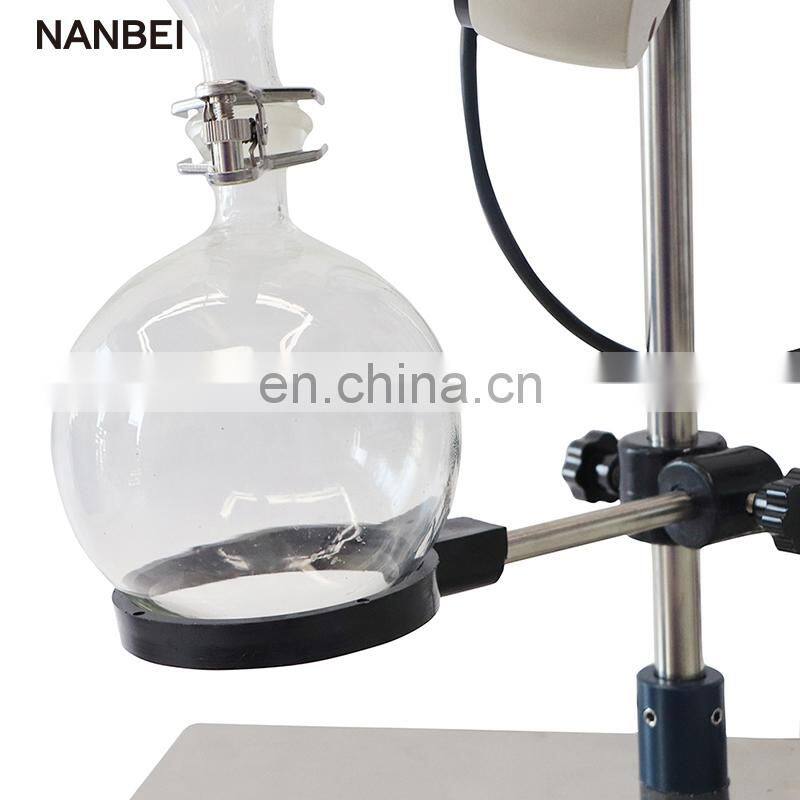

All glass parts are made of high temperature resistant and high borosilicate glass GG17

High borosilicate glass GG17 is resistance the high temperature and corrosion.
Specification
Model | NRE-201D | NRE-301 | NRE-501 | |||
Glass meterial | GG-17 | |||||
Holder material | Stainless steel | |||||
Pot shell Material | aluminium alloy 270*270*195mm | aluminium alloy 270*296*240mm | aluminium alloy 310*320*240mm | |||
Pot bravery | Stainless steel 250*140mm | Stainless steel 255*170mm | Stainless steel 280*170mm | |||
Plate size | 280*330 | 350*330 | 350*330 | |||
Evaporator flask | 2L 24# | 3L flange mouth:Φ50mm | 5L flange mouth:Φ50mm | |||
Collect flask | 1L 24# | 2L 35# | 3L 35# | |||
Vacuum degree | 0.098Mpa | |||||
Rotary speed | 0-120RPM | |||||
Rotary power | 30W | 40W | 40W | |||
Heating power | 1.5KW | 2KW | 2KW | |||
Heating temp. | 0-400℃ | |||||
Temp. accuracy | -1℃ | |||||
Lifting stroke | 120mm | |||||
Voltage | 220/110V 50/60HZ | |||||
Dimension | 700*440*885mm | 660*330*970 | 700*335*1009 | |||
Packing size | 590*460*460mm | 1000*460*450 | 1040*620*410mm | |||
Packing weight | 21kg | 38kg | 38kg | |||
Configuration list | ||||||
Speed mode | Electronic stepless | |||||
Speed Display | Digital | |||||
Temp. display | K type sensor Digital display | |||||
Temp. control | Intelligent ntrol | |||||
Sealing method | PTFE | |||||
Condenser | Vertical 85*460mm 29# | Vertical 100*510mm 29# | Vertical 100*590mm 29# | |||
Lifting mode | Manual lifting | |||||
Continuous feed | 19# Standard mouth feed valve | |||||
Discharge mode | --- | --- | PTFE Discharge valve flange mouth:Φ50mm | |||
Vacuum Display | Vacuum gauge | |||||
Speed Display | Digital | |||||
Temp. display | Digital | |||||
Temp. control | Intelligent temp. control | |||||
Sealing method | PTFE | |||||
Condenser | Vertical 100*510 | |||||
Lifting mode | Electric automatic lifting | |||||
Continuous feed | 19# Standard mouth feed valve | |||||
Option | ||||||
Splash device | Transparent cover for heating bath | |||||
