Product Description
Product Description

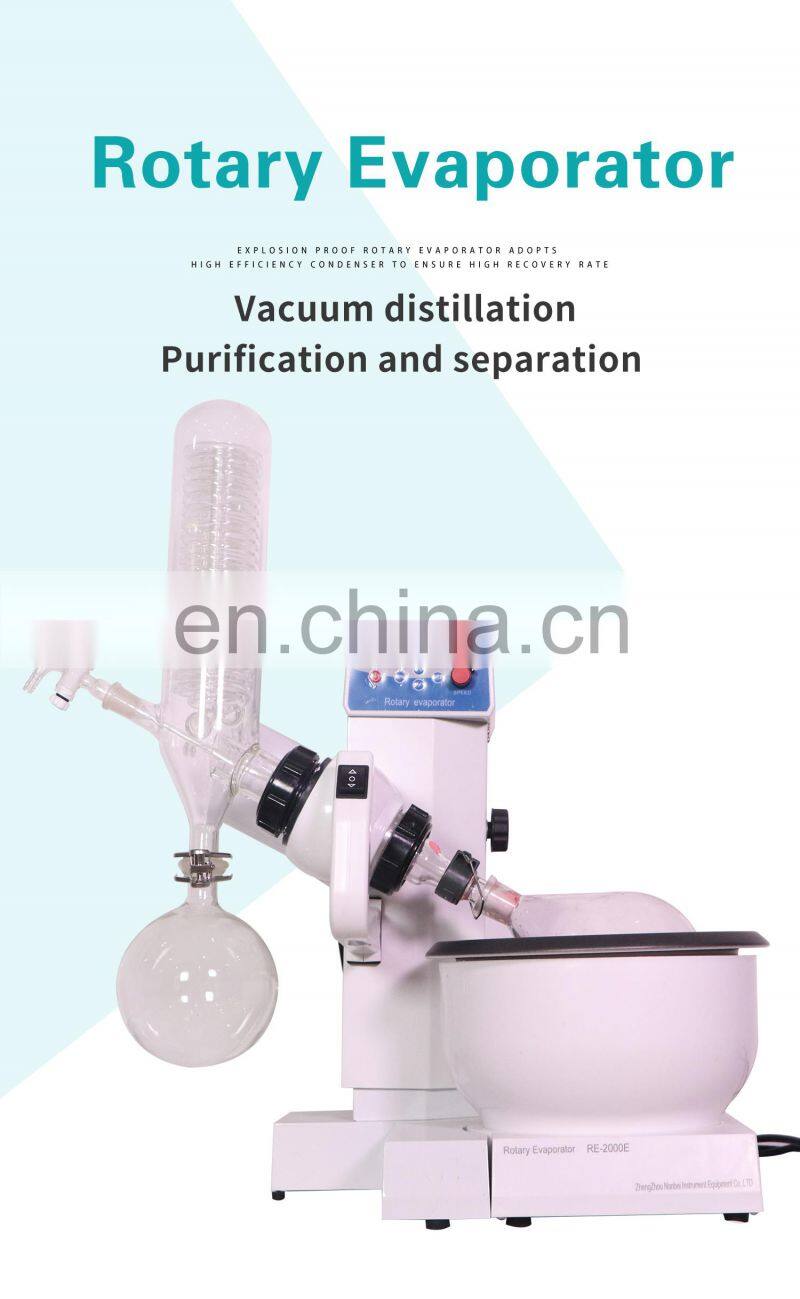

Top chemical Instrument Vacuum Rotary Distillation Thin Film Evaporator with competitive price
Application for Top chemical Instrument Vacuum Rotary Distillation Thin Film Evaporator with competitive price ：

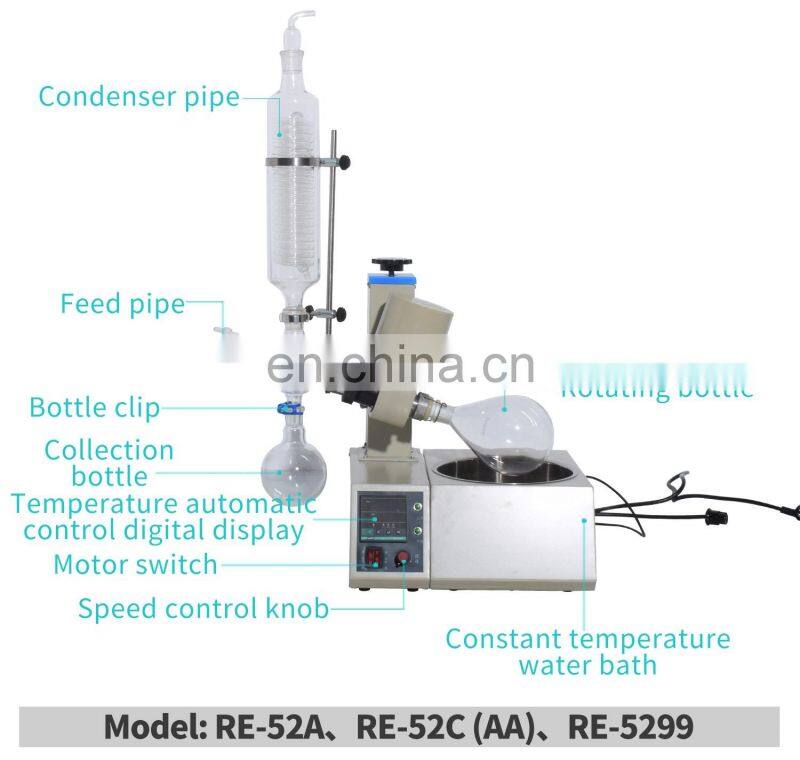

Rotary evaporator use stepless speed to make the glass rotating bottle constant rotation, the material in the bottle wall to form a large area of uniform film, and then through the intelligent constant temperature water bath heat the rotating bottle uniformly,high-speed evaporation under vacuum case, after the efficient glass condenser cooling, the solvent vapor will recycle in the collection bottle.
Rotary evaporator use stepless speed to make the glass rotating bottle constant rotation, the material in the bottle wall to form a large area of uniform film, and then through the intelligent constant temperature water bath heat the rotating bottle uniformly,high-speed evaporation under vacuum case, after the efficient glass condenser cooling, the solvent vapor will recycle in the collection bottle.
Characters for Top chemical Instrument Vacuum Rotary Distillation Thin Film Evaporator with competitive price :
Rotators consists of a set of stable and reliable micro motor, speed motor and integrated circuit control device. In the role of electronic speed, it can rotating steadily in 10-180 RPM range, it has reached the advanced level at home and abroad.
1,The move up and down lift system adopts motor revolved lifting structure.
2,The condenser adopted two kinds of optional structure , one is double line convection principle, the other one is a single line with interlayer water, ice, and dry ice container. Used in organic solvent evaporation. And the vertical condenser saves space.
3, The axis of rotation use high temperature high borosilicate glass, heat resistant and good sealing. Sealing parts two-way sealing, and the effect is good.
4, It is equipped with heating trough, and built-in resistance wire heater, heating temperature is from room temperature to 99 ℃.
5, The device is equipped with temperature indicator, intelligent temperature controlling, digital display, temperature control implemented by PT100 sensors. When the water temperature reaches primary
temperature, the controller automatically cut off the heater power; When is lower than the water, temperature controller automatically turn on the heater power; To realize the tank water temperature be constant.
6, B type, E type is equipped with speed display, can accurately display rotation speed, E type is LCD screens.
More Details Photos
Specification
Model | NRE-3000A | NRE-3000B | NRE-3000E | |||
Glass meterial | GG-17 | |||||
Holder material | aluminium alloy | |||||
Pot shell Material | aluminium alloy | |||||
Pot bravery | Stainless steel 250*130mm | |||||
Evaporator flask | 3L Flange mouth:Φ50mm | |||||
Collect flask | 2L 35# | |||||
Rotary speed | 0-180RPM | |||||
Rotary power | 40W | 40W Brushless motor | ||||
Heating power | 1.5KW | |||||
Heating temp. | 0-99℃ | |||||
Temp. accuracy | -1 | |||||
Lifting power | 15W | |||||
Lifting stroke | 120mm | |||||
Voltage | 220/110V 50/60HZ | |||||
Dimension | 660*420*830 | |||||
Packing size | 630*560*540 | |||||
Packing weight | 30kg | |||||
Configuration list | ||||||
Speed mode | No | Digital | LCD | |||
Speed Display | Digital | |||||
Temp. display | Digital | |||||
Temp. control | Intelligent temp. control | |||||
Sealing method | PTFE | |||||
Condenser | Vertical 100*510 | |||||
Lifting mode | Electric automatic lifting | |||||
Continuous feed | 19# Standard mouth feed valve | |||||
Option | ||||||
Splash device | Transparent cover for heating bath | |||||
