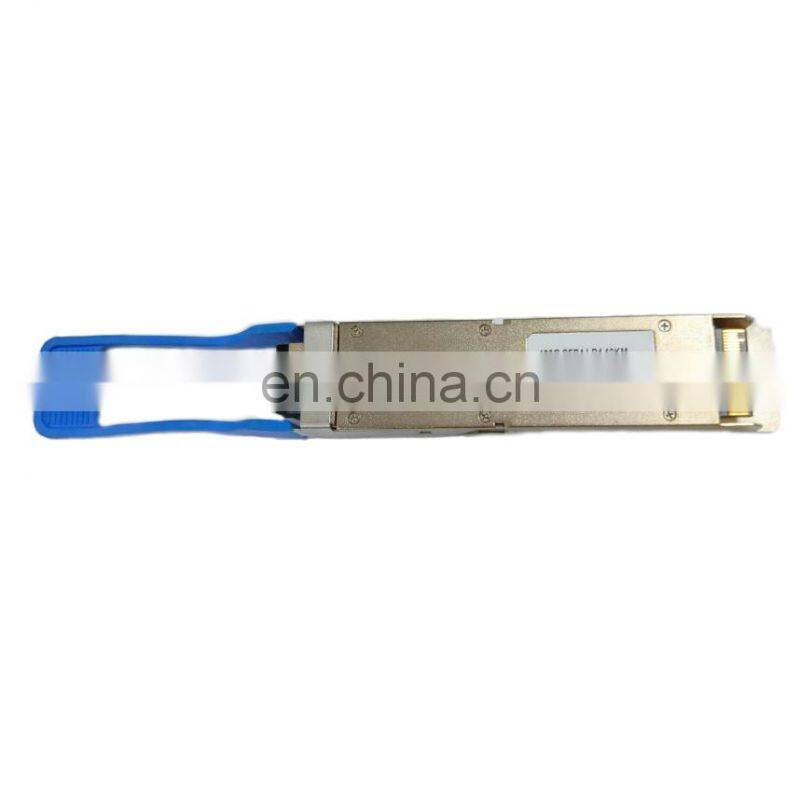

100G QSFP28 ER4 10/40km Transceiver Module 1310nm 100G CFP Transceiver

100G QSFP28 ER4 40km Transceiver Module 1310nm 10km 100g CFP transceiver

1. PRODUCT FEATURES
1). Duplex LC receptacle optical interface
2). Single +3.3V power supply
3). Hot-pluggable
4). Operating optical data rate up to 112Gbps
5). Operating electrical serial data rate up to 27.952493Gbps
6). 4 parallel electrical serial interface
7). AC coupling of CML signals
8). PIN ROSA
9). Low power dissipation(Max:12W)
10). Built in digital diagnostic function
11).Operating case temperature range: Commerical 0 ℃ to 70 ℃ / Industrial -40℃~+85℃
12). Compliant with 100GBASE-ER4
13). MDIO Communication Interface
14).Compatible with all kinds of commercial ONT

2.APPLICATIONS

1).Local Area Network(LAN)
2).Wide Area Network(WAN)
3). Switch to router interface

3.CFP  CFP2  CFP4  CXP 40, 100G Ethernet connectivity Functional Description
The 100G CFP optical transceiver integrates the transmit and receive path onto one module. On the transmit side, four lanes of serial data streams are recovered, retimed,and passed on to four laser drivers, which control four electric-absorption modulated lasers (EMLs) with 1296, 1300, 1305, and 1309 nm center wavelengths. The optical signals are then multiplexed into a single-mode fiber through an industry-standard LC connector.On the receive side, four lanes of optical data streams are optically demultiplexed by an integrated optical demultiplexer. Each data steam is recovered by a PIN photodetector and transimpedance amplifier, retimed, and passed on to an output driver. This module features a
hot-pluggable electrical interface, low power consumption, and MDIO management interface.

4.Digital Diagnostics

Rollball 100G CFP CFP2 CFP4 CXP Transceiver modules in industry standard Multi-Source Agreement (MSA) form factor designed for optical communication applications compliant to 40 and 100GBase IEEE 802.3ae standard. They are designed to meet the harshest temperature, humidity and EMI operating conditions. They are suited to 40 and 100G Ethernet data center applications from bottom of rack to top of rack and rack to rack. Can be used with transponder and Many Series platforms to combine multiple channels and transmit them over extended distance between multiple sites on a dark fiber network.

5.Related 100G Optical transceivers list

1.CFP

1.1 For DWDM

Application             Item No                              Description

DWDM                    RB-CFP-C-DWDM                 CFP, 103/112 Gbps, DWDM tunable, SM, DDM, 18dB, 22000ps/nm

DWDM                     RB-CFP-ER4-DWDM            CFP, 103/112 Gbps, DWDM tunable, SM, DDM, 20km

1.2 For STANDARD

Application               Item No                             Description

Standard                 RB-CFP-ER4                          CFP, 103/112 Gbps,1300nm, SM, DDM, 40km, angled LC

Standard                 RB-CFP-ER4-SC                     CFP, 103/112 Gbps,1300nm, SM, DDM, 40km, flat SC

Standard                 RB-CFP-ER4-LC                     CFP, 103/112 Gbps,1300nm, SM, DDM, 40km, flat LC

Standard                 RB-CFP-SR10                        CFP, 100 Gbps, MM, DDM, 100m

Standard                 RB-CFP-LR4                           CFP, 103/112 Gbps, 1310nm, SM, DDM, 6.3dB, 10km

2.CFP4

2.1 For STANDARD

Application                  Item No                             Description

Standard                  RB-CFP4-LR4                          CFP4, 103/112 Gbps, 1310nm, SM, DDM, 6.3dB, 10km, LC

3.CFP2

3.1.For STANDARD

Application                    Item No                              Description

Standard                    RB-CFP2-LR4                           CFP2, 103/112 Gbps, 1310nm, SM, DDM, 6.3 dB, 10km

3.2. For CONVERTER

Application                       Item No                            Description

Converter                RB-CVR-CFP2-QSFP28                CFP2 to QSFP28 converter module  (used together with QSFP28)

4. CFP 40

4.1. For DWDM

Application                    Item No                                   Description

DWDM                     RB-CFP-40GBase-DWDM4-80       CFP, 41.25 Gbps, DWDM, SM, DDM, 24dB, 80km

4.2. For STANDARD

Application                      Item No                                Description

Standard                    RB-CFP-40GBase-ER4                CFP, 41.25 Gbps, ER4, SM, DDM, 19dB, 40km

Standard                    RB-CFP-40GBase-LR4                CFP, 41.25 Gbps, LR4, 1310nm, SM, DDM, 7.5dB, 10km

Standard                    RB-CFP-40GBase-LR4-20           CFP, 41.25 Gbps, LR4, 1310nm, SM, DDM, 8.5dB, 20km

Standard                    RB-CFP-40GBase-LR4-40           CFP, 41.25 Gbps, ER4, 1310nm, SM, DDM, 19dB, 40km

Standard                    RB-CFP-40GBase-FR4                CFP, 41.25 Gbps, FR4, 1550nm, SM, DDM, 6dB, 2km

4.3 For CONVERTER

Application                       Item No                                    Description

Converter                   RB-CVR-CFP-40GBase-4xSFP           CFP to 4xSFP+ converter

5.CXP

5.1 STANDARD

Application                   Item No                                        Description

Standard                      RB-CXP-100Base-SR10                  CXP, 100 Gbps, MM, DDM, 100m

Rollball is always at your services with our fiber optical products. As professional manufacturer with rich experience,  we have more than 100 different models for your choices, you are sure to stand out with Rollball advantage: competitive price , product warranty  and excellent quality. You may check the clients feedback from all over the world. We guarantee what we have showed is 100% genuine and what else you are waiting for?
