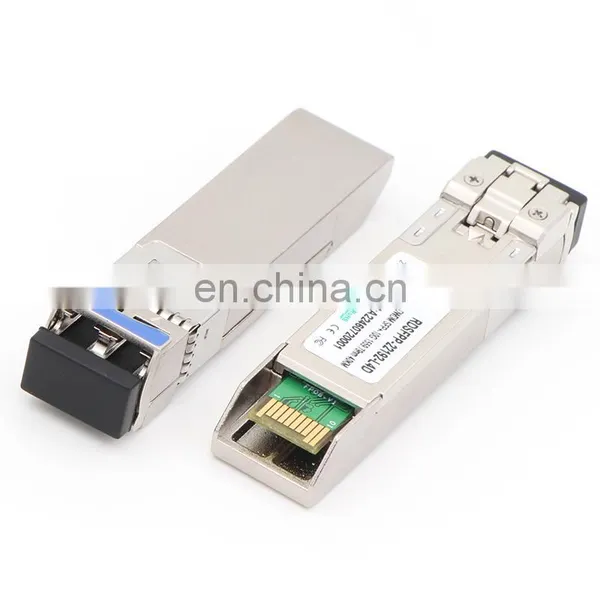

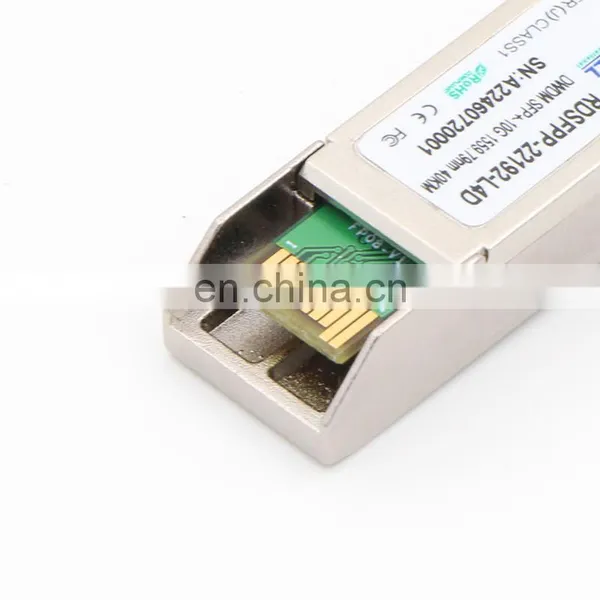

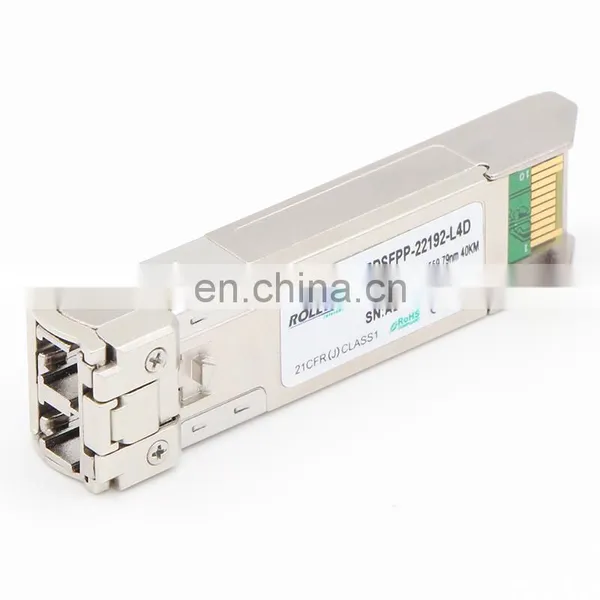

10G DWDM SFP+ 50GHz ITU grid wavelengths 40km SFP+ DWDM Tunable module
1.Description
The 10 Gb/s SFP+ tunable transceiver is an integrated fiber optic transceiver that provides a high-speed serial link at signaling rates from 9.95 Gb/s to 11.3 Gb/s. The module complies with the 10Gigabit Enhanced Small Form Factor Pluggable (SFP+) multisource agreement-MSA(SFF-8431) and SFF-8432,SFF-8690,SFF 8472. It complies with the ITU-T G.698.1 standard with 50 GHz channel spacing for SONET/SDH, IEEE DWDM 10GBASE-ZR for 40 km reach (Ethernet), and DWDM 10GFC for 40 km reach (Fiber Channel) applications.
The transceiver integrates the receiver and transmitter path on one module. The transceiver contain a C-band-tunable integrated Mach-Zehnder(MZ)laser, enabling data transmission over single-mode fiber through an industry-standard LC connector. On the receiver side, the 10 Gbps data stream is recovered from an PIN /trans-impedance amplifier, and passed to an output driver. This module features a hot-pluggable electrical interface.
2.Applications
- DWDM 10GBASE-ZR/ZW 10G Ethernet
- DWDM 40KM 10G Fiber Channel
- DWDM SONET OC-192&SDH STM-64
3.Features
- Supports 9.95Gb/s to 11.3Gb/s bit rates
- Monolithically integrated full C-band tunable transmitter and PIN receiver
- 50 GHz ITU channel spacing with integrated wavelength locker
- Maximum link length of 40km
- Metal enclosure, for lower EMI
- 2-wire interface with integrated Digital Diagnostic monitoring
- Hot-pluggable SFP+ footprint
- Specifications compliant with SFF-8472 V11.3& SFF-8690 V1.4
- Compliant with SFP+ MSA with LC connector
- Power dissipation <1.65W
- Case temperature range:
- Standard : -5 to +70°C
- Industrial : -40 to +85°C
5.Product list
| Part Number | Data Rate | Wavelenth | Distance | Package | Temp. | Source |
| XFP (10G) | ||||||
| RXFP-85192-SRD | 10G | 850 | 300M | XFP | 0~70 | VSCEL+PIN |
| RXFP-31192-LRD | 10G | 1310 | 10KM | XFP | 0~70 | EML+PIN |
| RXFP-55192-ERD | 10G | 1550 | 40KM | XFP | 0~70 | EML+PIN |
| RXFP-55192-ZRD | 10G | 1550 | 80KM | XFP | 0~70 | EML+APD |
| X2 (10G) | ||||||
| RX2-85192-SRD | 10G | 850 | 300M | X2 | 0~70 | VSCEL+PIN |
| RX2-31192-LRD | 10G | 1310 | 10KM | X2 | 0~70 | DFB+PIN |
| RX2-55192-ERD | 10G | 1550 | 40KM | X2 | 0~70 | EA-DFB+PIN |
| RX2-55192-ZRD | 10G | 1550 | 80KM | X2 | 0~70 | EA-DFB+APD |
| XENPAK (10G) | ||||||
| RXENPAK-85192-SRD | 10G | 850 | 300M | XENPAK | 0~70 | VSCEL+PIN |
| RXENPAK-31192-LRD | 10G | 1310 | 10KM | XENPAK | 0~70 | DFB+PIN |
| RXENPAK-55192-ERD | 10G | 1550 | 40KM | XENPAK | 0~70 | EA-DFB+PIN |
| SFP+ (10G) | ||||||
| RSFPP-85192-SRD | 10G | 850 | 300M | SFP+ | 0~70 | VSCEL+PIN |
| RSFPP-31192-LRD | 10G | 1310 | 10KM | SFP+ | 0~70 | DFB+PIN |
| RSFPP-55192-ERD | 10G | 1550 | 40KM | SFP+ | 0~70 | EML+PIN |
| DWDM XFP (10G) with DDMI, XX is C-Band and L-Band ITU, XX=17, 18, 19…, which 17=1563.86nm, 18=1563.05nm… | ||||||
| RDXFP-XX192-40D | 10G | XXXX.XX | 40KM | DWDM XFP | 0~70 | DFB+PIN |
| RDXFP-XX192-80D | 10G | XXXX.XX | 80KM | DWDM XFP | 0~70 | DFB+PIN |
| CWDM XFP(10G) with DDMI, XX=27, 29, 31…61, which 27=1270nm, 29=1290nm, and 61=1610nm | ||||||
| RCXFP-XX192-10D | 10G | (1270-1330nm) | 10KM | CWDM XFP | 0~70 | DFB+PIN |
| RCXFP-XX192-40D | 10G | (1470-1610nm) | 40KM | CWDM XFP | 0~70 | EML+PIN |
| CWDM SFP+(10G) with DDMI, XX=27, 29, 31…61, which 27=1270nm, 29=1290nm, and 61=1610nm | ||||||
| RCSFPP-XX192-10D | 10G | (1270-1330nm) | 10KM | CWDM SFP+ | 0~70 | DFB+PIN |
| RCSFPP-XX192-40D | 10G | (1270-1330nm) | 40KM | CWDM SFP+ | 0~70 | DFB+PIN |
Payment & Shippment
1.Payment
2.Shipment:by Sea,by Air,by Express:DHL/UPS/Fedex/EMS/TNT etc
.
Why Always Rollball?
Rollball is always at your services with our fiber optical products. We have more than 100 different models for your choices, you are sure to stand out with Rollball advantage: Absolutely no hidden costs and excellent products. You may check the clients feedback from all over the world. We guarantee what we have showed is 100% genuine and what else you are shooting for ?? .
