Product Description

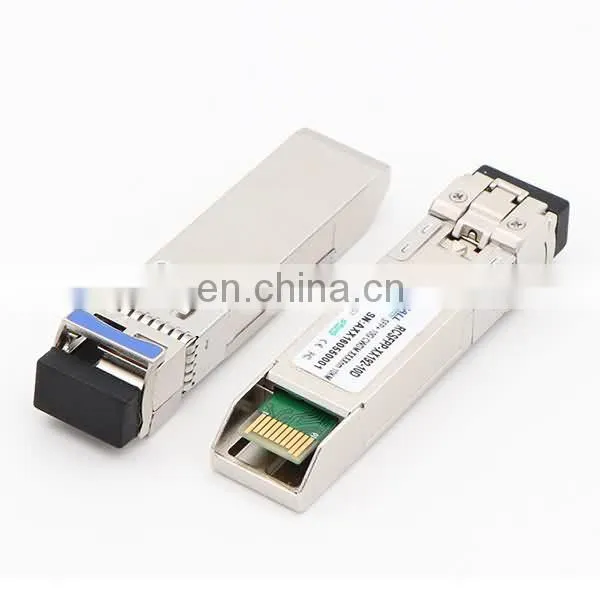

                                    DWDM SFP+ 10G 40KM DDM CH17-CH61 10gb dwdm sfp transceivers


Application


* 10GBASE-ER

* 10G Fiber Channel

Features


* Compliant with SFF-8431,SFF-8432 and IEE802.3ae

* Cooled EML transmitter and PIN receiver

* Suitable for use in 100GHz channel spacing DWDM systems

* Hot pluggable

* link length up to 40km

* 10GBASE-ER, and 2G/4G/ 8G/10G Fiber Channel applications.

* Low power consumption

* With DDM / without DDM optional; default with DDM;

* Operating Case Temperature

Standard: 0°C ~+70°C

Industrial:-40°C~+85°C


Product Mode
P/N
Parameters
RDSFPP-XX192-L4D
DWDM SFP+-10G 40KM; DDM; CH17-CH61 optional
RDSFPP-XX192-L8D
DWDM SFP+-10G 80KM; DDM; CH17-CH61 optional
DWDM C-band λc Wavelength Guide
ITU Channel
Product Code
Frequency(THz)
Wavelength
ITU Channel
Product Code
Frequency(THz)
Wavelength
17
191.7
1563.86
40
194.0
1545.32
18
191.8
1563.05
41
194.1
1544.53
19
191.9
1562.23
42
194.2
1543.73
20
192.0
1561.42
43
194.3
1542.94
21
192.1
1560.61
44
194.4
1542.14
22
192.2
1559.79
45
194.5
1541.35
23
192.3
1558.98
46
194.6
1540.56
24
192.4
1558.17
47
194.7
1539.77
25
192.5
1557.36
48
194.8
1538.98
26
192.6
1556.55
49
194.9
1538.19
27
192.7
1555.75
50
195.0
1537.40
28
192.8
1554.94
51
195.1
1536.61
29
192.9
1554.13
52
195.2
1535.82
30
193.0
1553.33
53
195.3
1535.04
31
193.1
1552.52
54
195.4
1534.25
32
193.2
1551.72
55
195.5
1533.47
33
193.3
1550.92
56
195.6
1532.68
34
193.4
1550.12
57
195.7
1531.90
35
193.5
1549.32
58
195.8
1531.12
36
193.6
1548.51
59
195.9
1530.33
37
193.7
1547.72
60
196.0
1529.55
38
193.8
1546.92
61
196.1
1528.77
