High Quality Dwdm 80km Transceiver Xfp 10gb Cx4 Module

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

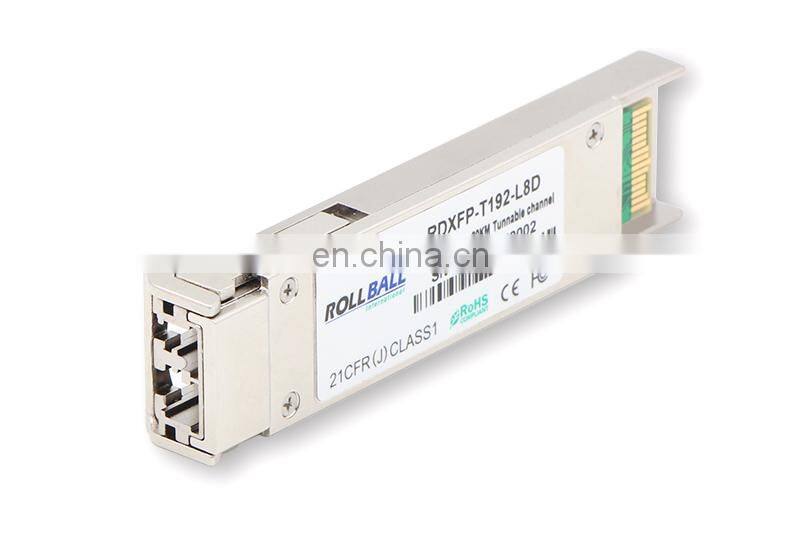

XFP Tunable dwdm 80km transceiver xfp 10gb cx4 module

Description

1).Rollball’s sfp vs xfp are compliant with the current XFP Multi-Source Agreement (MSA) Specification. They comply with
10-Gigabit Ethernet 10GBASE-LR/LW per IEEE 802.3ae and 10G Fibre Channel 1200-SM-LL-L. Digital diagnostics functions are available via a 2-wire serial interface, as specified in the XFP MSA.

2).The transceiver module comprises a transmitter with uncooled EML laser and a receiver with a PIN photodiode.

3).Transmitter and receiver are separate within a wide temperature range of 5°C to +70°C and offers optimum heat dissipation and excellent electromagnetic shielding thus enabling high port densities for 10 GbE systems.

Application

* DWDM 10GBASE-ZR/ZW 10G Ethernet

* DWDM 80KM 10G Fiber Channel

* DWDM SONET OC-192&SDH STM-6

Features

* Supports 9.95Gb/s to 11.3Gb/s bit rates

* Monolithically integrated full C-band tunable transmitter

* 50 GHz ITU channel spacing with integrated wavelength locker

* C-band-tunable Laser and APD receiver

* Maximum link length of 80km

* Full Duplex LC connector

* Hot-pluggable XFP footprint

* Supports Line-side and XFI loopback

* No Reference Clock required

* Built-in digital diagnostic functions

* Standard bail release mechanism

* Power dissipation <3.5W

* With DDM / without DDM optional; default with DDM;

* Operating Case Temperature

Standard: 0°C ~+70°C

Industrial:-40°C~+85°C

Product list

Part Number

Specification

Data Rate

Wavelenth

Fiber

Distance

Temp.

Source

XFP LC Duplex Port

RXFP-85192-SRD

10Gb/s

850nm

300m

0~70

VCSEL

RXFP-31192-LRD

10Gb/s

1310nm

10km

0~70

DFB

RXFP-55192-ERD

10Gb/s

1550nm

40km

0~70

EML

RXFP-55192-ZRD

10Gb/s

1550nm

80km

0~70

EML
