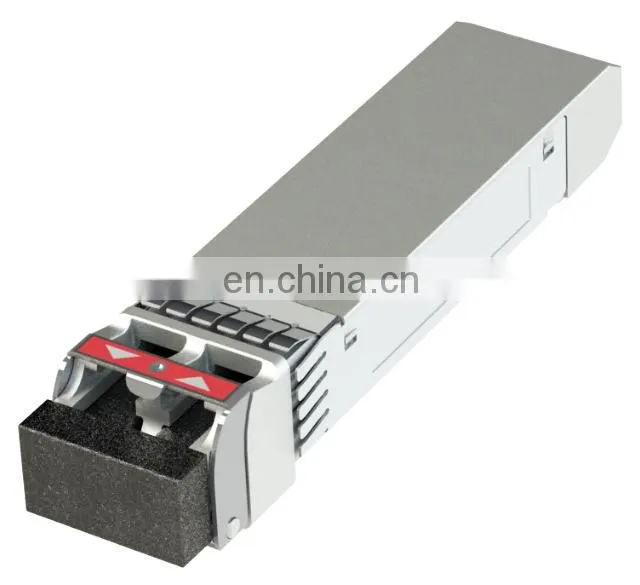

Help CenterBest Seller 25Gb/s SFP28 DWDM 20km Optical Transceiver Module Wholesales Price
Related Products
-
SFP+ BIDI 10G SMF LC 20km 40km 60km 80km 100km Optical Transceiver ModulesNegotiableMOQ: 1 -
Wholesale Price 10G SFP+ Direct Attach Cable DAC to 7mNegotiableMOQ: 1
-
10G DWDM SFP+ Module 40km 80km Duplex LC DDM ModuleNegotiableMOQ: 1
-
Hot Selling Fiber Optic Equipment 10G CWDM SFP+ 1470-1610nm 40KM ModuleNegotiableMOQ: 1
-
10G SFP+ SR TRx 850nm MMF 300m Dual LC DOM ModuleNegotiableMOQ: 1

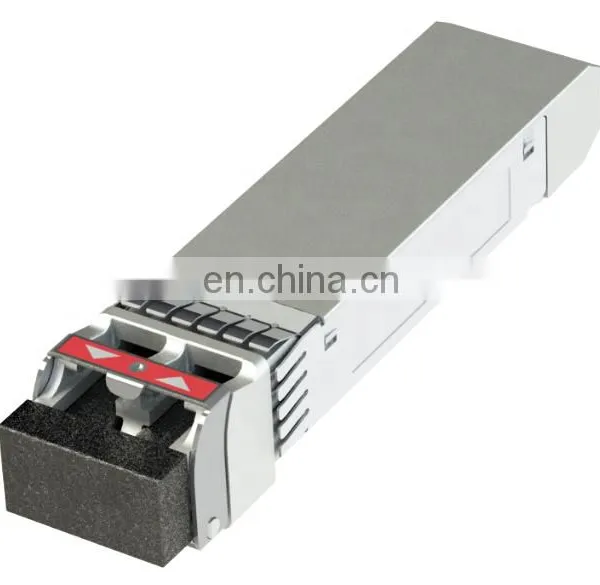

Product Pictures:
Item Specifications:
- l Up to 25.78Gb/s data links
- l DWDM EML transmitter and APD receiver
- l 100 GHz ITU channel spacing with integrated wavelength locker
- l Up to 20km on 9/125um SMF
- l Hot-pluggable SFP28 footprint
- l Support Digital Diagnostic Monitoring interface
- l Duplex LC/UPC type pluggable optical interface
- l RoHS-10 compliant and lead-free
- l With CDR function
- l Single +3.3V power supply
- l Compliant with SFF+MSA and SFF-8472
- l Metal enclosure, for lower EMI
- l Meet ESD requirements, resist 8KV direct contact voltage
- l Case operating temperature
- Commercial: 0 ~ +70oC
- Extended: -10 ~ +80oC
- Industrial: -40 ~ +85oC
Application:
- l High-speed storage area networks
- l Computer cluster cross-connect
- l Custom high-speed data pipes
- l Inter Rack Connection
- l Other Optical Links
General Description:
Rollball’s RDSFP28-XX25G-L20D SFP28 transceiver is designed for use in 25-Gigabit Ethernet links up to 20km over single mode fiber. The module consists of DWDM EML Laser, APD and Preamplifier in a high-integrated optical sub-assembly. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472.This module is designed for single mode fiber and operates at a nominal wavelength of 100GHz ITU Grid, C Band DWDM wavelength.
The module optical connection is duplex LC and shall be compatible with SFP+ 28Gbps and backward compatible with legacy 10G SFP+ pluggable. The SFP28 DWDM LR module is a dual directional device with a transmitter and receiver plus a control management interface (2-wire interface) in the same physical package. 2-wire interface is used for serial ID, digital diagnostics and module control function.
The transmitter converts 25Gbit/s serial PECL or CML electrical data into serial optical data compliant with the 25GBASE-LR standard. An open collector compatible Transmit Disable (Tx_Dis) is provided. Logic “1” or no connection on this pin will disable the laser from transmitting. Logic “0” on this pin provides normal operation. The transmitter has an internal automatic power control loop (APC) to ensure constant optical power output across supply voltage and temperature variations. An open collector compatible Transmit Fault (Tx_Fault) is provided. TX_Fault is module output contact that when high, indicates that the module transmitter has detected a fault condition related to laser operation or safety. The TX_Fault output contact is an open drain/collector and shall be pulled up to the Vcc_Host in the host with a resistor in the range 4.7-10 kΩ. TX_Disable is a module input contact. When TX_Disable is asserted high or left open, the SFP28 module transmitter output shall be turned off. This contact shall be pulled up to VccT with a 4.7 kΩ to 10 kΩ resistor.
The receiver converts 25Gbit/s serial optical data into serial PECL/CML electrical data. An open collector compatible Loss of Signal is provided. Rx_LOS when high indicates an optical signal level below that specified in the relevant standard. The Rx_LOS contact is an open drain/collector output and shall be pulled up to Vcc_Host in the host with a resistor in the range 4.7-10 kΩ, or with an active termination. Power supply filtering is recommended for both the transmitter and receiver. The Rx_LOS signal is intended as a preliminary indication to the system in which the SFP28 is installed that the received signal strength is below the specified range. Such an indication typically points to non-installed cables, broken cables, or a disabled, failing or a powered off transmitter at the far end of the cable.
Ordering Information:
|
Part Number |
Data Rate (Gb/s) |
Wavelength (nm) |
Transmission Distance(km) |
Temperature (oC) (Operating Case) |
|
|
RDSFP28-XX25G-L20D |
25.78 |
CH17~CH61 |
20km SMF |
0~70 commercial |
|
|
RDSFP28-XX25GL20DE |
25.78 |
CH17~CH61 |
20km SMF |
-10~80 Extended |
|
|
RDSFP28-XX25G-L20DI |
25.78 |
CH17~CH61 |
20km SMF |
-40~85 Industrial |
|
More Products:
Certifications:
Our Company:
Rollball Comm-tech, established in 2000,located in Shenzhen China,specializes in providing high-performance fiber optic communication products and accessories for telecommunication, broadcast, CATV and network industries worldwide for 8 years.
Supplying fiber patch cord, pigtail ,fiber optic splitter,Transceiver,POE switch,Media converter, Fiber optics,OADM and CWDM DWDM MUX/DEMUX etc.
At Rollball, we believe that quality is essential to the company's success. As a result, we strictly monitor our ISO 9001:2000-certified production processes. Also, we inspect every aspect of production, from raw material examination to final inspections and shipping.
