Help Center10G DWDM SFP+ Module 40km 80km Duplex LC DDM Module
Related Products
-
Hot Selling Fiber Optic Equipment 10G CWDM SFP+ 1470-1610nm 40KM ModuleNegotiableMOQ: 1 -
10G SFP+ SR TRx 850nm MMF 300m Dual LC DOM ModuleNegotiableMOQ: 1
-
China Supply SFP+ 10G DWDM 100GHz-ITU Grid C/L-Band 80Km Optical ModuleNegotiableMOQ: 1
-
Tx1490/1550nm Bidi Sfp Module 100km 10gNegotiableMOQ: 1
-
Tx1310nm 20km 10g Sfp ModuleNegotiableMOQ: 1

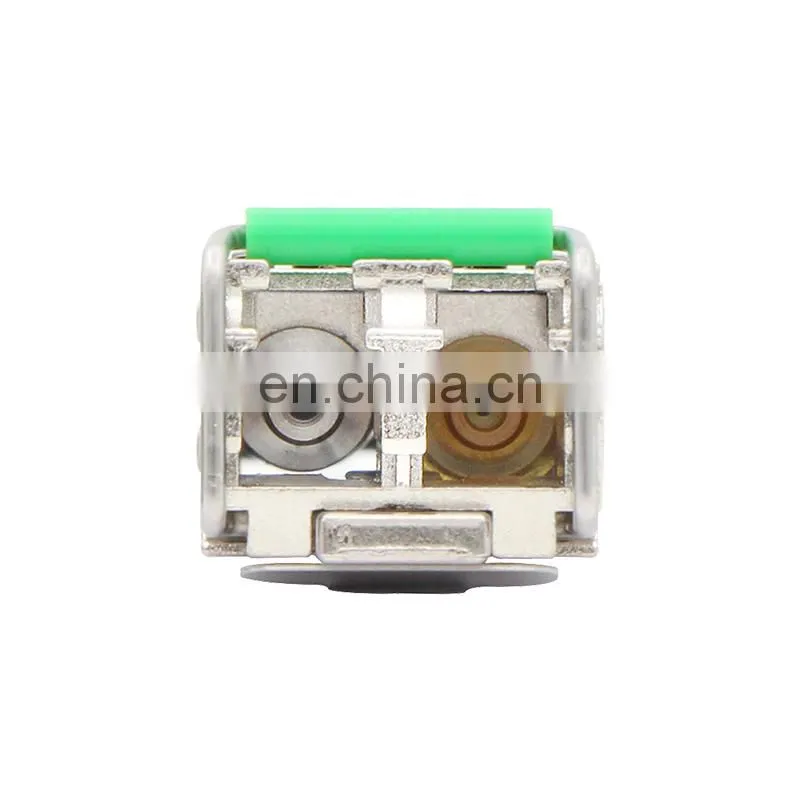

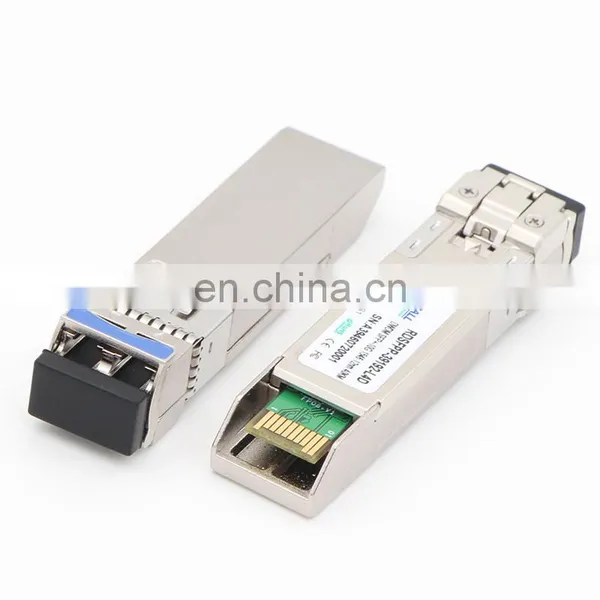

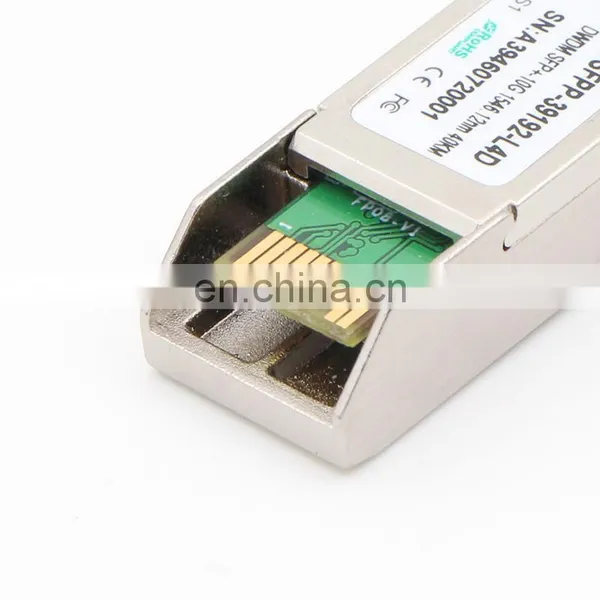

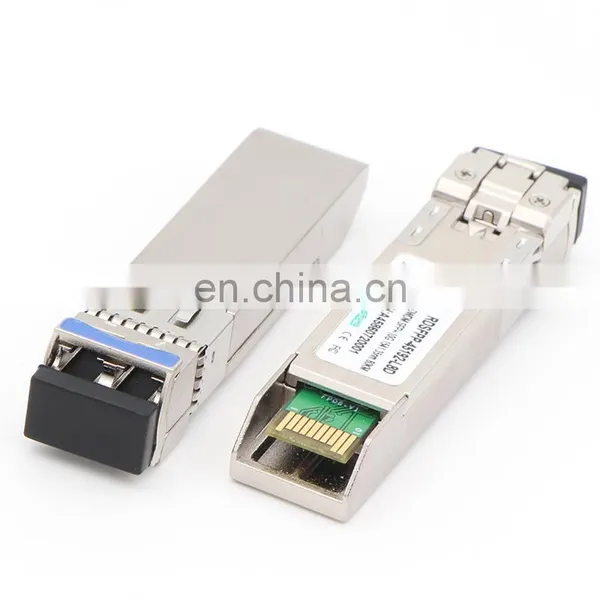

Product Pictures:
Features:
- Compliant with SFF-8431,SFF-8432 and IEE802.3ae
- Cooled EML transmitter and PIN receiver
- Suitable for use in 100GHz channel spacing DWDM systems
- Hot pluggable
- link length up to 80km
- 10GBASE-ER, and 2G/4G/ 8G/10G Fiber Channel applications.
- Low power consumption
- With DDM / without DDM optional; default with DDM;
- Operating Case Temperature
Standard: 0°C ~+70°C
Industrial:-40°C~+85°C
General Description:
- This SFP+ZR DWDM transceiver is designed to transmit and receive optical data over single mode optical fiber for link length 80km.
- The transceiver consists of two sections: The transmitter section incorporates a colded EML laser. And the receiver section consists of a APD photodiode integrated with a TIA. All modules satisfy class I laser safety requirements. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.
Applications:
- 10GBASE-ER
- 10G Fiber Channel
Ordering Information:
| P/N | Parameters |
|
RDSFPP-XX192-L4D |
DWDM SFP+-10G 40KM; DDM; CH17-CH61 optional |
|
RDSFPP-XX192-L8D |
DWDM SFP+-10G 80KM; DDM; CH17-CH61 optional |
DWDM C-band λc Wavelength Guide
Compatible Brand:
More Products:
Certifications:
Our Company:
Rollball Comm-tech, established in 2000,located in Shenzhen China,specializes in providing high-performance fiber optic communication products and accessories for telecommunication, broadcast, CATV and network industries worldwide for 8 years.
Supplying fiber patch cord, pigtail ,fiber optic splitter,Transceiver,POE switch,Media converter, Fiber optics,OADM and CWDM DWDM MUX/DEMUX etc.
At Rollball, we believe that quality is essential to the company's success. As a result, we strictly monitor our ISO 9001:2000-certified production processes. Also, we inspect every aspect of production, from raw material examination to final inspections and shipping.
Shipping:
If you have any question feel free to contact us.
