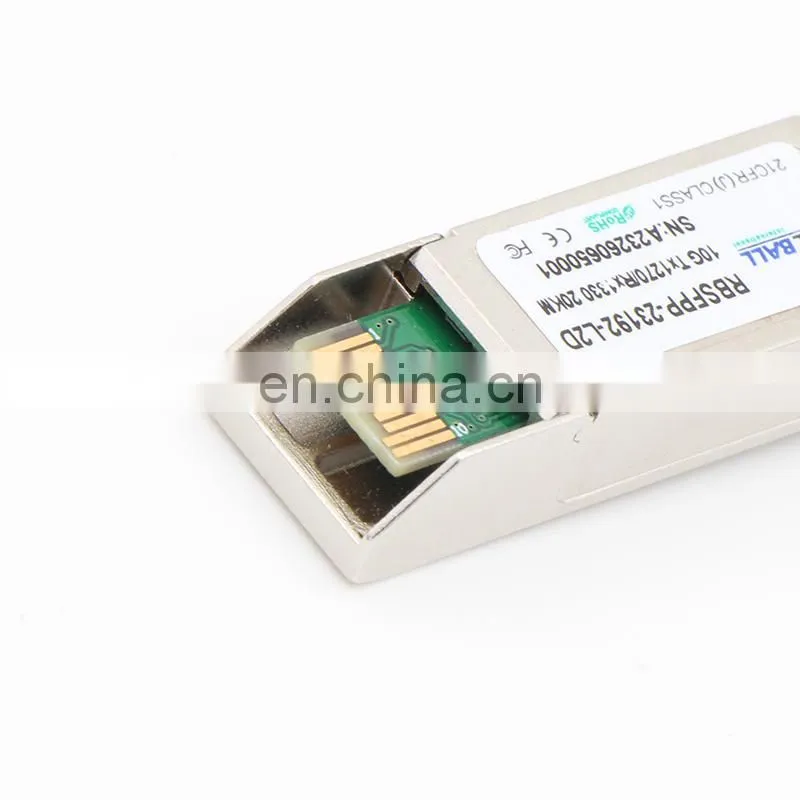

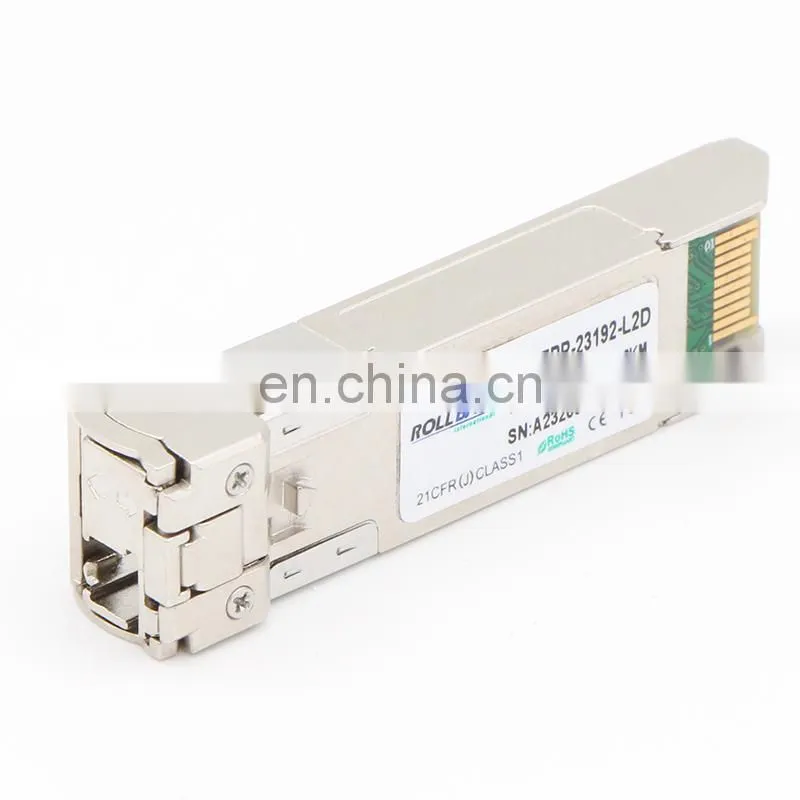

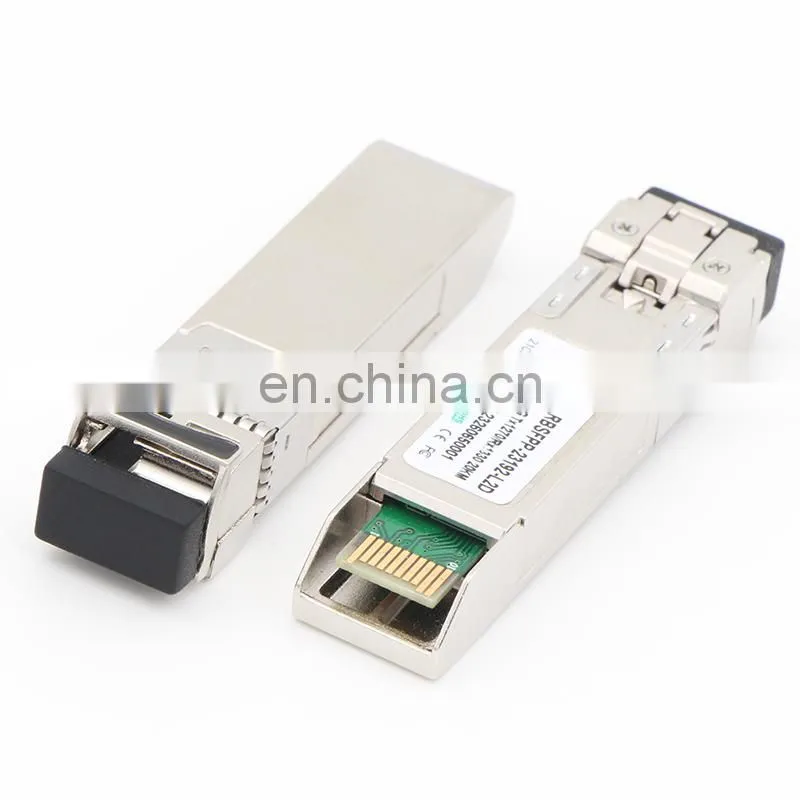

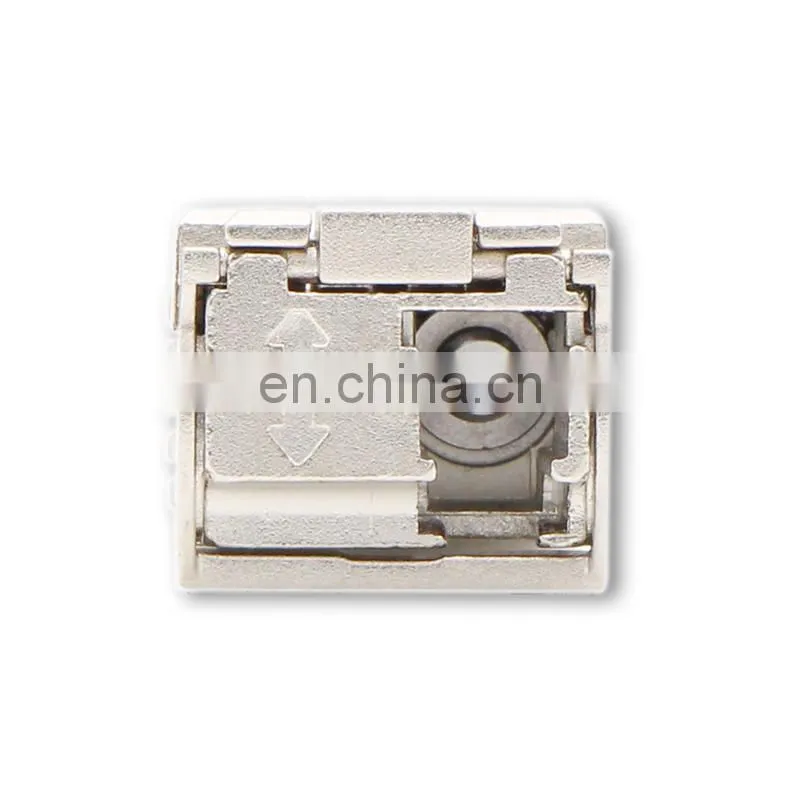

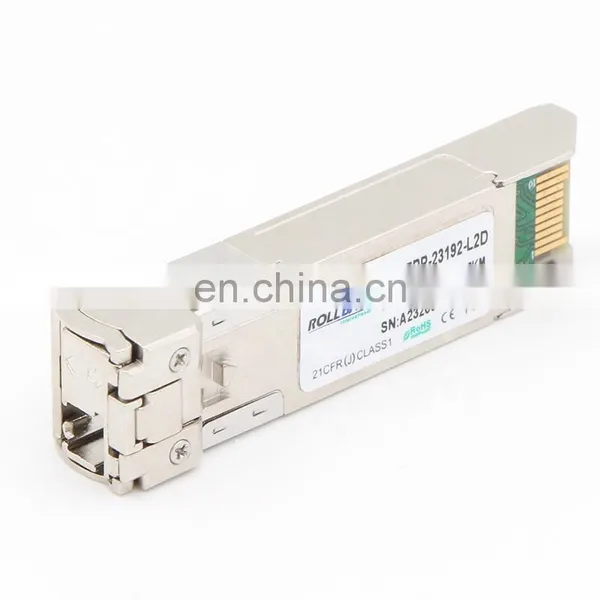

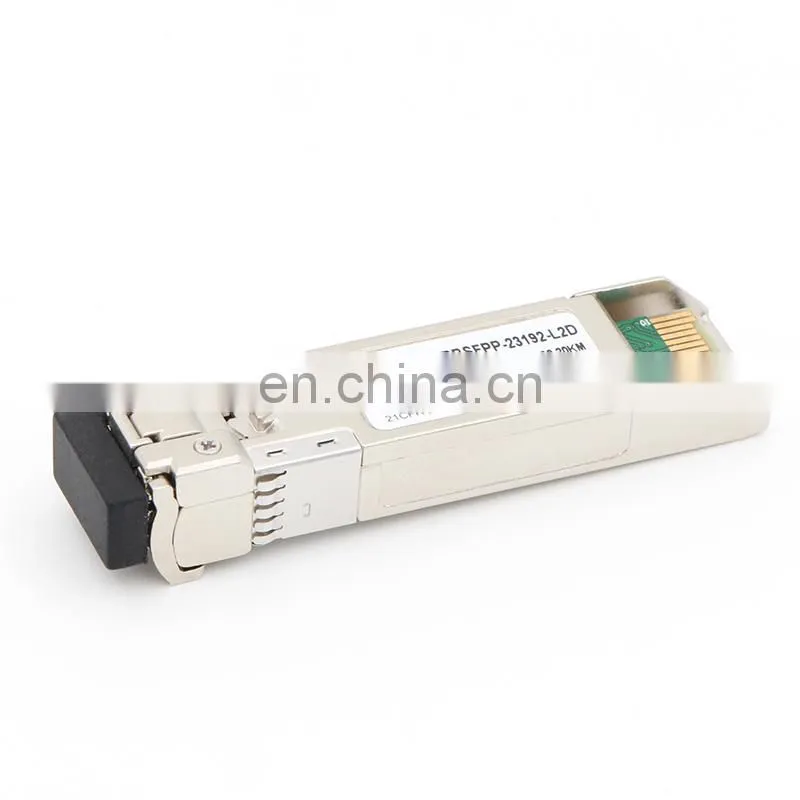

Product Pictures:
Item Specifications:
- Up to 10.3Gb/s data rates
- 1G/2G/4G/ 8G/10G Fiber Channel applications.
- Simplex LC Connector Bi-Directional SFP+ Optical Transceiver
- Single 3.3V Supply
- Up to 80km on 9/125um SMF
- A:1270nm DFB Laser transmitter,1330nm receiver
- B:1330nm DFB Laser transmitter,1270nm receiver
- SFP+ MSA SFF-8431 Compliant
- Digital Diagnostic SFF-8472 Compliant
- RoHS compliant and Lead Free
- Operating case temperature: Commercial 0°C to 70°C / Industrial -40℃~+85℃
- For the OBSAI application, the rates are 6.144Gb/s, 3.072 Gb/s, 1.536 Gb/s and 0.768 Gb/s.
- For the CPRI application, the rates are 6.144Gb/s, 3.072 Gb/s, 2.4576 Gb/s, 1.2288 Gb/s, 0.6144 Gb/s.
Application:
- 10GBASE-LR at 10.3125Gbps
- 10GBASE-LW at 9.953Gbps
- Other Optical Links
- For the OBSAI application, the rates are 6.144Gb/s, 3.072 Gb/s, 1.536 Gb/s and 0.768 Gb/s.
- For the CPRI application, the rates are 6.144Gb/s, 3.072 Gb/s, 2.4576 Gb/s, 1.2288 Gb/s, 0.6144 Gb/s.
- 1G/2G/4G/ 8G/10G Fiber Channel applications.
General Description:
1, The bidi sfp+module (RBSFPP-XXXX192-X0R series) single mode transceiver is small form factor pluggable module for duplex optical data communications such as 10GBASE-LR/LW defined by IEEE 802.3ae. It is with the SFP+ 20 pin connector to allow hot plug capability.
2, The RBSFPP-XXXX192-X0R module is designed for single mode fiber and operates at a nominal wavelength of 1270nm or 1330nm; The transmitter section uses a multiple quantum well DFB, which is class 1 laser compliant according to International Safety Standard IEC-60825.
3, The receiver section uses an integrated InGaAs detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.
Ordering Information:
|
Part Number |
Product Description |
|
RBSFPP-2733192-10D |
1270nm/1330nm, 10Gbps, 10km, 0ºC ~ +70ºC |
|
RBSFPP-3327192-10D |
1330nm/1270nm, 10Gbps, 10km, 0ºC ~ +70ºC |
|
RBSFPP-2733192-20D |
1270nm/1330nm, 10Gbps, 20km, 0ºC ~ +70ºC |
|
RBSFPP-3327192-20D |
1330nm/1270nm, 10Gbps, 20km, 0ºC ~ +70ºC |
|
RBSFPP-2733192-40D |
1270nm/1330nm, 10Gbps, 40km, 0ºC ~ +70ºC |
|
RBSFPP-3327192-40D |
1330nm/1270nm, 10Gbps, 40km, 0ºC ~ +70ºC |
|
RBSFPP-2733192-60D |
1270nm/1330nm, 10Gbps, 60km, 0ºC ~ +70ºC |
|
RBSFPP-3327192-60D |
1330nm/1270nm, 10Gbps, 60km, 0ºC ~ +70ºC |
|
RBSFPP-2733192-80D |
1270nm/1330nm, 10Gbps, 80km, 0ºC ~ +70ºC |
|
RBSFPP-3327192-80D |
1330nm/1270nm, 10Gbps, 80km, 0ºC ~ +70ºC |
More Products:
Certifications:
Our Company:
Rollball Comm-tech, established in 2000,located in Shenzhen China,specializes in providing high-performance fiber optic communication products and accessories for telecommunication, broadcast, CATV and network industries worldwide for 8 years.
Supplying fiber patch cord, pigtail ,fiber optic splitter,Transceiver,POE switch,Media converter, Fiber optics,OADM and CWDM DWDM MUX/DEMUX etc.
At Rollball, we believe that quality is essential to the company's success. As a result, we strictly monitor our ISO 9001:2000-certified production processes. Also, we inspect every aspect of production, from raw material examination to final inspections and shipping.
