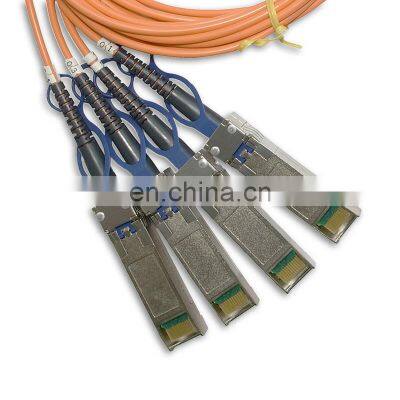

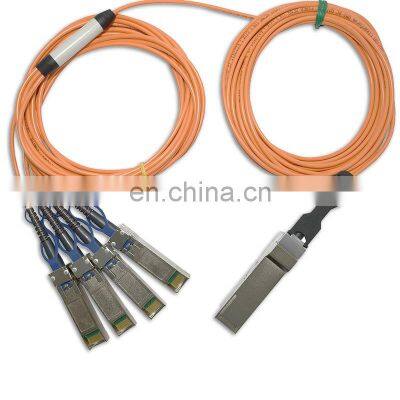

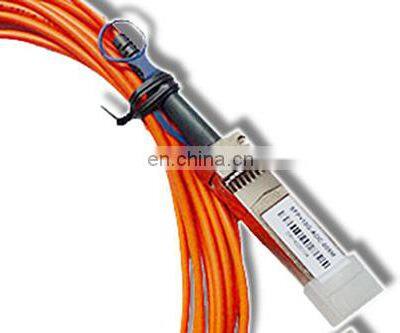

CFP-10G-AOC3M 10g sfp+ active optical cable (aoc)
Product description
1.This sfp+ aoc is designed to transmit and receive optical data over single mode optical fiber
2.The SFP+ module electrical interface is compliant to SFI electrical specifications.
4.The transmitter input and receiver output impedance is 100 Ohms differential.
5.Data lines are internally AC coupled.
6.The module provides differential termination and reduce differential to common mode conversion for quality signal termination and low EMI.
7.SFI typically operates over 200 mm of improved FR4 material or up to about 150mm of standard FR4 with one connector.
Features
Optical interface compliant to IEEE 802.3ae
Electrical interface compliant to SFF-8431
Hot Pluggable
Operating case temperature: 0 to 70 °C
Low power consumption
Applicable for 10km SMF connection
Applications
10GBASE at 10.3125Gbps
Other optical links
Specification
Optical characteristics
The following optical characteristics are defined over the Recommended Operating Environment unless otherwise specified.
|
Unit |
Values |
Operating Reach |
m |
10K |
Transmit | ||
Center wavelength (range) |
nm |
1260 -1355 |
Side Mode Suppression Ratio (min) |
dB |
30 |
Launched power | ||
– maximum |
dBm |
+0.5 |
– minimum |
dBm |
-8.2 Notes1 |
- OMA |
dBm |
-5.2 |
- OMA-TDP (min) |
dBm |
-6.2 |
Transmitter and dispersion penalty |
dB |
0 Notes4 |
Average launch power of OFF transmitter (max) |
dBm |
-30 |
Extinction ratio (min) |
dB |
3.5 Notes2 |
RIN12 OMA (max) |
dB/Hz |
-128 |
Optical Return Loss Tolerance (min) |
dB |
12 |
Receiver | ||
Center wavelength (range) |
nm |
1260-1355 |
Receive overload (max) in average power1 |
dBm |
0.5 |
Receive sensitivity (min) in average power1 |
dBm |
-14.4 Notes3 |
Receiver sensitivity (max) in OMA (footnote 2) |
dBm |
-12.6 Notes3 |
Receiver Reflectance (max) |
dB |
-12 |
Stressed receiver sensitivity (max) in OMA2 |
dBm |
-10.3 |
Vertical eye closure penalty (min)3 |
dB |
2.2 |
Stressed eye jitter (min)2 |
UIp-p |
0.7 |
Receive electrical 3dB upper cutoff frequency (max) |
GHz |
12.3 |
Receiver power (damage, Max) |
dBm |
1.5 |
