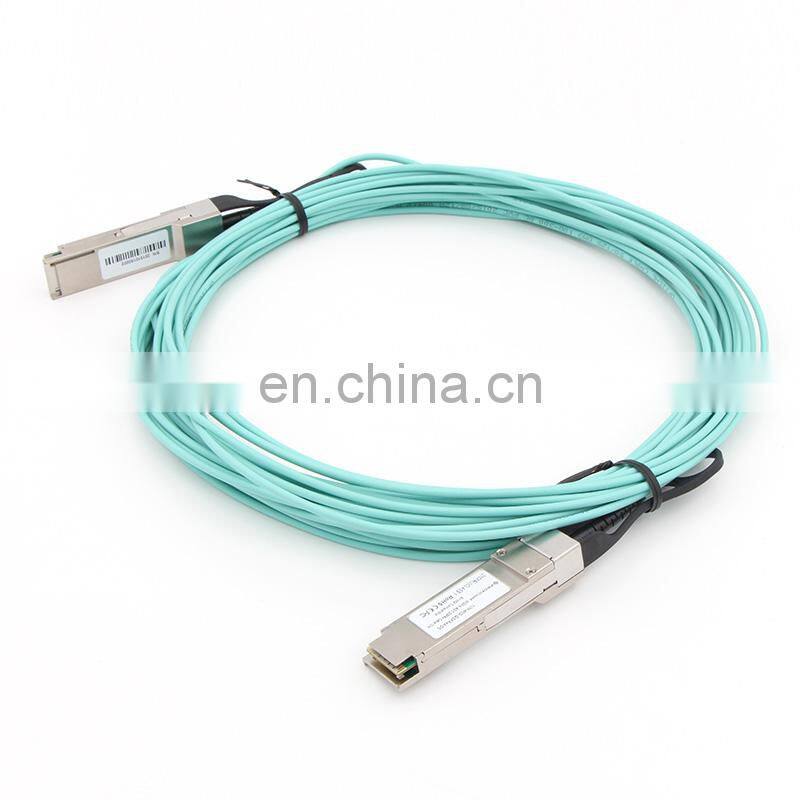

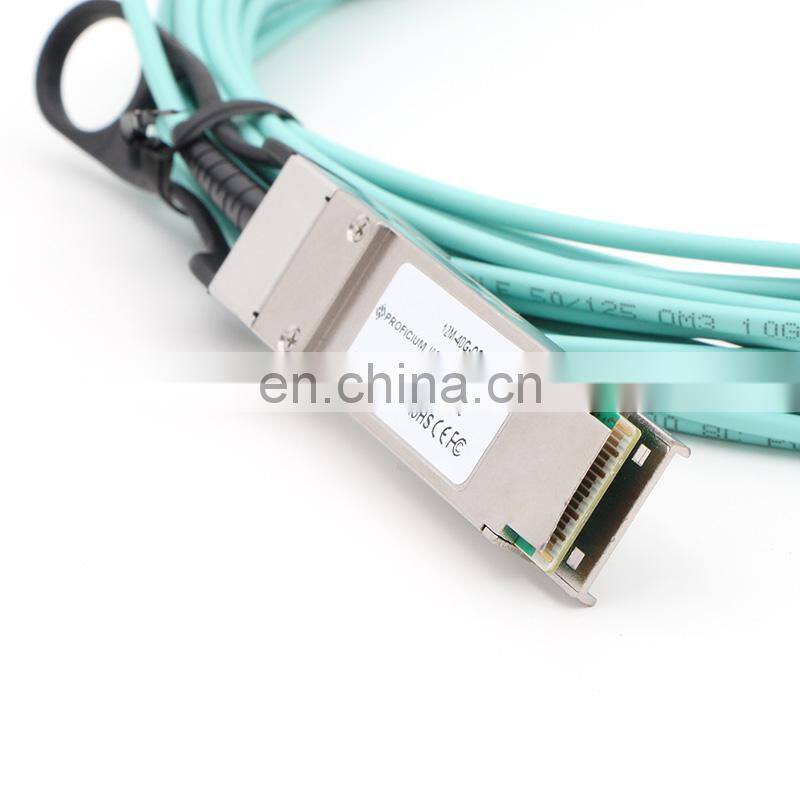

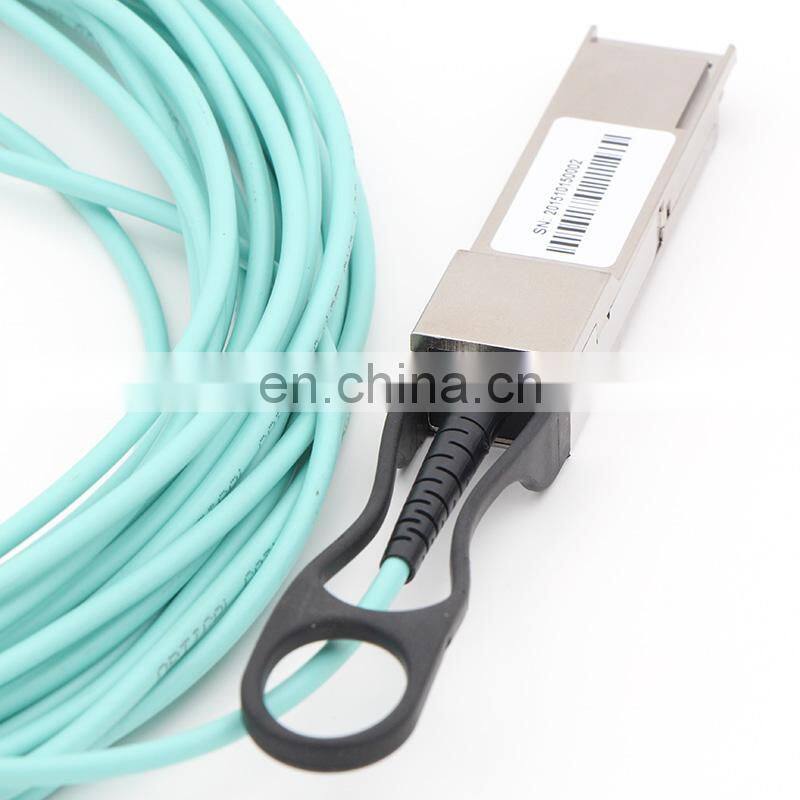

5G Database 25G SFP28 to SFP28 Active Optic Cable --AOC Cable
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
400G QSFP-DD DAC 1M 1.5M 2M 2.5M 3M
-
Compatible Huawei CFP ER4 100G 40km CFP LR4 100G 10km Optical Transceiver
-
SFP-10G-AOC3M 10g Sfp+ Active Optical Cable (aoc)
-
Brand Compatible 10G SFP+ BIDI 1270/1330nm 10km 20km Simplex LC Optic Transceiver Module
-
SFP+-25G-LR 25G SFP 1310nm Singlemode 10km SFP28 Optical Transceiver
-
Compatible Huawei 5g Sfp
Product Description
Product Description



Specification
Electrical interface compliant to SFF-8431 |
850nm VCSEL laser and PIN photo-detector |
Maximum link length of 70m on OM3 MMF and 100m on OM4 MMF |
Digital diagnostics functions are available via the I2C interface |
Operating case temperature Commercial: 0°C to +70 °C |
+3.3V single power supply |
Power consumption less than 1W |
RoHS compliant |
Password protection for A0h and A2h |
Product Paramenters
25GBASE-SR Ethernet
Servers, switches, storage and host card adapters
Servers, switches, storage and host card adapters
Parameter | Symbol | Unit | Min | Typ | Max | Notes | ||||||
Optical transmitter Characteristics | ||||||||||||
Bit Rate | BR | Gbps | 8.5 | 25.78125 | - | |||||||
Center Wavelength Range | λc | nm | 820 | 850 | 880 | |||||||
Average Launch powerTx_off | Poff | dBm | - | - | -45 | |||||||
Launch Optical Power | P0 | dBm | -6.0 | 2.4 | 1 | |||||||
Extinction Ratio | ER | dB | 2 | - | - | |||||||
Spectral Width(RMS) | RMS | nm | - | - | 0.65 | |||||||
Optical Receiver Characteristics | ||||||||||||
Bit Rate | BR | Gbps | 8.5 | 25.78125 | ||||||||
Bit Error Rate | BER | - | - | E-12 | ||||||||
Damage threshold | DT | dBm | 3.4 | - | - | |||||||
Overload Input OpticalPower | PIN | dBm | 2.4 | - | - | 2 | ||||||
Center Wavelength Range | λc | nm | 820 | - | 880 | |||||||
Receiver Sensitivity inAverage Power | Sen | dBm | - | - | -5.2 | 3 | ||||||
Los Assert | LosA | dBm | -30 | - | - | |||||||
Los De-Assert | LosD | dBm | - | - | -13 | |||||||
Los Hysteresis | LosH | dB | 0.5 | |||||||||
Ordering information
P/N | Parameters |
RSFP28-25G-AOC1M | SFP28-25G AOC-1m;DDM;0ºC ~ +70ºC/-40ºC ~ +85ºC |
RSFP28-25G-AOC3M | SFP28-25G AOC-3m;DDM;0ºC ~ +70ºC/-40ºC ~ +85ºC |
RSFP28-25G-AOC5M | SFP28-25G AOC-5m;DDM;0ºC ~ +70ºC/-40ºC ~ +85ºC |
RSFP28-25G-AOC7M | SFP28-25G AOC-7m;DDM;0ºC ~ +70ºC/-40ºC ~ +85ºC |
RSFP28-25G-AOC10M | SFP28-25G AOC-10m;DDM;0ºC ~ +70ºC/-40ºC ~ +85ºC |
RSFP28-25G-AOC20M | SFP28-25G AOC-20m;DDM;0ºC ~ +70ºC/-40ºC ~ +85ºC |
RSFP28-25G-AOC30M | SFP28-25G AOC-30m;DDM;0ºC ~ +70ºC/-40ºC ~ +85ºC |
RSFP28-25G-AOCxxM | SFP28-25G AOC-xxm;DDM;0ºC ~ +70ºC/-40ºC ~ +85ºC, cable length custom |
