Cut to Length Line for Transformer Core Cutting, Fully Automatic Machine

Silicon steel coil cut to length line for transformer lamination

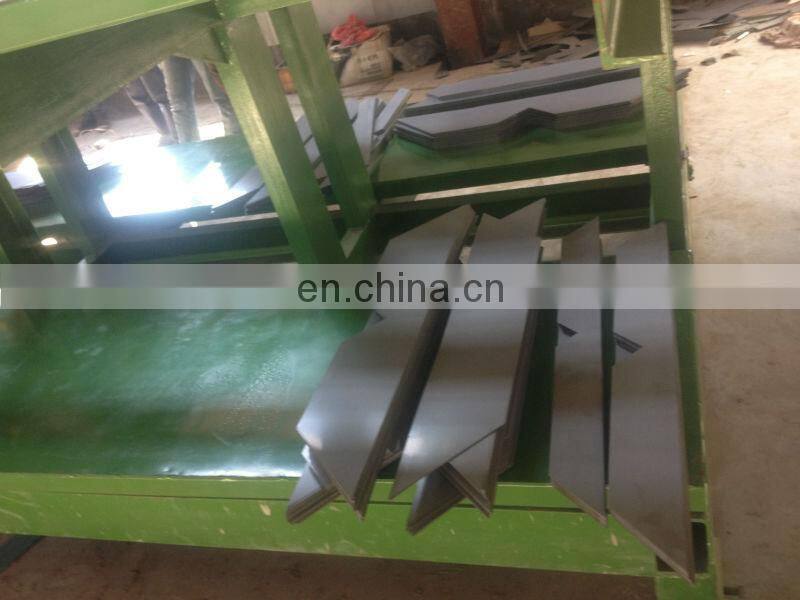

This production line is automatic cut to length line for silicon steel coil, is necessary production equipment for transformer lamination manufacturing. It can cut step-lap cores, 45 degree and 135 degree shear, transverse and longitudinal progressive shear, hole punching and v notching. The line can be suitable for cutting series shapes of work pieces used in the manufacturing of transformer industry.

Our production line has high quality with high speed. All electric elements use International famous brand products. The line has high stable performance with high precision.

Work Process:

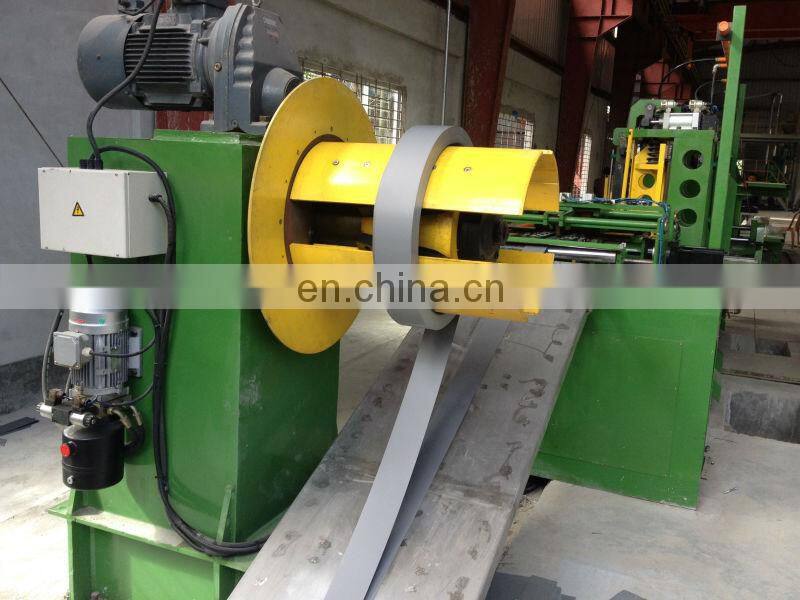

Coil decoiling – buffer pit for coil storage – servo feeding for length measuring – electric hole punching – servo positioning servo V notching – cutting coil sheet into required shapes by 2 shearers – work pieces feeding & collecting – automatic product stacking

Machine Components:

Main Technical Parameters:

Layout

• One stop service for customized machine
• Overseas installation & operating training
• One year warranty of the whole machine
• Life-long technical support

Seaworthy export standard packing for the machine. All machine parts are well fastened and fixed by blocks and wire ropes.

Normally one machine needs two 40 feet containers

1. Machine installation & commissioning, training:

2-5 technicians will be dispatched to Buyer’s plant for installation & commissioning. Work period: in 25 days

The expense of round trip tickets, accommodation, safety and interpretation shall be covered by Buyer, additional pay allowance to the technicians.

2. warranty: one year

3. Price basis: FOB or CNF or CIF
