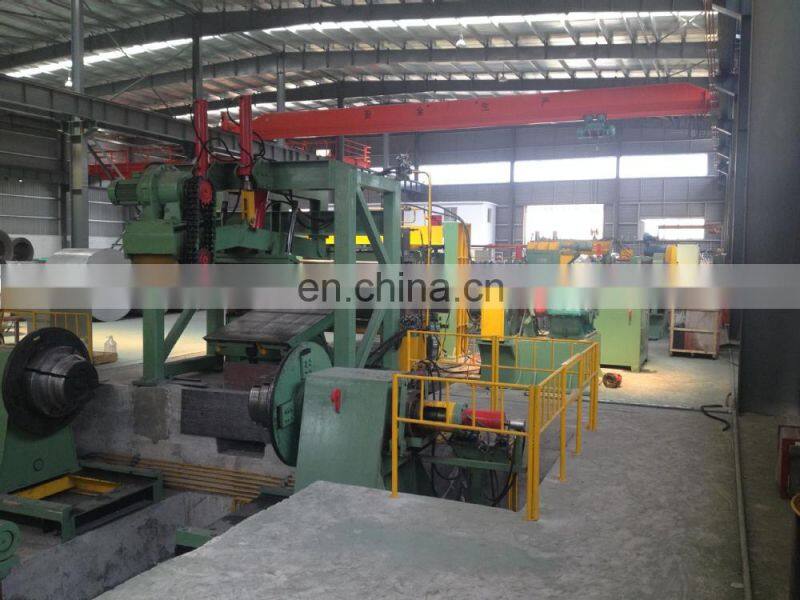

Help CenterHR CR GI 8mm Steel Coil Slitting Line
Related Products
-
High Speed Line Heavy Duty Slitting Line for Steel Sheet Coil for Slitting HR CR CoilsNegotiableMOQ: 1 -
Steel Coil Slitting Machine, High Speed and High PrecisionNegotiableMOQ: 1
-
High Precision Slitting Machine 0.3-3*1600mm Stainless Steel Slitting LineNegotiableMOQ: 1
-
Flat Bar Production Line Slitting and Cutting LineNegotiableMOQ: 1
-
Steel Slitting Machine With Spare PartNegotiableMOQ: 1
Description

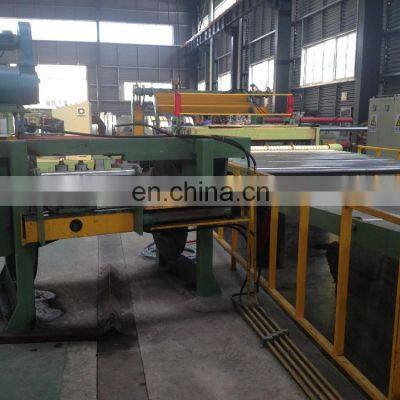

This slitting line is used for slitting raw material coils into strips. This machine can slit raw material coils into specific width. Our company has series of slitting lines, with thickness of 0.1-25mm and width up to 2500mm. The slitting line normally includes loading trolley, decoiler,guiding device (including lead roll, peleer table), coil head shear, centering and calibrating device, slitting machine, scrap rewinder, pre-distribution and tensioning machine, recoiler, and unloading trolley. The machine adopts PLC VF controlling system, DC driving for the slitting and recoiling, Touch screen operating and digital display. The production line is widely used for steel coil servcing for cold rolled steel, hot rolled steel, galvanized steel, stainless steel, etc.
Feature of the Machine

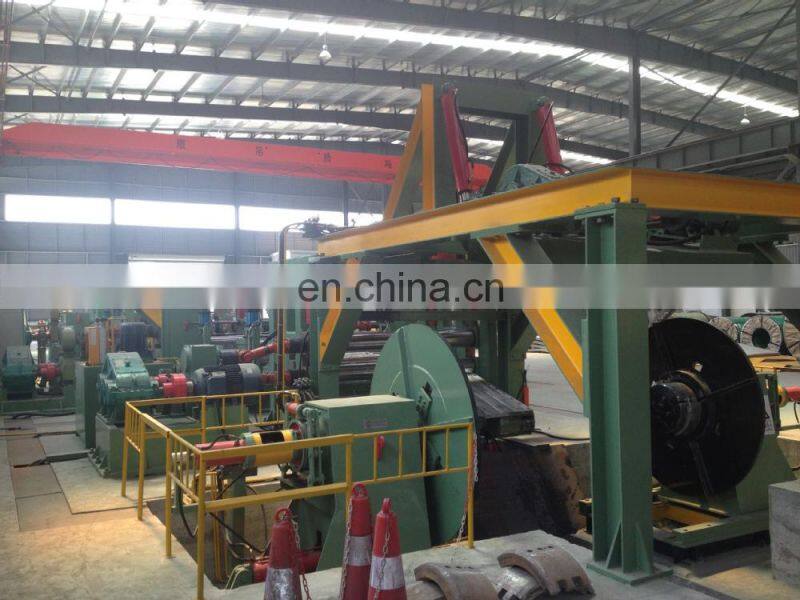

1. Double cone heavy duty decoiler, capacity up to 40 tons
2. DC driving for slitting and recoiling
3. Mitsubishi PLC controlling, VF speed control, touch screen operating
4. High speed design, speed can up to 200m/min(depends on material thickness)
5. China famous brand products, specialized in the manufacturing slitting line and cut to length line
Main Machine Components
Coil car..........................................................................................................1 set
Decoiler……..................................................................................................1 set
Feeding device..............……..…………….....................................................1 set
Center adjusting device………………………..…………………………….…..1 set

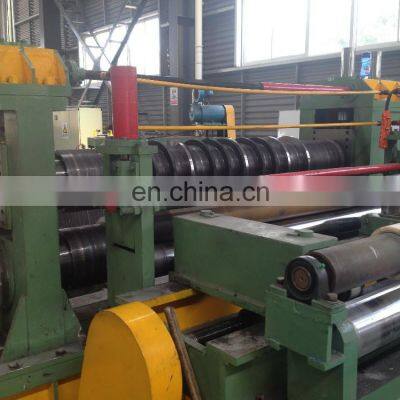

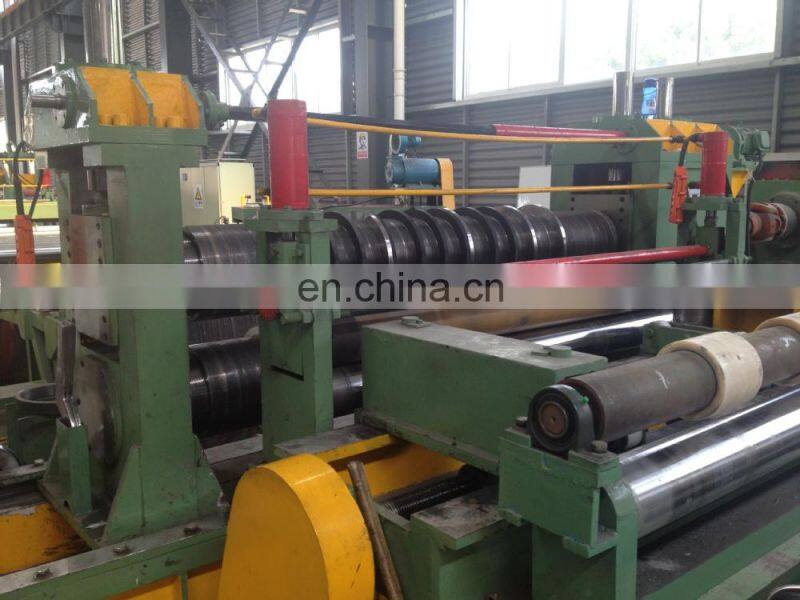

Slittingng machine…..…………….………………………………………….…..1 set
Tensioning and pre-separater………..…………………………………………1 set
Recoiler.........................................................................................................1 set
Unloading coil car..........................................................................................1 set
Hydraulic station………………..………………………………………………....1 set
Pneumatic system………………………………………………………………...1 set
Electric control system………….……….........................................................1 set
Main Electric Elements
Motor controller: Eurotherm/ Siemens/Mitsubishi
PLC: Mitsubishi/Siemens
Encoder: Omron
Inverter: Mitsubishi/Yaskawa/Delta
Touch screen: Inovance/Delta
Parameters
1. Precision high speed slitting line:
| series | material thickness/mm | Material width | speed/mpm |
| 1 | 0.2-3 | 400-2000 | 0-250 |
2. Series of slitting lines:
| series | material thickness/mm | Material width | speed/mpm |
| 1 | 0.2-2 | 400-2000 | 0-50-150 |
| 2 | 0.3-3 | 400-2000 | 0-50-120 |
| 3 | 0.5-4 | 500-2500 | 0-50-120 |
| 4 | 0.8-6 | 500-2500 | 0-50-100 |
| 5 | 2.0-8 | 500-2500 | 0-50-80 |
| 6 | 2.0-10 | 500-2500 | 0-30-50 |
| 7 | 3.0-12 | 800-2500 | 0-30-50 |
| 8 | 3.0-14 | 800-2500 | 0-30-50 |
| 9 | 4.0-16 | 800-2500 | 0-30-50 |
| 10 | 5.0-20 | 800-2500 | 0-30 |
Seaworthy export standard packing for the machine. All machine parts are well fastened and fixed by blocks and wire ropes. The accessories will be packed together by steel box.
One stop service for customized machine
Overseas installation & operating training
One year warranty of the whole machine
Life-long technical support
1. Machine installation & commissioning, training:
2-3 technicians will be dispatched to Buyer’s plant for installation & commissioning. Work period: in 25 days
The expense of round trip tickets, accommodation, safety and interpretation shall be covered by Buyer, additional pay allowance to the technicians.
2. warranty: one year
3. Price basis: FOB or CNF or CIF
