Cut to Length Line
steel coil straightening and cutting line
We offer professional one-stop service for the production line
We design and produce the machine according to client's requirements.
Description

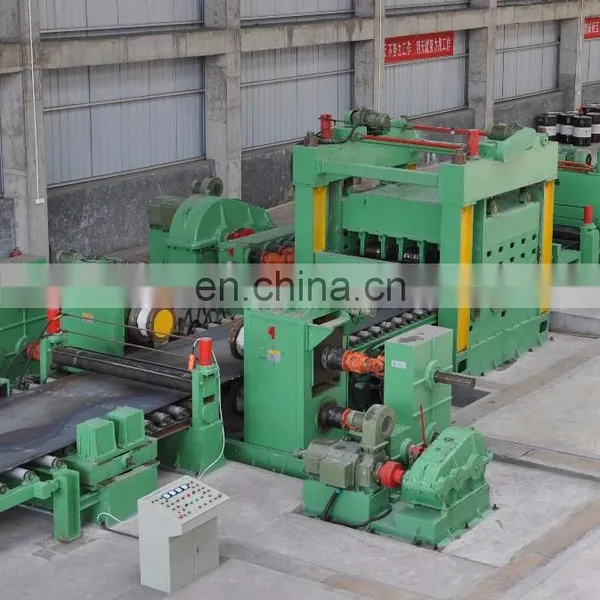

This Cut to Length Line is suitable for decoiling, leveling & cutting steel coils into required length. The production line has the feature of high precision, topping stabilization, and excellent performance. Using PLC system to control the whole line’s work, the operation is convenient and easy.
The machine adopts PLC VF controlling system, DC driving for the leveling, Touch screen operating and digital display. The production line is widely used for steel coil servcing for cold rolled steel, hot rolled steel, galvanized steel, stainless steel, etc.
Feature of the Machine

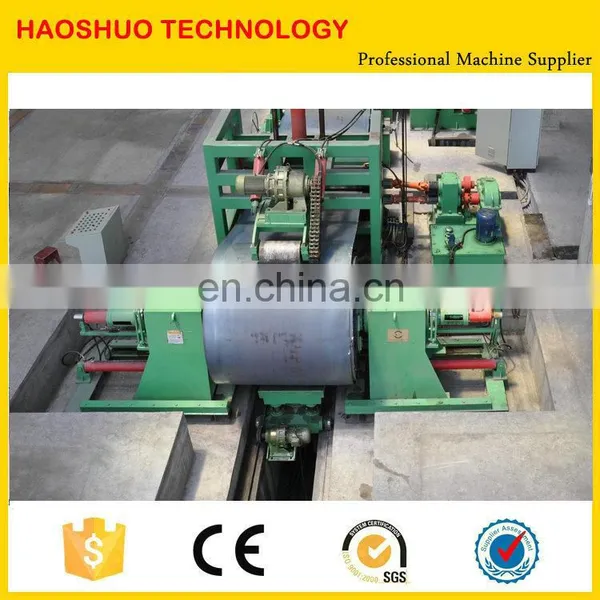

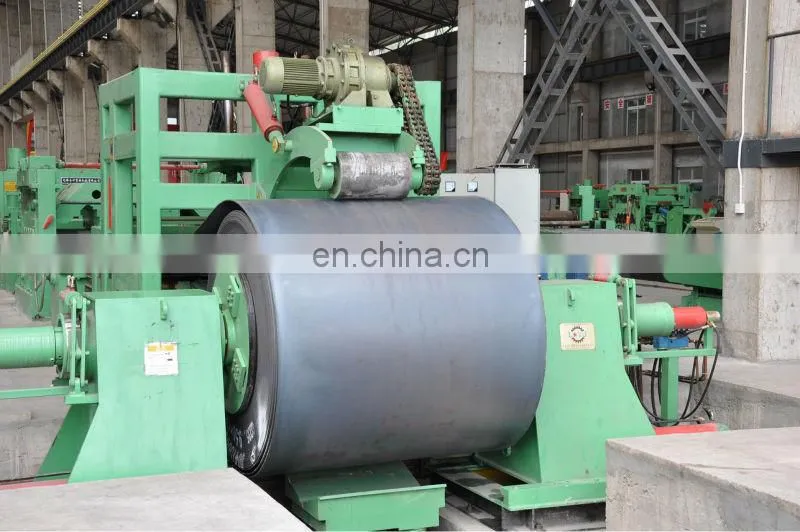

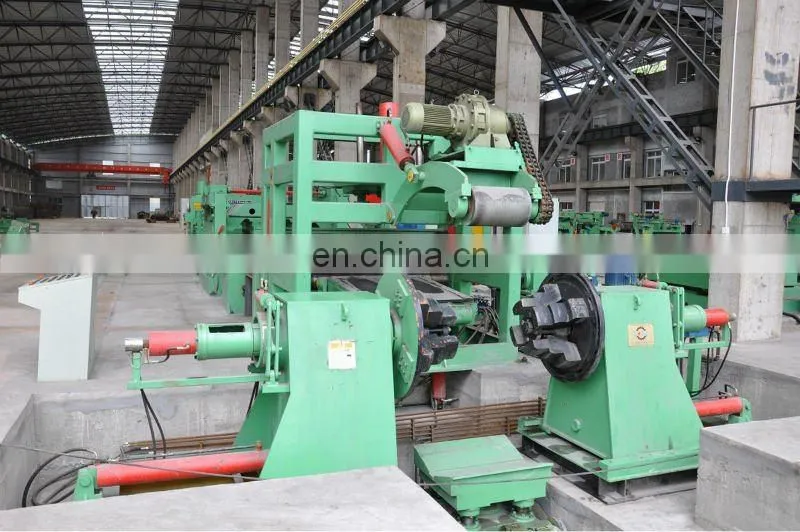

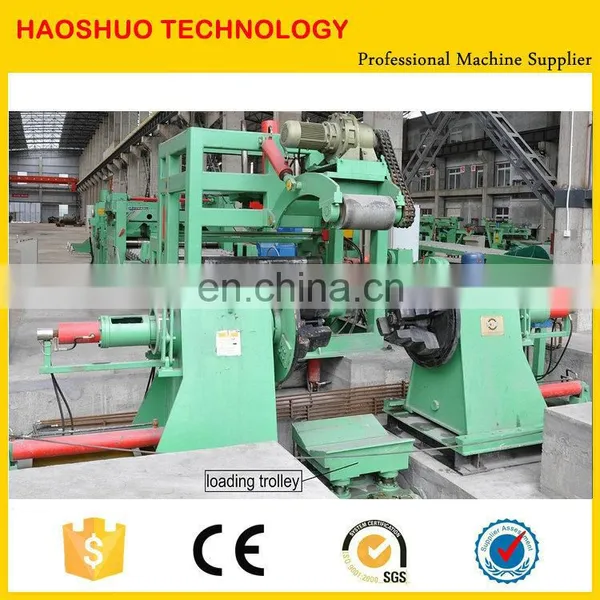

1. Double cone heavy duty decoiler, capacity up to 40 tons(as per need)
2. DC or AC driving for slitting and recoiling
3. Mitsubishi PLC controlling, VF speed control, touch screen operating
4. High speed design depends on material thickness
5. China famous brand products, specialized in the manufacturing slitting line and cut to length line
Work Flow

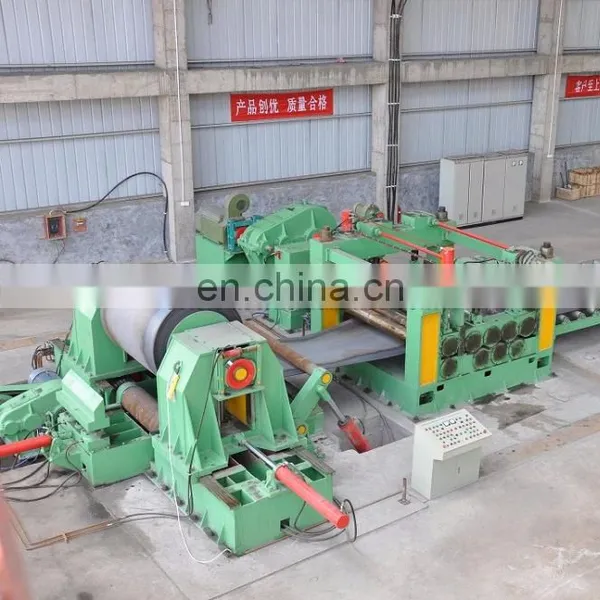

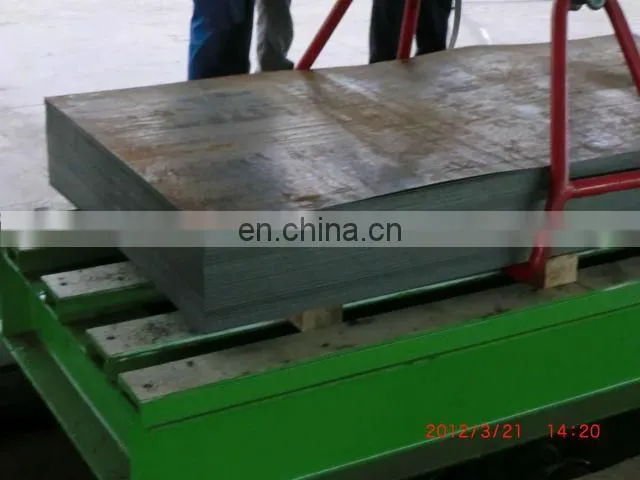

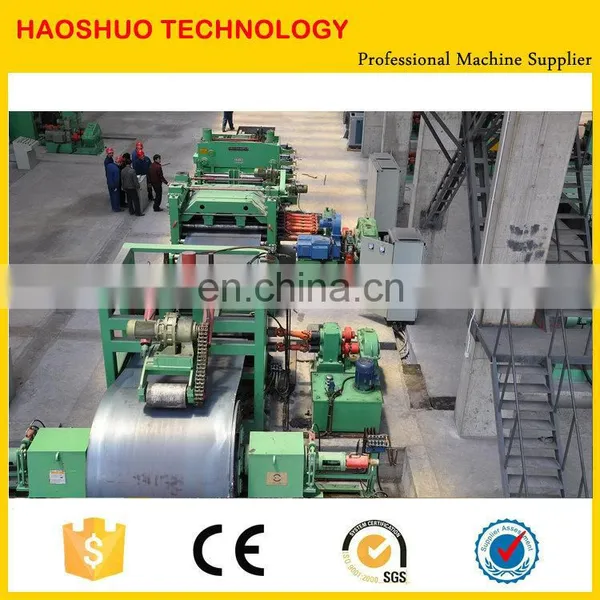

Feeding trolley→ un-coiler→ leading and traction head, pinch roll feeding→ high precision leveling device→ cut to length→ unloading table/auto-stacking table
Main Machine Components
Main Electric Elements
Motor controller: Eurotherm/ Siemens/Mitsubishi
PLC: Mitsubishi/Siemens
Encoder: Omron
Inverter: Mitsubishi/Yaskawa/Delta
Touch screen: Inovance/Delta

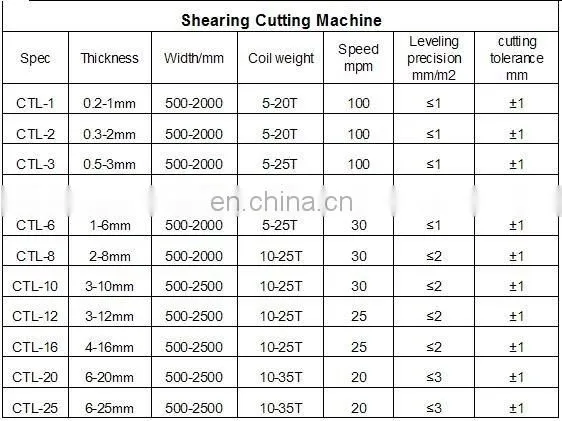

Spec list of Cut to length line
Detailed Data
Model |
3×1600 |
6×1600 |
8×2000 |
10×2200 |
12×2200 |
16×2200 |
20×2500 |
25×2500 |
Coil Thickness/mm |
0.2-3 |
1-6 |
2-8 |
2-10 |
3-12 |
4-16 |
6-20 |
8-25 |
Coil Width/mm |
1600 |
1600 |
2000 |
2200 |
2200 |
2200 |
2500 |
2500 |
Tolerance/mm |
±0.5 |
±0.5 |
±1 |
±1 |
±1 |
±1 |
±1 |
±1 |
Leveling Roller |
15 |
15 |
13 |
13 |
11 |
11 |
9 |
9 |
Roller Shaft Diameter/mm |
90 |
140 |
155 |
160 |
180 |
200 |
230 |
260 |

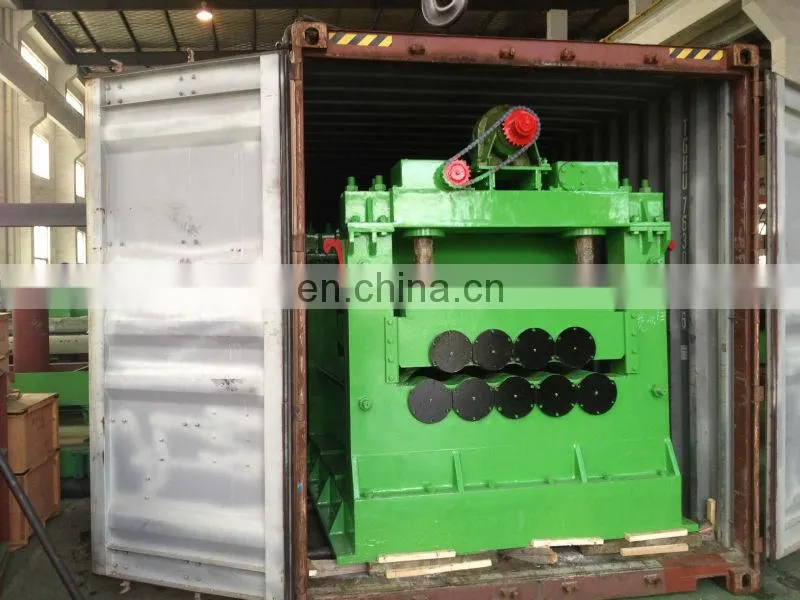

According to the line spec, FCL will be needed for the shipment.

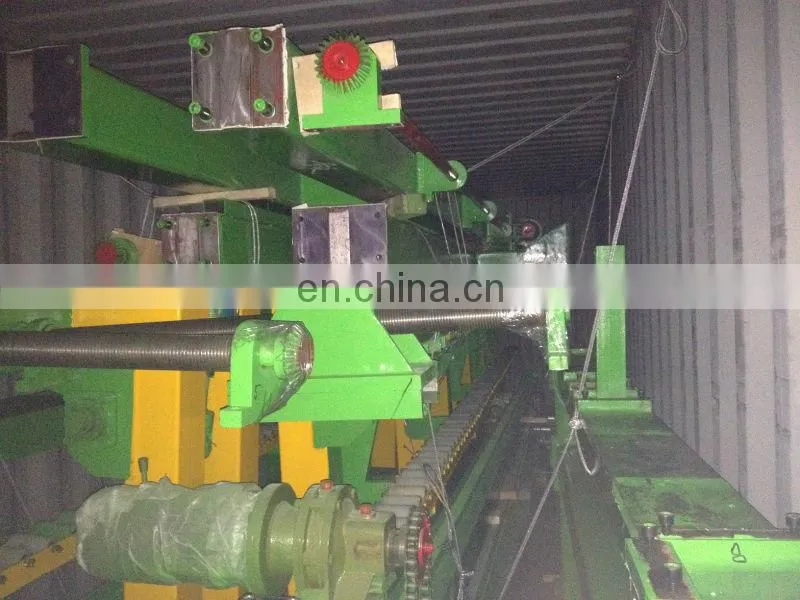

Normally three or more 40 feet containers for shipment
- One stop service for customized machine
- Overseas installation & operating training
- One year warranty of the whole machine
- Life-long technical support
1. Machine installation & commissioning, training:
2-3 technicians will be dispatched to Buyer’s plant for installation & commissioning. Work period: in 30 days
The expense of round trip tickets, accommodation, safety and interpretation shall be covered by Buyer, additional pay allowance to the technicians.
2. warranty: one year
3. Price basis: FOB or CNF or CIF
