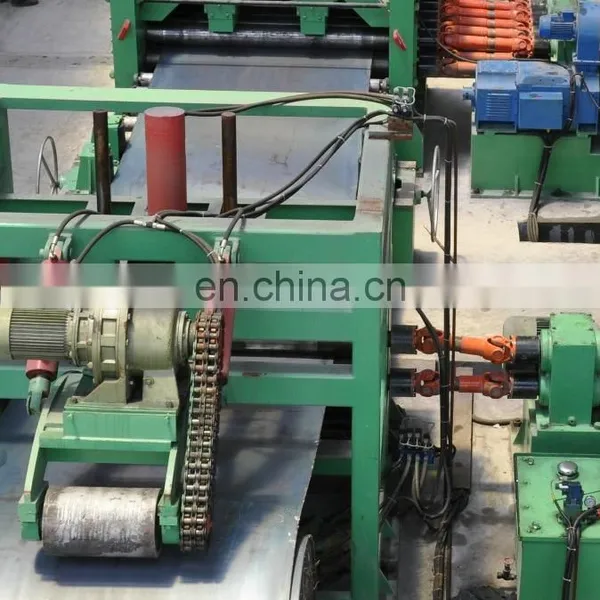

HR CR Steel Coil Cut to Length Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
1995
Annual Export Value:
US$2.5 Million - US$5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HR CR Steel Plate Leveling Machine Cut To Length MachineNegotiableMOQ: 1 -
Steel Coil Cut to Length Line for Steel Coil Straightening and CuttingNegotiableMOQ: 1
-
High Quality High Speed Steel Coil Opening Leveling and Cutting to Length MachineNegotiableMOQ: 1
-
Hot Rolled or Cold Rolled Coil Cut to Length Line 1-6X2000mmNegotiableMOQ: 1
-
Wuxi Famous Brand Steel Coil Cut To Length LineNegotiableMOQ: 1
Product Description
This Cut to Length Line is suitable for decoiling, leveling & cutting steel coils into required length. The production line has
the feature of high precision, topping stabilization, and excellent performance. Using PLC system to control the whole line’s work, the operation is convenient and easy.
The machine adopts PLC VF controlling system, DC driving for the leveling, Touch screen operating and digital display. The
production line is widely used for steel coil servcing for cold rolled steel, hot rolled steel, galvanized steel, stainless steel,
etc.
the feature of high precision, topping stabilization, and excellent performance. Using PLC system to control the whole line’s work, the operation is convenient and easy.
The machine adopts PLC VF controlling system, DC driving for the leveling, Touch screen operating and digital display. The
production line is widely used for steel coil servcing for cold rolled steel, hot rolled steel, galvanized steel, stainless steel,
etc.
Feature of the Machine
1. Double cone heavy duty decoiler, capacity up to 40 tons(as per need)
2. DC or AC driving for slitting and recoiling
3. Mitsubishi PLC controlling, VF speed control, touch screen operating
4. High speed design depends on material thickness
5. China famous brand products, specialized in the manufacturing slitting line and cut to length line
Work Flow

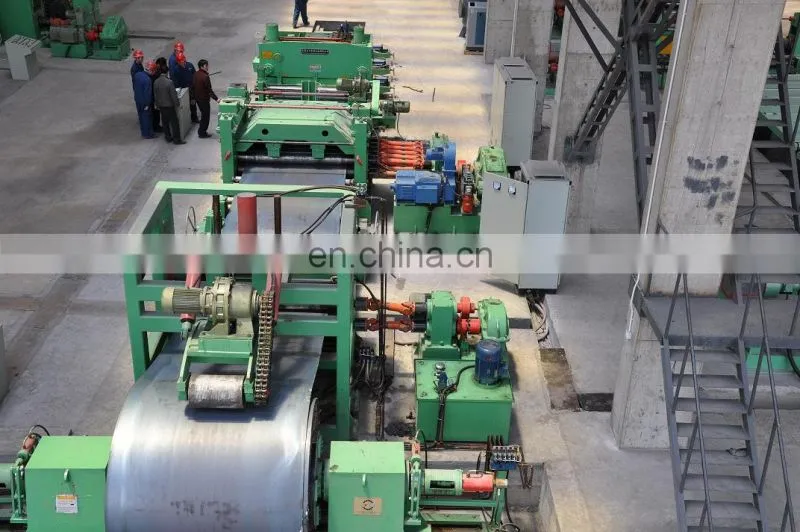

Feeding trolley→ un-coiler→ leading and traction head, pinch roll feeding→ high precision leveling device→ cut to length→unloading table/auto-stacking table
Main Machine Components

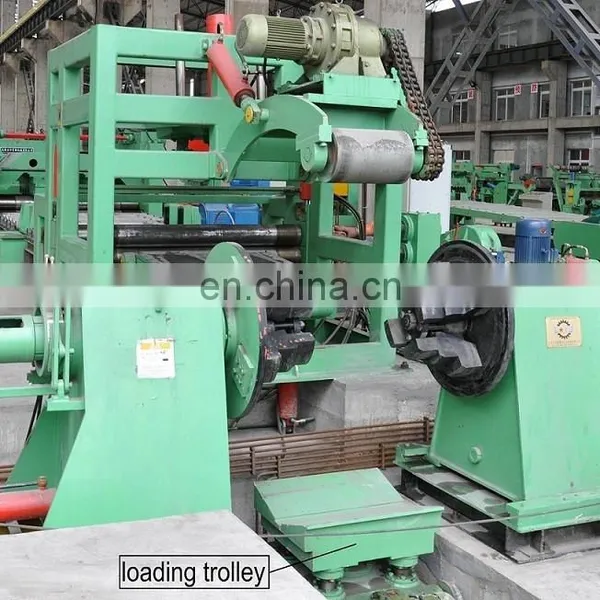

Feeding trolley………………………………………………………………...........…....1 set

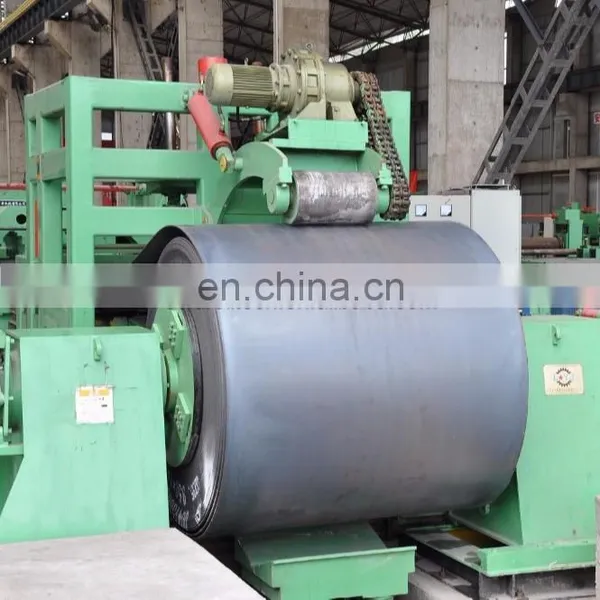

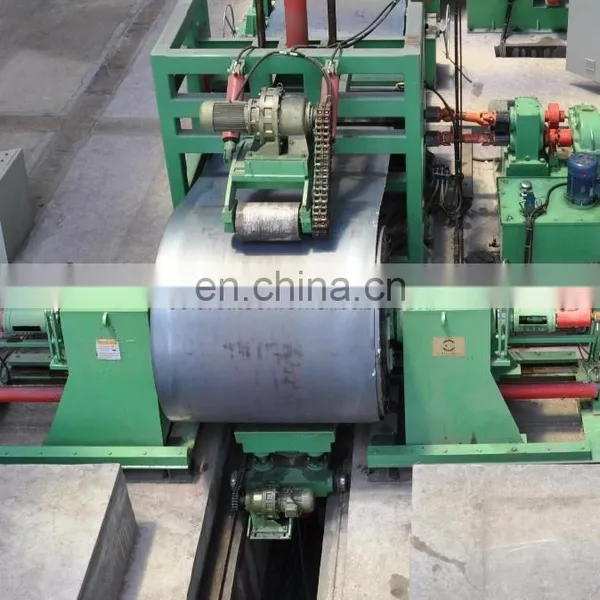

Hydraulic dual cone decoiler…………………………………………….……......1 set
Guiding device…………………..…..……....………………………………........…….1 set
Feeder…..............……...…………………………………………………...................1 set
Calibrating and centering unit…..………………………………………….…...…1 set

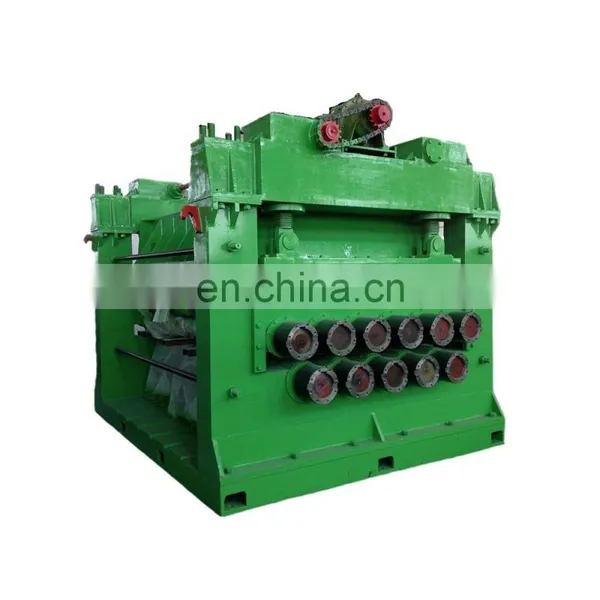

4-Hi Precision leveler…....………………..………………………………….....…....1 set
Shear..............…………………………………………………………..….…................1 set
Auto- stacker………….……….……………………………………………….….............1 set
Hydraulic station…………………….......................................................1 set
Electric control system………………..……….……………………………..….......1 set
1. Double cone heavy duty decoiler, capacity up to 40 tons(as per need)
2. DC or AC driving for slitting and recoiling
3. Mitsubishi PLC controlling, VF speed control, touch screen operating
4. High speed design depends on material thickness
5. China famous brand products, specialized in the manufacturing slitting line and cut to length line
Work Flow
Feeding trolley→ un-coiler→ leading and traction head, pinch roll feeding→ high precision leveling device→ cut to length→unloading table/auto-stacking table
Main Machine Components
Feeding trolley………………………………………………………………...........…....1 set
Hydraulic dual cone decoiler…………………………………………….……......1 set
Guiding device…………………..…..……....………………………………........…….1 set
Feeder…..............……...…………………………………………………...................1 set
Calibrating and centering unit…..………………………………………….…...…1 set
4-Hi Precision leveler…....………………..………………………………….....…....1 set
Shear..............…………………………………………………………..….…................1 set
Auto- stacker………….……….……………………………………………….….............1 set
Hydraulic station…………………….......................................................1 set
Electric control system………………..……….……………………………..….......1 set
Main Brands
Motor controller: Eurotherm/ Parker/ Siemens/Mitsubishi
PLC: Mitsubishi/Siemens
Encoder: Omron/Rep
Inverter: Mitsubishi/Yaskawa/Delta
Touch screen: Inovance/Delta
Encoder: Omron/Rep
Inverter: Mitsubishi/Yaskawa/Delta
Touch screen: Inovance/Delta
DC motor: Wuxi Xishan
Size Information
Size Chart of This Design
Model |
3×1600 |
6×1600 |
8×2000 |
10×2200 |
12×2200 |
16×2200 |
20×2500 |
25x2500 |
Coil Thickness/mm |
0.2-3 |
1-6 |
2-8 |
2-10 |
3-12 |
4-16 |
6-20 |
8-25 |
Coil Width/mm |
1600 |
1600 |
2000 |
2200 |
2200 |
2200 |
2500 |
2500 |
Tolerance/mm |
±0.5 |
±0.5 |
±1 |
±1 |
±1 |
±1 |
±1 |
±1 |
Leveling Roller |
15 |
15 |
13 |
13 |
11 |
11 |
9 |
9 |
Roller Diameter/mm |
90 |
140 |
155 |
160 |
180 |
200 |
230 |
260 |

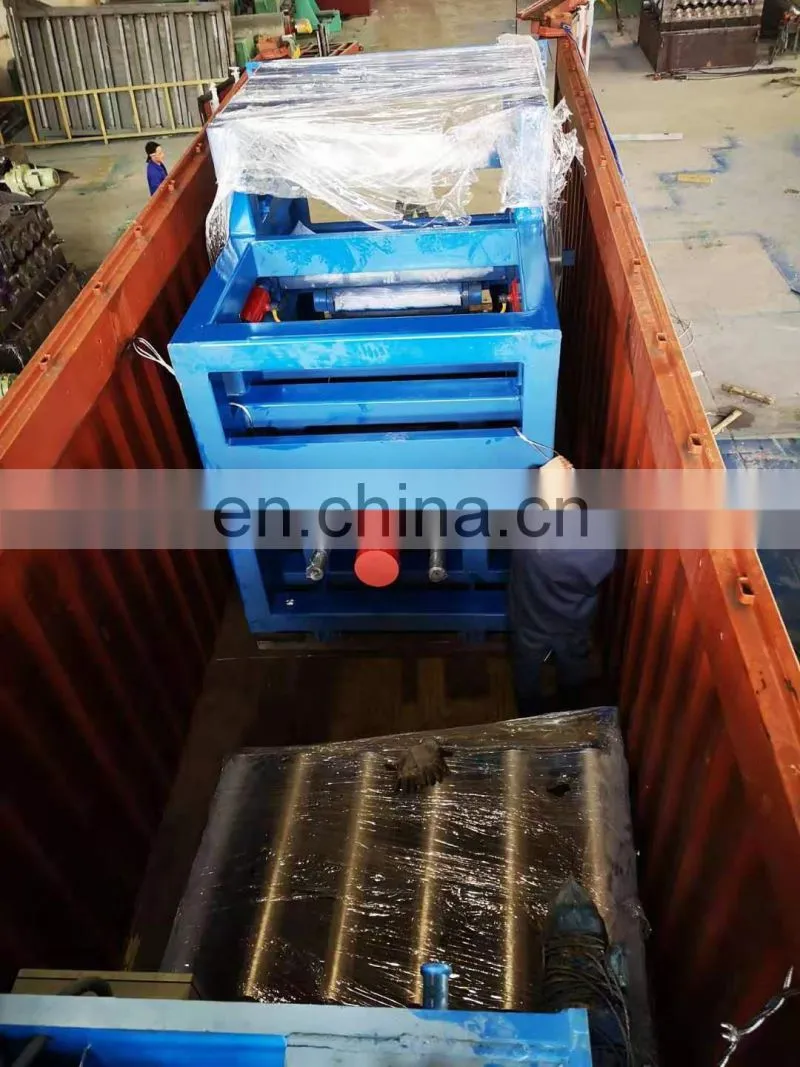

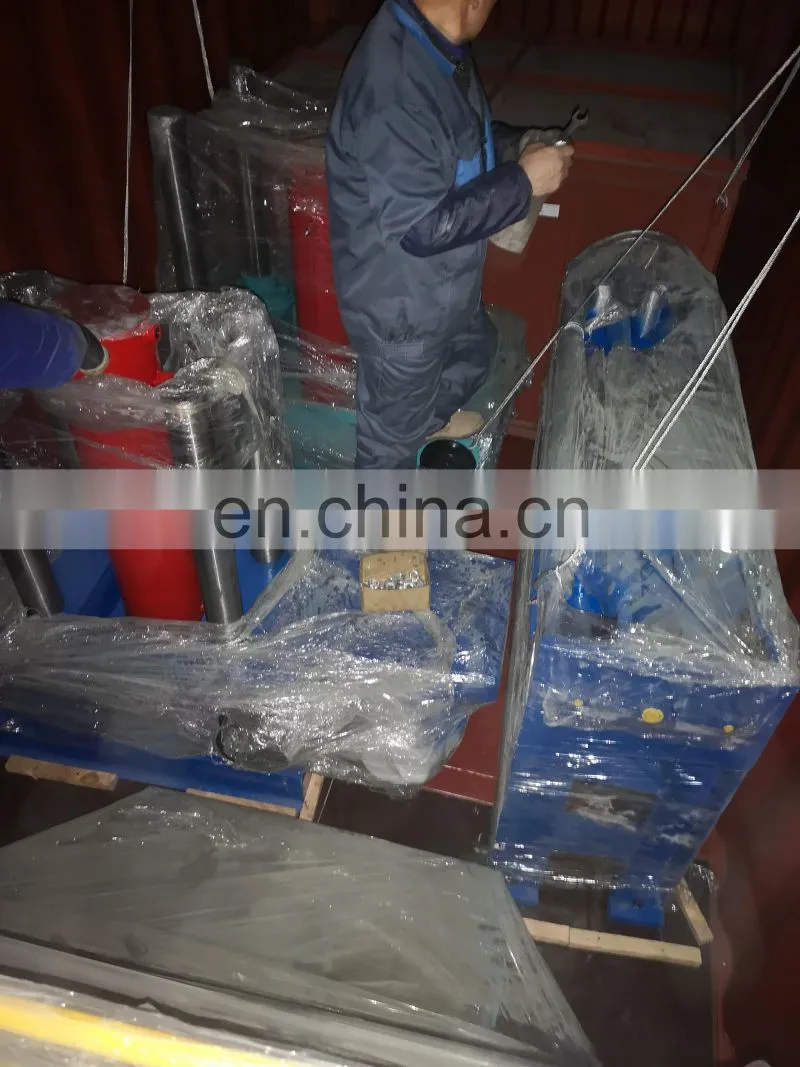

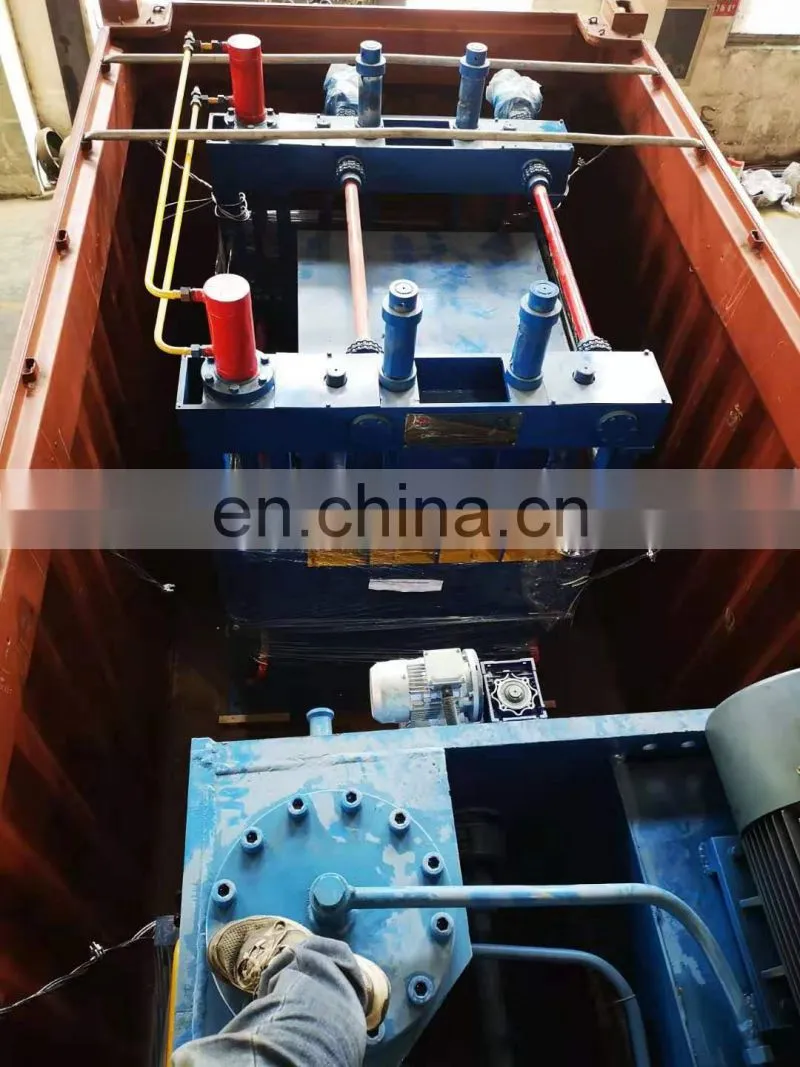

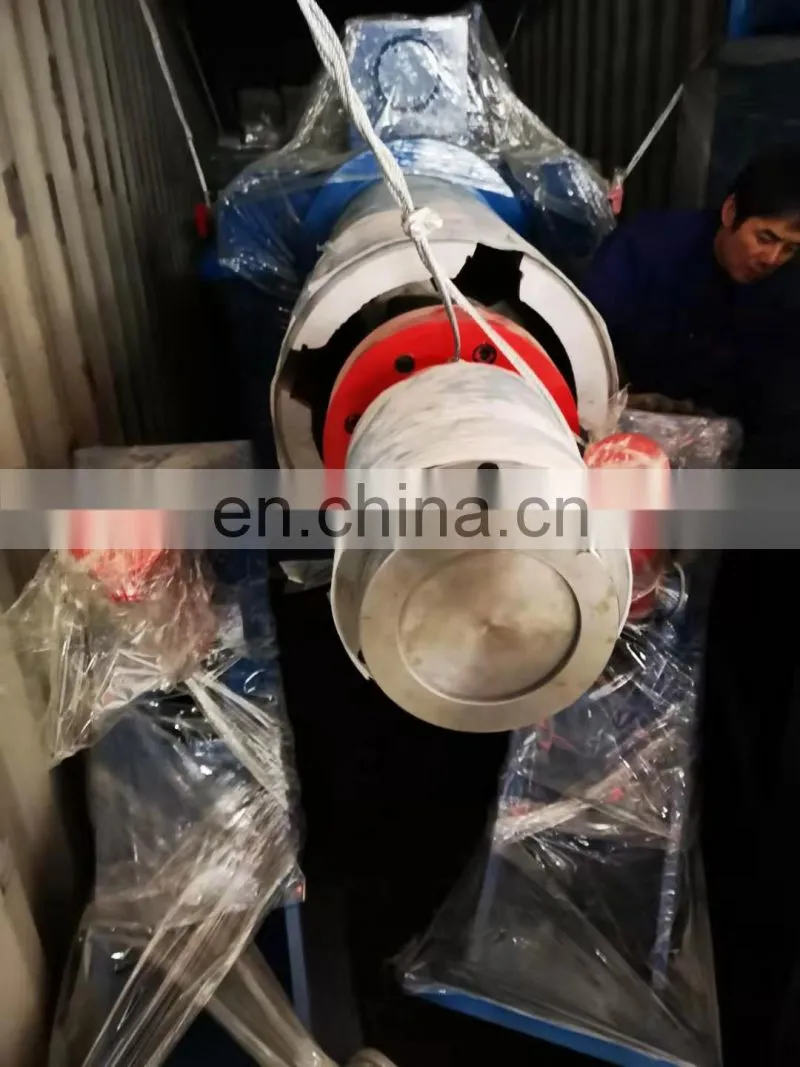

Packing&Shipping
According to the line spec, FCL will be needed for the shipment.
Company Introduction
Wuxi Haoshuo Technology Co., Ltd. is one professional enterprise supplying one-stop service for machines and equipments. We have an energetic team experienced in import & export trading, designing & manufacturing, installation and after-sale service. Our factory is located in high-tech industrial development zone of Wuxi City, Jiangsu Province of China, just an hour's drive from Shanghai City, the most prosperous city in China. There are expressways around the City, and one airport near us. We takeadvantage of convenient transportation and good environment to offer the first class service to our clients.
Our Services & Strength
* One stop service for customized machine
* Overseas installation & operating training
* One year warranty of the whole machine
* Life-long technical support
* Overseas installation & operating training
* One year warranty of the whole machine
* Life-long technical support
FAQ
1. Machine installation & commissioning, training:
2-3 technicians will be dispatched to Buyer’s plant for installation & commissioning. Work period: in 30 days
The expense of round trip tickets, accommodation, safety and interpretation shall be covered by Buyer, additional pay allowance to the technicians.
2. warranty: one year
3. Price basis: FOB or CNF or CIF
2-3 technicians will be dispatched to Buyer’s plant for installation & commissioning. Work period: in 30 days
The expense of round trip tickets, accommodation, safety and interpretation shall be covered by Buyer, additional pay allowance to the technicians.
2. warranty: one year
3. Price basis: FOB or CNF or CIF
