Customized SINO TRUK HOWO 8tons telescopic crane boom mounted on cargo truck for sale,
Customized SINO TRUK HOWO 8T telescopic crane boom mounted on cargo truck adopts SINO TRUK HOWO 2080mm width one row and a half driver cab, 4600mm wheelbase, 6 speed manual gearbox, 3.6T front axle/10.5T rear axle, 9.00R20 rail tires, YC4E160-33 yuchai 160hp diesel engine, etc.
The overall dimension SINO TRUK HOWO 4*2 LHD cargo truck with crane is 8600×2500×3900(mm); and the cargo body dimension(L*W*H): 5200×2450×550/600(mm). And client choose to install high quality CLW Brand/XCMG brand 6.3tons/8tons telescopic/knuckle crane boom.
Main technical parameters of SINO TRUK HOWO 8T cargo truck with crane manufactured by Chengli Special Automobile Co., Ltd. is as below.
Product name |
SINO TRUK HOWO 4*2 LHD 8tons telescopic crane mounted on truck for sale |
|
Chassis type |
ZZ |
|
Parameters |
Overall dimension length/width/height (mm) |
600×2500×3900 |
Cargo body dimension (L*W*H)(mm) |
5200×2450×550/600 |
|
GVW(kg) |
15800 (Kg) |
|
Kerb Mass(kg) |
10500 (Kg) |
|
Rated mass(kg) |
7305(Kg) |
|
Approach angle/ Departure angle(mm) |
19/11 (°) |
|
Front suspension/rear suspension(mm) |
1260/2640 (mm) |
|
Fuel Type |
diesel |
|
Max Speed |
105 |
|
Engine |
Type |
YC4E160-33 |
Displacement/Power(kw) |
4260ml/118KW/140hp |
|
Manufacturer |
YUCHAI diesel engine |
|
Chassis |
Drive Type |
4×2 |
Wheelbase(mm) |
4700 |
|
Tread(front/rear) |
1940/1860 (mm) |
|
Transmission |
6 speed transmission |
|
Braking system |
Air braking |
|
Cab |
SINO TRUK HOWO 2080mm width one row and a half driver cab |
|
Number of spring axle(front/rear) |
8/10+7 |
|
Tire Type |
9.00R20 tires |
|
Air-condition |
Choose to fix |
|
Upper part(cargo van and crane boom) main parameters | ||
Upper body |
Cargo body dimension |
5200×2450×550/600 |
Material |
Carbon steel |
|
Side sheet thickness |
2mm thickness |
|
Bottom sheet thickness |
3mm thickness |
|
Painting |
Upon request |
|
Crane boom main parameters | ||
Crane boom |
Choose to install XCMG Brand 8tons telescopic crane boom |
|
Lifting height |
15.6m |
|
Working radius |
13.5m |
|
Aerial operation seat |
Yes |
|
Hydraulic operation |
Yes, full hydraulic operation |
|
Full rotation |
Yes, full rotation |
|
The color of the whole truck is upon request. | ||
If you're interested in our truck with crane, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat/Mob.: 0086 13329899995.

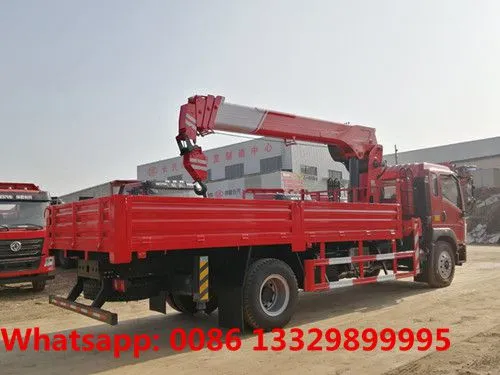

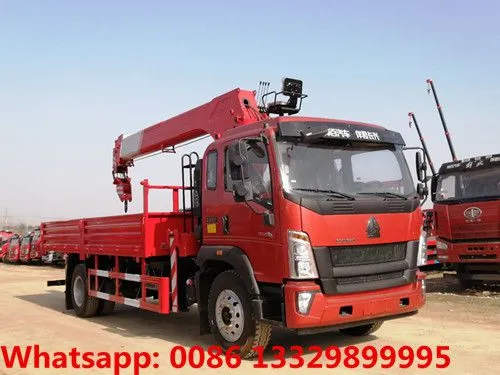

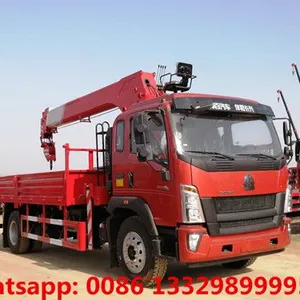

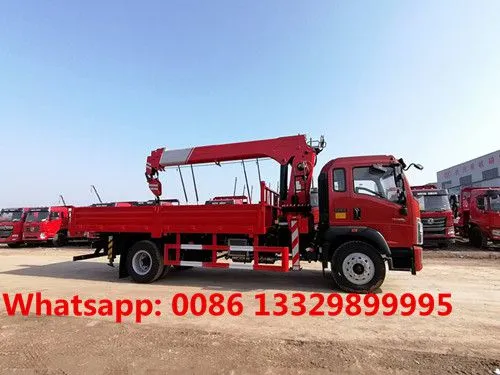

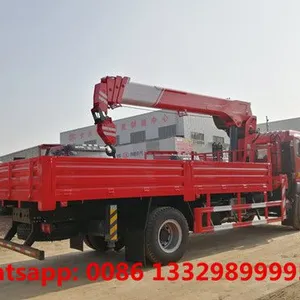

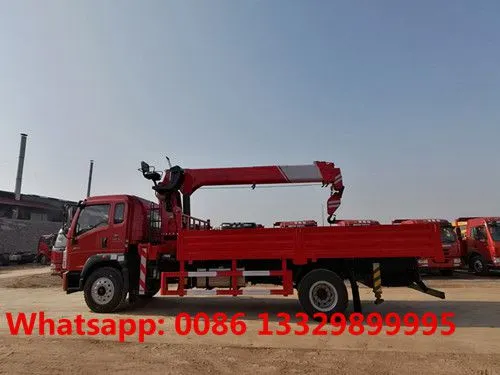

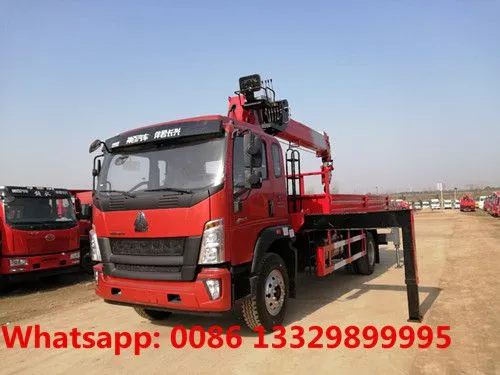

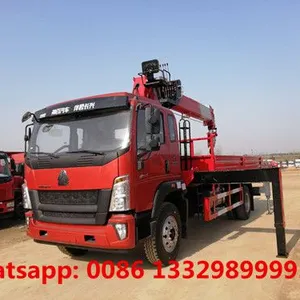

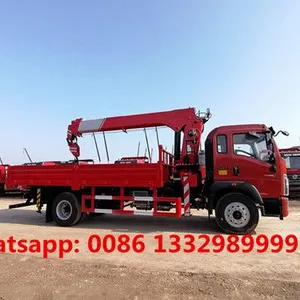

More pictures of HOWO 6.3T truck mounted on crane boom is as below.
As a professional boom truck manufacturer in China,we Chengli Special Automobile Co., Ltd. can design and manufacture the crane capacity is from 2 ton to 160 ton. The drive type of chengli crane truck for sale are 4x2, 6x2, 6x4,8x4,etc. The truck mounted crane for sale are telescopic boom crane, knuckle boom crane.Also, Our crane trucks are 360 degree roatate. It is with high quality, long life, high speed, etc. The crane can be crane, chengli crane, sany crane, etc.
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of truck with crane in China since 2004s. With many years' development, Chengli Special Automobile Co., Ltd. could supply truck mounted crane from 1ton to 20ton and heavy duty truck with cranes. More information, please feel free to contact with Ms. Anita Deng. The hot sale line is 0086 13329899995.
