Factory sale good price ISUZU 700P 5T mobile cargo truck with crane for sale
The cargo crane is also called truck mounted crane, crane truck, truck with crane, etc. The truck with crane is mainly used to lift and transport the constuction material, equipment or other large goods by municipal corporation, mining engineering department, plant department,etc
As a professional cargo truck crane supplier in China, we Chengli Special Automobile Co., Ltd. manufacture the crane boom is from 2 ton to 160 ton. The drive type of our truck crane for sale are 4x2, 6x2, 6x4,8x4,etc. The truck mounted crane for sale are telescopic boom truck mounted crane, knuckle boom truck mounted crane.Also, Our crane trucks are 360 degree roatate. It is with high quality, long life, high speed, etc. The crane for truck can be crane, chengli crane, sany crane, unic crane, kanglim crane, etc.
Customized ISUZU brand 700P 5T truck with crane, adopts Isuzu 700P single row driver cab, 5200mm wheelbase, ISUZU MLD 6 speed transmission, 4tons front axle/7tons rear axle, 4HK1-TCG40 190hp diesel Euro 4 engine, 8.25-16 nylon tires, etc.
The cargo body dimension of ISUZU 5tons telescopic crane boom mounted on cargo truck is 5100, 5500×2150,2350×400,450; the overall dimension of ISUZU 5tons telescopic truck with crane is 8000×2310,2498×3300,3500. Choose to install CLW brand 5tons 3 sections telescopic crane boom, the lifting height is 10.6m; while the working radius is 8.6m.
If you're interested in our truck with crane, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat/Mob.: 0086 13329899995.

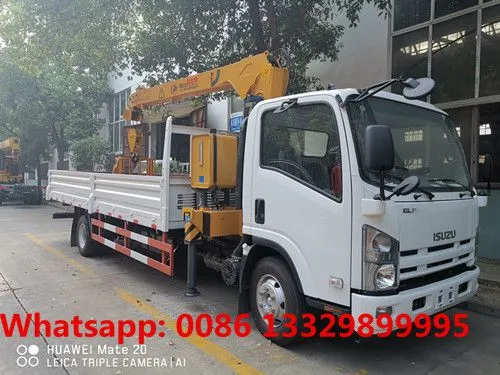

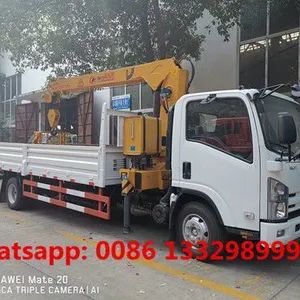

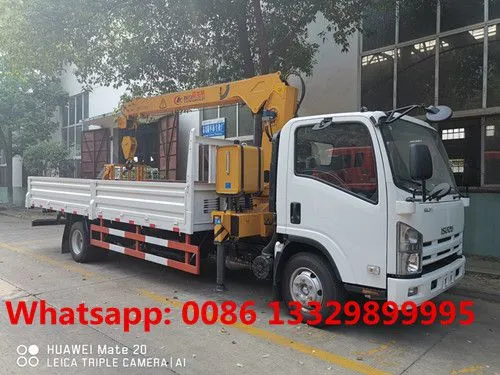

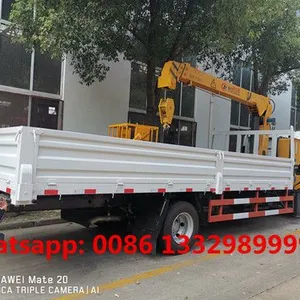

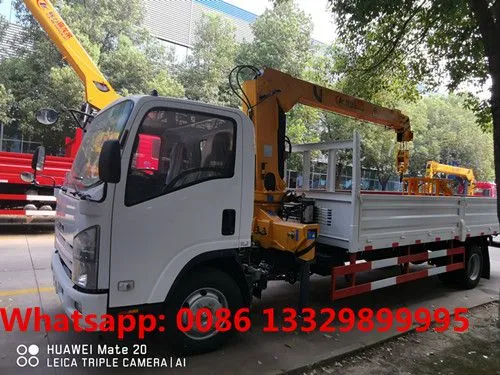

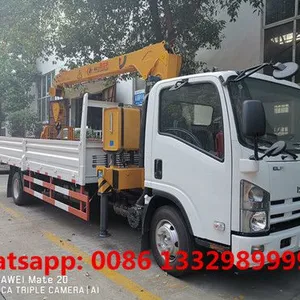

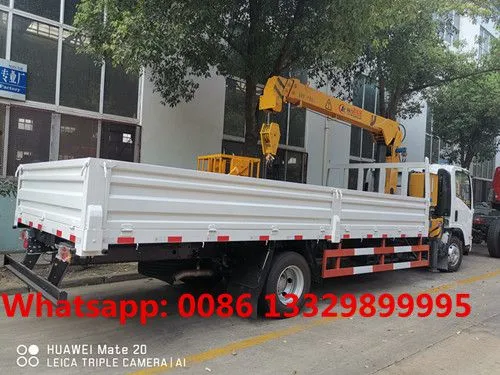

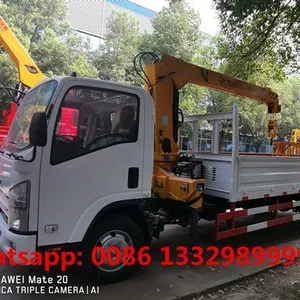

More pictures of ISUZU 700P 5T cargo truck with crane is as below.
Good price ISUZU brand 700P 5T cargo truck with crane for sale
the specification of ISUZU brand 5tons telescopic crane boom mounted on truck manufactured by Chengli Special Automobile Co., Ltd. as below.
Product name |
ISUZU brand LHD 5 tons telescopic crane boom mounted on truck for sale |
|
Chassis type |
QL11019PARY |
|
Parameters |
Overall dimension length/width/height (mm) |
8000×2310,2498×3300,3500 |
Cargo body dimension (L*W*H)(mm) |
5100, 5500×2150,2350×400,450 |
|
GVW(kg) |
10000(Kg) |
|
Kerb Mass(kg) |
4810 (Kg) |
|
Rated mass(kg) |
4995(Kg) |
|
Approach angle/ Departure angle(mm) |
21/10 (°) |
|
Front suspension/rear suspension(mm) |
1110/1690 |
|
Fuel Type |
diesel |
|
Max Speed |
110 |
|
Engine |
Type |
4HK1-TCG40 |
Displacement/Power(kw) |
5193ml/139KW/190hp |
|
Manufacturer |
ISUZU Engine Co.,Ltd |
|
Chassis |
Drive Type |
4×2 |
Wheelbase(mm) |
5200 |
|
Tread(front/rear) |
1680/1650 (mm) |
|
Transmission |
ISUZU MLD 6 speed transmission |
|
Braking system |
Air braking |
|
Cab |
Dongfeng isuzu 700P single row driver cab |
|
Number of spring axle(front/rear) |
8/10+6 |
|
Tire Type |
825-16 |
|
Air-condition |
Original air conditioner |
|
Upper part(cargo van and crane boom) main parameters | ||
Upper body |
Cargo body dimension |
5500×2150,2350×400,450 |
Material |
Carbon steel |
|
Side sheet thickness |
2mm thickness |
|
Bottom sheet thickness |
2mm thickness |
|
Painting |
Upon request |
|
Crane boom main parameters | ||
Crane boom |
Choose to install CLW brand 5tons 3 sections telescopic crane boom |
|
The lifting height |
10.6m |
|
The working radius |
8.6m |
|
The color of the whole truck is upon request. | ||
