Help CenterDongfeng Duolika LHD/RHD 3.2 Tons Telescopic Crane Boom Mounted on Truck for Sale
Related Products
-
High Quality and Good Price Dongfeng 3.2T Knuckle Crane Boom Mounted on Cargo Truck for SaleUS$ 20000 - 30000MOQ: 1 Piece -
Factory Sale Best Price Dongfeng Brand RHD 6.3T Mobile Cargo Truck With Crane for SaleUS$ 30000 - 40000MOQ: 1 Piece
-
Customized SHACMAN Brand 8*4 LHD 14T Knuckle Crane Boom Mounted on Cargo Truck for SaleUS$ 35000 - 45000MOQ: 1 Piece
-
HOT SALE! ISUZU Brand Double Cabs 4*2 LHD120hp Diesel 2T Cargo Truck With CraneUS$ 25000 - 30000MOQ: 1 Piece
-
High Quality and Best Price ISUZU JAPAN 700P 4*2 LHD 5T Cargo Truck With Crane for SaleUS$ 35000 - 45000MOQ: 1 Piece
Product name | Dongfeng duolika LHD/RHD 3.2 tons telescopic crane boom mounted on truck for sale (CLW5110JSQ3) | |
Chassis type | EQ1110T9ADJ3AC | |
Parameters | Overall dimension length/width/height (mm) | 7050×2420×3230 |
Cargo body dimension (L*W*H)(mm) | 4300,4200×2050×550 | |
GVW(kg) | ||
Kerb Mass(kg) | 5330 (Kg) | |
Rated mass(kg) | 5970(Kg) | |
Approach angle/ Departure angle(mm) | 22/12 (°) | |
Front suspension/rear suspension(mm) | 1180/2070 | |
Fuel Type | diesel | |
Max Speed | 90 | |
Engine | Type | CY4102BZQ |
Displacement/Power(kw) | 3856ml/88KW/120hp | |
Manufacturer | Dongfeng Cummins Engine Co.,Ltd | |
Type | 4-in-line inter-cooling; intercooling | |
Chassis | Drive Type | 4×2 |
Wheelbase(mm) | 3800 | |
Tread(front/rear) | 1831,1750/1640,1586 (mm) | |
Transmission | 5 forward gear,1 reverse gear, mechanical transmission | |
Braking system | Air braking | |
Cab | Dongfeng duolika single row driver cab | |
Number of spring axle(front/rear) | 11/9+7,8/10+7 | |
Tire Type | 7.50R16, | |
Air-condition | Choose to fix | |
Upper part(cargo van and crane boom) main parameters | ||
Upper body | Cargo body dimension | 4300,4200×2050×550 |
Material | Carbon steel | |
Side sheet thickness | 2mm thickness | |
Bottom sheet thickness | 3mm thickness | |
Painting | Upon request | |
Crane boom main parameters | ||
Crane boom | Choose to install CLW brand 3.2T 3/4 sections telescopic crane boom | |
Lifting height | 7.9m/10.6m | |
Working radius | 5.5.75m/8m | |
The color of the whole truck is upon request. | ||
If you're interested in our truck with crane, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat/Mob.: 0086 13329899995.

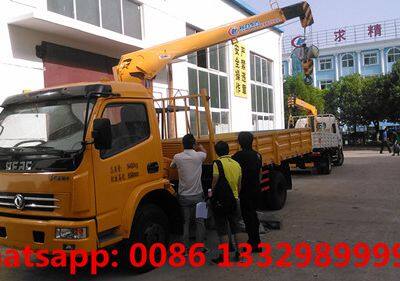

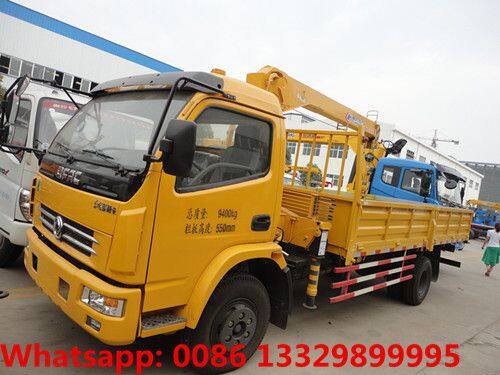

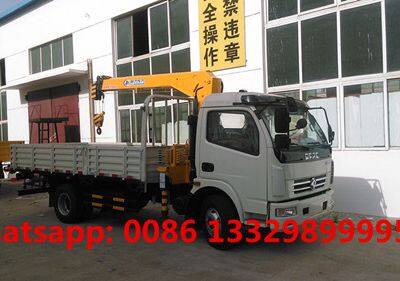

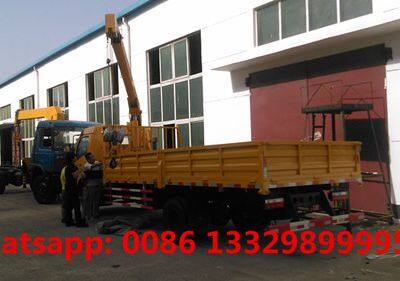

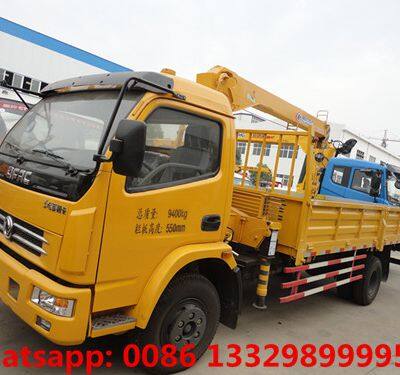

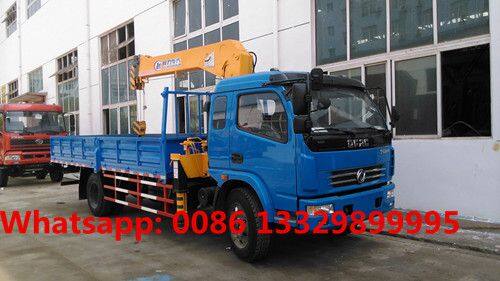

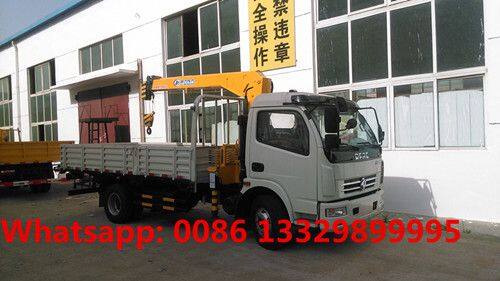

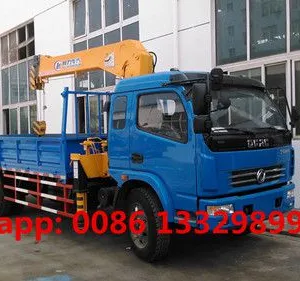

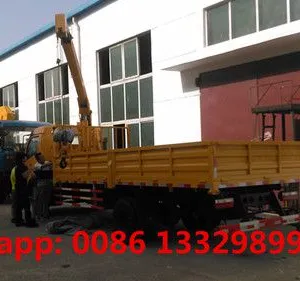

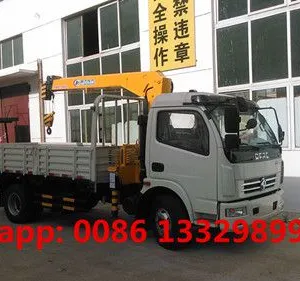

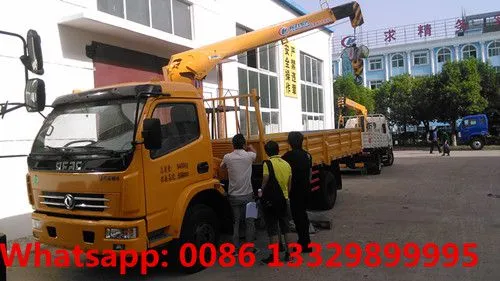

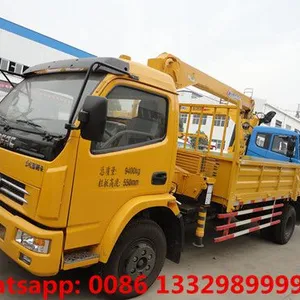

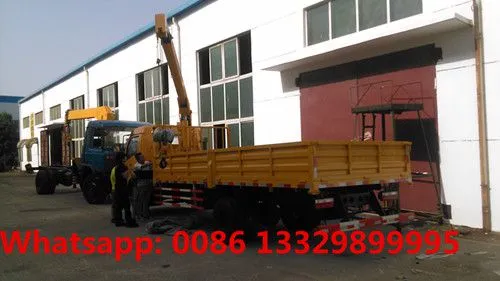

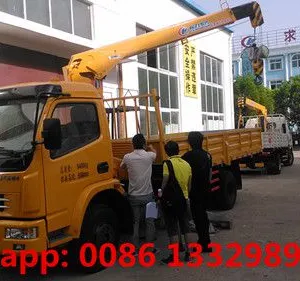

More pictures of DONGFNEG DUOLIKA 3.2T cargo truck with crane is as below.
As a professional boom truck manufacturer in China,we Chengli Special Automobile Co., Ltd. can design and manufacture the crane capacity is from 2 ton to 160 ton. The drive type of chengli crane truck for sale are 4x2, 6x2, 6x4,8x4,etc. The truck mounted crane for sale are telescopic boom crane, knuckle boom crane.Also, Our crane trucks are 360 degree roatate. It is with high quality, long life, high speed, etc. The crane can be crane, chengli crane, sany crane, etc.
The cargo crane is also called truck mounted crane, crane truck, truck with crane, etc. The truck with crane is mainly used to lift and transport the constuction material, equipment or other large goods by municipal corporation, mining engineering department, plant department,etc.
