The boom truck is also called cargo crane truck, hydraulic crane truck, boom truck with crane, dump crane truck, etc. The boom truck is mainly used to lift and transport the constuction material, equipment or other large goods by municipal corporation, mining engineering department, plant department,etc
As a professional boom truck manufacturer in China, the crane capacity is from 2 ton to 160 ton. The drive type of chengli crane truck for sale are 4x2, 6x2, 6x4,8x4,etc. The truck mounted crane for sale are telescopic boom crane, knuckle boom crane.Also, Our crane trucks are 360 degree roatate. It is with high quality, long life, high speed, etc. The crane can be crane, chengli crane, sany crane, etc.
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of truck with crane in China since 2004s. With many years' development, Chengli Special Automobile Co., Ltd. could supply truck mounted crane from 1ton to 20ton and heavy duty truck with cranes.
If you're interested in our cargo truck with crane, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat/Mob.: 0086 13329899995.

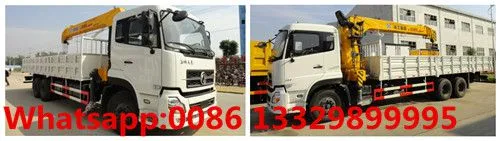

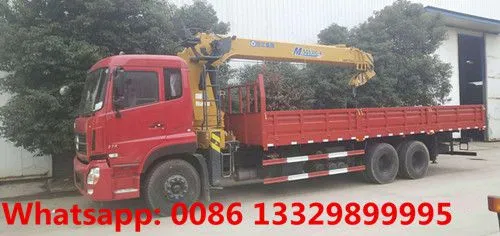

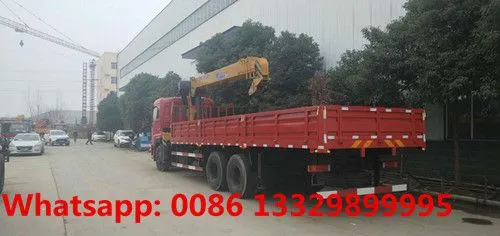

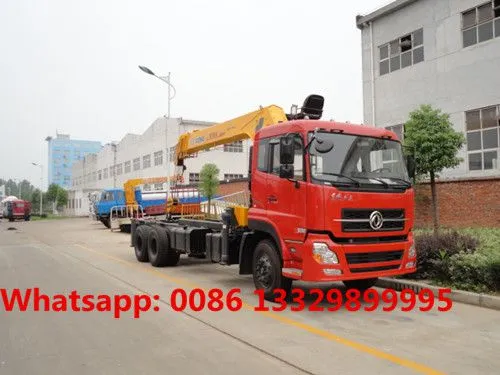

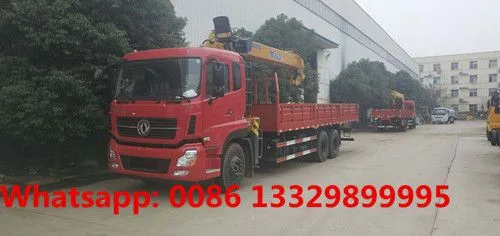

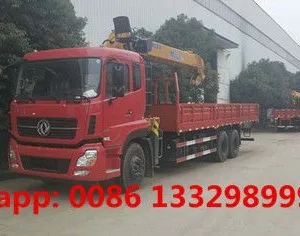

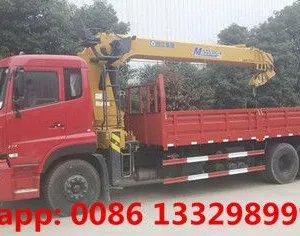

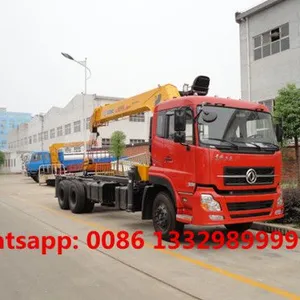

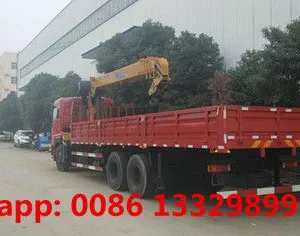

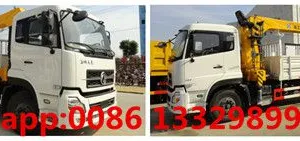

More pictures of Dongfeng tianlong 6*4 LHD 10T cargo truck with crane is as below.
HOT SALE! DONGFENG TIANLONG 10T cargo truck with crane for sale
main technical parameters of Dongfeng tianlong 6*4 LHD 10T telescopic crane boom mounted on truck for sale
Product name |
Dongfeng 6*4 10T telescopic crane boom mounted on truck for sale |
|
Chassis type |
DFL1250A9 |
|
Parameters |
Overall dimension length/width/height (mm) |
10980×2500×3750 |
Cargo body dimension (L*W*H)(mm) |
7300,7400×2294×800,550 |
|
GVW(kg) |
||
Kerb Mass(kg) |
14990(Kg) |
|
Rated mass(kg) |
9815(Kg) |
|
Approach angle/ Departure angle(mm) |
20/13 (°) |
|
Front suspension/rear suspension(mm) |
1460/2870 (mm) |
|
Fuel Type |
diesel |
|
Max Speed |
90 |
|
Engine |
Type |
C260 33 |
Displacement/Power(kw) |
8300ml/191KW/260hp |
|
Manufacturer |
Dongfeng Cummins Engine Co.,Ltd |
|
Type |
6-in-line inter-cooling; intercooling |
|
Chassis |
Drive Type |
6*4 |
Wheelbase(mm) |
5350+1300 |
|
Tread(front/rear) |
1986/1860/1860 (mm) |
|
Transmission |
7/8 forward gear,1 reverse gear, mechanical transmission |
|
Braking system |
Air braking |
|
Cab |
Dongfeng Tianjin 6*4 LHD one row and a half driver cab |
|
Number of spring axle(front/rear) |
8/9 |
|
Tire Type |
10.00-20,10.00R20 |
|
Air-condition |
Choose to fix |
|
Upper part(cargo van and crane boom) main parameters | ||
Upper body |
Cargo body dimension |
7300,7400×2294×800,550 |
Material |
Carbon steel |
|
Side sheet thickness |
2mm thickness |
|
Bottom sheet thickness |
3mm thickness |
|
Painting |
Upon request |
|
Crane boom main parameters | ||
Crane boom |
Choose to install CLW brand 10T 4 sections telescopic crane boom |
|
Lifting height |
15.5m |
|
Working radius |
13.5m |
|
The color of the whole truck is upon request. | ||
